ASTM A182 F60 Gate Valve, 1/2 Inch, 800 LB, API 602, FNPT

We Provide ASTM A182 F60 Gate Valves, ASTM A182 F60 Forged Steel Gate Valves, 1/2 Inch, DN15, 800 LB, API 602, Bolted Cover, HW-OP, OS & Y, SW-FNPT End.

Tags:

• 1/2 Inch Gate Valve
• DN15 Gate Valve
• Class 800 LB Gate Valve
• API 602 Gate Valve
• SW Gate Valve
• Forged Steel Gate Valve
• Bolted Cover Gate Valve
• FNPT Gate Valves

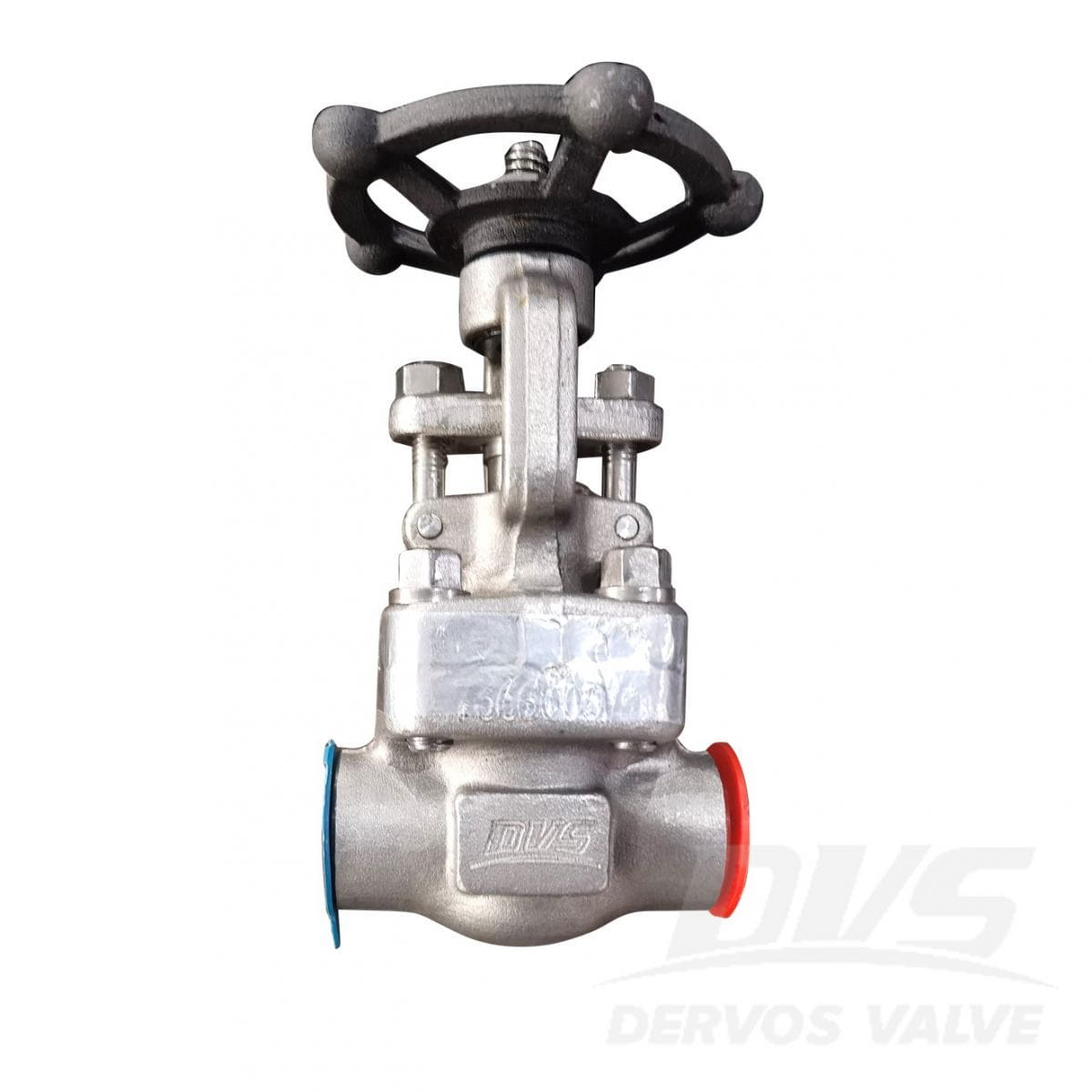

1/2" 800 LB Forged Steel Gate Valve API 602 A182-F60 HW-OP

Introduction

1/2" 800 LB gate valve is made according to API602 standard. The valve body is made of ASTM A182-F60. It has the structural characteristics of bolted cover connection, rigid gate, replaceable valve seat, and OS&Y. Its connection mode is SW-FNPT. And it has a handwheel operation mode.

Features

1. The fluid resistance is small, the external force required for opening and closing is small, and the flow direction of the medium is unrestricted;
2. The body shape is relatively simple, and the casting process is good.

Technical Drawing



Dimension Checking



Pressure Testing



Nameplate & Packing



Inspection report
