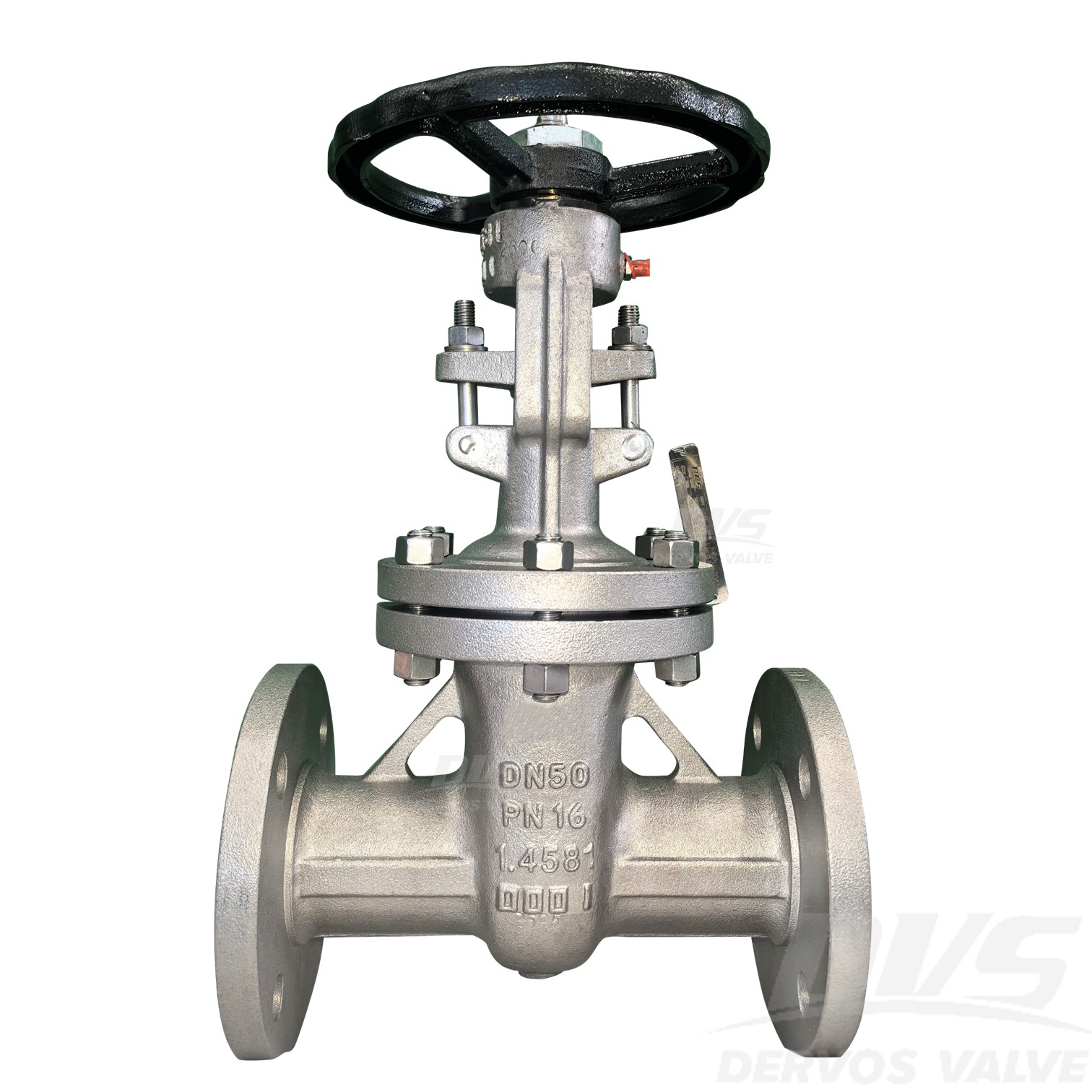

Cast Stainless Steel Gate Valve DN50 PN16 1.4581 EN 1092-1
Key Specifications / Features
Model No.: Hits: 0
DN50 PN16 Cast Stainless Steel Gate Valve is made according to ASME B16.34 standard. The valve body is made of 1.4581. It has the structural characteristics of Bolted bonnet, rising stem, full bore, flexible wedge, live-loaded (spring-loaded) packing gland, with backseat. Its connection mode is EN 1092-1. And it has Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Gate Valve 16" 300LB WCB RF
Detail Information
Product Parameters
| Type | Cast Stainless Steel Gate Valve |
| Size | DN50 |
| Pressure | PN16 |
| Connection | RF |
| Operation | Hand wheel |
| Body Material | 1.4581 |
| Design Norm | EN1984 |
| Face to face | DIN3202-F5 |
| Flange dimension | EN1092-1/D |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -32 ~ 400°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast stainless steel 1.4581 construction provides excellent corrosion resistance for demanding industrial service.2. PN16 flanged ends conform to EN 1092-1 for reliable pipeline connection and sealing.

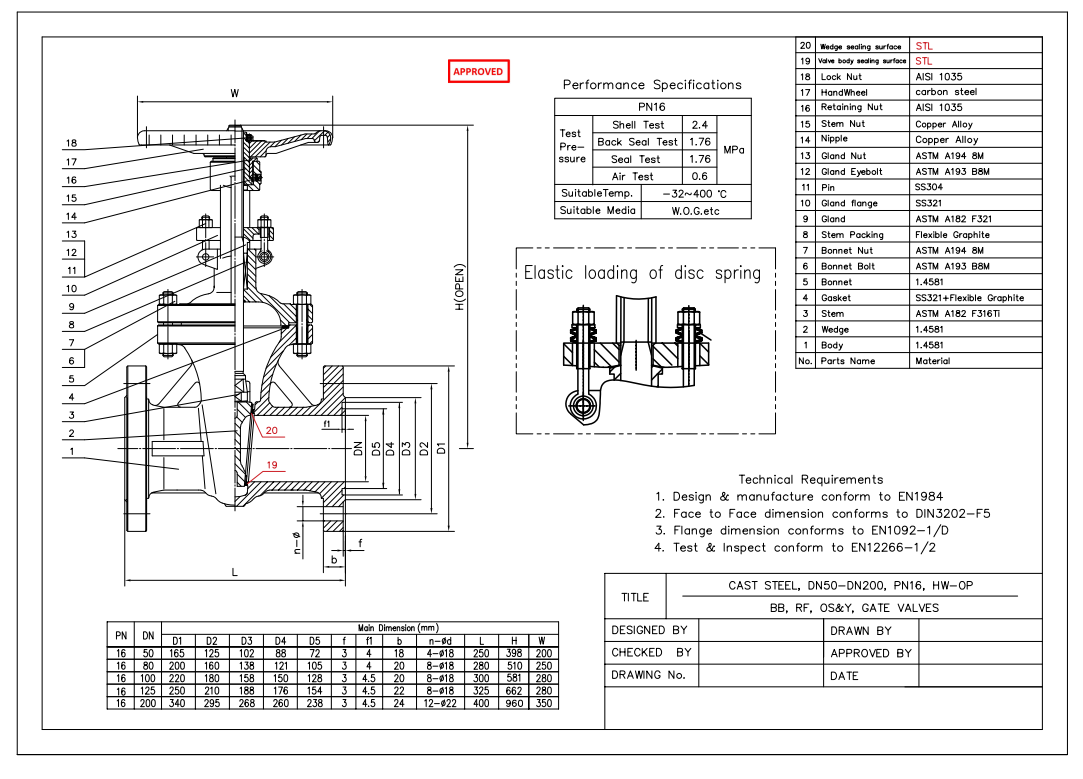

Technical Drawing

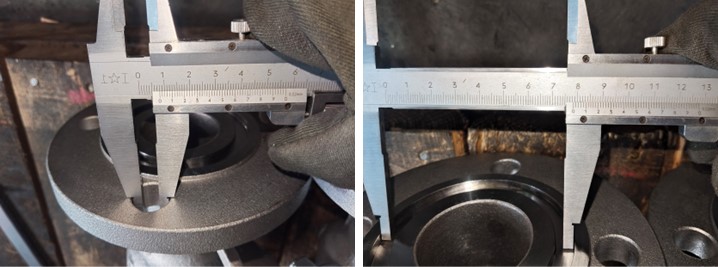

Dimension Checking

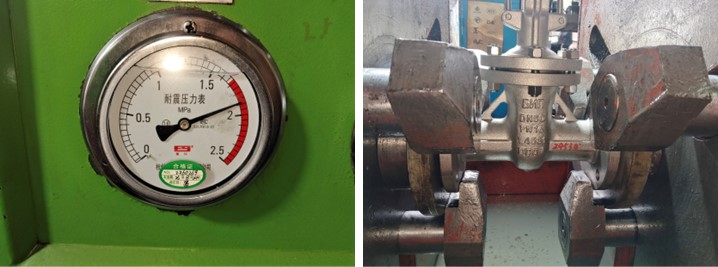

Pressure Testing

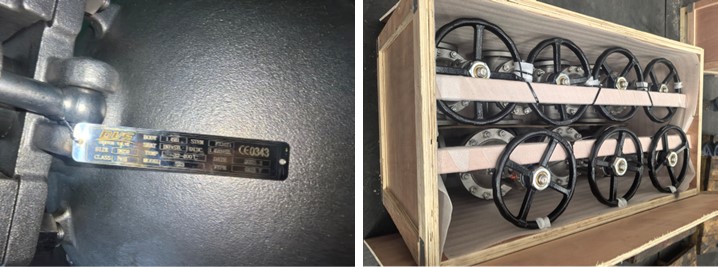

Nameplate & Packing

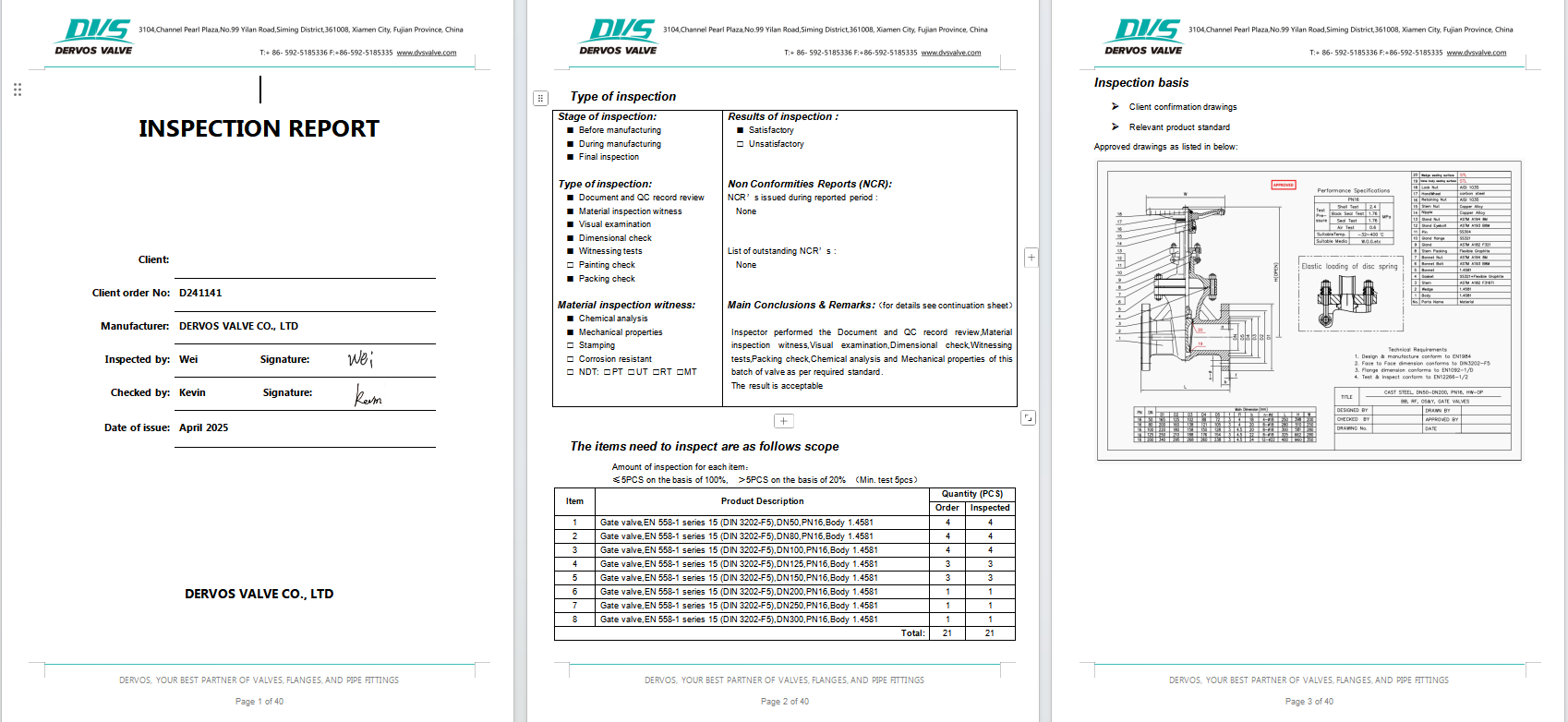

Inspection Report
