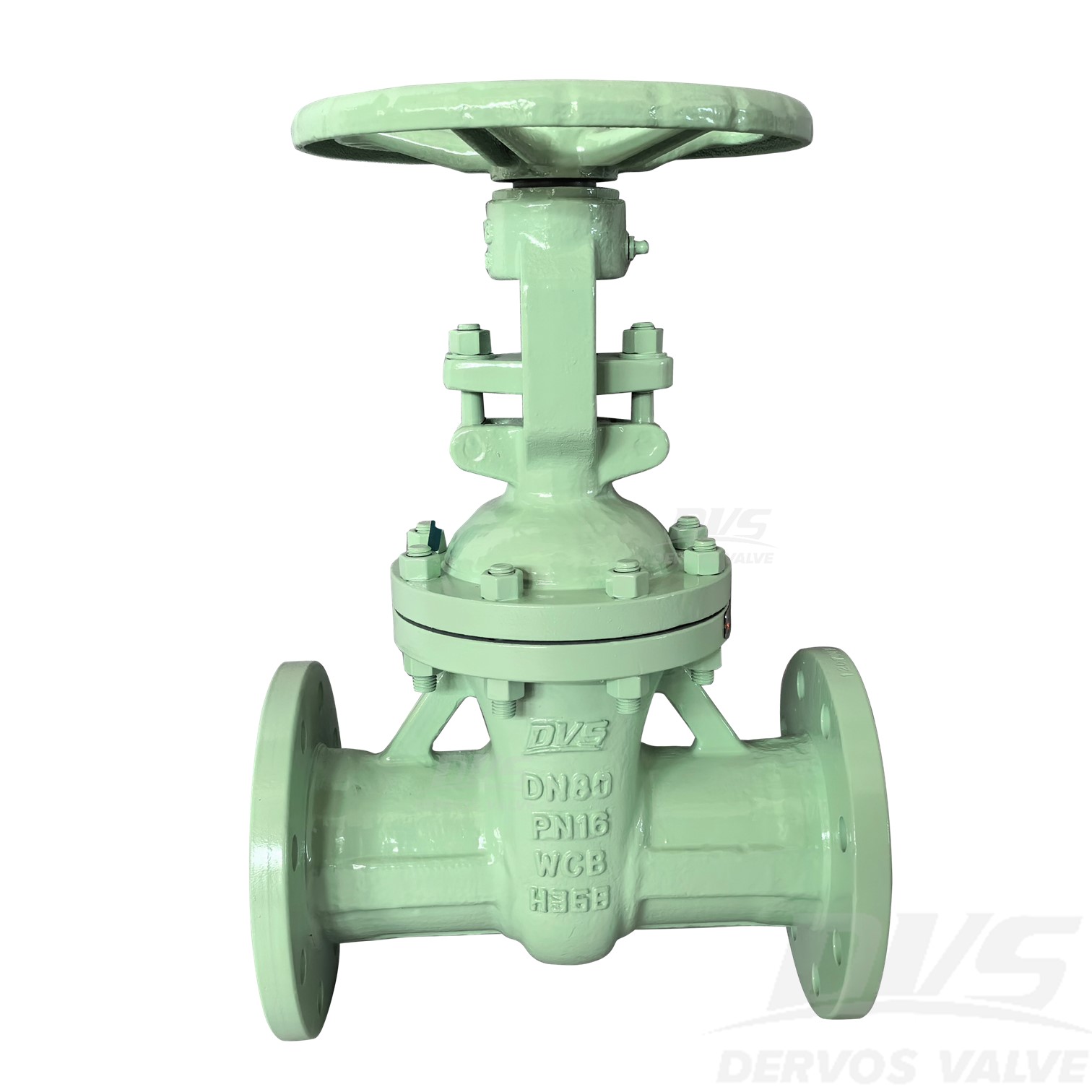

Cast Steel Gate Valve DN80 PN16 WCB EN1092-1 B
Key Specifications / Features
Model No.: Hits: 0
DN80 PN16 Cast Steel Gate Valve is made according to DIN 1984 standard. The valve body is made of WCB. It has the structural characteristics of Bolted Bonnet, Flexible Wedge, Rising Stem, Yoke Type. Its connection mode is EN1092-1 B. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Gate Valve DN100 PN40 WCB RF
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | DN80 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | A216 WCB |
| Design Norm | DIN 1984 |
| Face to face | DIN EN 1092 |
| End Connection | EN 588 Series 1 |
| Test & Inspection Code | DIN 12266-1 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Low-Resistance Flow Path: The gate provides an unobstructed passage when fully open, helping reduce pressure drop across the valve.2. EN 1092-1 Type B Flanged Connection: Ensures standardized PN16 installation compatibility for secure integration into industrial piping systems.

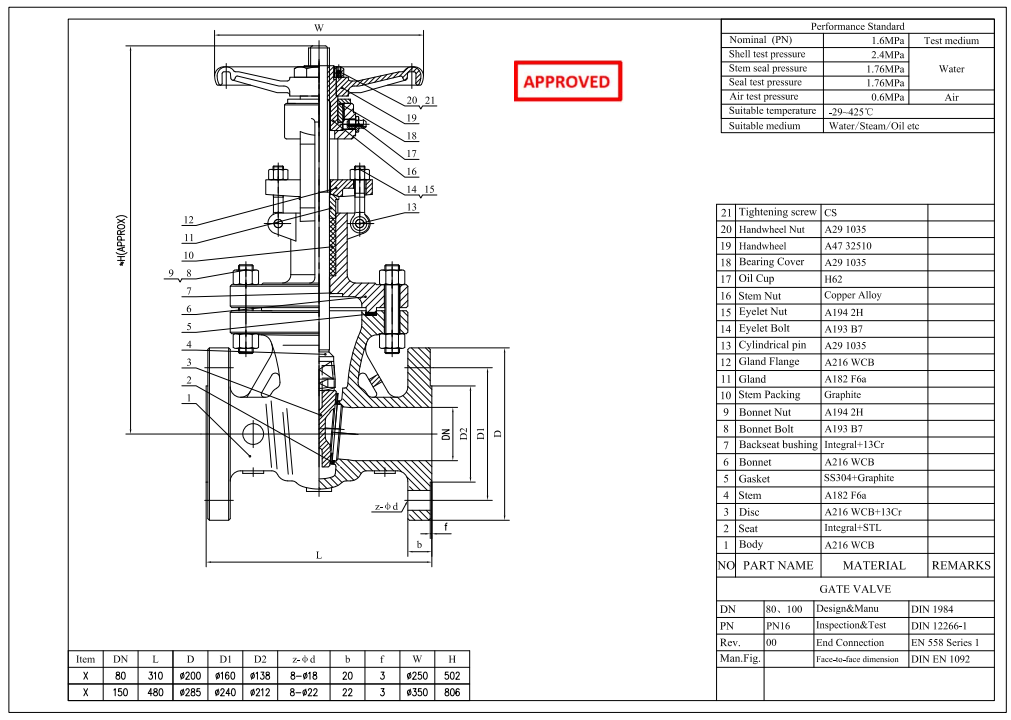

Technical Drawing

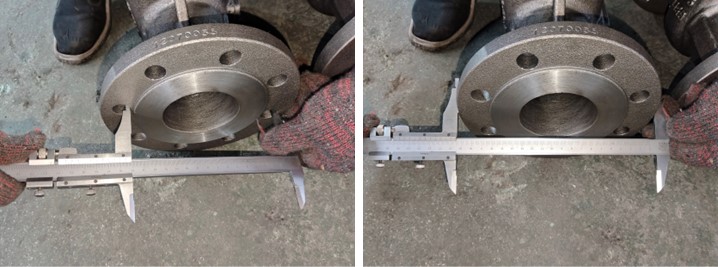

Dimension Checking

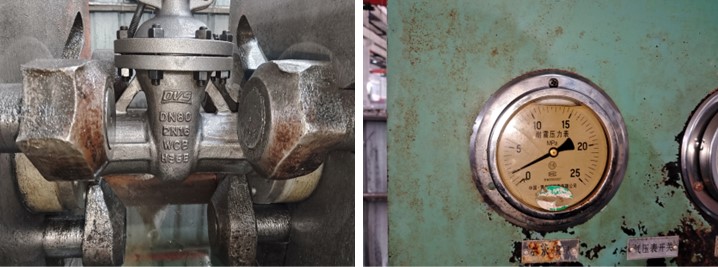

Pressure Testing

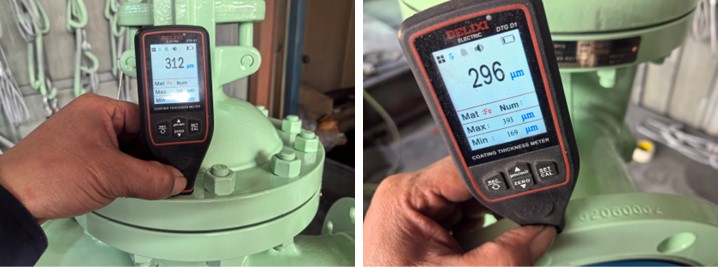

Painting

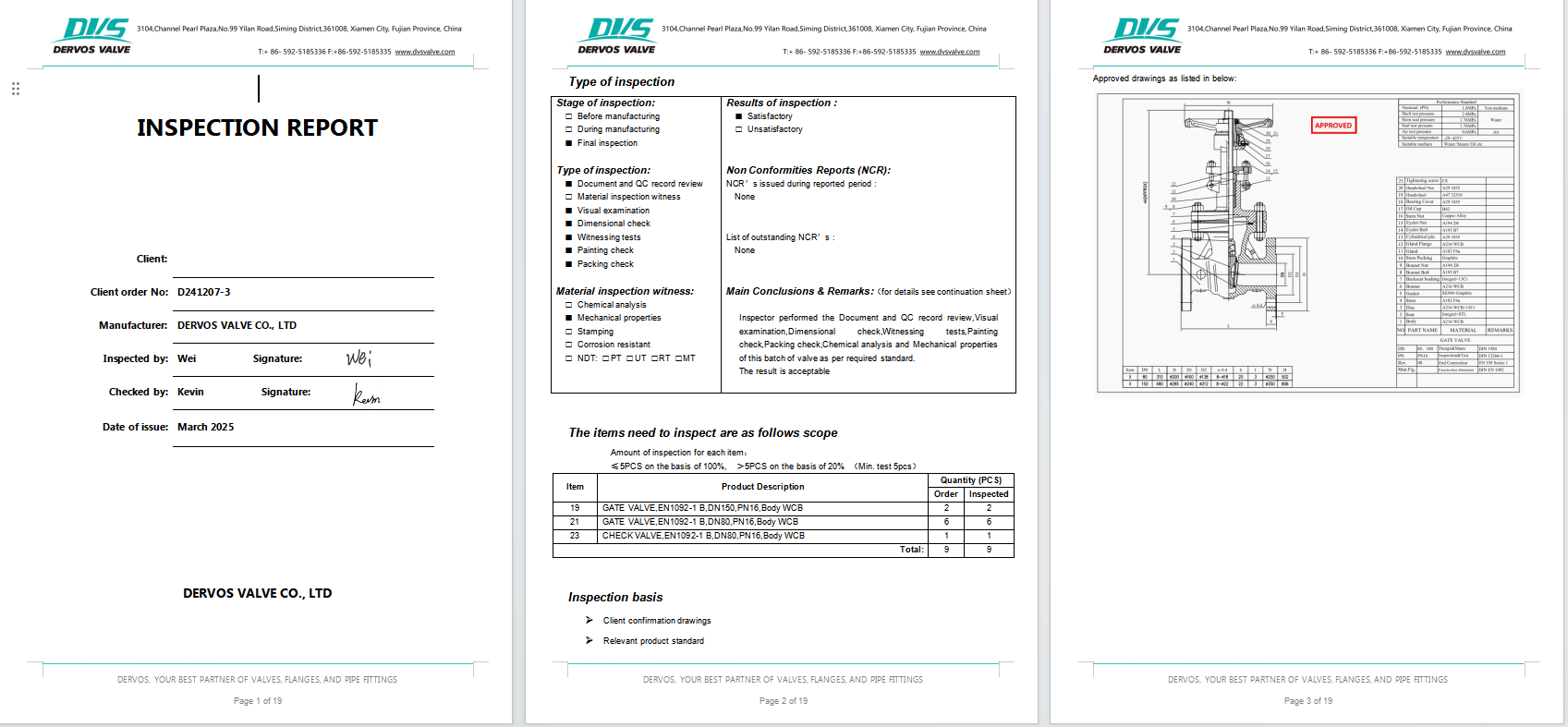

Inspection Report
