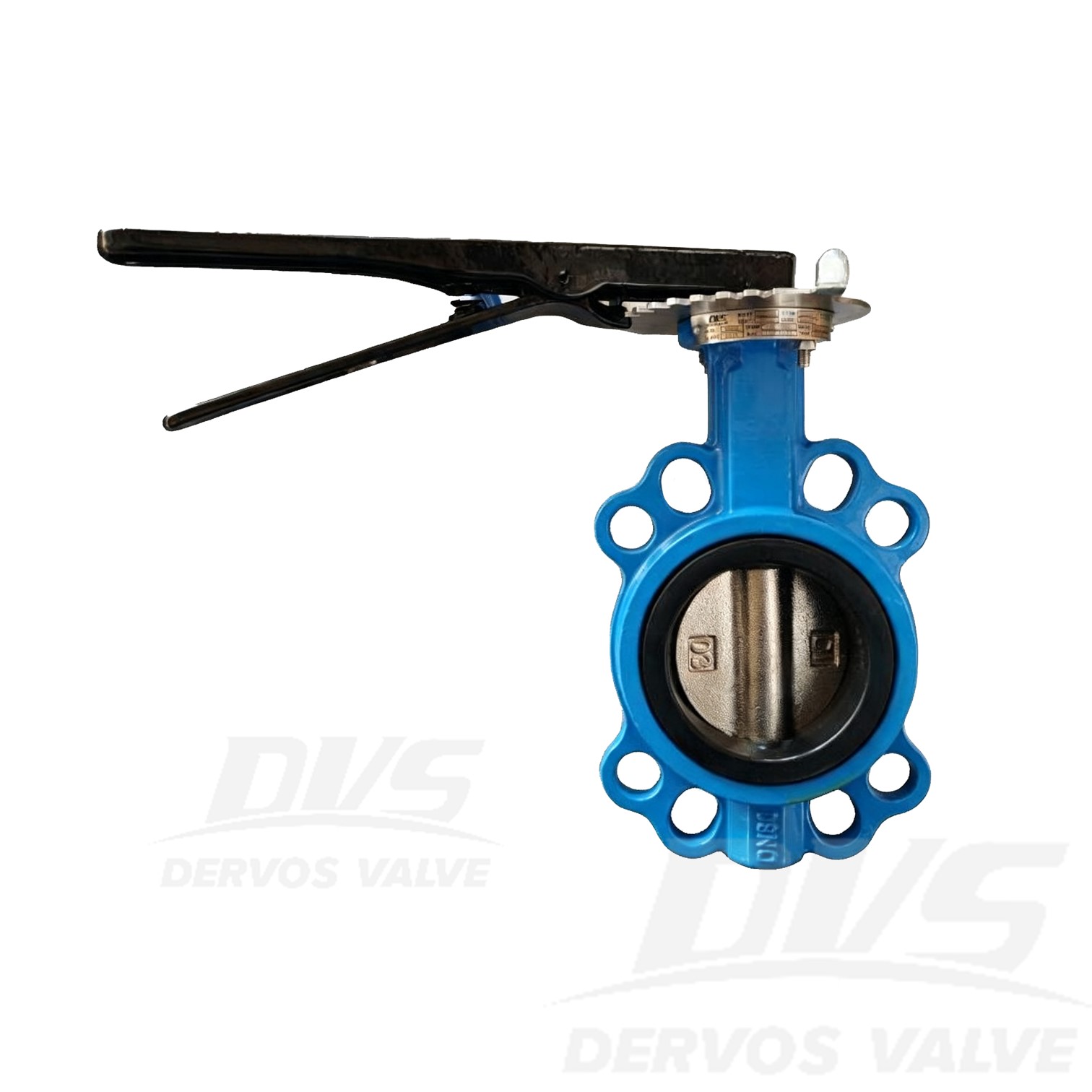

Center Line Wafer Butterfly Valve DN80 PN16 GGG40 Wafer
Key Specifications / Features
Model No.: Hits: 0
DN80 PN16 Butterfly Valve is made according to ASME B16.34 standard. The valve body is made of GGG40. It has the structural characteristics of Center Line. Its connection mode is Wafer. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Double Offset Butterfly Valve 6" 150LB WCB Lug Type
Detail Information
Product Parameters
| Type | Butterfly Valve |
| Size | DN80 |
| Pressure | PN16 |
| Connection | Wafer |
| Operation | Lever |
| Body Material | GGG40 |
| Design Norm | API 609 |
| Face to face | EN558-1 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | EN12266 |
| Temperature | -10 ~ 110°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Center line wafer butterfly design provides compact installation, reliable shutoff, and efficient flow control in PN16 piping systems.2.GGG40 ductile iron body offers excellent mechanical strength and durability for industrial and water service applications.

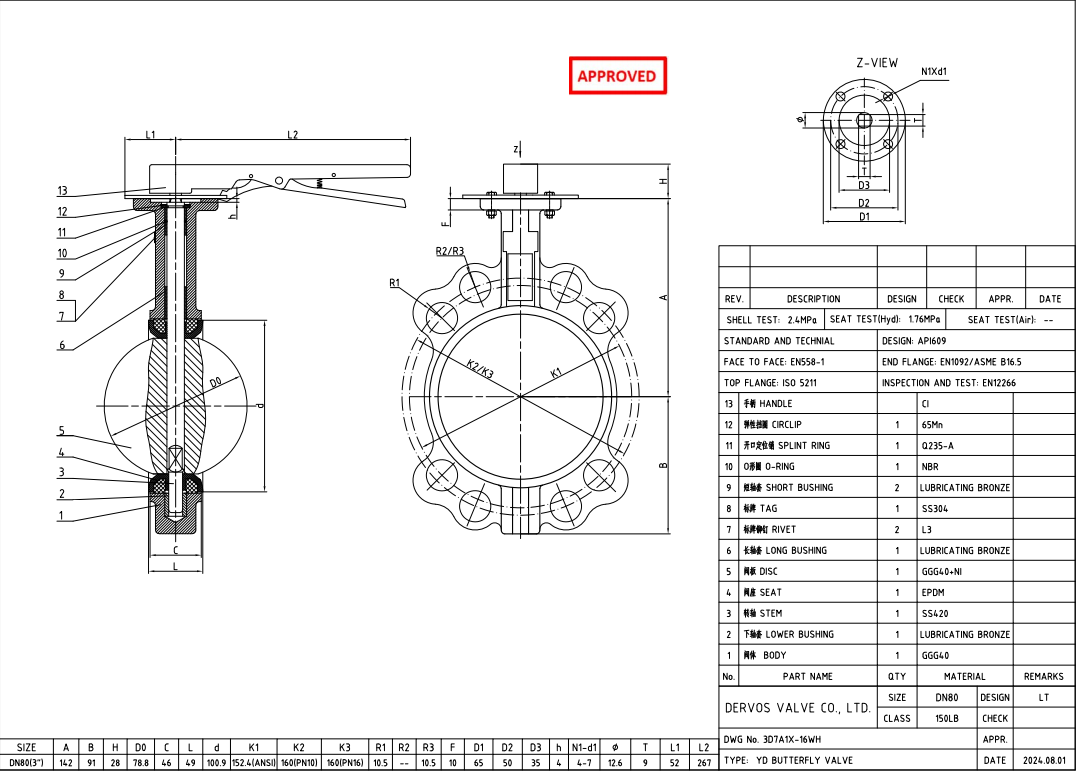

Technical Drawing

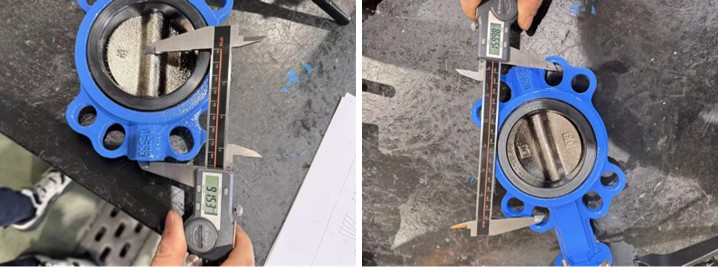

Dimension Checking

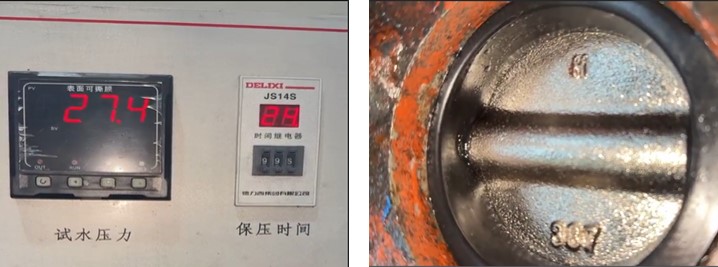

Pressure Testing

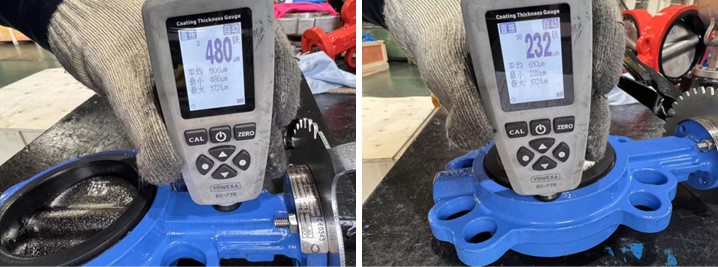

Painting

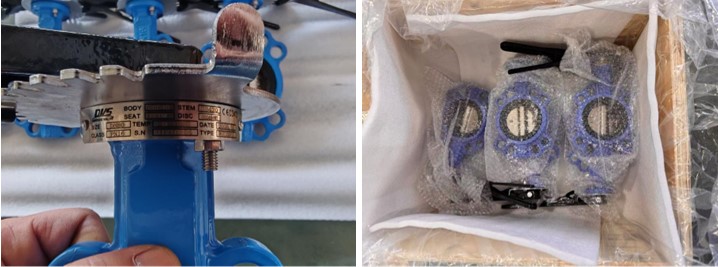

Nameplate & Packing

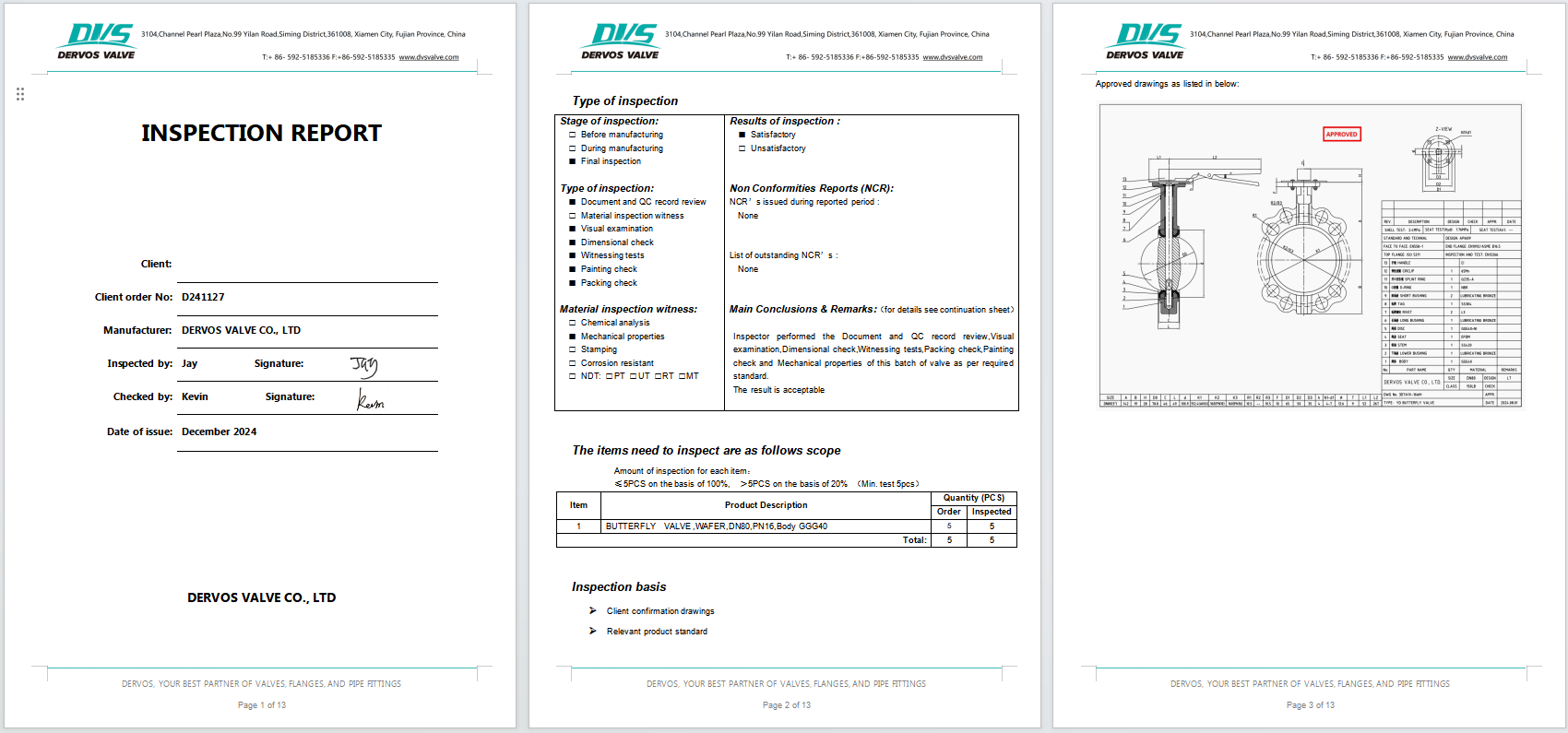

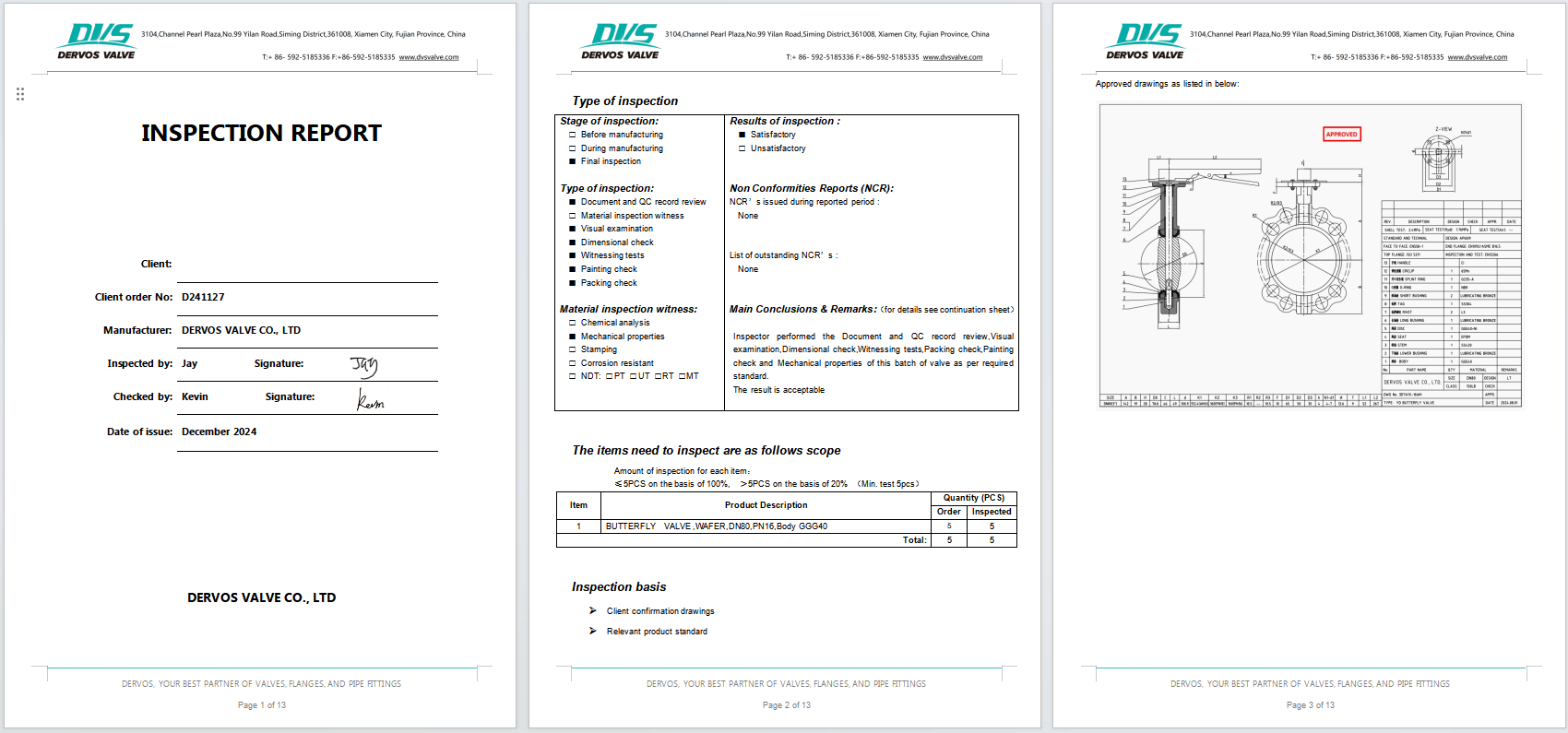

Inspection Report
