Dual Plate Wafer Check Valve DN100 PN40 1.4571 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN100 PN40 Dual Plate Wafer Check Valve is made according to ASME B16.34 standard. The valve body is made of 1.4571. It has the structural characteristics of pressure self sealing, elastic gate and structural length of 711mm. Its connection mode is EN1092-1 B1.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Dual Plate Wafer Check Valve |
| Size | DN100 |
| Pressure | PN40 |
| Connection | EN1092-1 B1 |
| Body Material | 1.4571 |
| Design Norm | API 594 |
| Face to face | EN558-1 SER.16 |
| Flange dimension | EN 1092-1 |
| Test & Inspection Code | API 598 |
| Temperature | -10 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Dual plate wafer design provides compact installation and rapid response to prevent reverse flow.2. Stainless steel 1.4571 construction offers excellent corrosion resistance for demanding industrial service.

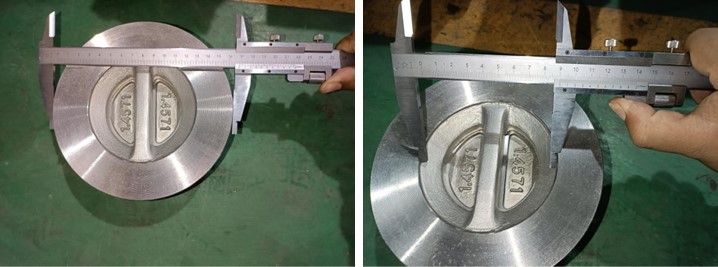

Dimension Checking

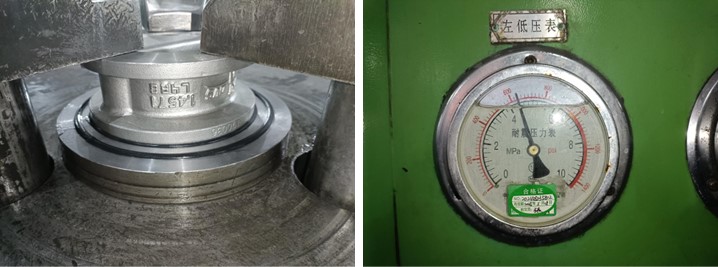

Pressure Testing

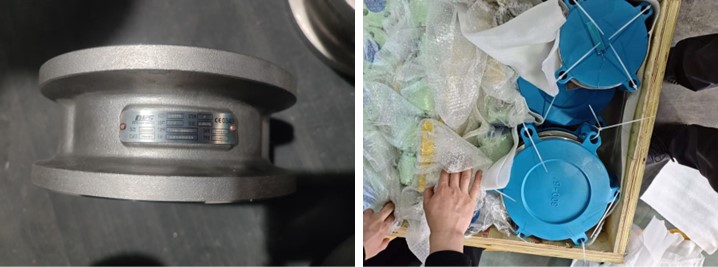

Nameplate & Packing
