Forged Steel Trunnion Ball Valve DN200 PN25 ASTM A105 BW
Key Specifications / Features
Model No.: Hits: 0
DN200 PN25 Forged Steel Trunnion Ball Valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Port Trunnion Mounted Ball Valve, Fire Safe, Anti-static, Blowout-proof Stem, with Welded Drain and Vent Valves. Its connection mode is EN1092-1 B1. And it has Worm Gear operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel 2 Piece Trunnion Ball Valve 8" 300LB WCB RF
Detail Information
Product Parameters
| Type | Forged Steel Trunnion Ball Valve |
| Size | DN200 |
| Pressure | PN25 |
| Connection | EN1092-1 B1 |
| Operation | Worm Gear |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| Face to face | EN 558 Gr.1 |
| Ends Connection | RF |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The trunnion-mounted ball design reduces operating torque and provides stable sealing performance under high-pressure conditions.2. Manufactured from ASTM A105 forged steel with butt weld ends, the valve offers high structural strength and secure leak-free pipeline connection.

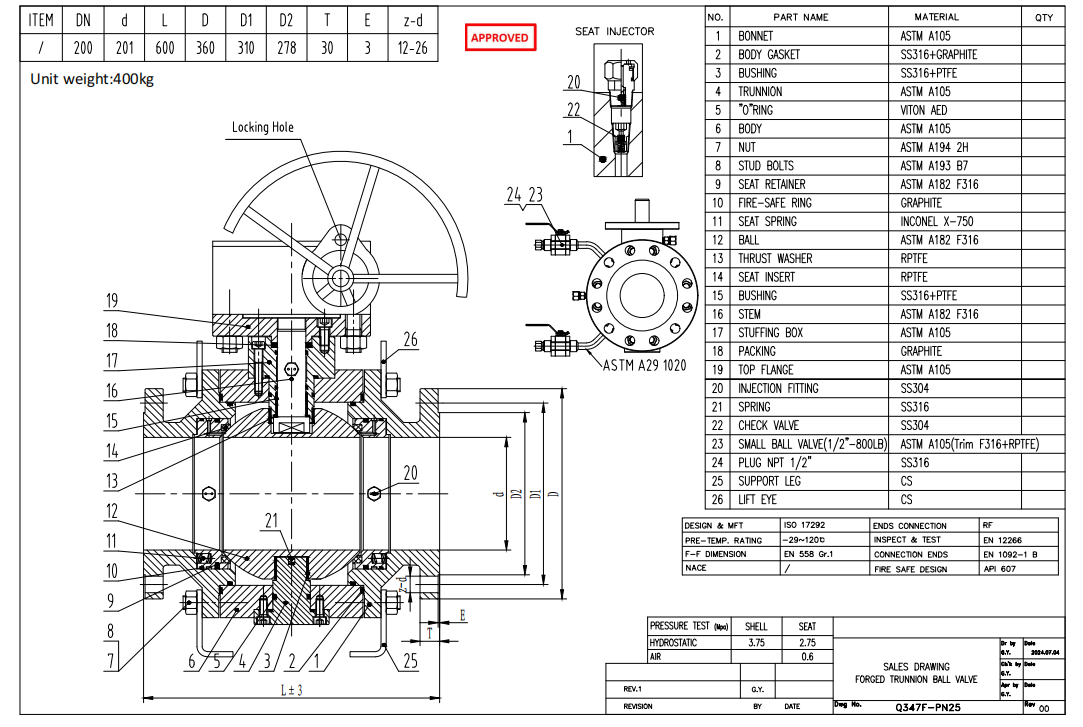

Technical Drawing

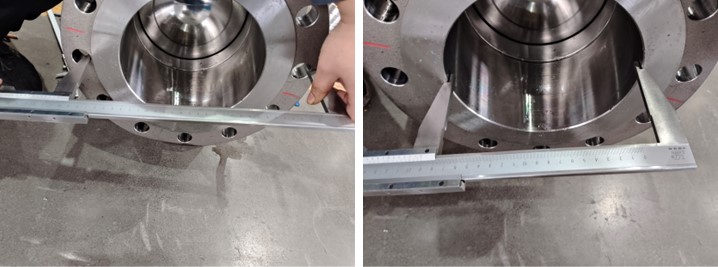

Dimension Checking

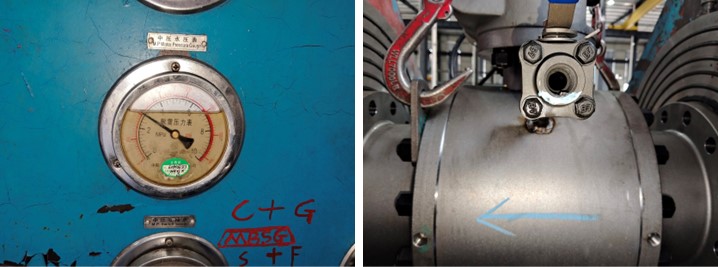

Pressure Testing

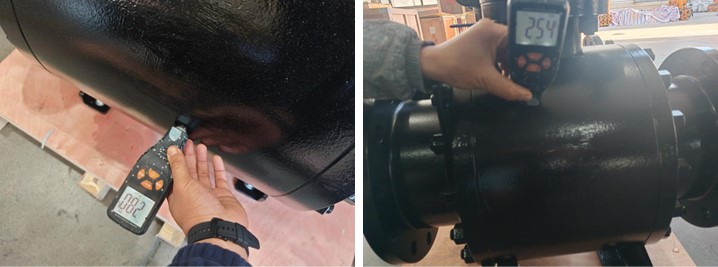

Painting

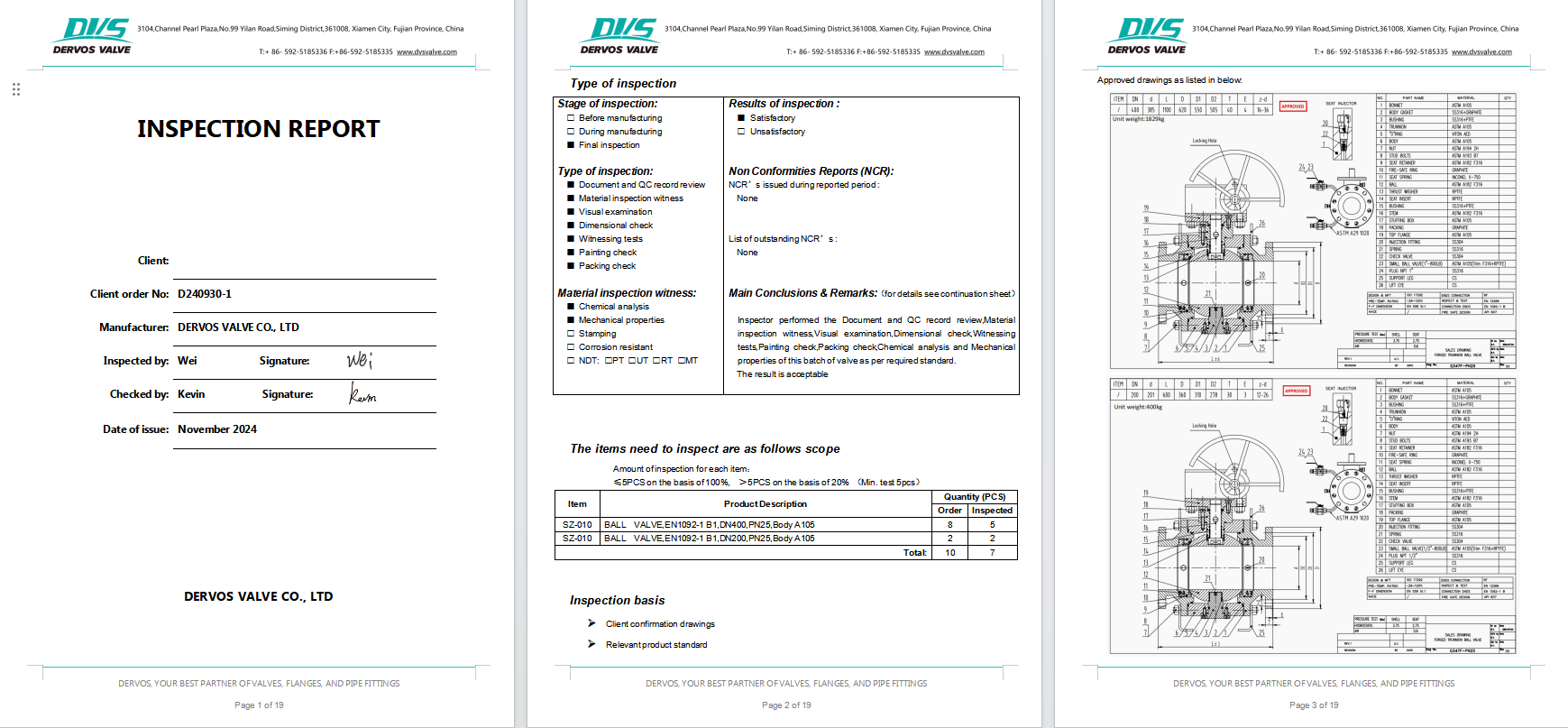

Inspection Report
