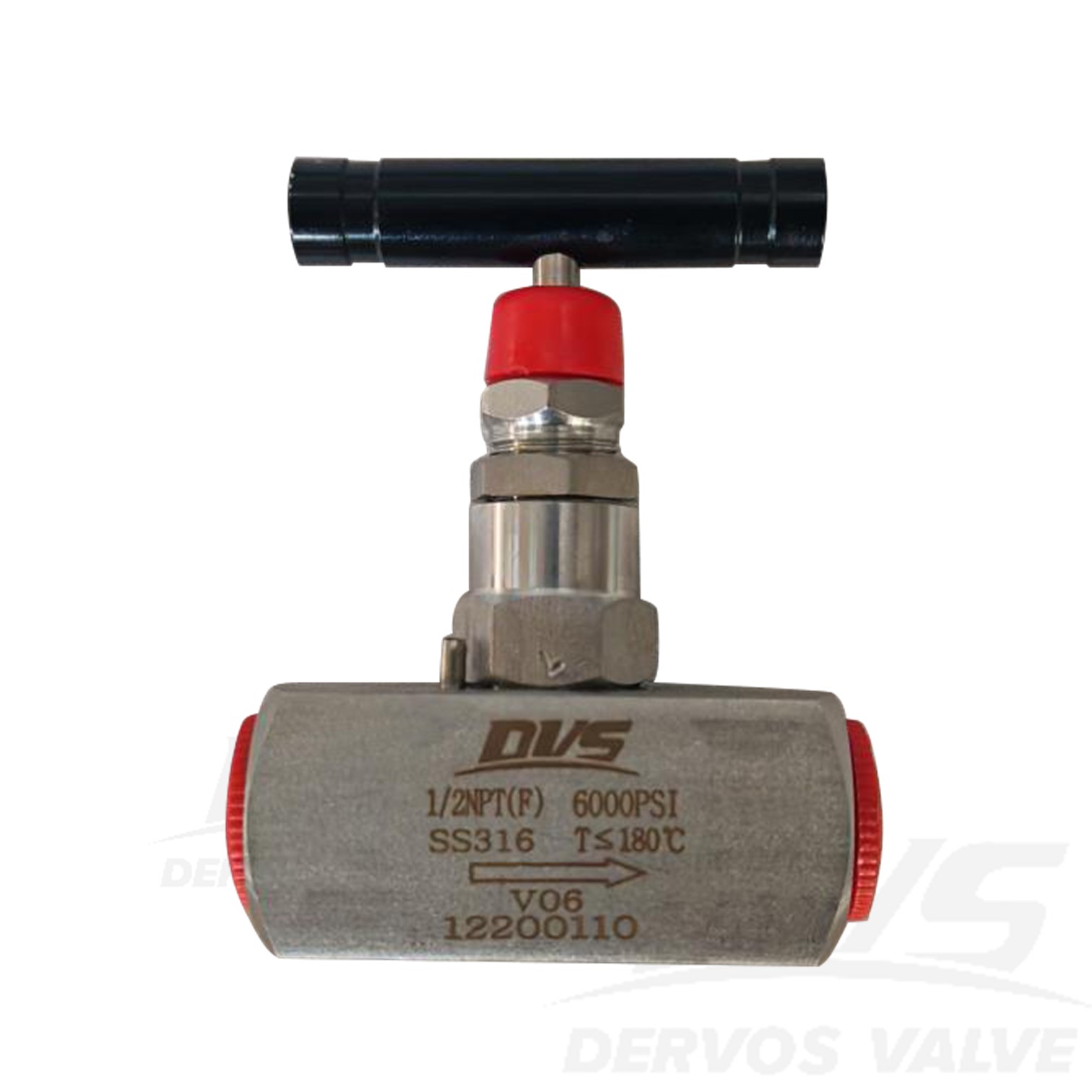

Needle Valve 1/2" 6000 psi SS316L FNPT
Key Specifications / Features
Model No.: Hits: 0
1/2" 6000 psi Needle Valve is made according to ASME B16.34 standard. The valve body is made of SS316L. It has the structural characteristics of Straight-through pattern, compliant with NACE MR0175, oil- and moisture-free, suitable for potable water service. Its connection mode is FNPT X FNPT. And it has Handle operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Steam Trap DN15 PN40 A105 RF GB/T22654
Detail Information
Product Parameters
| Type | Needle Valve |
| Size | 1/2" |
| Pressure | 600LB |
| Connection | FNPT X FNPT |
| Operation | Handle operated |
| Body Material | SS316 |
| Design Norm | API 6D |
| Face to face | manufactory standard |
| Connection dimensions | ASME B1.20.1 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 180°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The SS316L construction provides excellent corrosion resistance and durability for demanding 6,000 psi service.2. The precision needle design and 1/2" FNPT connections enable accurate flow regulation and secure threaded installation.

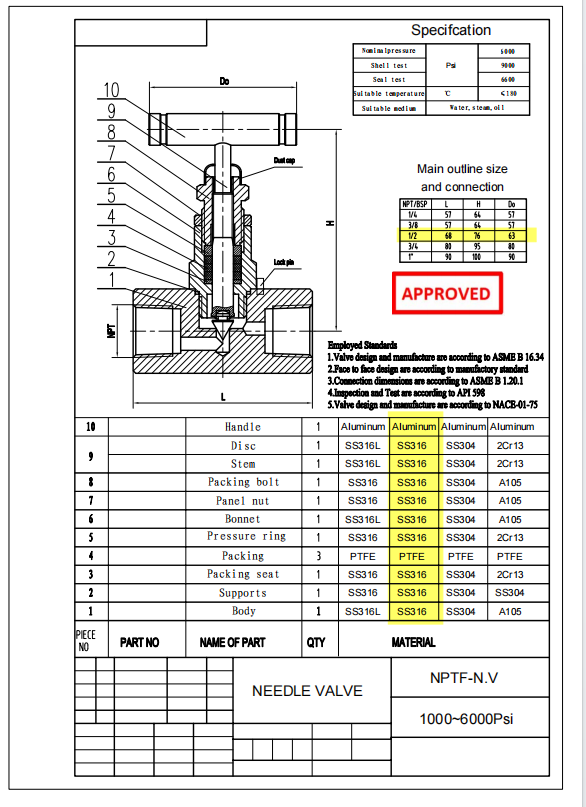

Technical Drawing

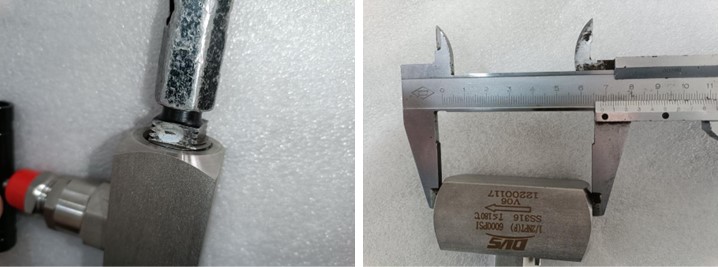

Dimension Checking

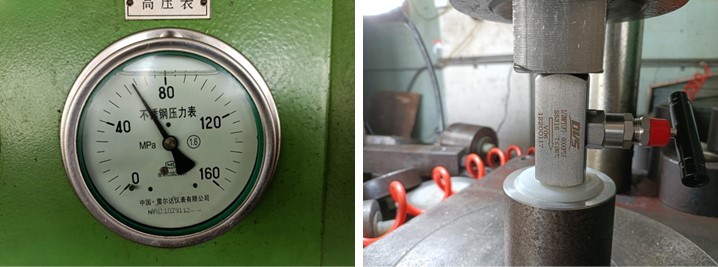

Pressure Testing
Painting
Spectrum

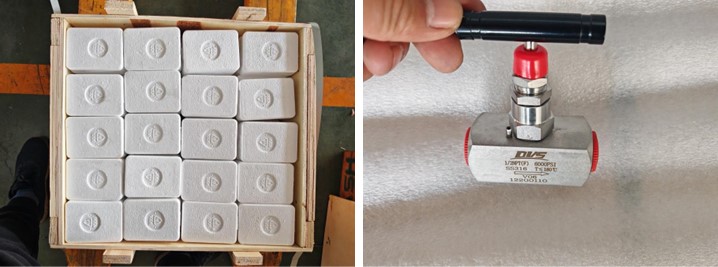

Nameplate & Packing

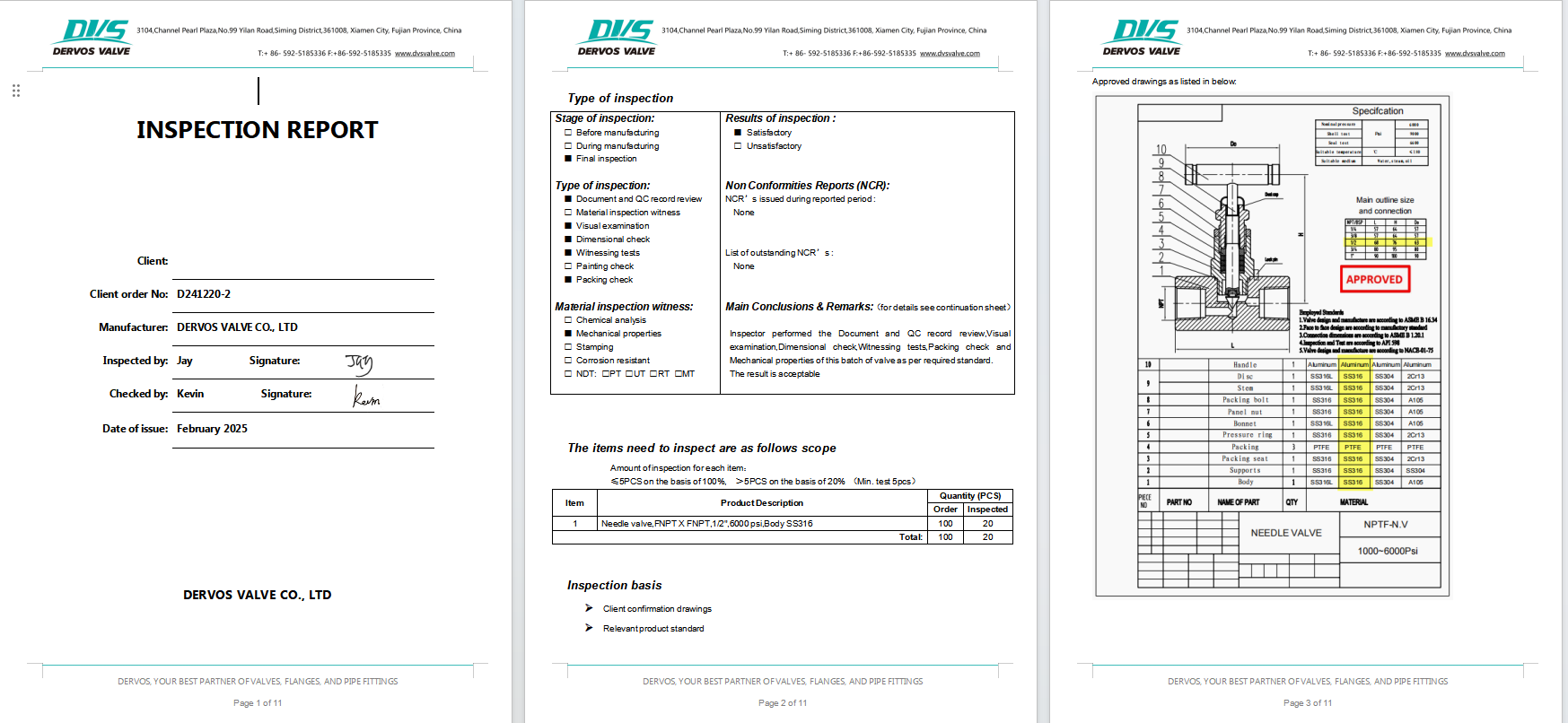

Inspection Report
