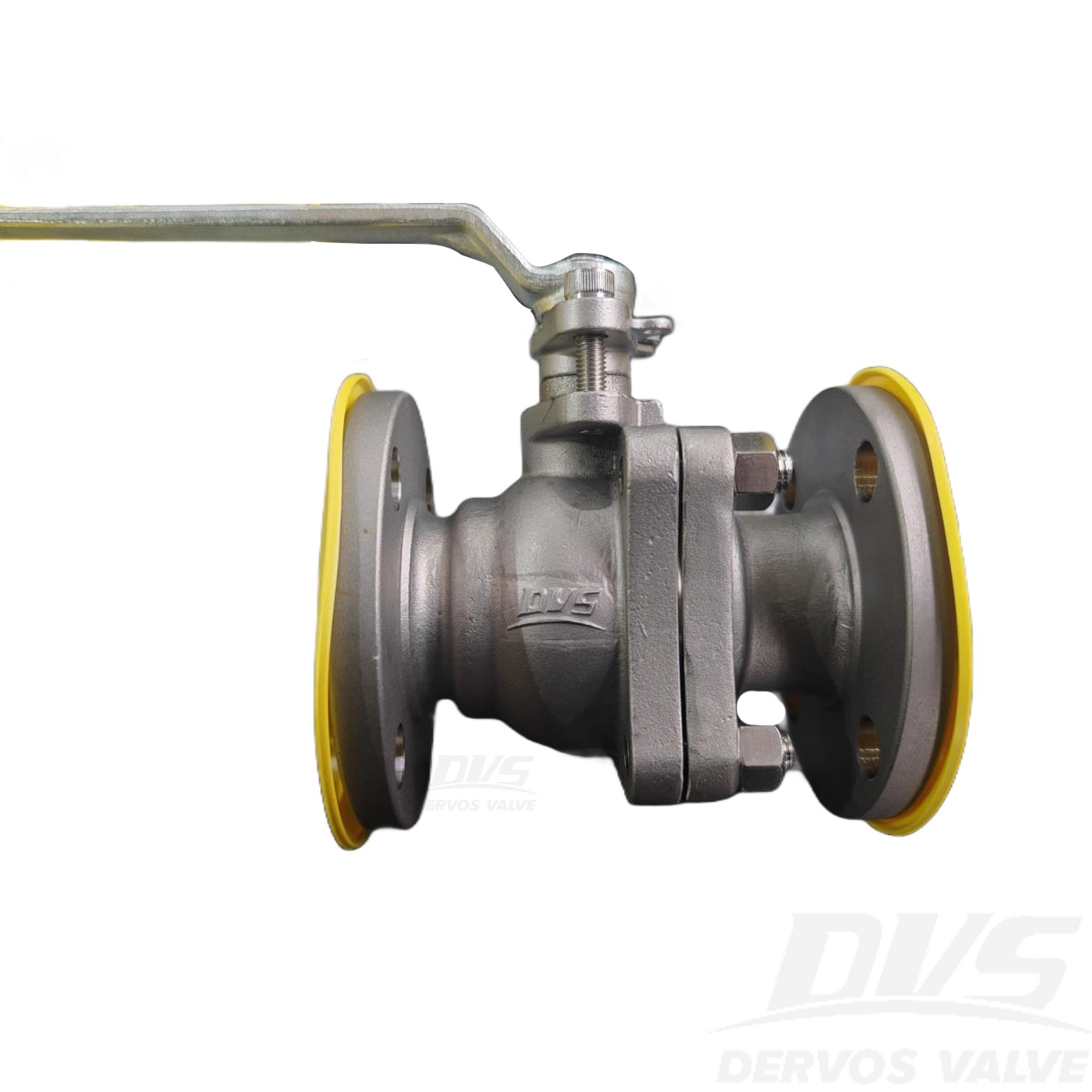

Stainless Steel Floating Ball Valve 2" 150LB CF3M RF
Key Specifications / Features
Model No.: Hits: 0
2" 150LB Floating Ball Valve is made according to API 6D standard. The valve body is made of CF3M. It has the structural characteristics of Floating Ball, Full Port, Fire-Safe and Anti-Static Design, Blowout-Proof Stem. Its connection mode is RF. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | 2" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever |
| Body Material | A351-CF3M |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 6D |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Floating Ball Design: Allows the ball to move slightly toward the seat under pressure, ensuring reliable sealing performance with low operating torque.2.CF3M Stainless Steel Construction: Provides enhanced corrosion resistance and durability for chemical and process fluid applications.

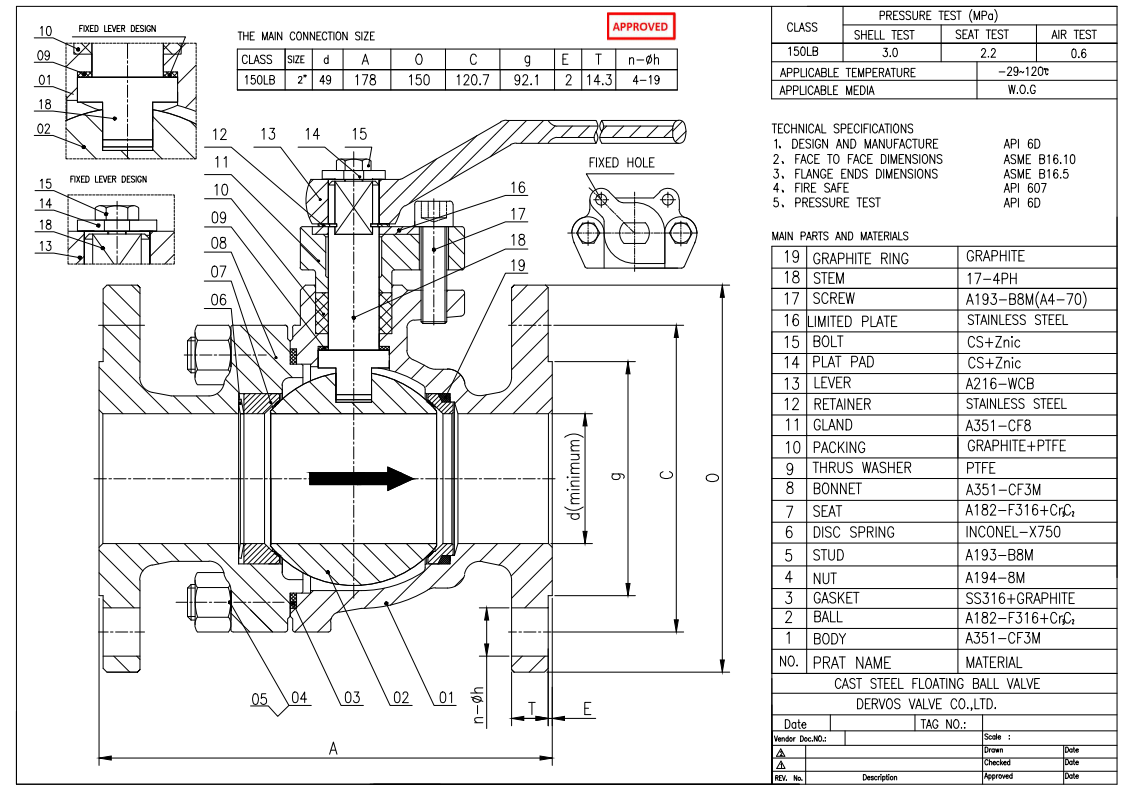

Technical Drawing

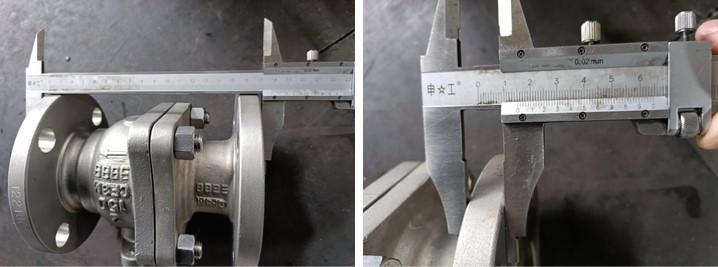

Dimension Checking

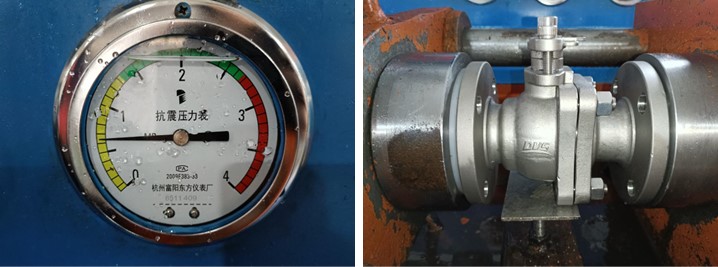

Pressure Testing

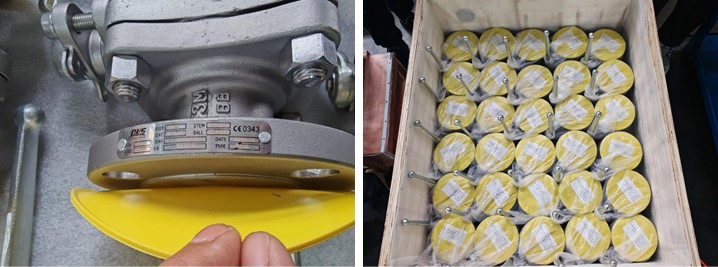

Nameplate & Packing

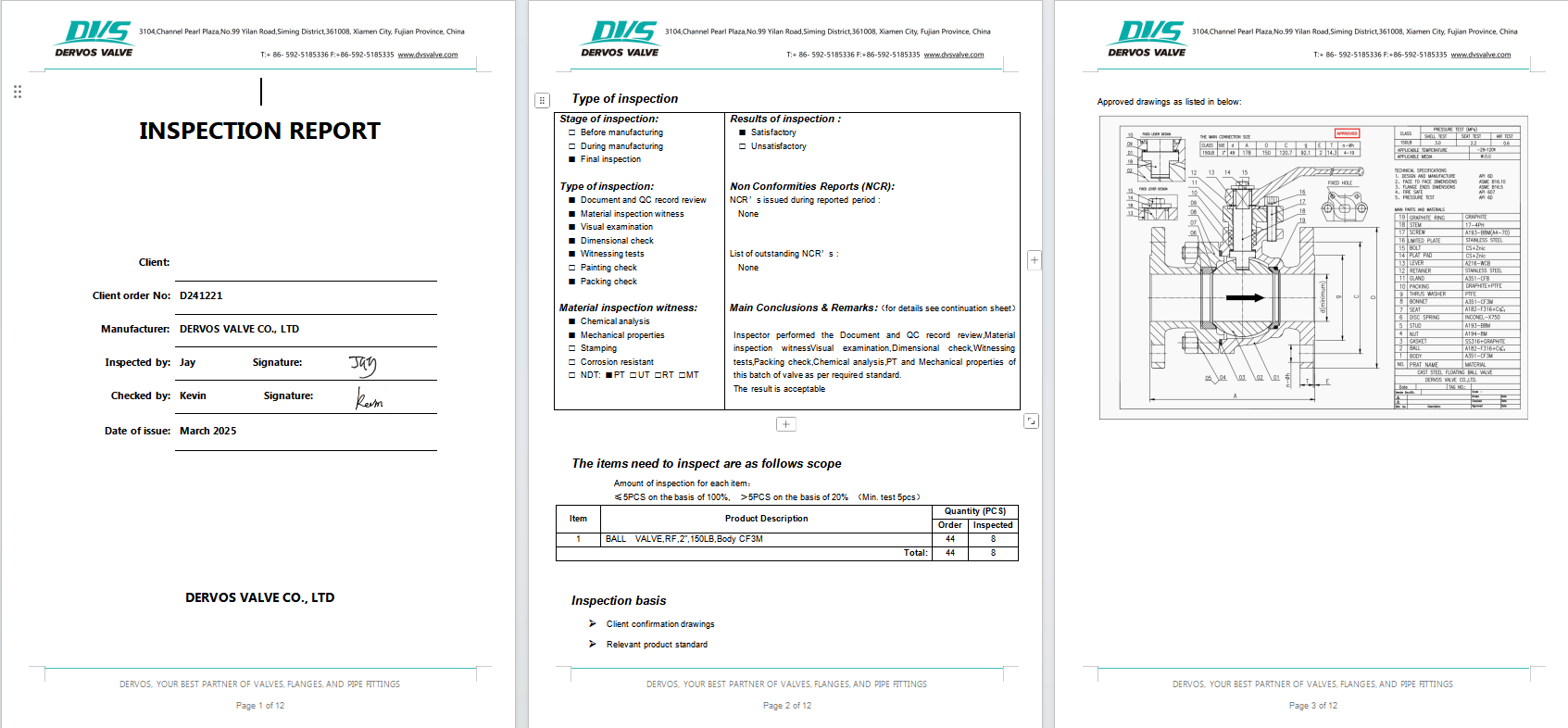

Inspection Report
