Swing Check Valve 8" 150LB WCB RF API 594
Key Specifications / Features
Model No.: Hits: 0
8" 150LB Swing Check Valve is made according to API 594 standard. The valve body is made of WCB. It has the structural characteristics of Bolted Bonnet, Swing Type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: Swing Check Valve 3" 600LB LCB RF BC
Detail Information
Product Parameters
| Type | Swing Check Valve |
| Size | 8” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A216 WCB |
| Design Norm | API 594 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Swing check design provides reliable automatic backflow prevention with minimal pressure loss under normal flow conditions.2. WCB body with RF flanged ends manufactured to API 594 ensures durable performance and secure pipeline connections.

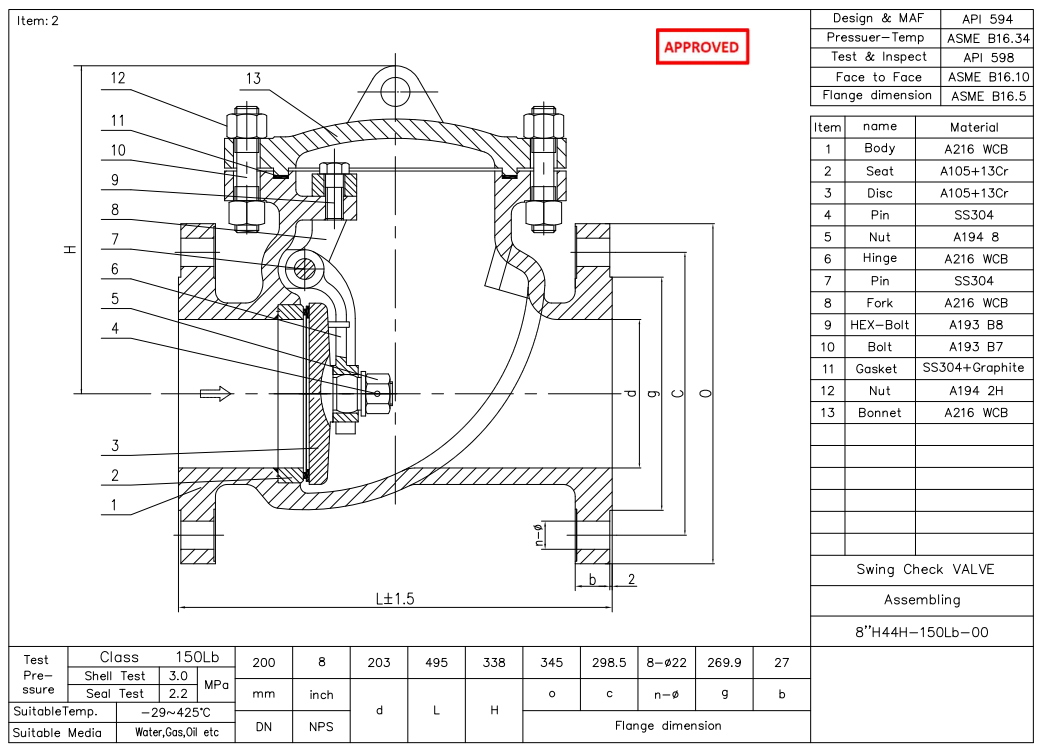

Technical Drawing

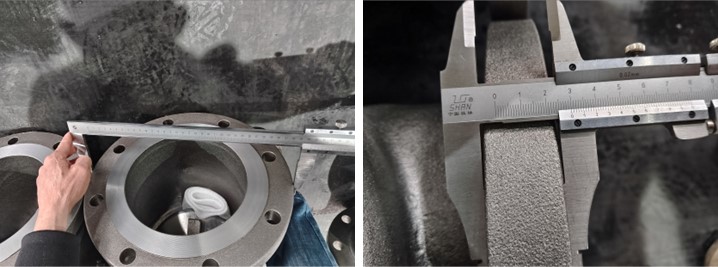

Dimension Checking

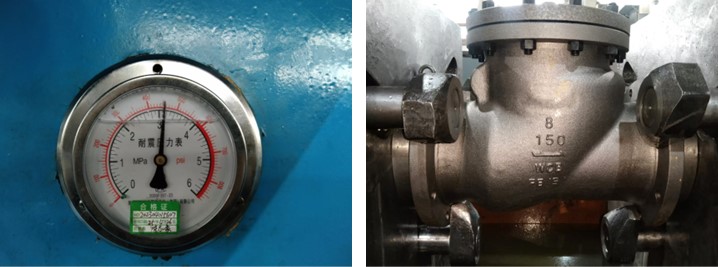

Pressure Testing

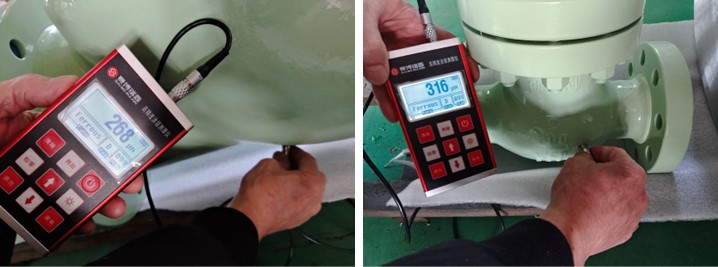

Painting

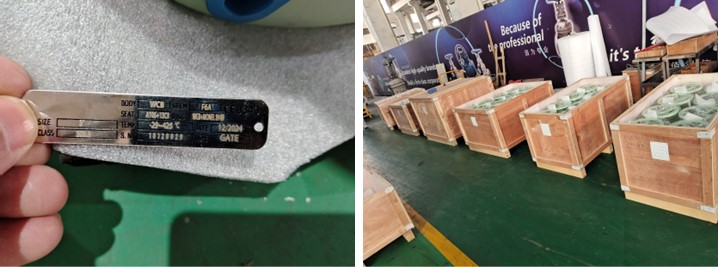

Nameplate & Packing

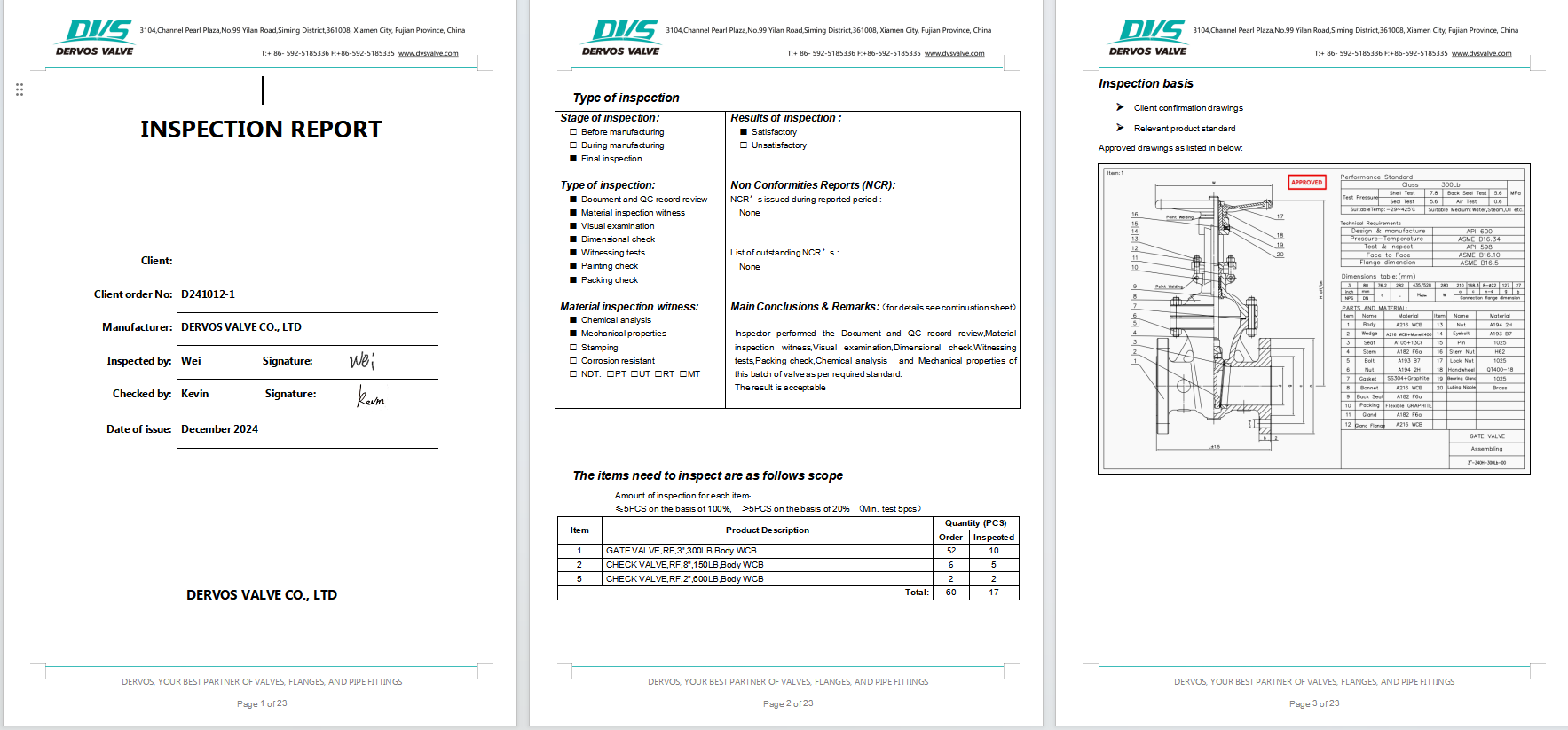

Inspection Report
