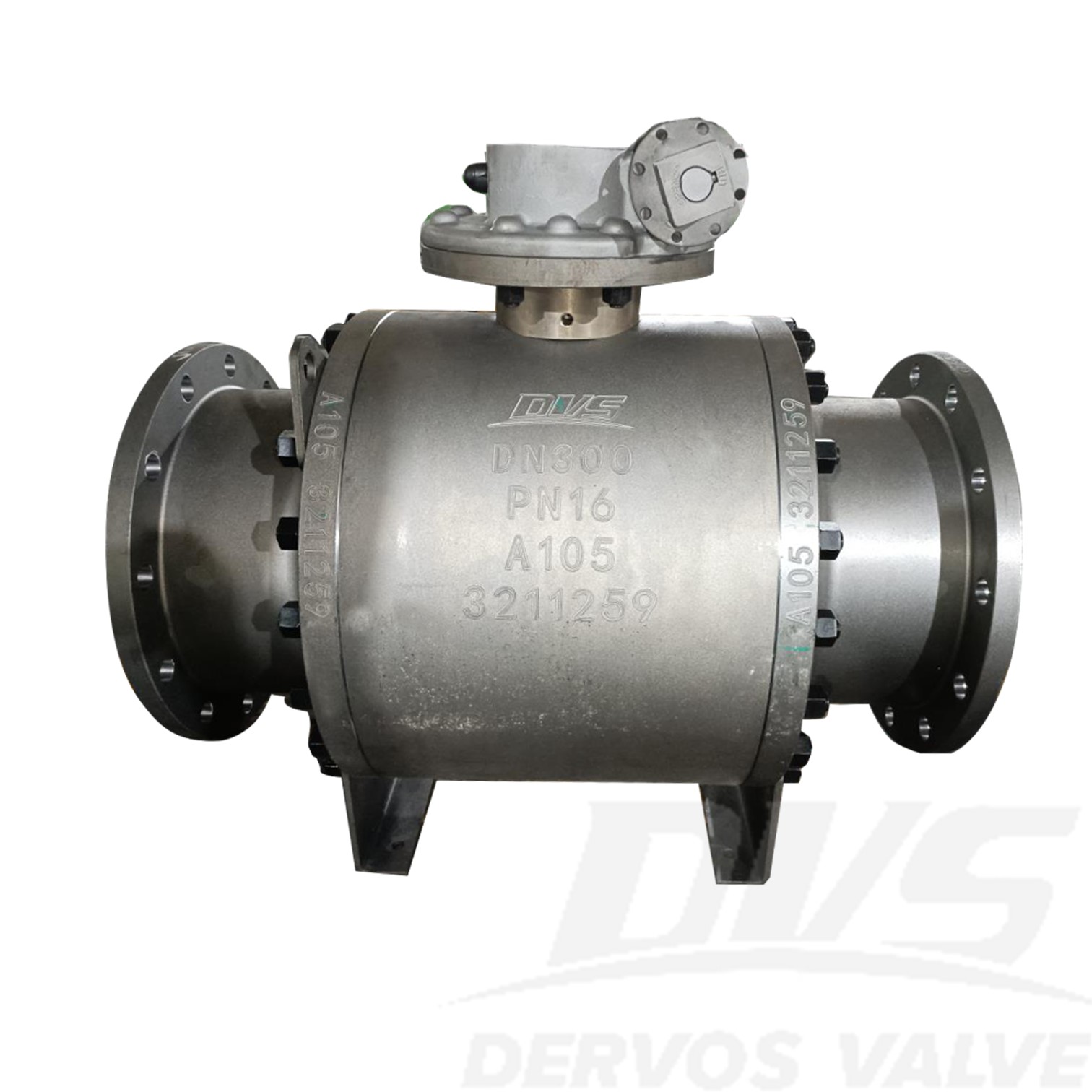

Trunnion Mounted Ball Valve DN300 PN16 A105 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN300 PN16 Trunnion Mounted Ball Valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of Full bore, trunnion-mounted ball, fire-safe, anti-static, with a blowout-proof stem and welded vent and drain ball valves. Its connection mode is EN1092-1 B1. And it has Worm gear operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Trunnion Mounted Ball Valve |
| Size | DN300 |
| Pressure | PN16 |
| Connection | EN1092-1 B1 |
| Operation | Worm gear |
| Body Material | A105 |
| Design Norm | API 6D |
| Flange dimension | EN 1092-1 B1 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The trunnion-mounted ball design provides stable operation, low operating torque, and reliable sealing for large-diameter PN16 service.2. The A105 forged steel body and EN 1092-1 Type B1 flanged ends ensure robust construction and secure pipeline installation.

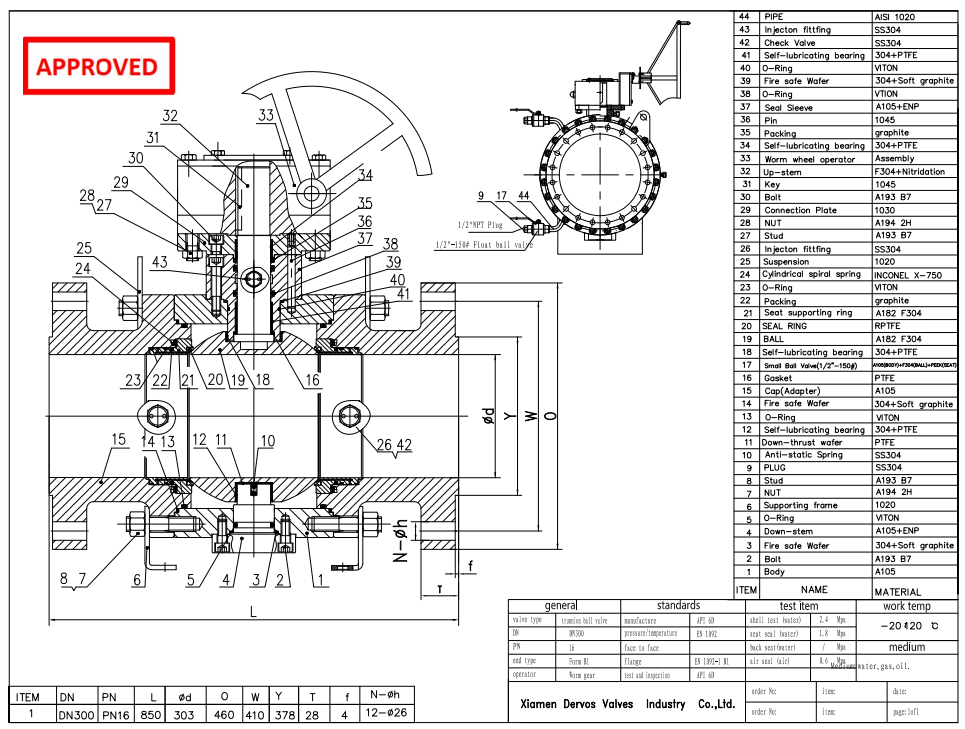

Technical Drawing

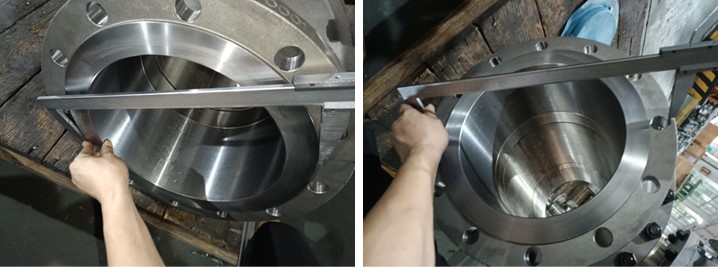

Dimension Checking

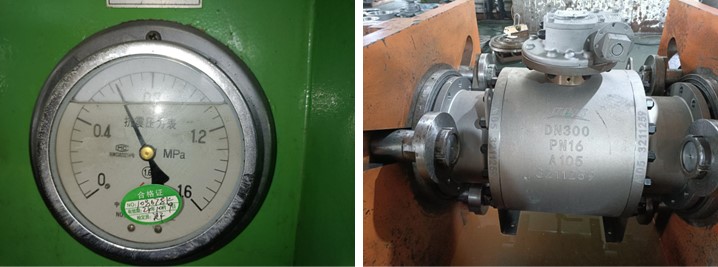

Pressure Testing

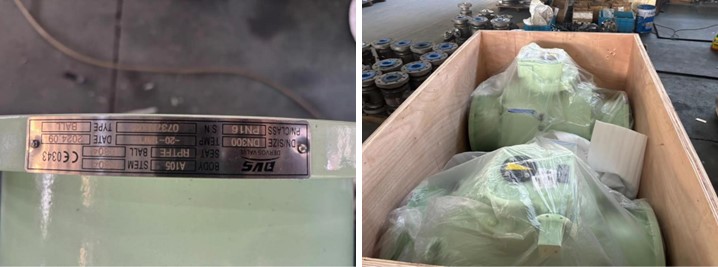

Nameplate & Packing
