1/2" 800LB Forged Steel Gate Valve ASTM A105N SW H.W.

1/2" 800LB Forged Steel Gate Valve ASTM A105N SW H.W.

Key Specifications / Features

Model No.: Hits: 0

1/2" 800LB Forged Steel Gate Valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of BB, OS&Y, solid wedge. Its connection mode is SW. And it has hand wheel operation mode.
Request a quote

Detail Information

Product Description

Type Forged Steel Gate Valve
Size 1/2"
Pressure 800LB
Connection SW
Operation H.W.
Body Material ASTM A105N
Design Norm API 602
Face to Face MFG'S
End connection ASME B16.11
Pressure-temperature ASME B16.34
Test & Inspection Code API 598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. Can be operated via hand wheel, gearbox, or automated actuators depending on system requirements
2. Made by forging high-quality steel, which enhances mechanical strength, durability, and resistance to high pressure and temperature.

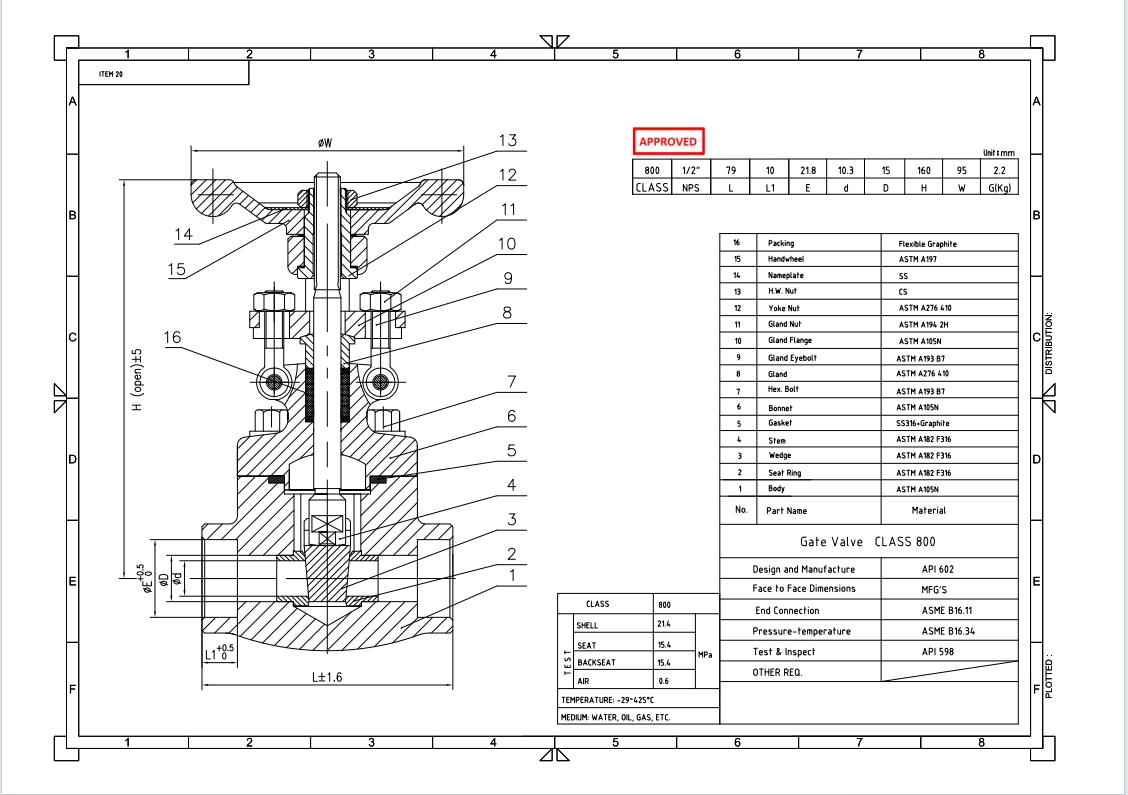

Forged Steel Gate Valve Technical Drawing

Forged Steel Gate Valve

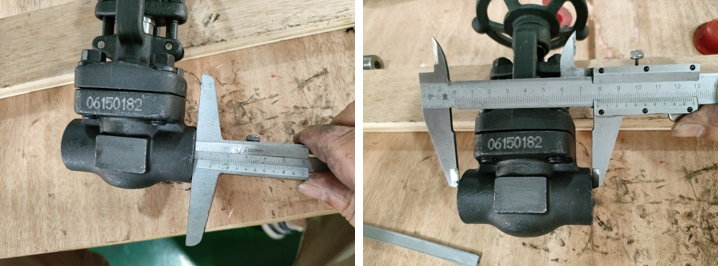

Dimension Checking

Forged Steel Gate Valve

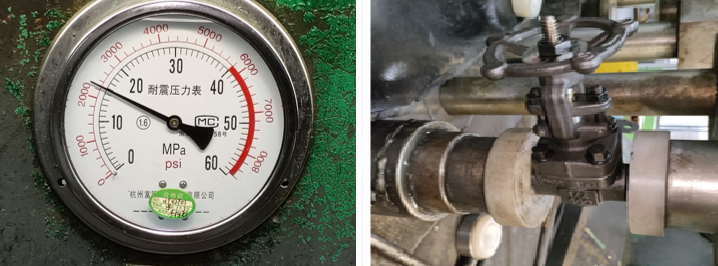

Pressure Testing

Forged Steel Gate Valve

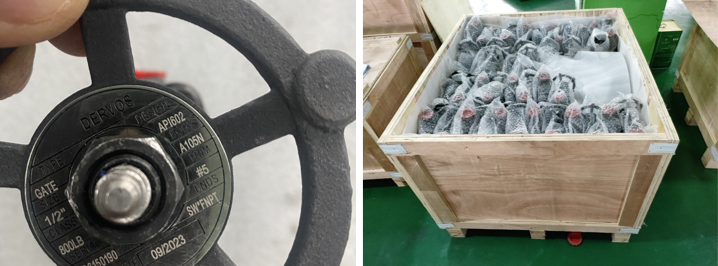

Nameplate & Packing

Forged Steel Gate Valve

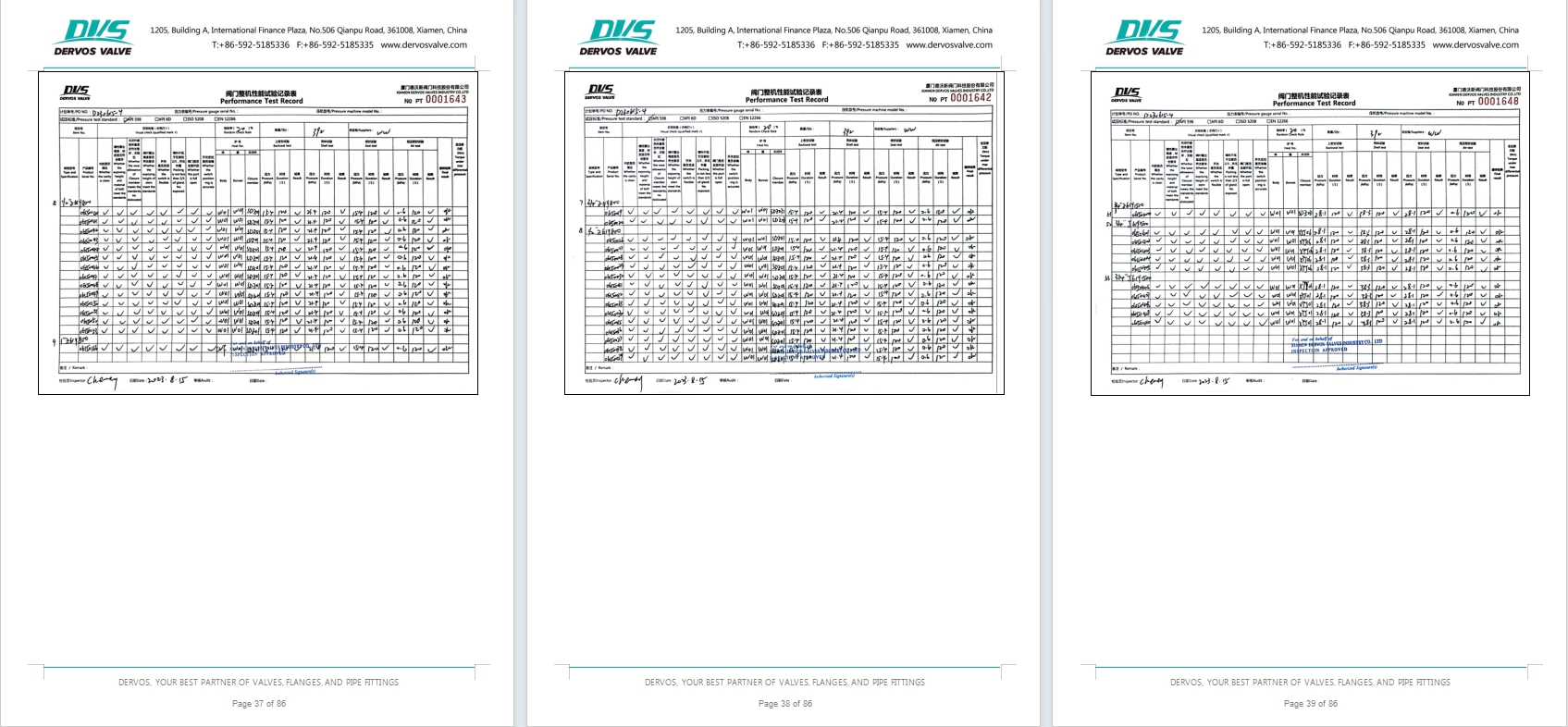

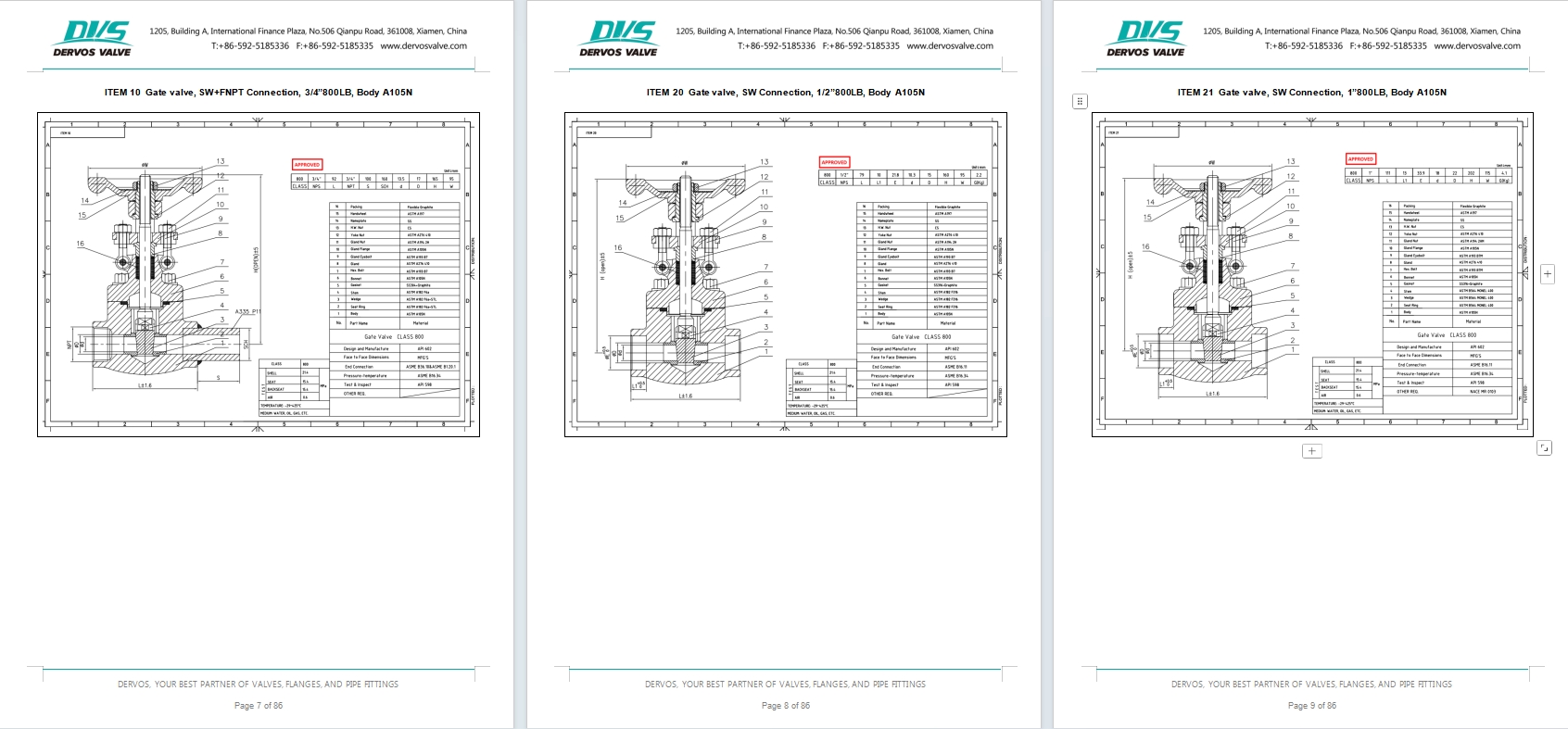

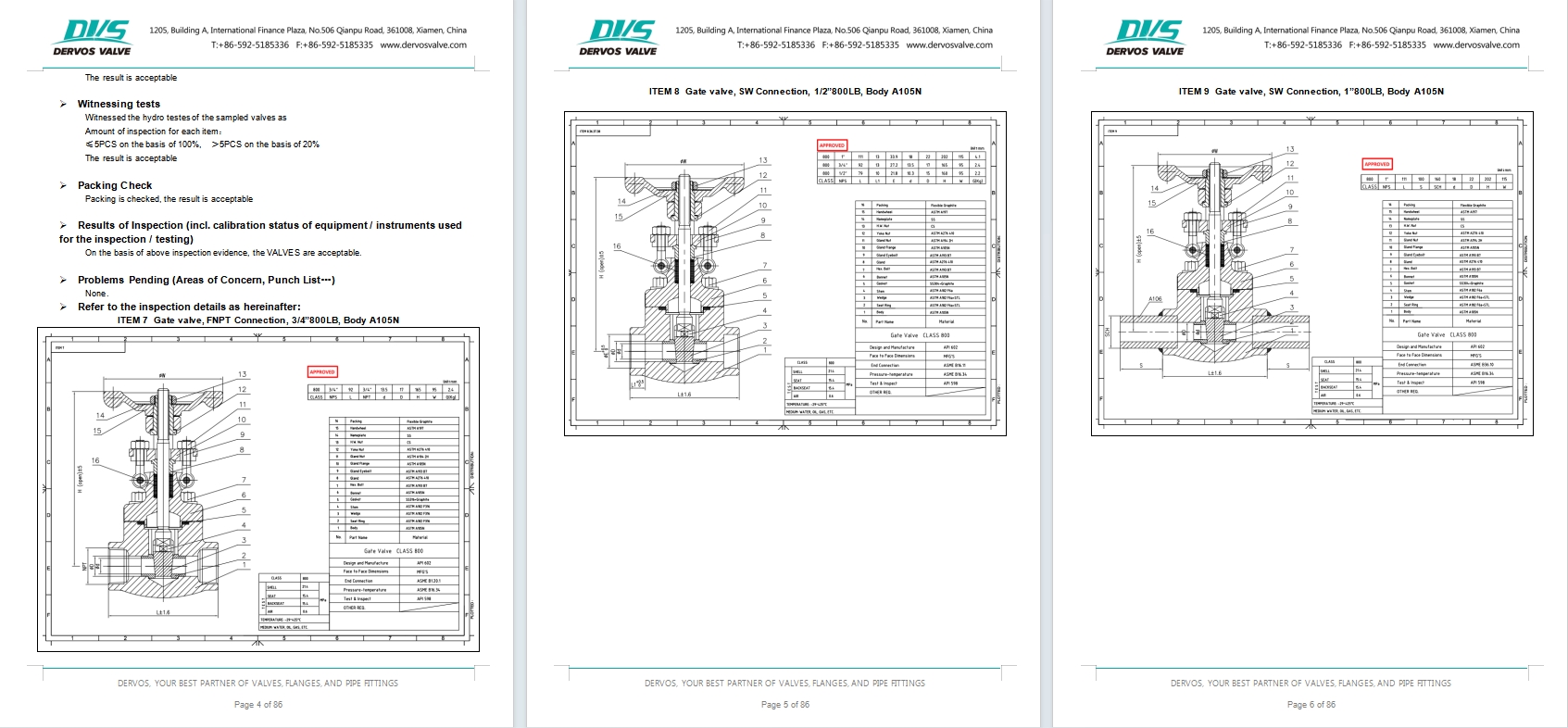

Inspection report

Forged Steel Gate Valve
Forged Steel Gate Valve
Forged Steel Gate Valve
Forged Steel Gate Valve
