10”150LB Dual Plate Wafer Type Check Valve WCB API 594

10”150LB Dual Plate Wafer Type Check Valve WCB API 594
10”150LB Dual Plate Wafer Type Check Valve WCB API 594

Key Specifications / Features

Model No.: Hits: 0

10”150LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A216 WCB+316. It has the structural characteristics of Dual Plate. Its connection mode is Wafer.
Request a quote

Next: 2” 150LB Dual Plate Wafer Check Valve A105 CF8M API594

Previous: 6" 300LB Axial Flow Check Valve, Body CF8M, API594, Wafer Type

Detail Information

Product Description

Type Dual Plate Wafer Check Valve
Size 10"
Pressure 150LB
Connection Wafer
Body Material A216 WCB+316
Design Norm API 594
Face to Face API 594
Flange Ends ANSI B16.5
Test & Inspection Code API 598
Temperature -29 ~ 300°C
Applicable Medium Water, Oil and Steam

Features

1. Manufactured according to API 594, with WCB body for durability and corrosion resistance.
2. Dual plate wafer type design provides compact structure and efficient flow control for various pipeline systems.

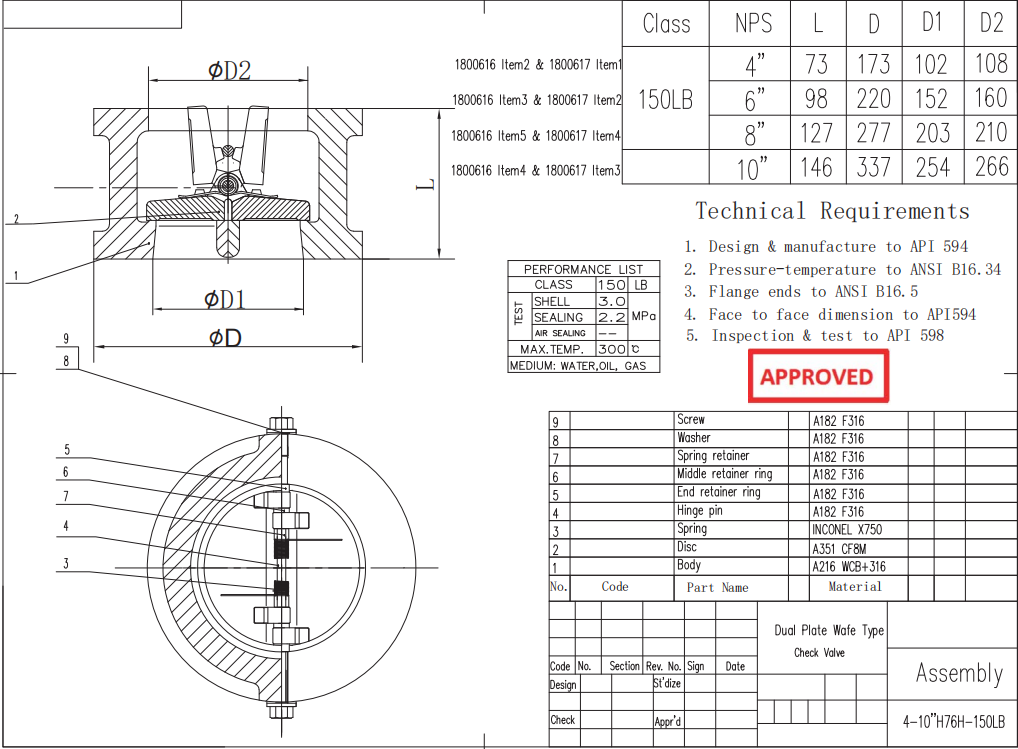

Technical Drawing

Dual Plate Wafer Type Check Valve

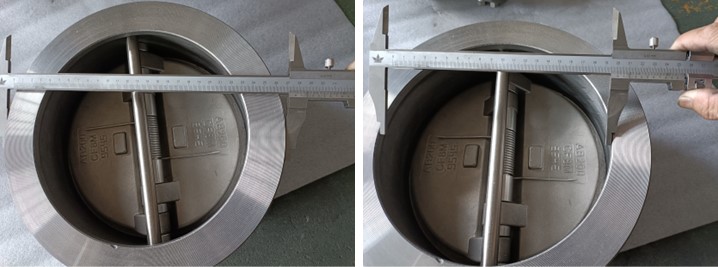

Dimension Checking

Dual Plate Wafer Type Check Valve

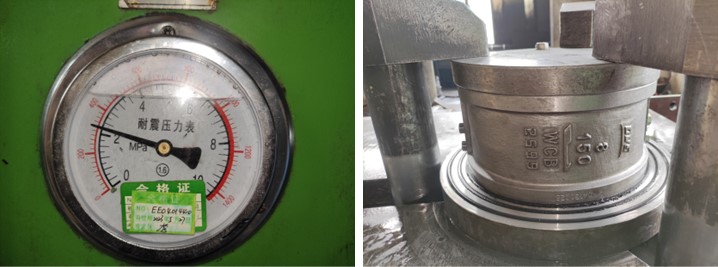

Pressure Testing

Dual Plate Wafer Type Check Valve

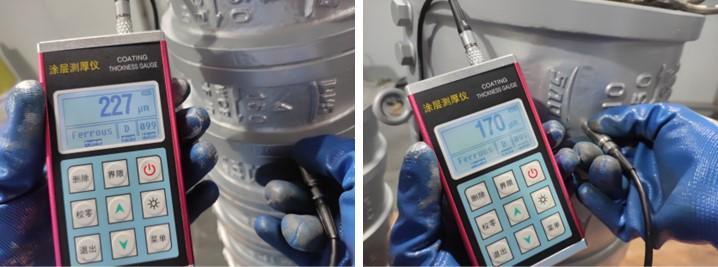

Spectrum

Dual Plate Wafer Type Check Valve

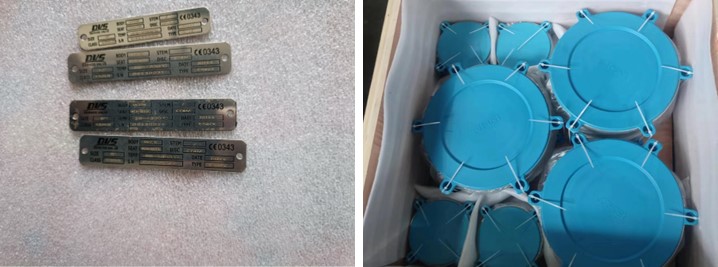

Nameplate & Packing

Dual Plate Wafer Type Check Valve

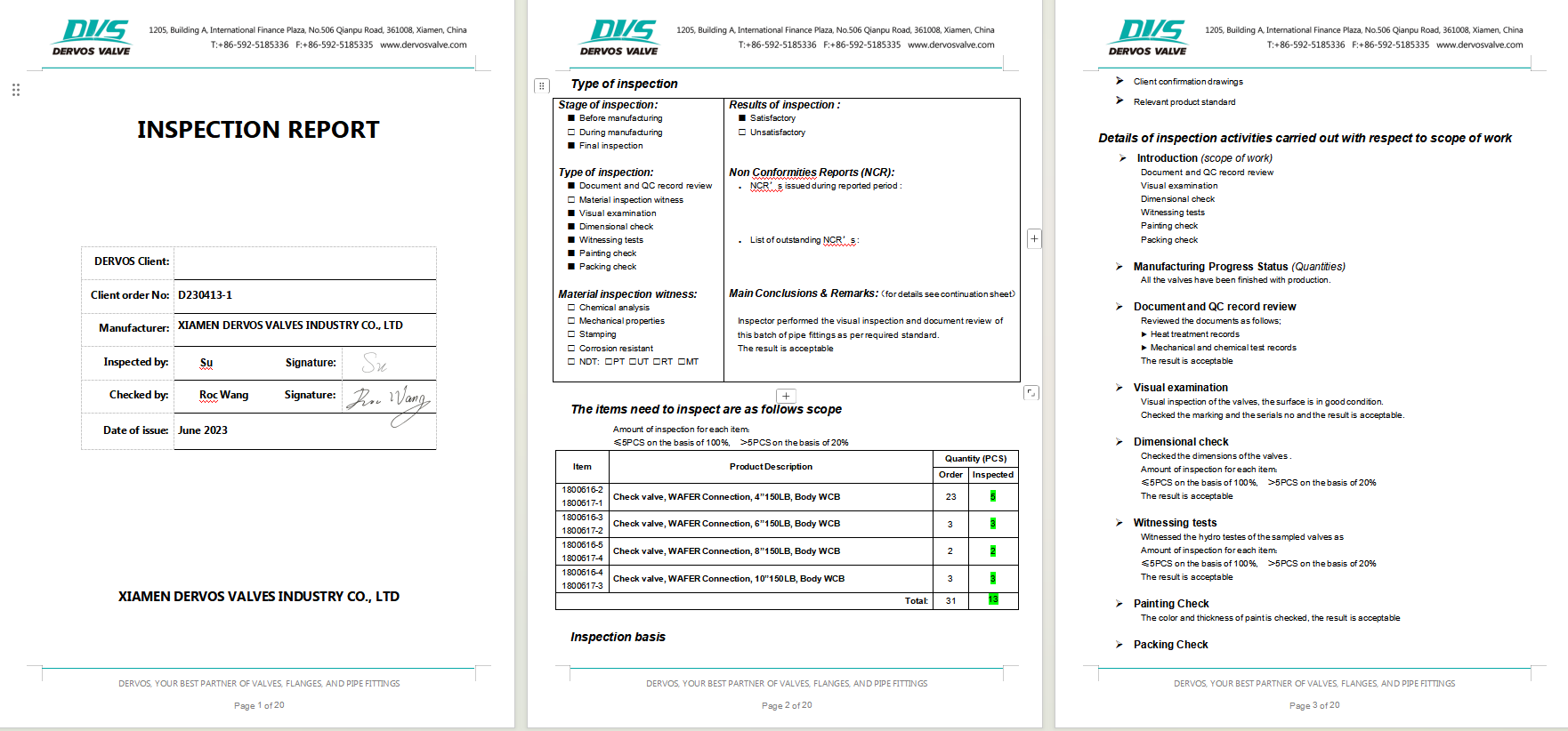

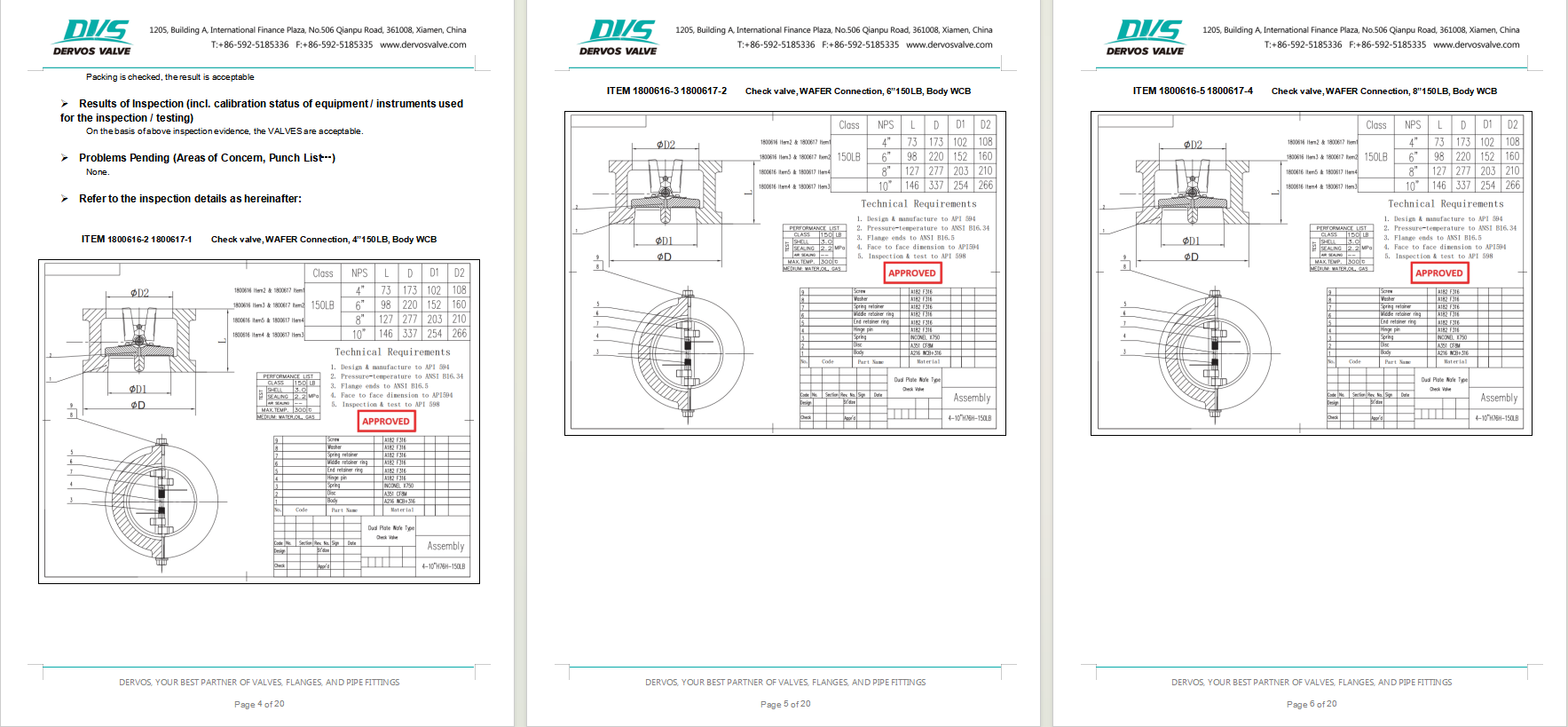

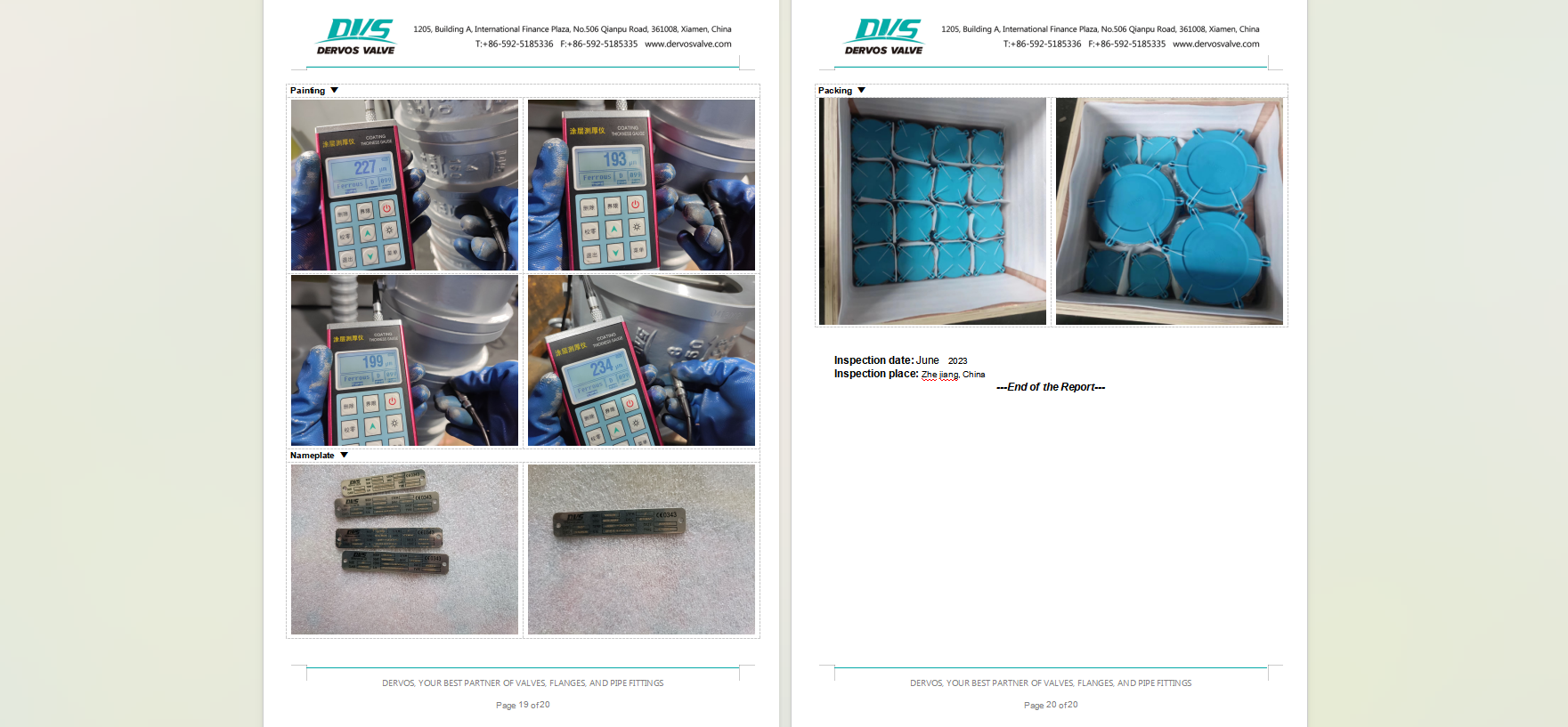

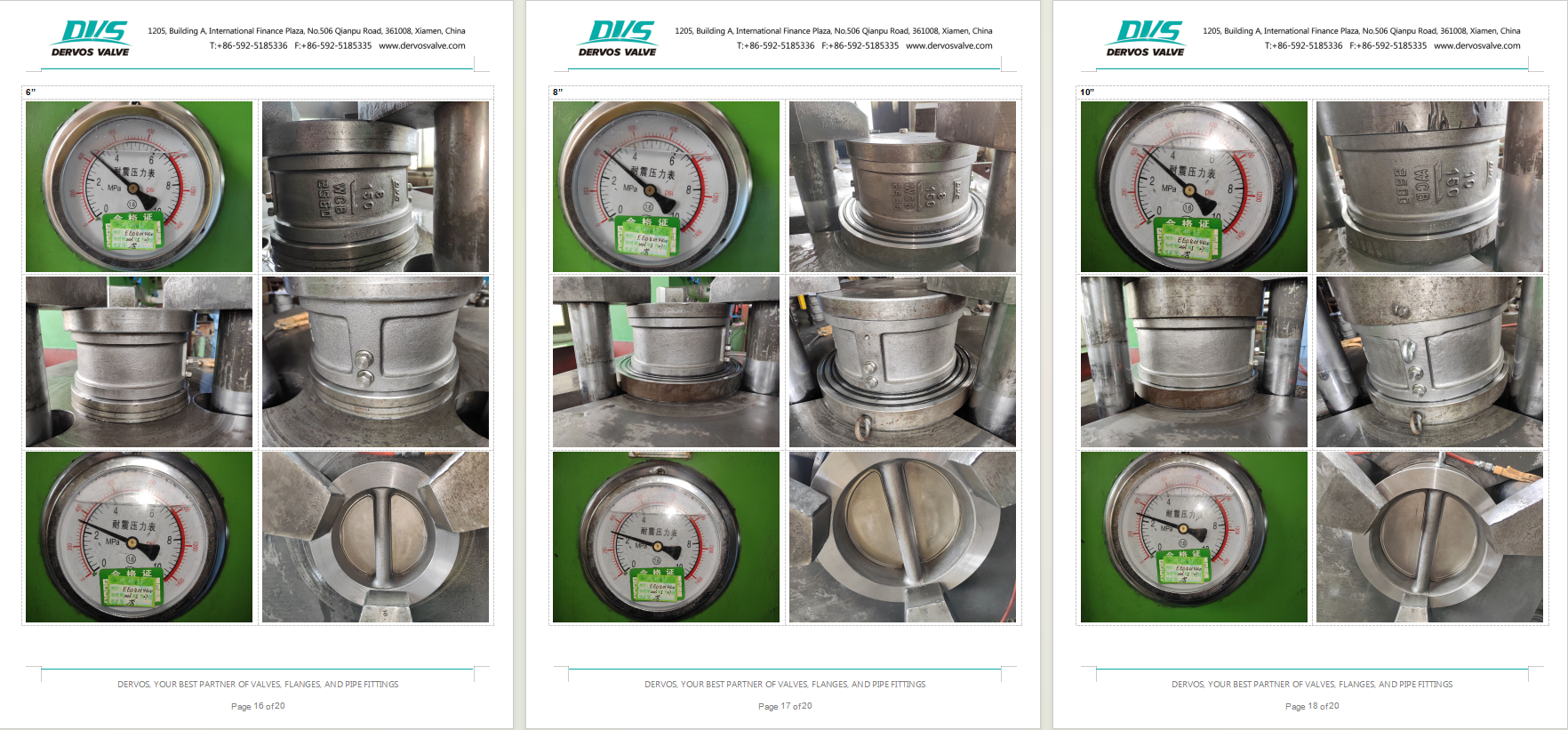

Inspection report

Dual Plate Wafer Type Check Valve
Dual Plate Wafer Type Check Valve
Dual Plate Wafer Type Check Valve
Dual Plate Wafer Type Check Valve
