4” 150LB Cast Steel Swing Check Valve CF8M API600 RF
Key Specifications / Features
Model No.: Hits: 0
4” 150LB Cast Steel Swing Check Valve is made according to API 6D standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of Swing Check Valve with External Pin and Bolted Bonnet. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Description
| Type | Cast Steel Swing Check Valve |
| Size | 4” |
| Pressure | 150LB |
| Connection | RF |
| Body Material | ASTM A351 CF8M |
| Design Norm | API 6D |
| Face to Face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Made of CF8M cast steel, providing excellent corrosion resistance and durability for long-term use.2. Swing check design with API 600 RF compliance ensures reliable backflow prevention and smooth operation.

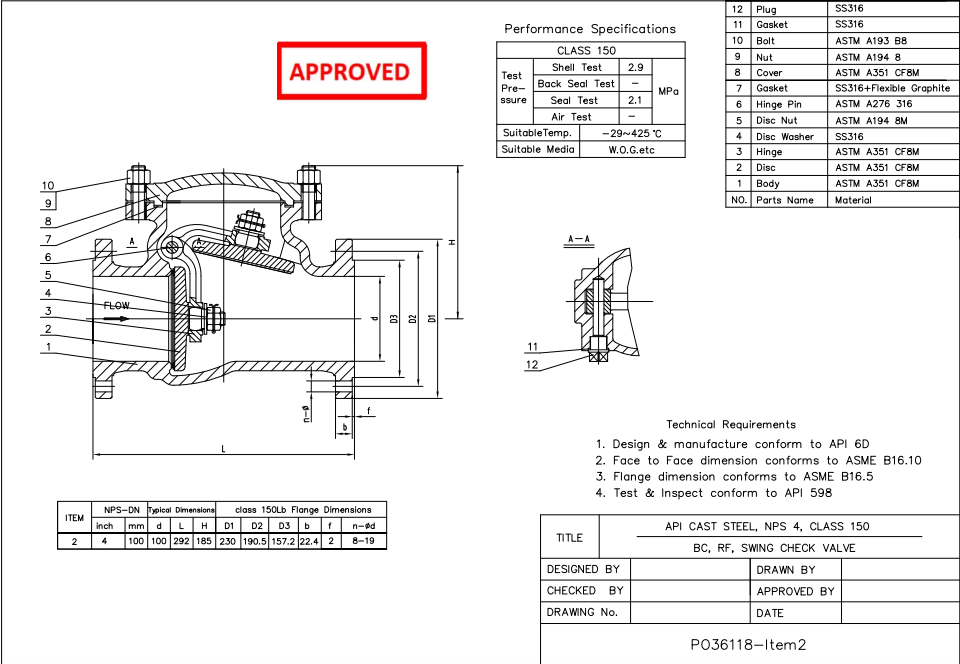

Technical Drawing

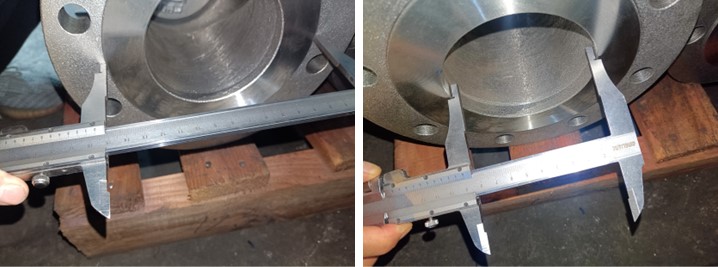

Dimension Checking

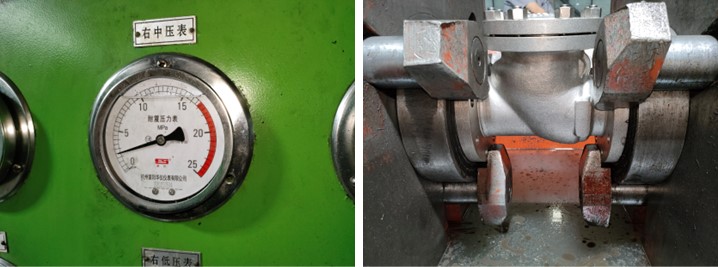

Pressure Testing

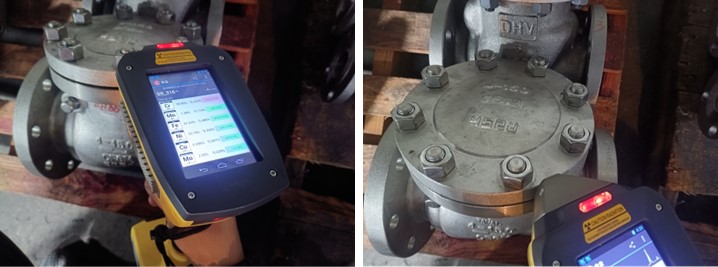

Spectrum

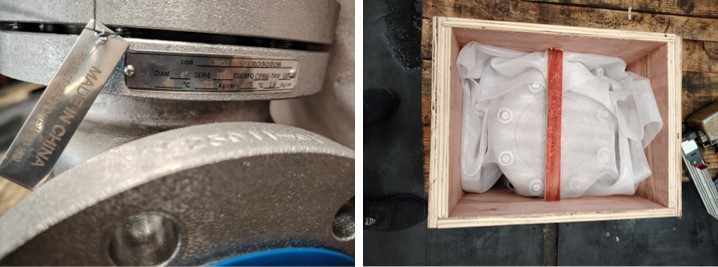

Nameplate & Packing
