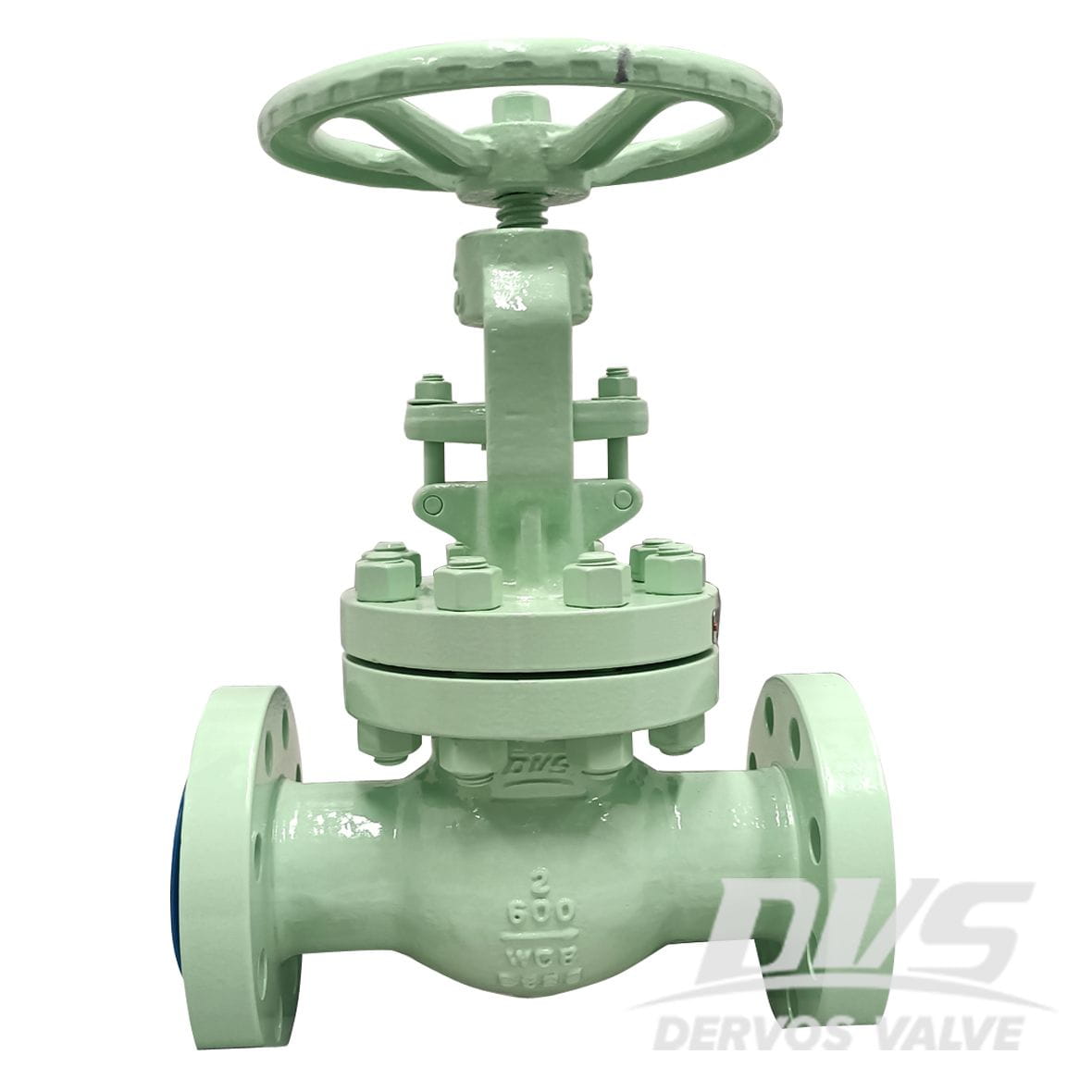

ASTM A216 WCB Gate Valve, 2 Inch, 600 LB, API 600, RF
Key Specifications / Features
Model No.: Hits: 0
ASTM A216 WCB Gate Valve Maker: Flexible Wedge Gate Valves, 0S & Y, ASTM A216 WCB, 2 Inch, DN50, Class 600 LB, PN100, API 600, RF End, Handwheel Operation.
Request a quote
Tags:
Quick Detail
Product Description
| Type | Gate Valve |
| Size | 2" |
| Pressure | 600 LB |
| Connection | RF |
| Operation | Handwheel Operation |
| Body Material | ASTM A216 WCB |
| Design Norm | API 600 |
| Face-to-face dimension | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 - 425°C |
| Applicable Medium | Water, Oil and Gas |
Product Range
Detail Information
Cast Steel 2" 600 LB Gate Valve API 600 WCB RF
Introduction
2" 600 LB gate valve is made according to API 600 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a flexible wedge and 0S & Y. Its connection mode is flange connection.
Features
1. Simple structure, short structure length and good manufacturing technology;
2. The sealing surface is less scoured and eroded by the medium, and the fluid resistance is small.
Technical Drawing
Dimension Checking
Witnessing Tests
Packing
Inspection report
Introduction
2" 600 LB gate valve is made according to API 600 standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a flexible wedge and 0S & Y. Its connection mode is flange connection.
Features
1. Simple structure, short structure length and good manufacturing technology;
2. The sealing surface is less scoured and eroded by the medium, and the fluid resistance is small.
Technical Drawing
Dimension Checking
 |
 |
Witnessing Tests
 |
 |
Packing
 |
 |
Inspection report
