Body WCB, RF, 8" 1500LB Inverted Pressure Balanced Lubricated Plug Valve, API6D
Key Specifications / Features
Model No.: Hits: 0
8" 1500LB Inverted Pressure Balanced Lubricated Plug valve is made according to API 6D standard. The valve body is made of A216 WCB. It has the structural characteristics of Inverted pressure balanced, oil sealed, API6FA fire-resistant. Its connection mode is RF. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Description
| Type | Inverted Pressure Balanced Lubricated Plug Valve |
| Size | 8" |
| Pressure | 1500LB |
| Connection | RF |
| Operation | Lever |
| Body Material | A216 WCB |
| Design Norm | API 6D |
| Test & Inspection Code | API 598 |
| Face to Face Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Pressure-Temperature | ASME B16.34 |
| Fire Safe | API 6FA |
| Temperature | ≤ 80°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Due to the reverse balance design, the operating force is smaller and the valve opening and closing are easier, making it suitable for systems with higher pressure;2. Due to the presence of the lubricating layer, the friction between the valve core and the valve seat is reduced, thereby reducing the wear of the sealing surface and improving the sealing and durability of the valve.

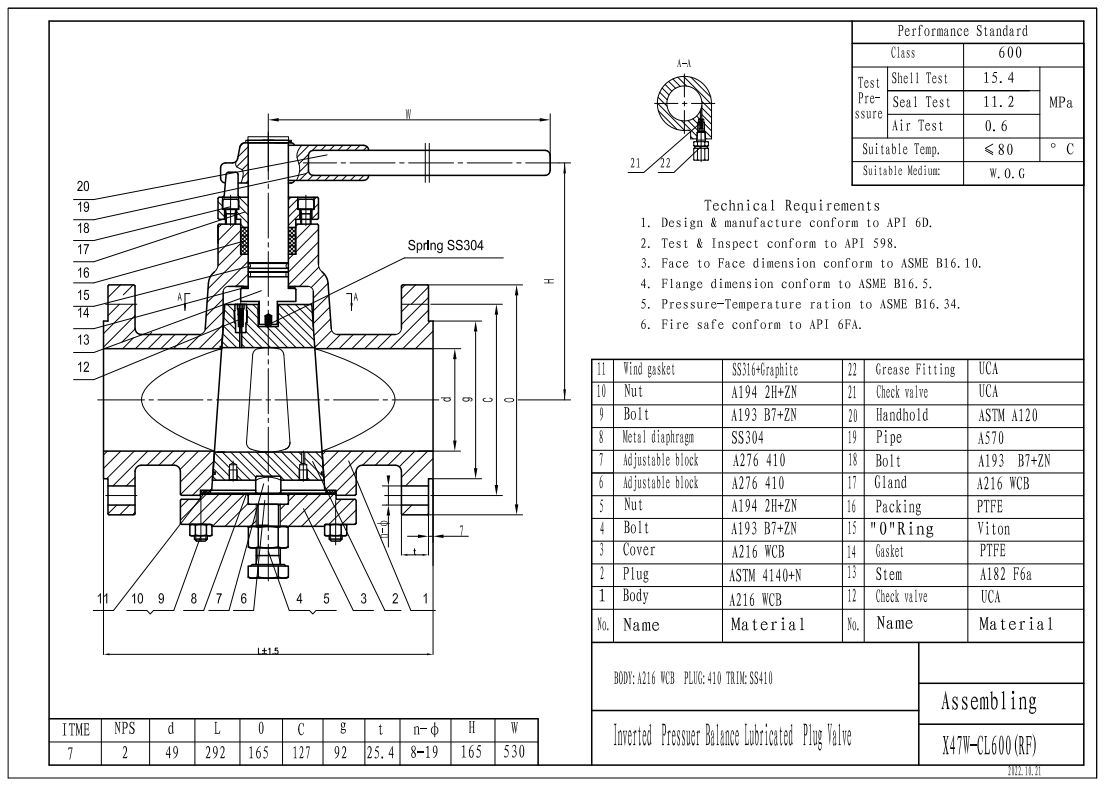

Technical Drawing

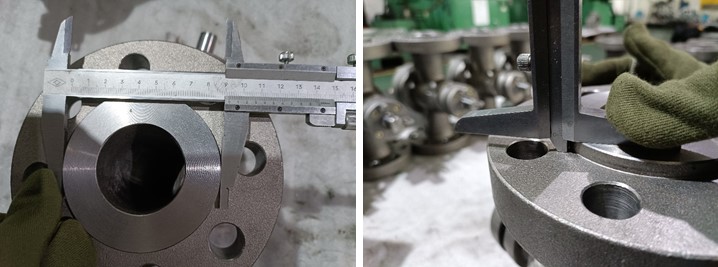

Dimension Checking

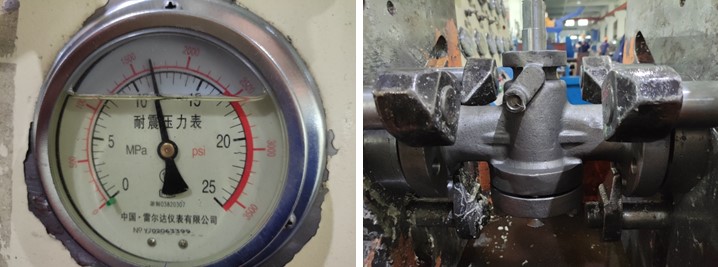

Pressure Testing

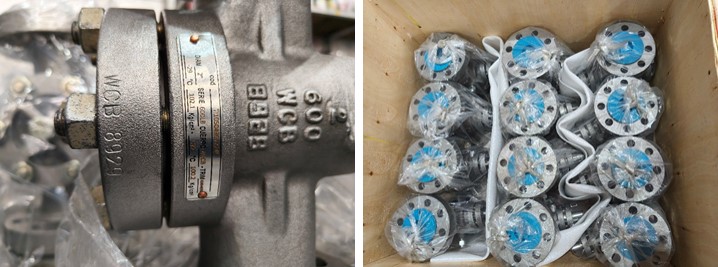

Nameplate & Packing

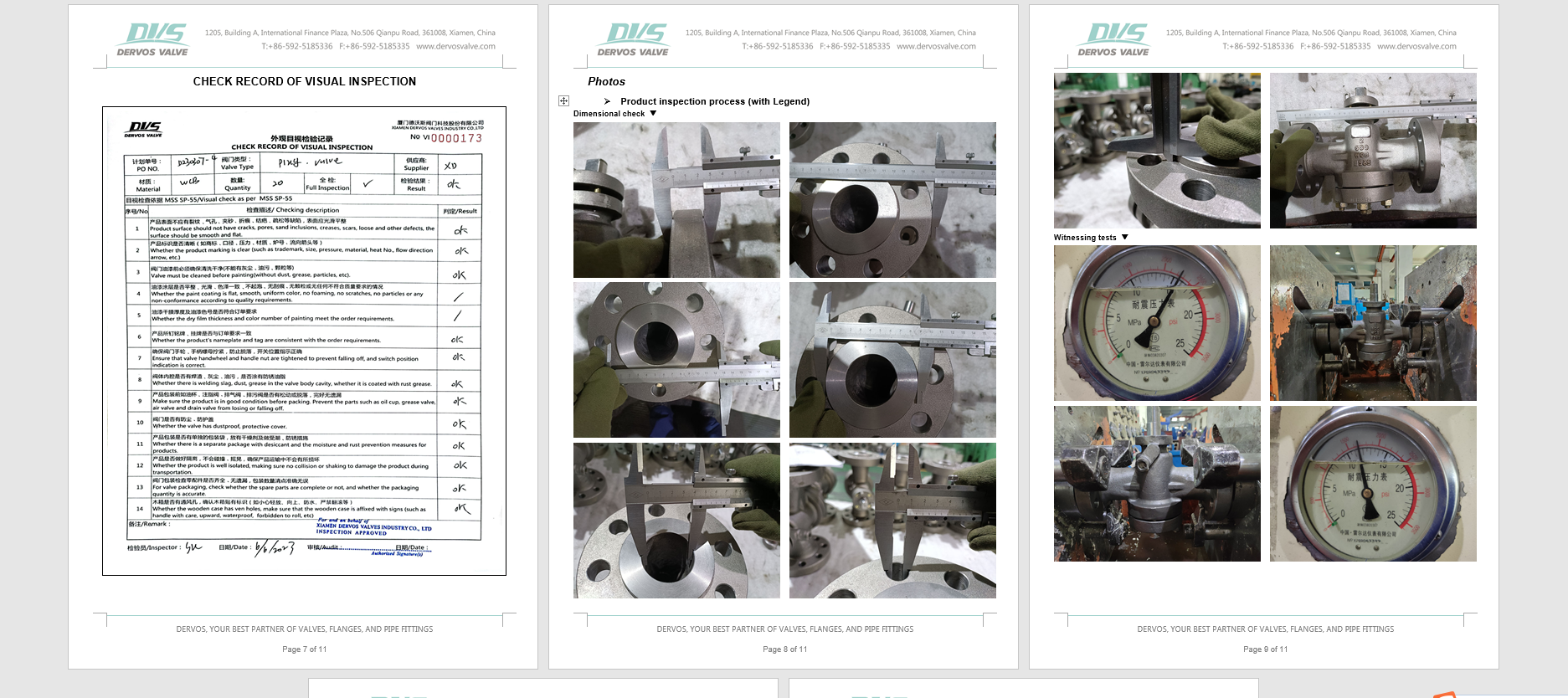

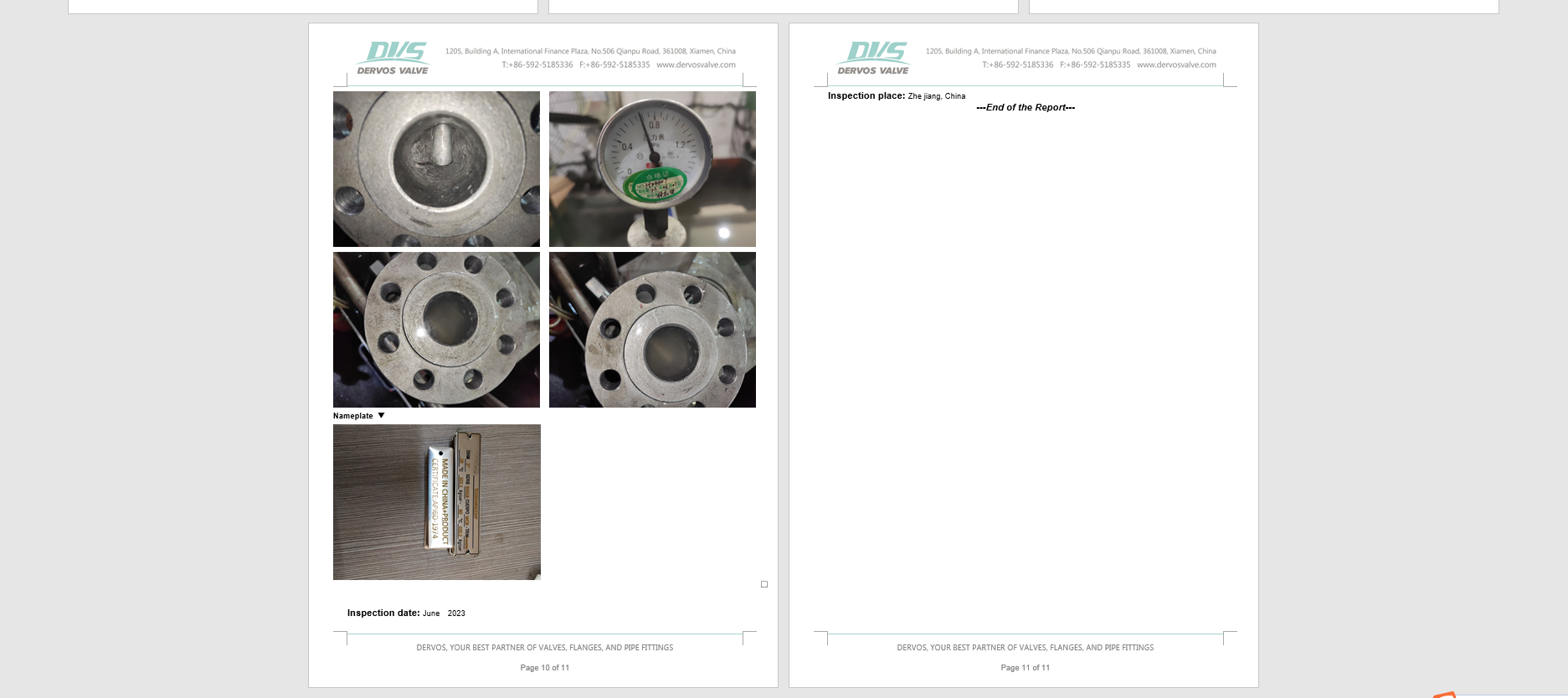

Inspection report
