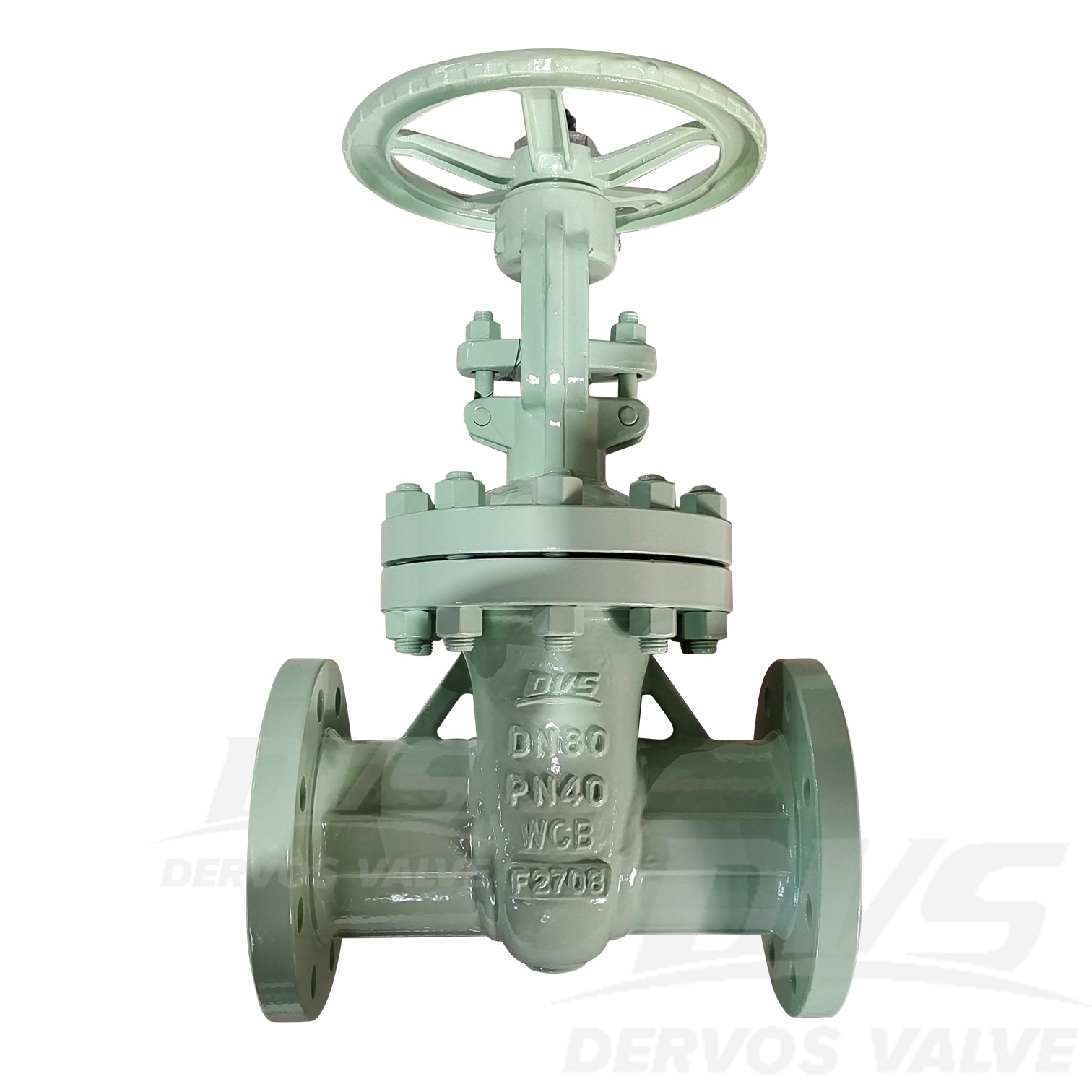

Cast Steel Gate Valve DN80 PN40 WCB RF
Key Specifications / Features
Model No.: Hits: 0
DN80 PN40 Cast Steel Gate Valve is made according to EN 1984 standard. The valve body is made of A216 WCB+STL. It has the structural characteristics of Bolted cover and structural length of 310mm. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | DN80 |
| Pressure | PN40 |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | A216 WCB+STL |
| Design Norm | EN 1984 |
| Face to face | DIN 3202-F7 |
| Flange dimension | EN 1092-1 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. The WCB cast steel body provides excellent strength and durability for demanding PN40 industrial service.2.The The full-bore gate design and RF flanged ends ensure low flow resistance and reliable pipeline shutoff.

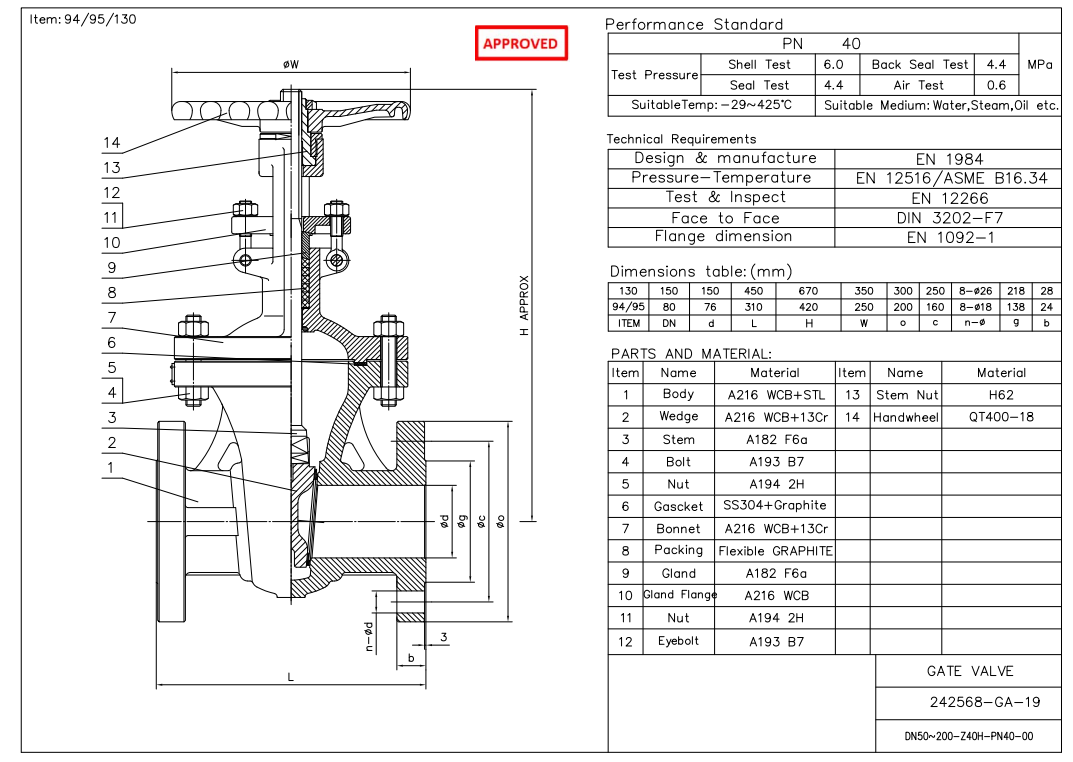

Technical Drawing

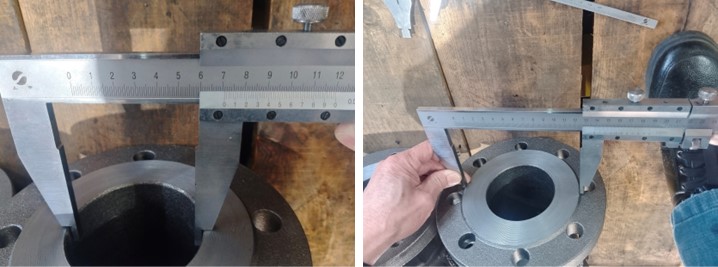

Dimension Checking

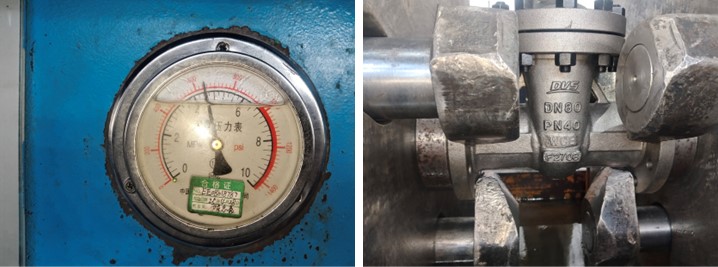

Pressure Testing

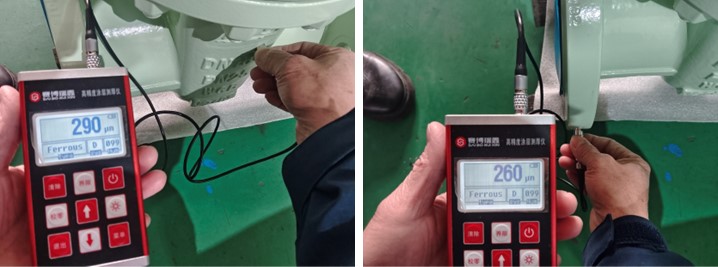

Painting

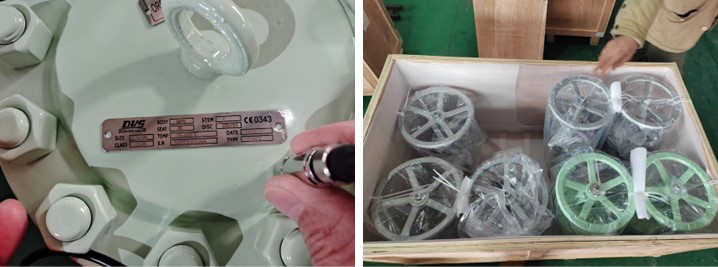

Nameplate & Packing

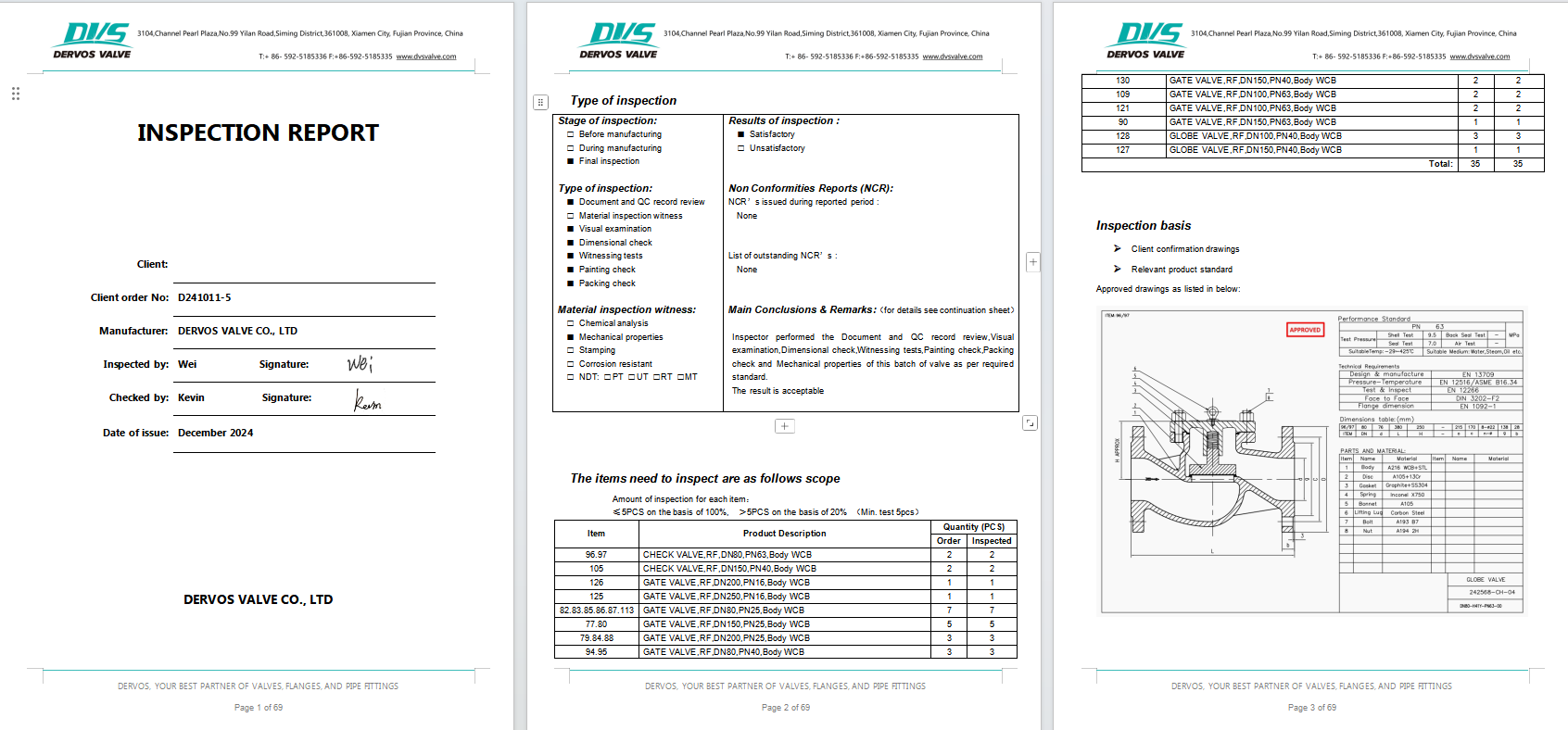

Inspection Report
