DN15 PN63 Forged Steel Flange Globe Valve, EN1092-1 B, Body A105N, BS5352
Key Specifications / Features
Model No.: Hits: 0
DN15 PN63 Forged Steel Flange Globe valve is made according to BS 5352 standard. The valve body is made of A105N+STL. It has the structural characteristics of straight through, bolted cover and structural length of 130mm. Its connection mode is EN1092-1 B. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Globe Valve |
| Size | DN15 |
| Pressure | PN63 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | A105N+STL |
| Design Norm | BS 5352 |
| Flange Dimension | EN 1092 |
| Material | AISI/ASTM |
| Test & Inspection Code | EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Features
1. By rotating the handwheel to control the valve disc opening, precise flow regulation can be achieved, suitable for systems that require throttling or adjustment;2. Optional connection methods such as threads, socket welding, flanges, etc. are available to meet different installation requirements.

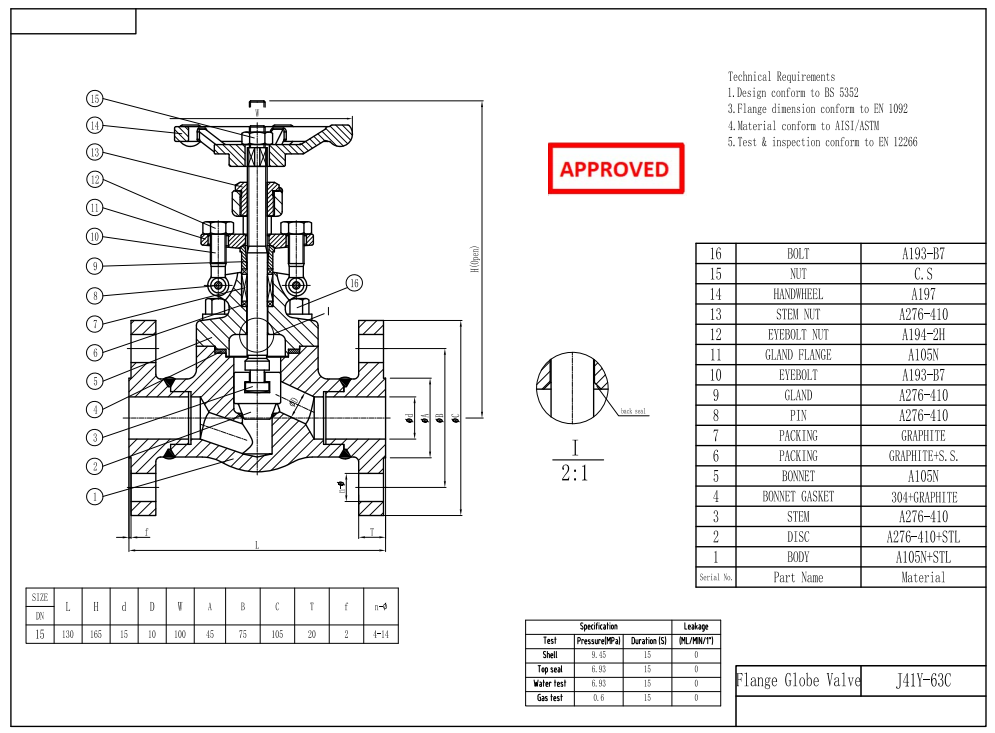

Technical Drawing

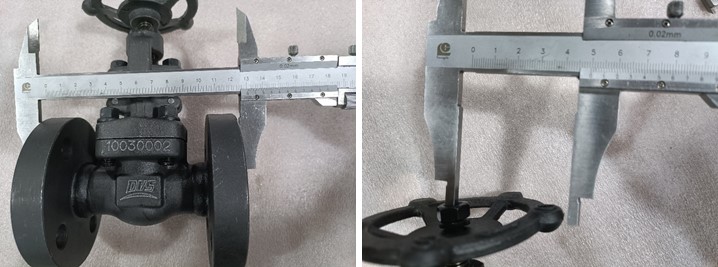

Dimension Checking

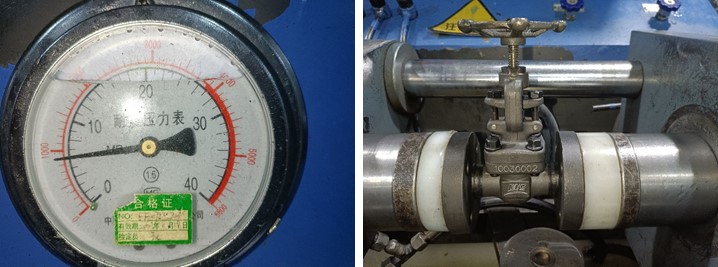

Pressure Testing

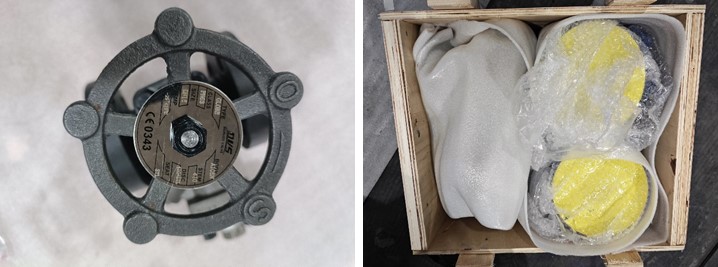

Nameplate & Packing

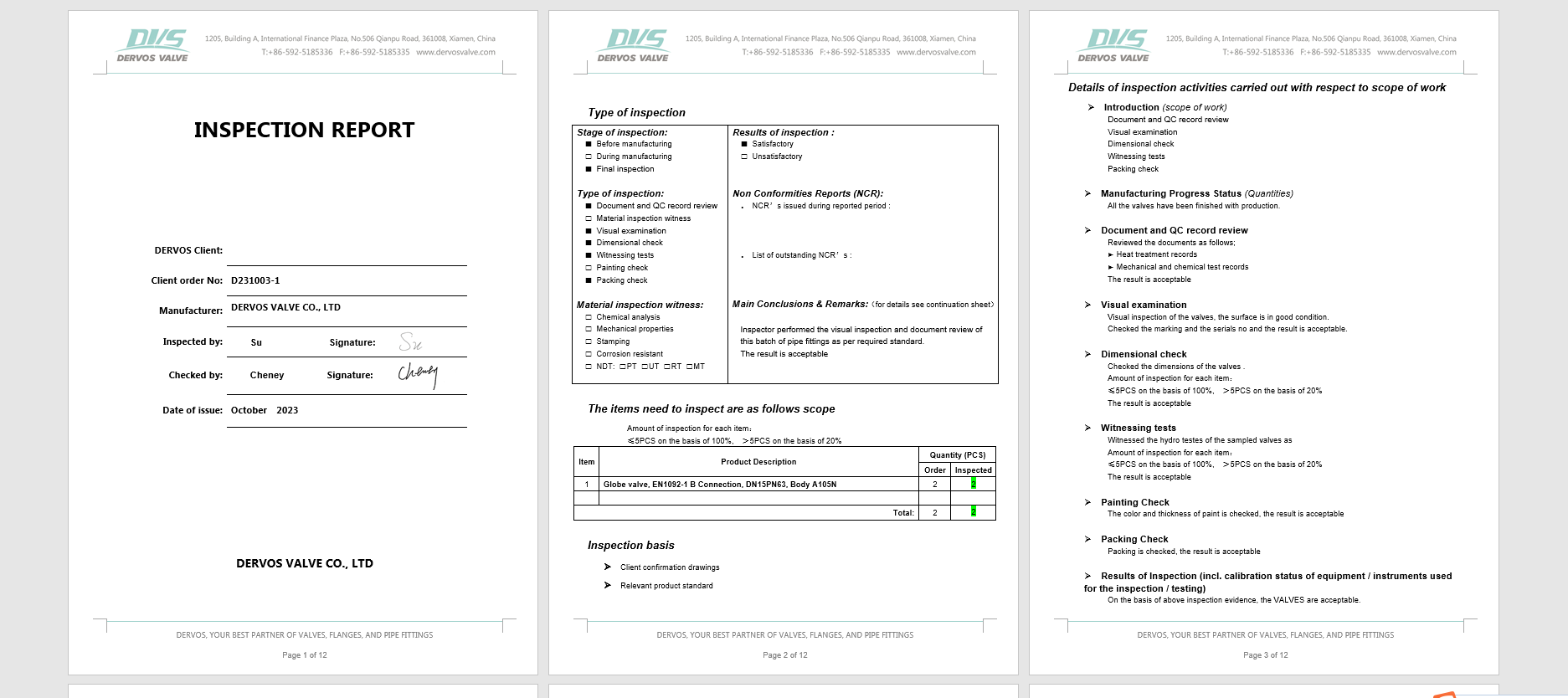

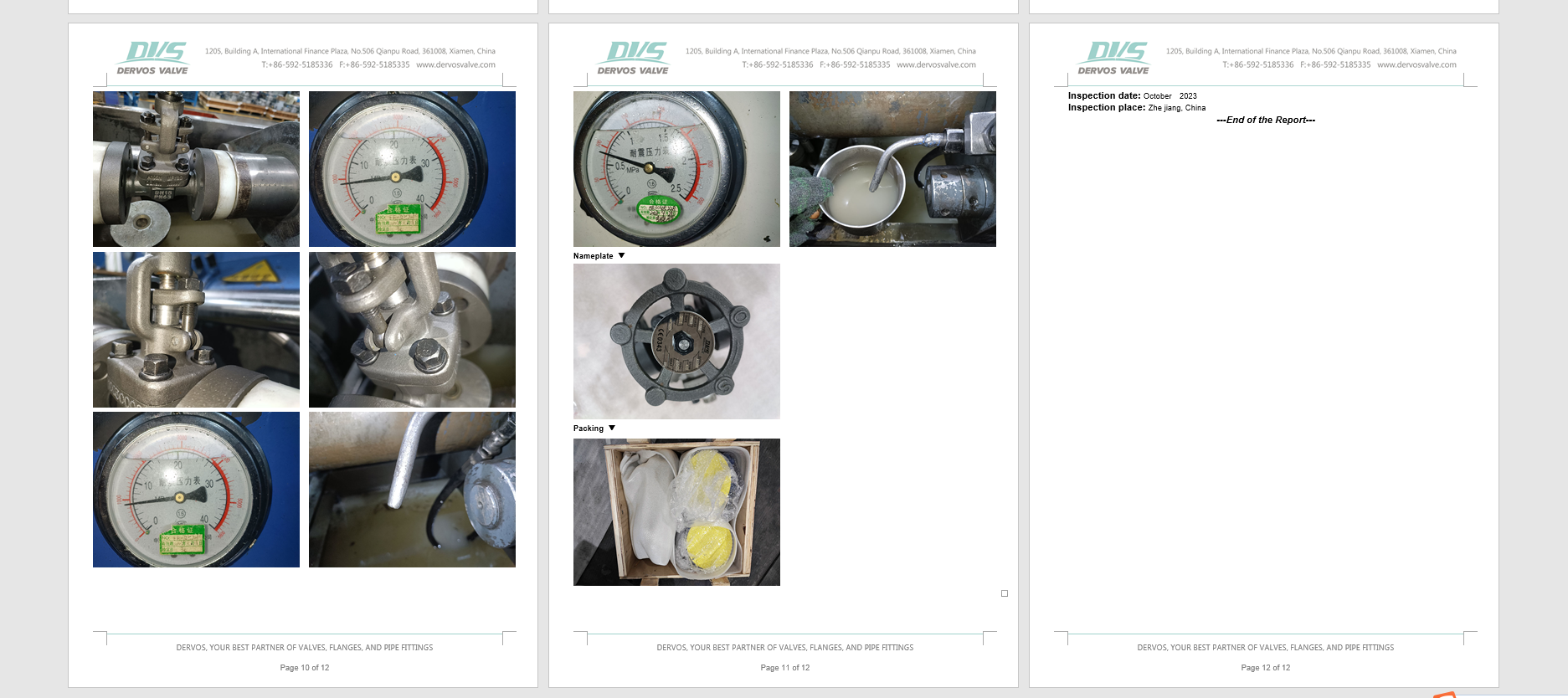

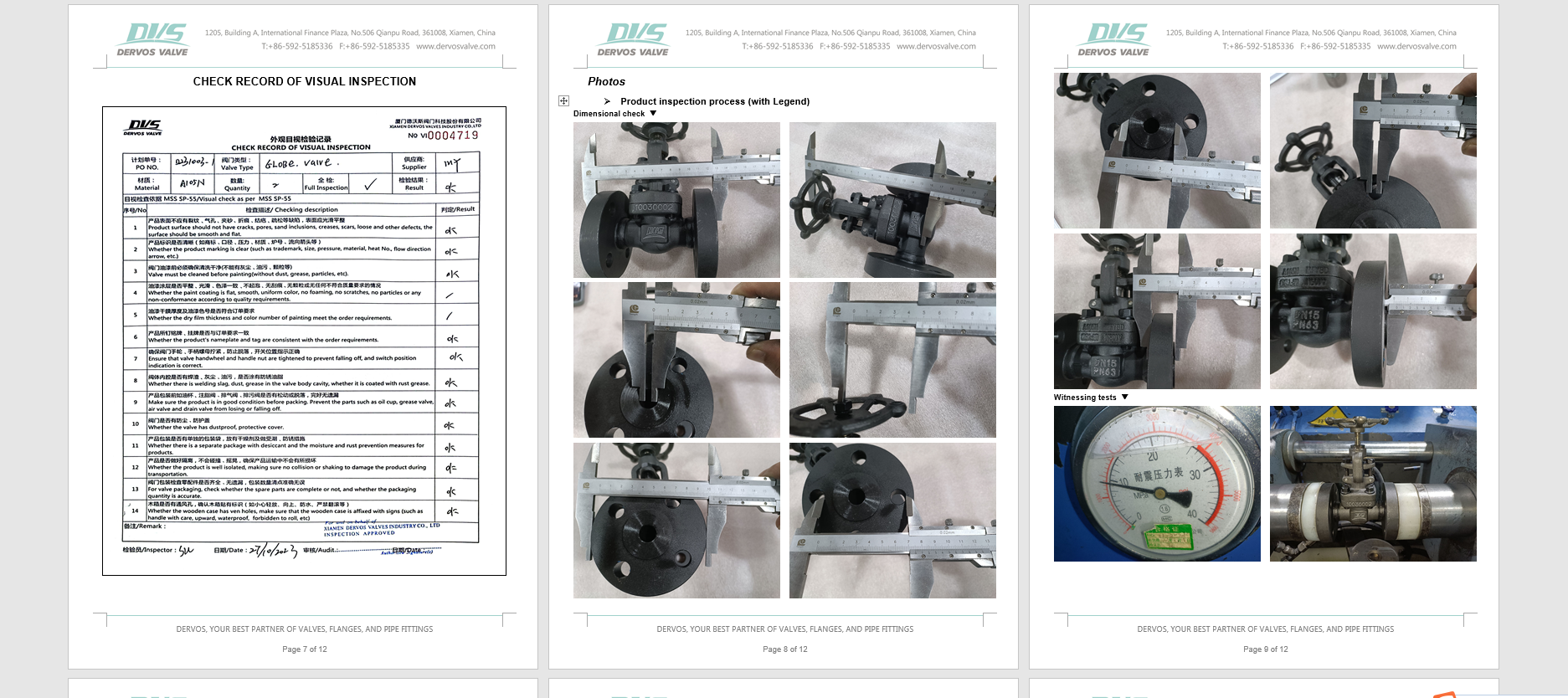

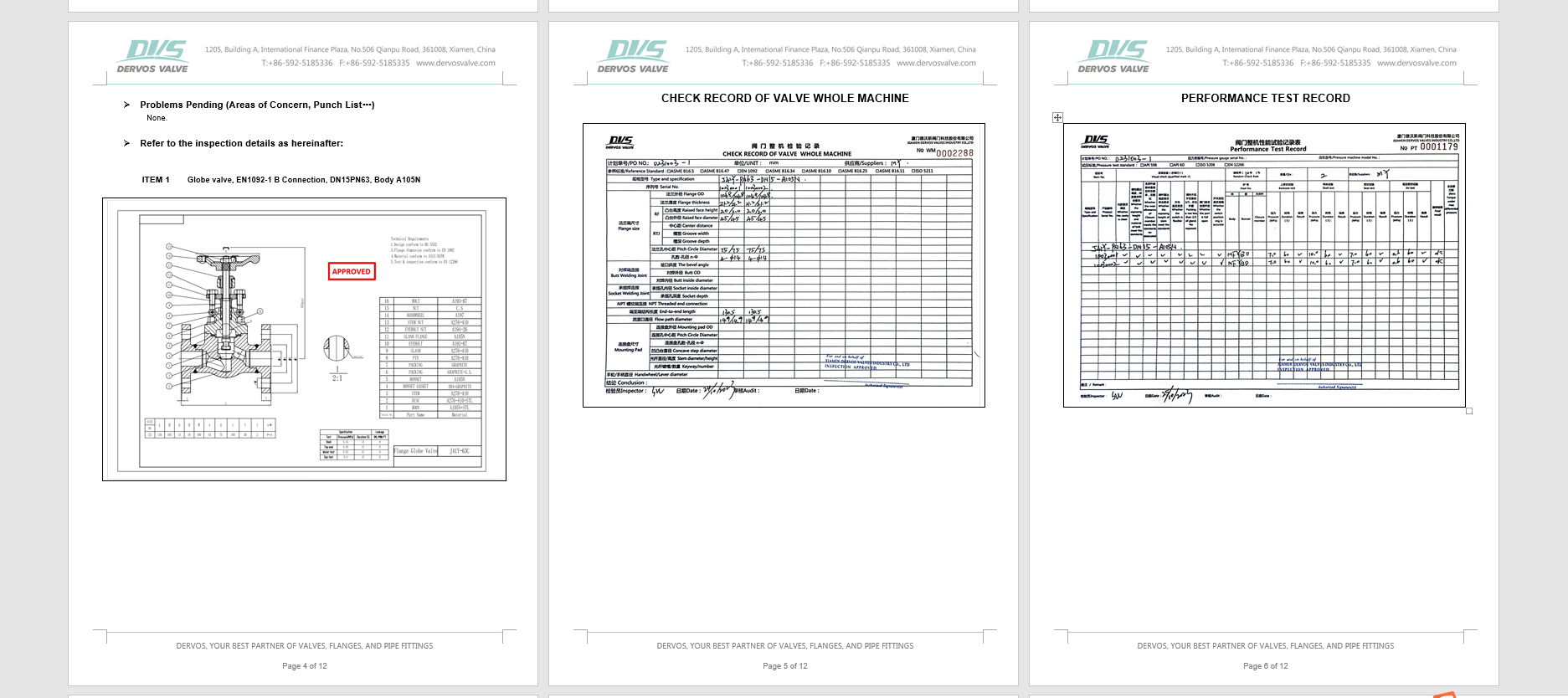

Inspection report
