DN400 PN4.0MPA Slide Blind Valve A182 LF2 EN12516-1/2
Key Specifications / Features
Model No.: Hits: 0
DN400 PN4.0MPA Slide Blind Valve is made according to EN12516-1/2 standard. The valve body is made of A182 LF2. It has the structural characteristics of Detachable Type, Straight-through, Full Port Design. Differential Pressure in Closed Position: 2.0 MPa. With Thermal Insulation (Heat Loss Protection). Sealing Class: Class A according to GOST 9544-2015. Bidirectional Flow Capability. Blind Cover Protection Housing: Yes. Valve Marking: GOST 4666-2015. And it has Bevel Gear operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Slide Blind Valve |
| Size | DN400 |
| Pressure | PN4.0MPA |
| Connection | Flange GOST 33259-2015 B |
| Operation | Bevel Gear |
| Body Material | A182 LF2 |
| Design Norm | EN12516-1/2 |
| Face to Face | Supplier Standards |
| Flange | GOST 33259-Type B |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -46 ~ 350°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Made from A182 LF2 forged steel, providing exceptional toughness and reliability under PN4.0MPA pressure.2. Slide blind valve design compliant with EN12516-1/2 allows safe and efficient pipeline isolation during maintenance operations.

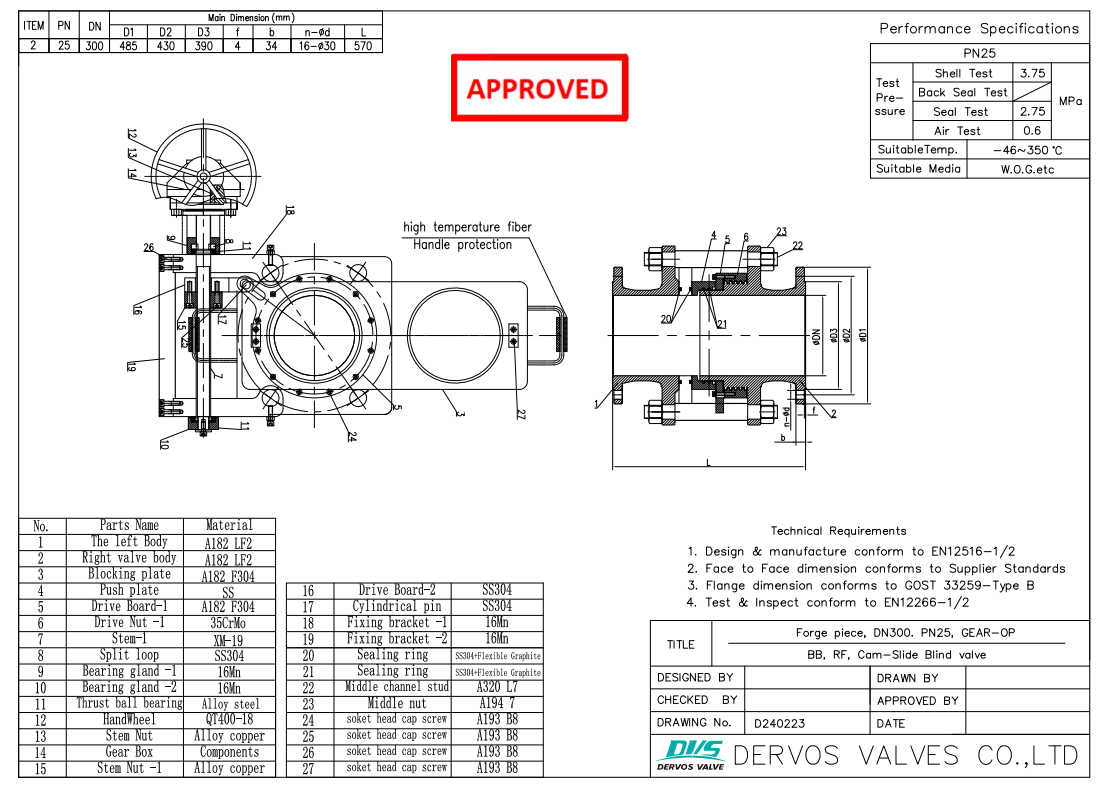

Technical Drawing

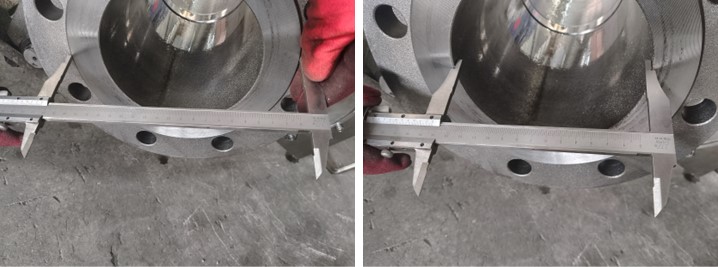

Dimension Checking

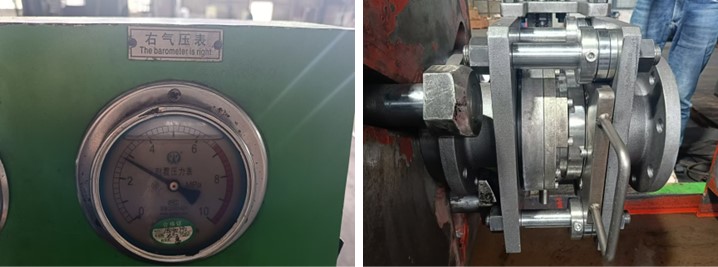

Pressure Testing

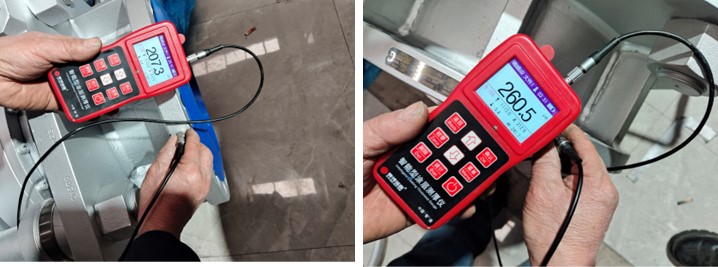

Painting

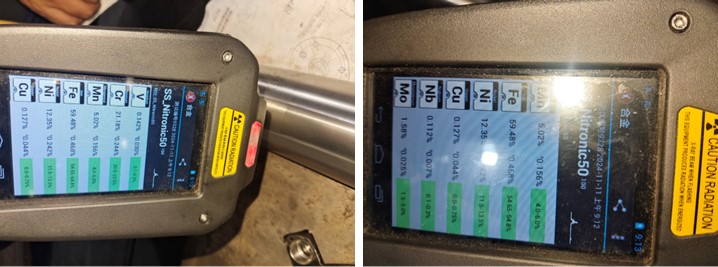

Spectrum

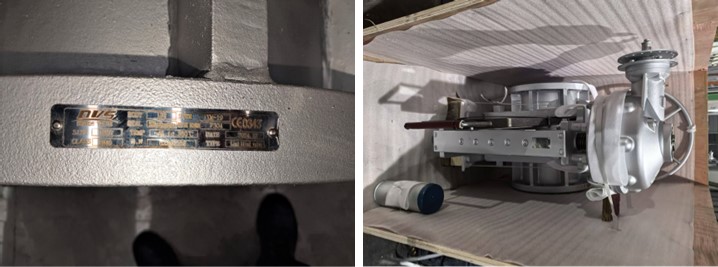

Nameplate & Packing

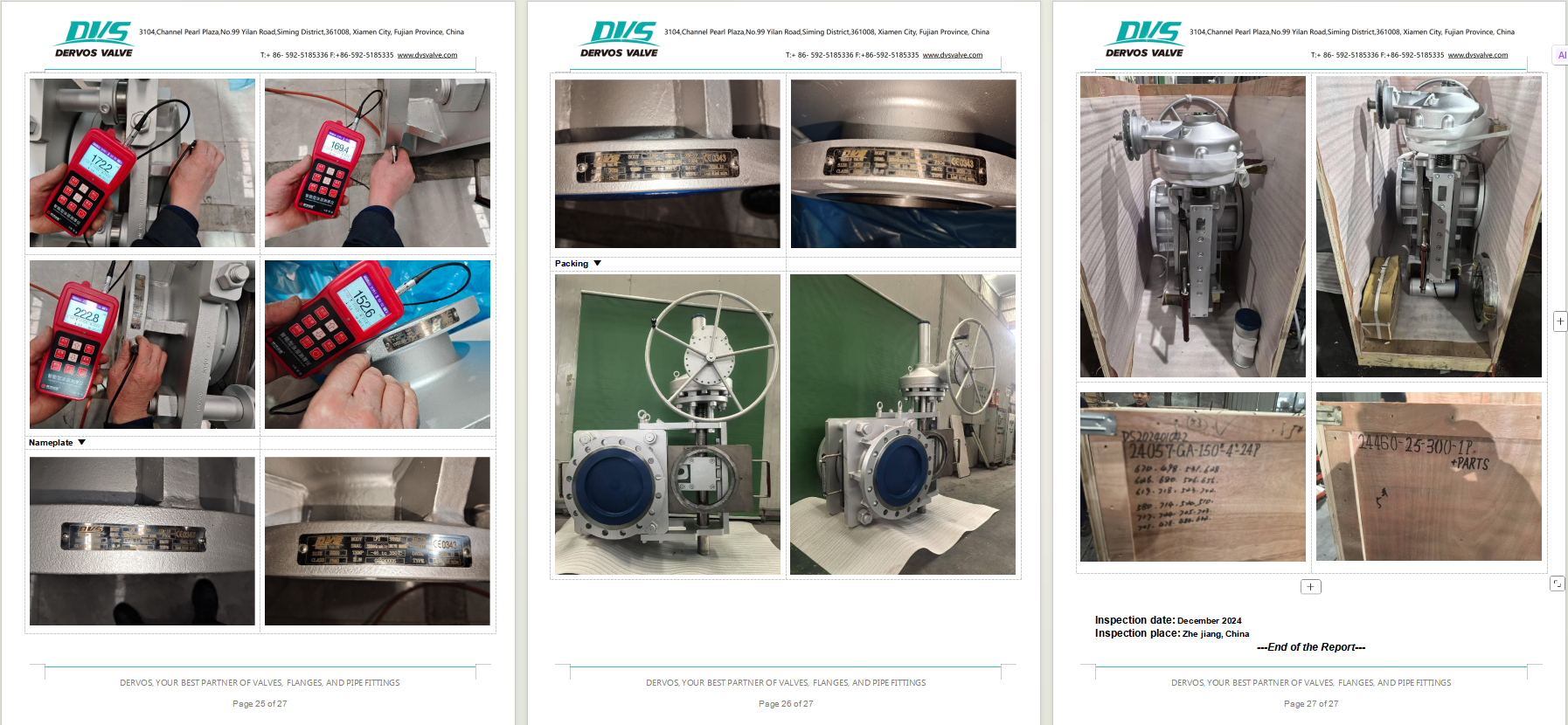

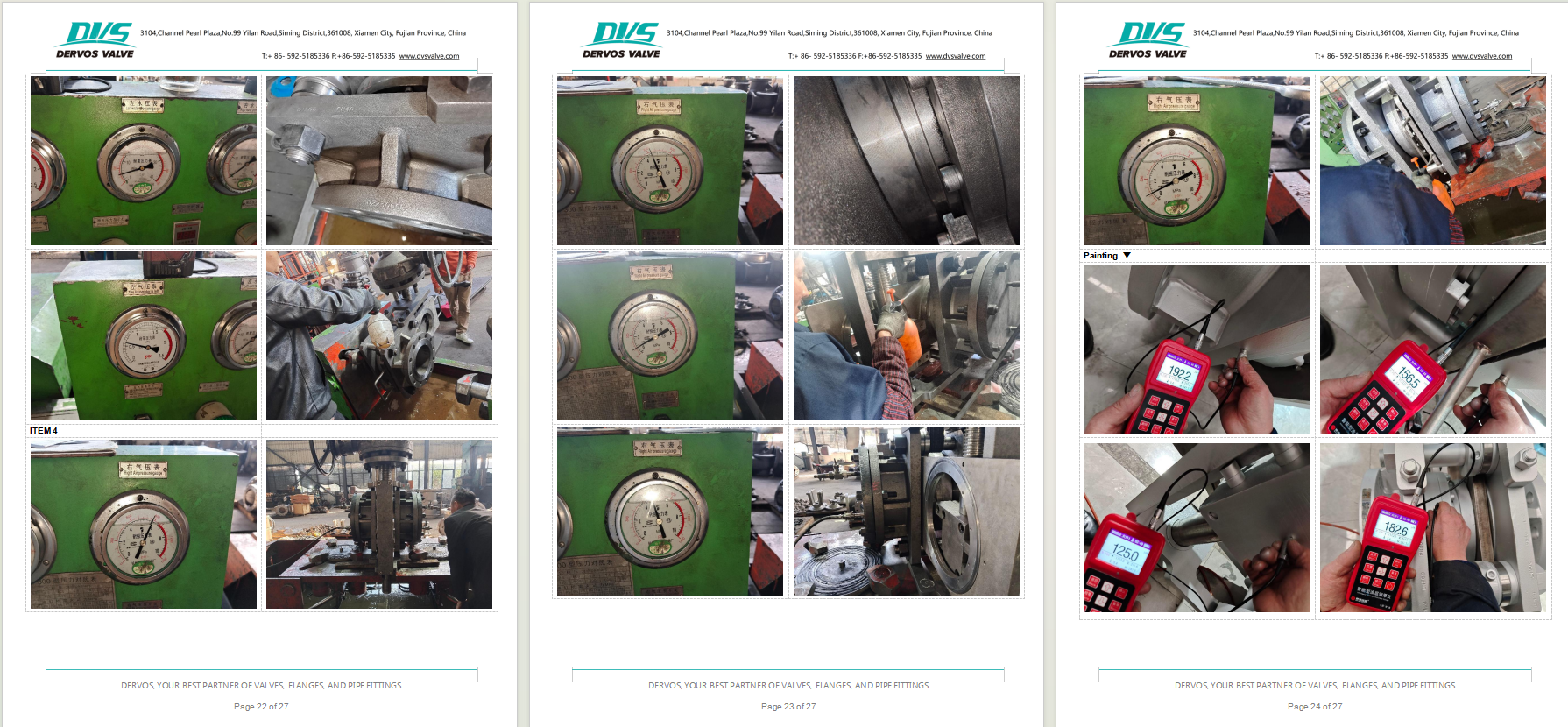

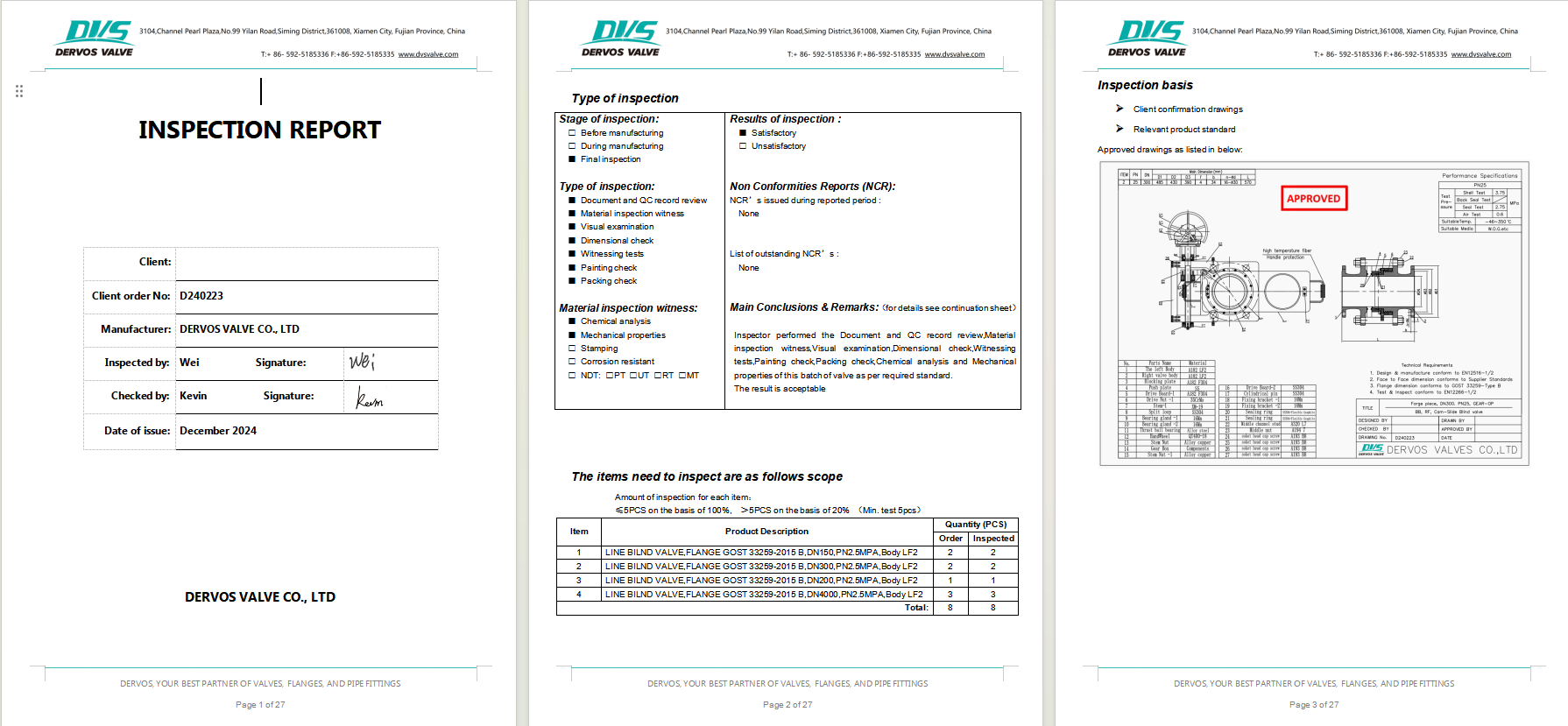

Inspection Report
