DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

Key Specifications / Features

Model No.: Hits: 0

DN50 PN100 Cast Steel Globe Valve is made according to EN13709 standard. The valve body is made of 1.0619+STL. It has the structural characteristics of through way type, bolt bonnet. Its connection mode is EN1092-1 D. And it has hand wheel operation mode.
Request a quote

Detail Information

Product Description

Type Cast Steel Globe Valve
Size DN50
Pressure PN100
Connection EN1092-1 D
Operation H.W.
Body Material 1.0619+STL
Design Norm EN13709
Face to Face EN558-1/2
Flange Dimension EN1092-1/D
Test & Inspection Code EN12266-1/2
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Gas

Features

1. The globe valve features a throttling design that provides excellent flow control and reliable shut-off, although it introduces higher flow resistance compared to other valve types;
2. Cast steel globe valves provide reliable shut-off and are well-suited for applications requiring frequent operation and high sealing performance under moderate pressure and temperature conditions.

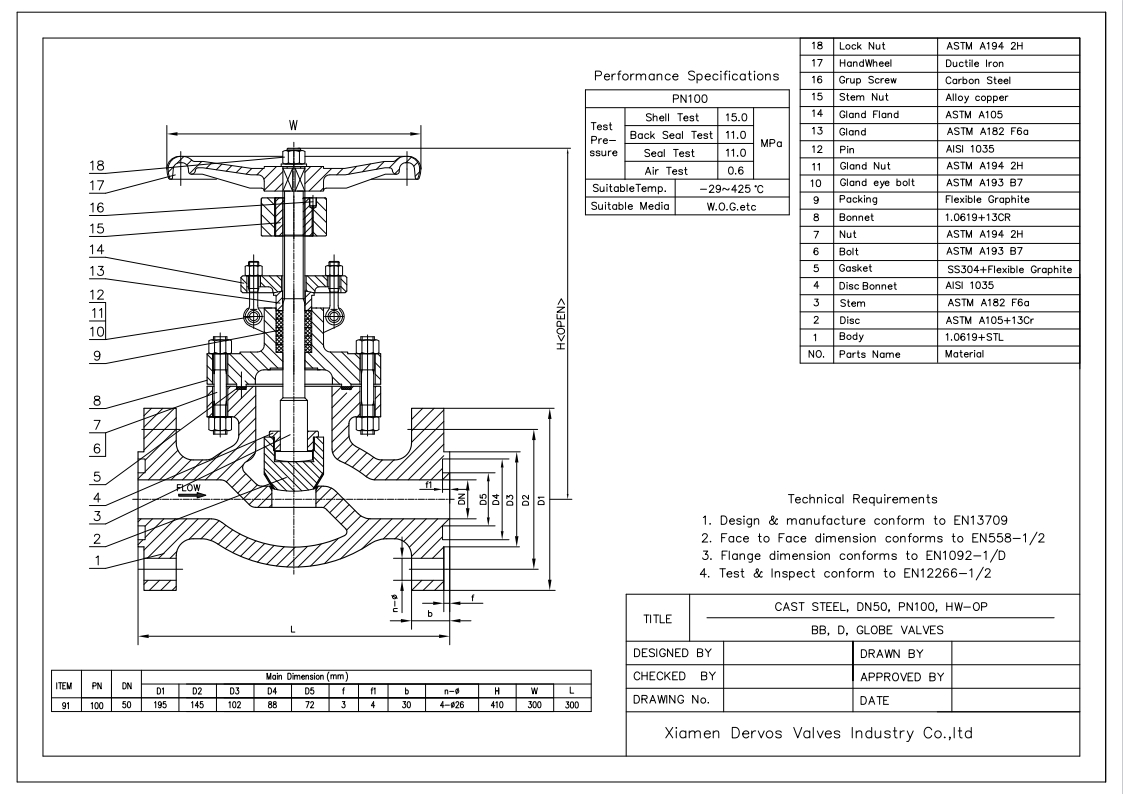

Technical Drawing

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

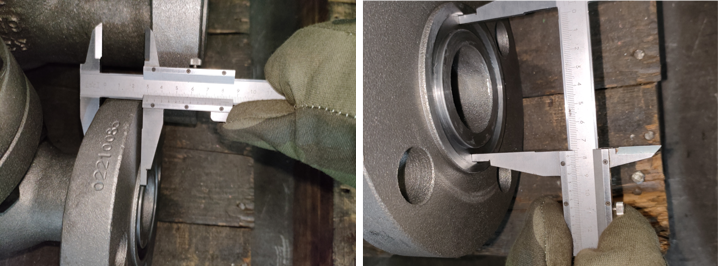

Dimension Checking

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

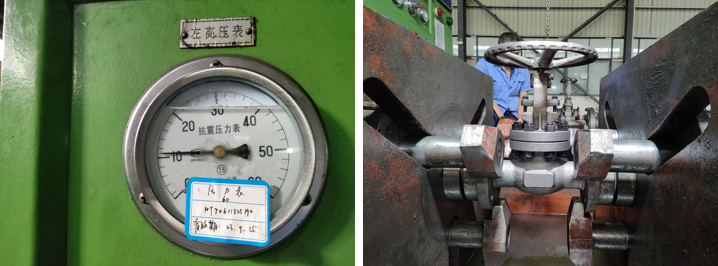

Pressure Testing

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

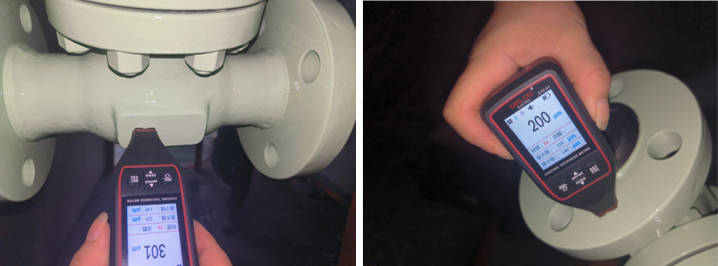

Painting

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

Nameplate & Packing

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.

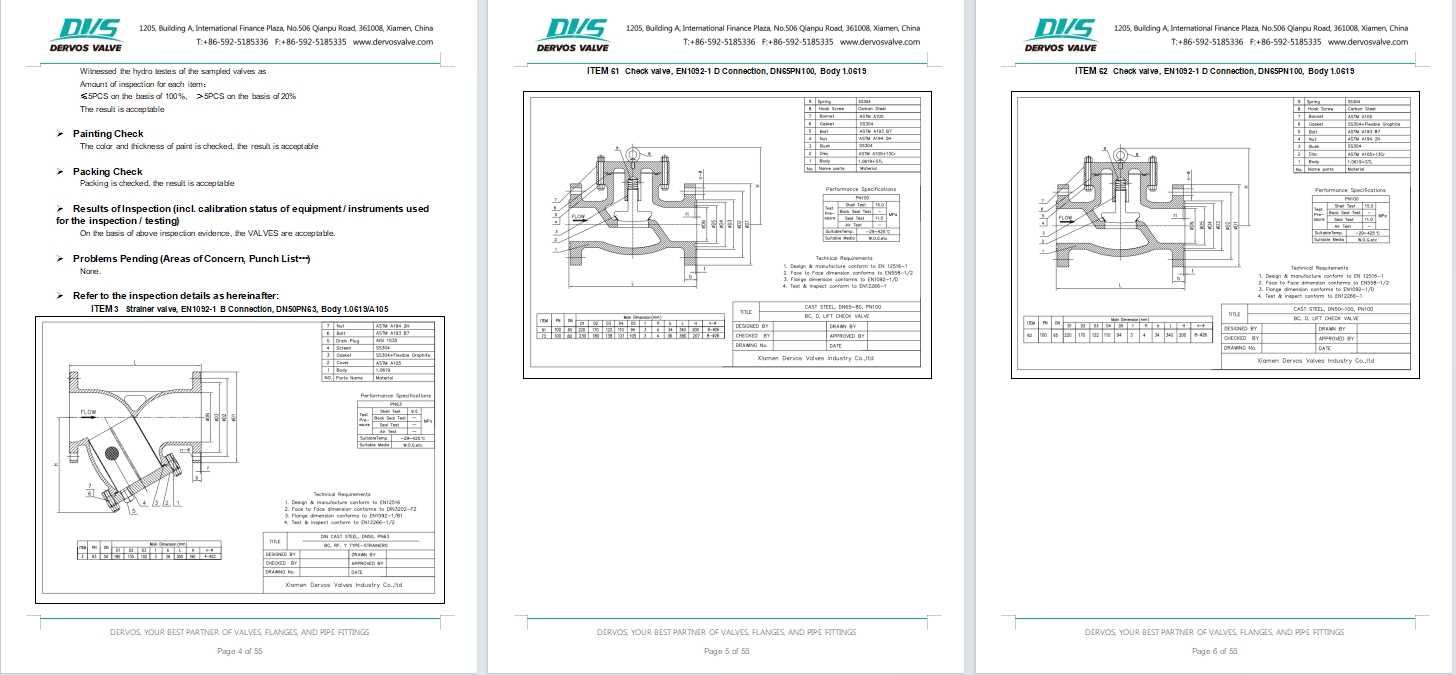

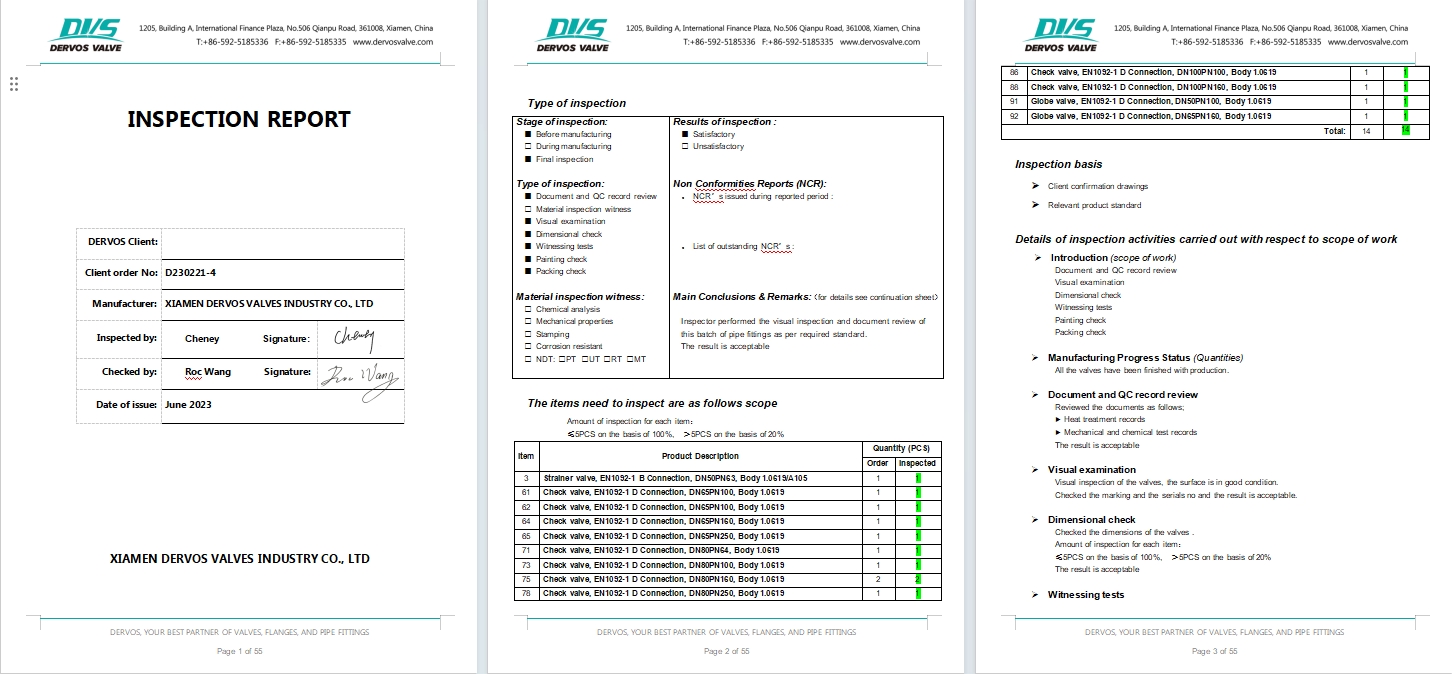

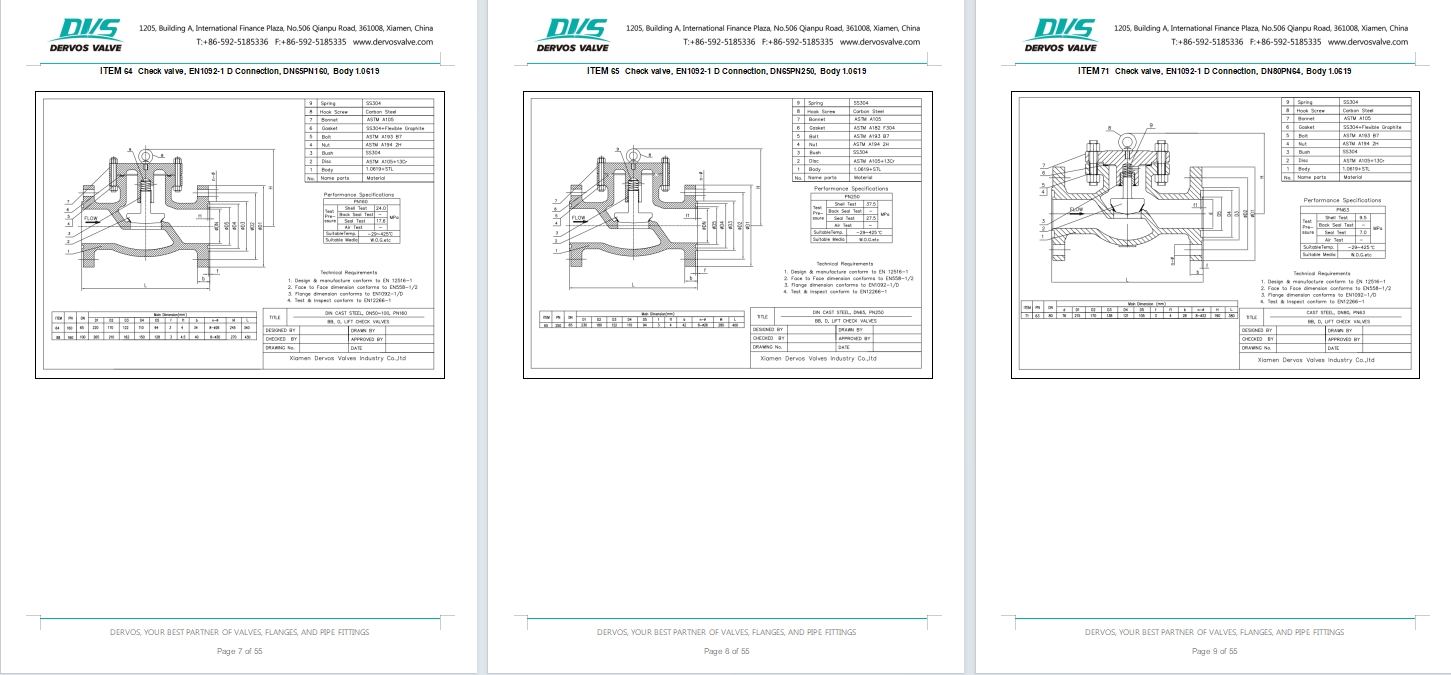

Inspection report

DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.
DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.
DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.
DN50 PN100 Cast Steel Globe Valve 1.0619+STL EN1092-1 D H.W.
