DN80 PN100 Directional Control Valve WC6 Handw Wheel EN13709
Key Specifications / Features
Model No.: Hits: 0

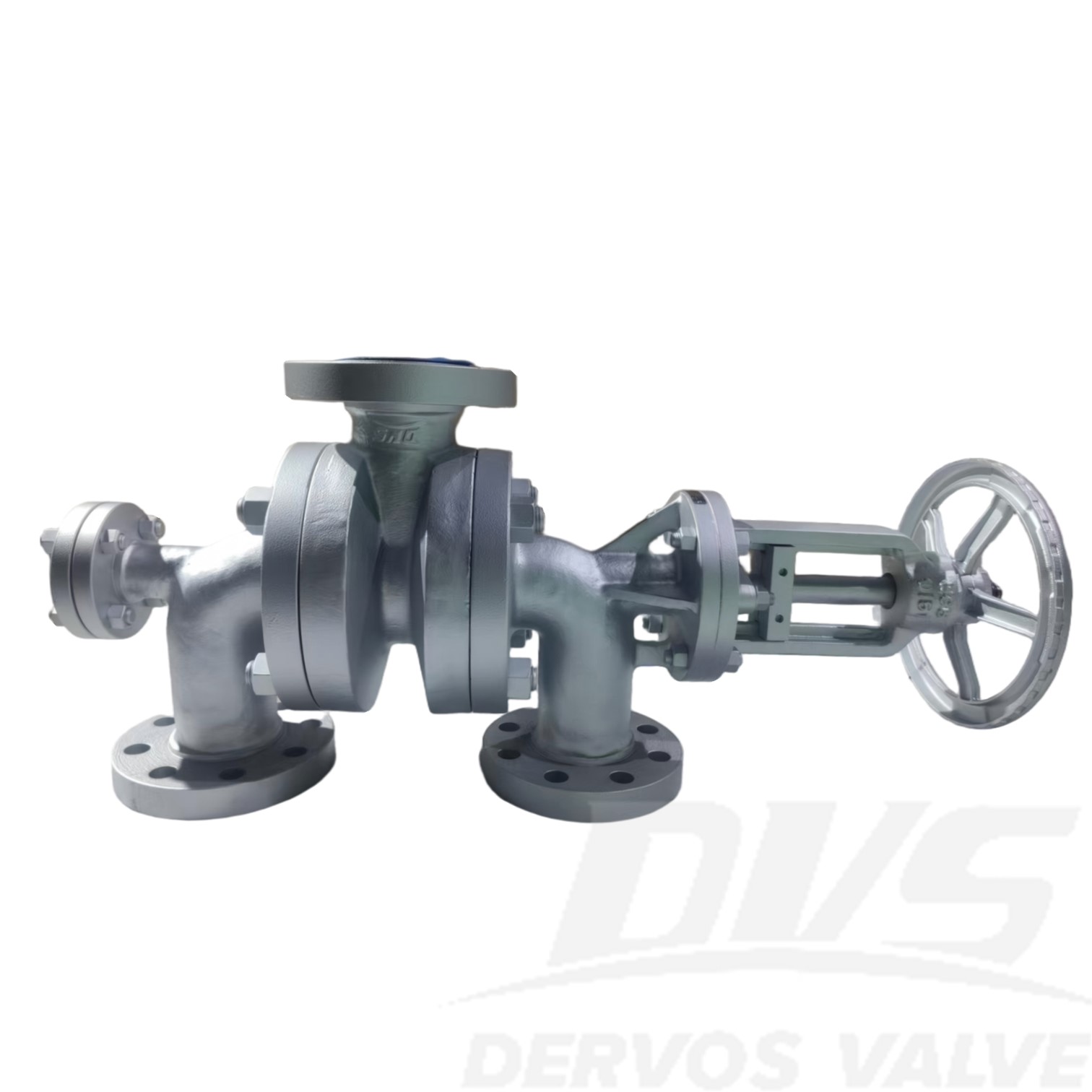

DN80 PN100 Directional Control Valve is made according to EN13709 standard. The valve body is made of ASTM A217 WC6. It has the structural characteristics of BB, OS&Y, Plug-Type Disc. Its connection mode is Flange Type F. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Directional Control Valve |
| Size | DN80 |
| Pressure | PN100 |
| Connection | Flange Type F |
| Operation | Hand wheel |
| Body Material | ASTM A217 WC6 |
| Design Norm | EN 13709 |
| Face to face | Supplier'sStandards |
| Flange dimension | EN1092-1/F |
| Test & Inspection Code | EN12266-1/2 |
| Temperature | -29 ~ 538°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Handwheel-operated directional control design enables precise flow regulation under high-pressure conditions.2.WC6 alloy steel body rated PN100 and manufactured to EN 13709 ensures strength and high-temperature service reliability.

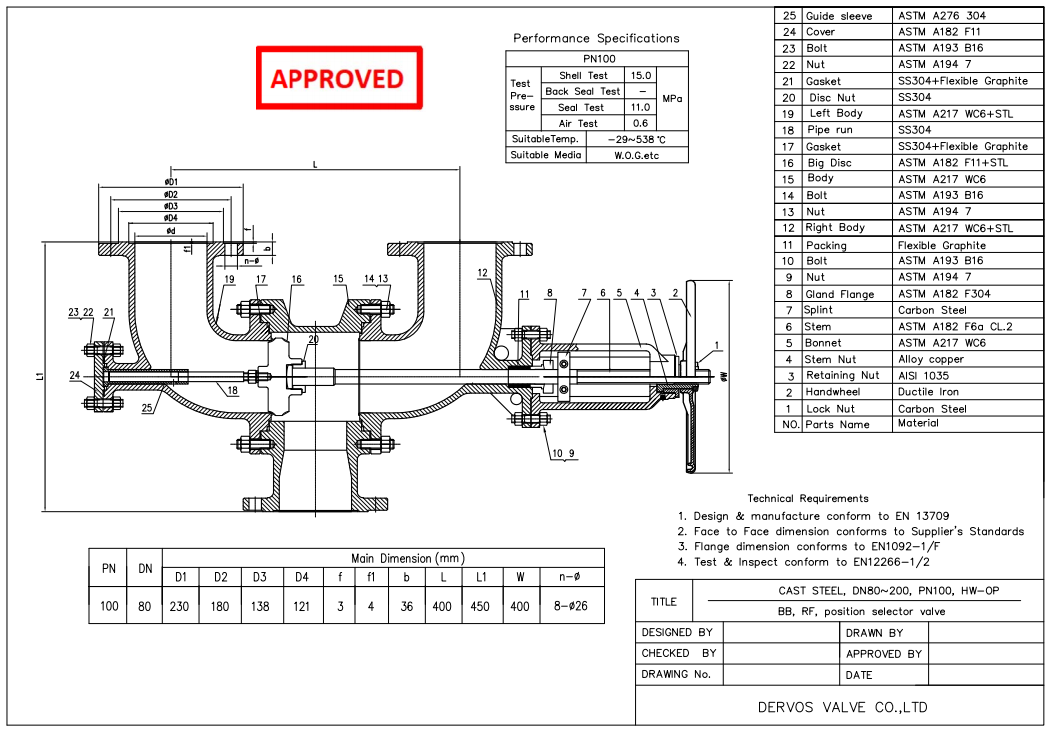

Technical Drawing

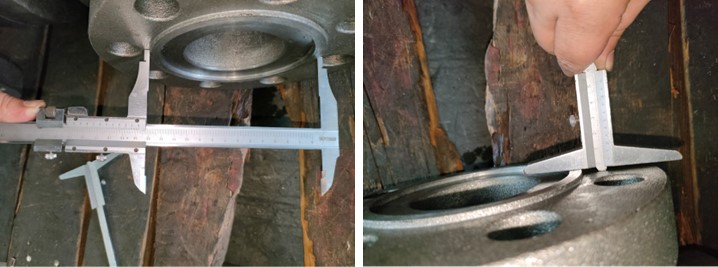

Dimension Checking

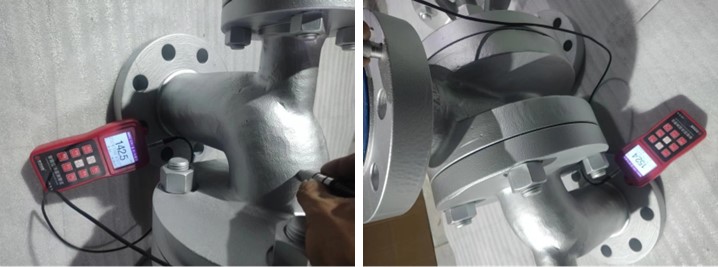

Painting

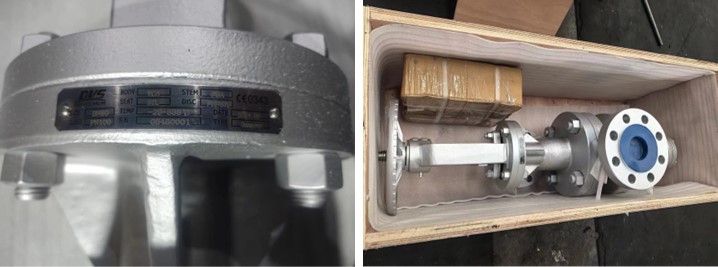

Nameplate & Packing

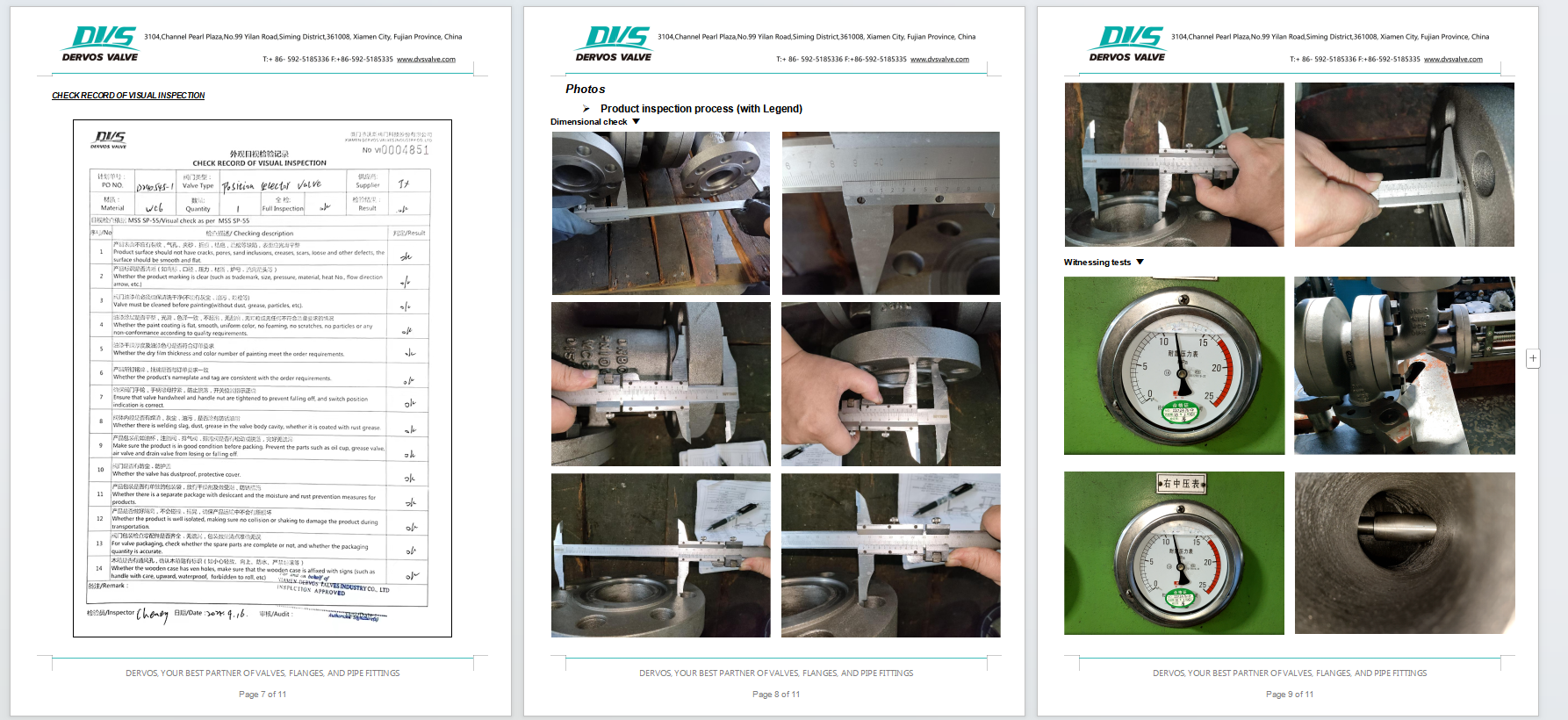

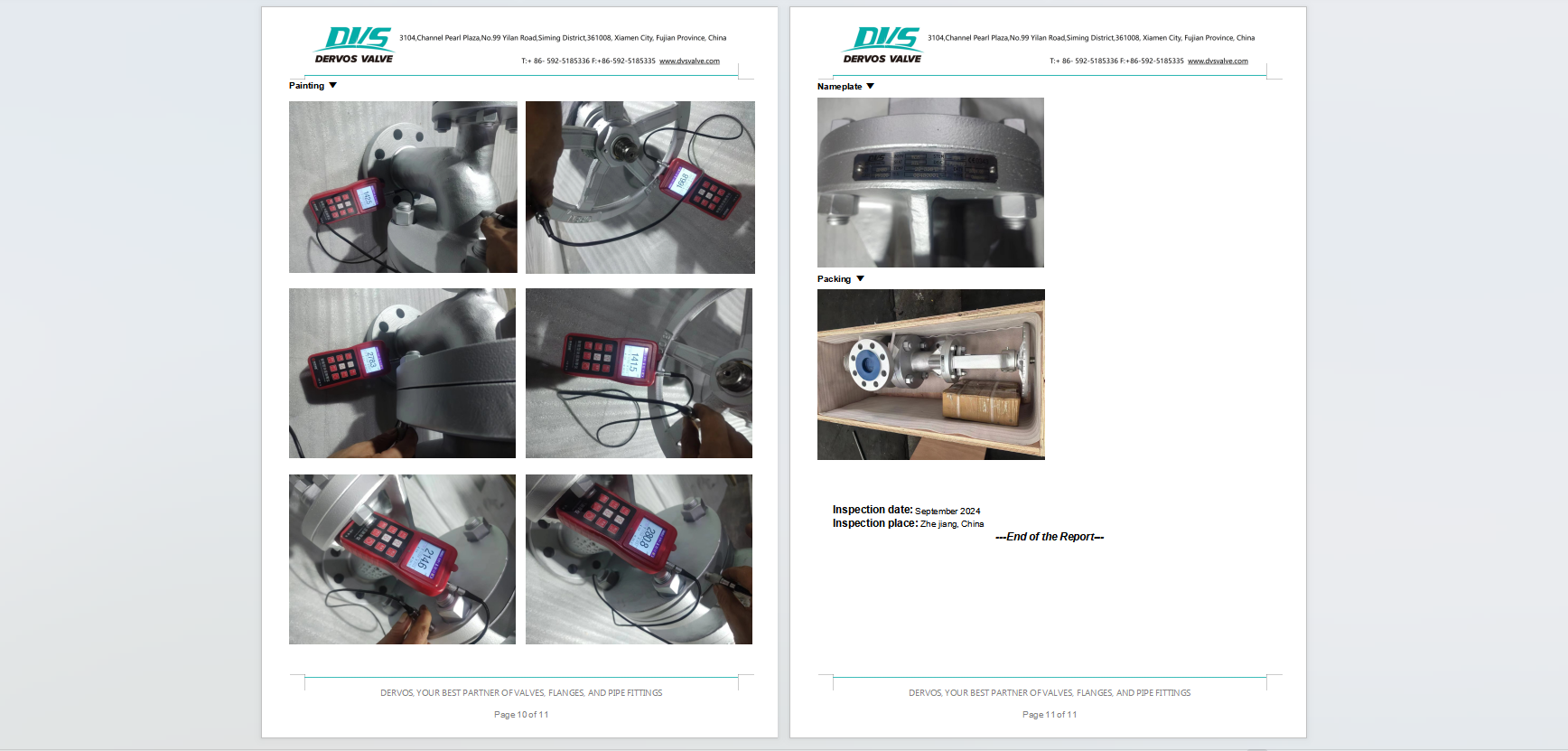

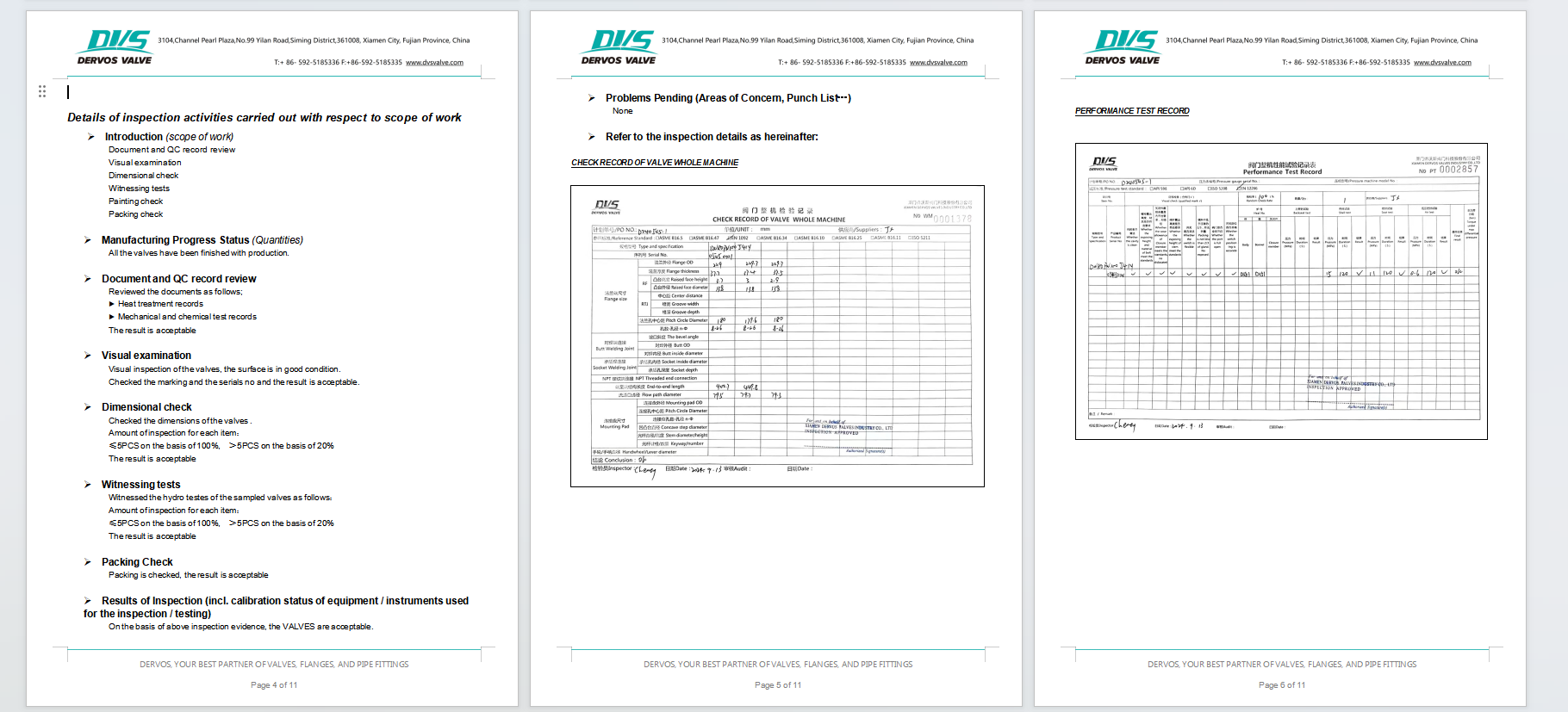

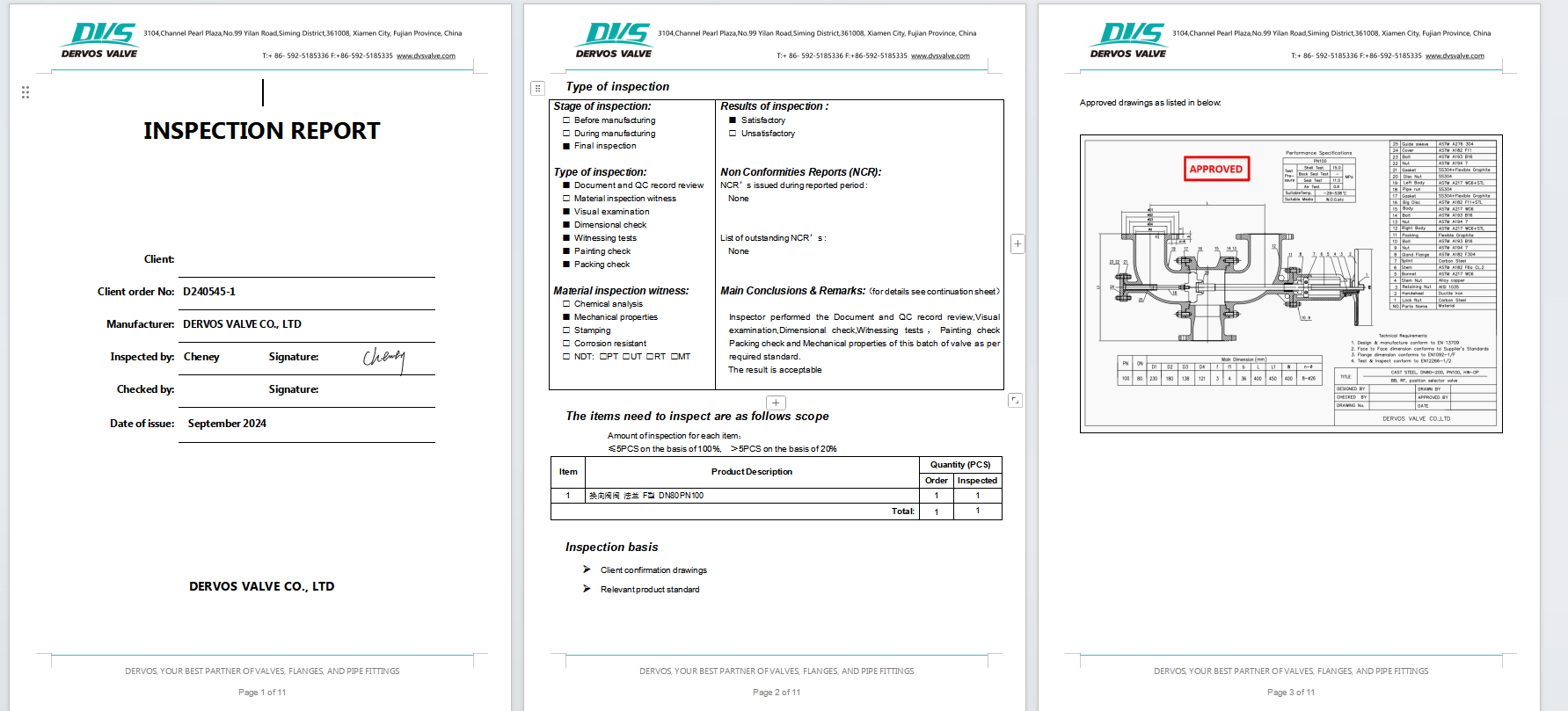

Inspection Report
