Forged Steel Gate Valve 1/2" 800LB ASTM A105N SW

Forged Steel Gate Valve 1/2" 800LB ASTM A105N SW

Key Specifications / Features

Model No.: Hits: 0

1/2" 800LB gate valve is made according to ASME B16.34 standard. The valve body is made of ASTM A105N. It has the structural characteristics of Bolted bonnet, rising stem, solid wedge. Its connection mode is SW. And it has HandWheel operation mode.
Request a quote

Detail Information

Product Parameters

Type Gate Valve
Size 1/2"
Pressure 800LB
Connection RF
Operation HandWheel
Body Material ASTM A105N
Design Norm API 602
Face to face manufacturer's Std
Flange dimension ASME B16.11
Test & Inspection Code API STD.598
Temperature -29 ~ 425°C
Applicable Medium Water, Oil and Steam

Features

1. Forged ASTM A105N steel construction provides high strength and reliable performance for high-pressure service.
2. Socket-weld ends provide secure, compact connections for small-bore industrial piping systems.

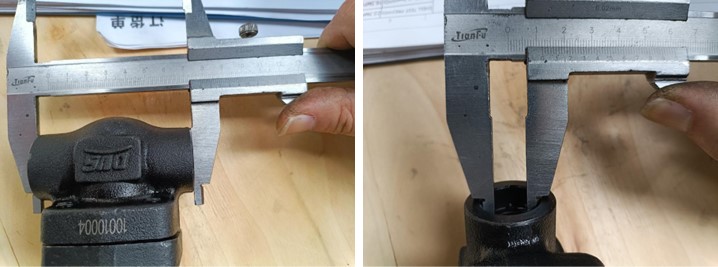

Dimension Checking

Forged Steel Gate Valve 1/2" 800LB ASTM A105N SW

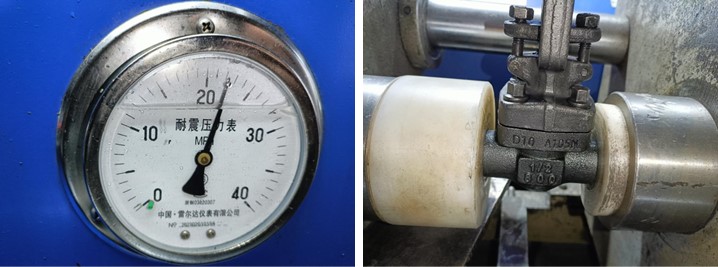

Pressure Testing

Forged Steel Gate Valve 1/2" 800LB ASTM A105N SW

Painting

Spectrum

Nameplate & Packing

Forged Steel Gate Valve 1/2" 800LB ASTM A105N SW
