Forged Steel Globe Valve 1 1/2" 600LB LF2 RTJ API602 Handwheel
Key Specifications / Features
Model No.: Hits: 0
1 1/2" 600LB Forged Steel Globe Valve is made according to ASME B16.34 standard. The valve body is made of A350 LF2. It has the structural characteristics of Reduced Bore, OS&Y, Material Compliant with NACE MR0175. Its connection mode is RTJ. And it has Hand wheel operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Welded Bonnet Globe Valve
Detail Information
Product Parameters
| Type | Forged Steel Globe Valve |
| Size | 1 1/2" |
| Pressure | 600LB |
| Connection | RTJ |
| Operation | Hand Wheel |
| Body Material | A350 LF2 |
| Design Norm | API 602 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged Steel Globe Valve 1-1/2" 600LB LF2 RTJ API 602 provides reliable flow control and tight shut-off performance, ideal for low-temperature and high-pressure pipeline systems (forged steel globe valve LF2 RTJ).2.Handwheel Operated LF2 Globe Valve ensures precise manual operation with durable RTJ sealing, suitable for oil & gas and industrial applications requiring dependable performance (1-1/2 inch 600LB globe valve API 602).

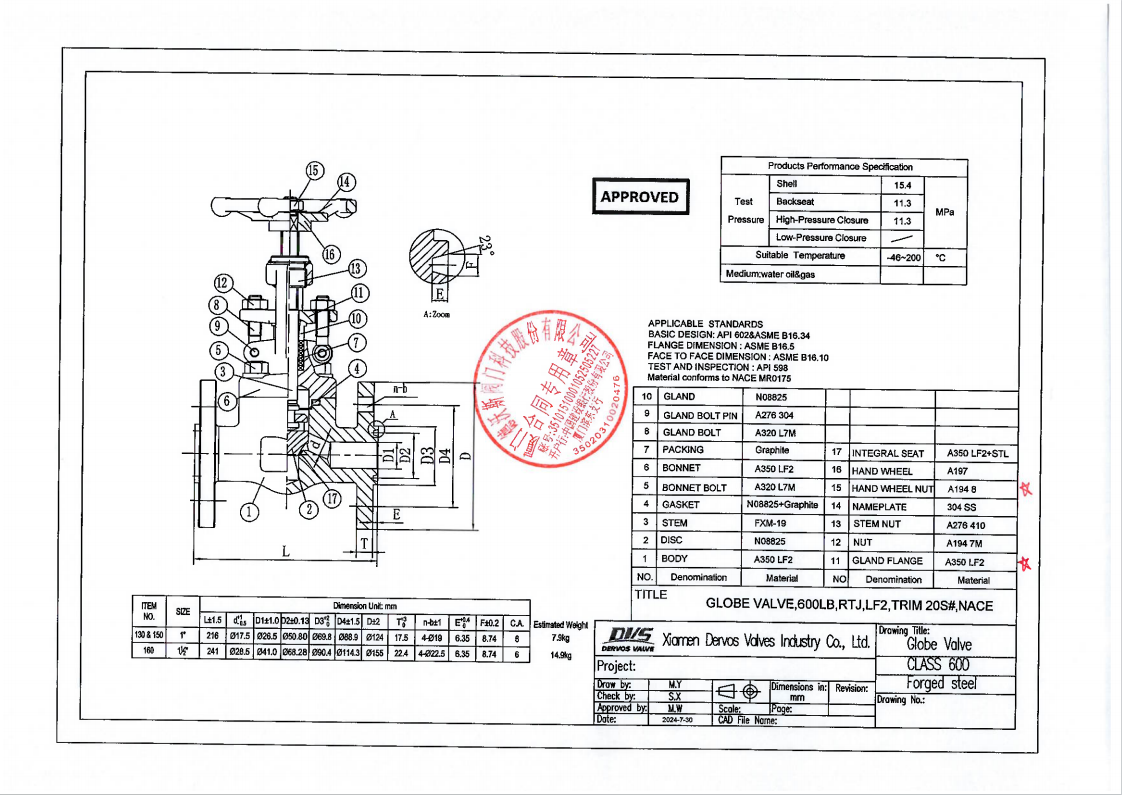

Technical Drawing

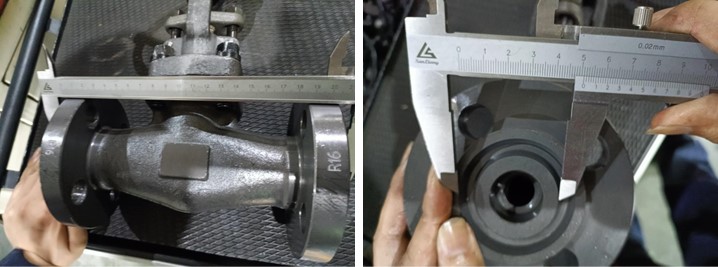

Dimension Checking

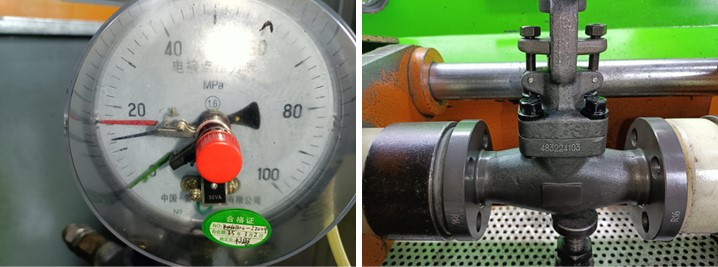

Pressure Testing
Painting
Spectrum

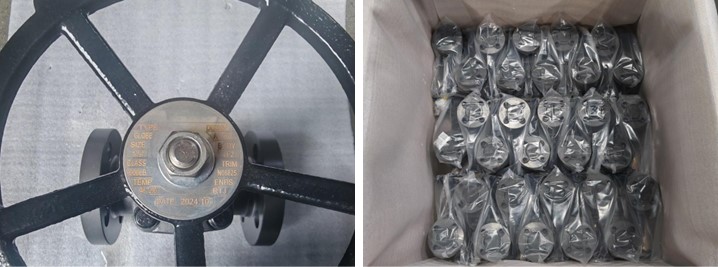

Nameplate & Packing

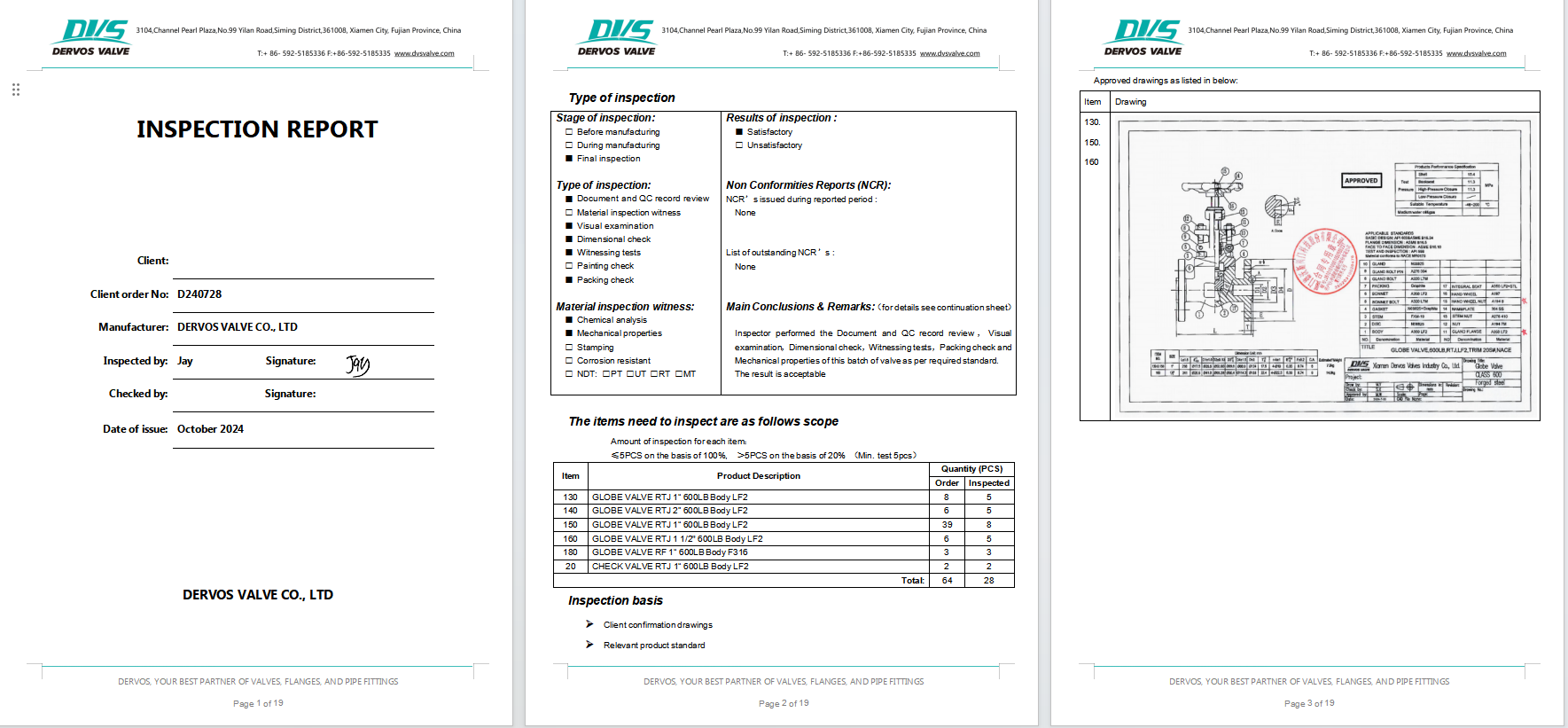

Inspection Report
