Full Bore Gate Valve 3/4" 1500LB F9 RTJ Hand Wheel
Key Specifications / Features
Model No.: Hits: 0
3/4" 1500LB gate valve is made according to API 602 standard. The valve body is made of ASTM A182 F9. It has the structural characteristics of Bolted Bonnet, Rising Stem, Rigid Gate, Full Port. Its connection mode is RTJ. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Full Bore Gate Valve |
| Size | 3/4” |
| Pressure | 1500LB |
| Connection | RTJ |
| Operation | Hand Wheel |
| Body Material | ASTM A182 F9 |
| Design Norm | API 602 |
| Face to face | ANSI B16.10 |
| Flange dimension | ANSI B16.5 |
| Test & Inspection Code | API STD.598 |
| Temperature | -29 ~ 538°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.Full Bore Gate Valve 3/4" 1500LB F9 RTJ ensures minimal flow resistance and high-pressure sealing performance, ideal for critical small-bore pipeline systems (full bore gate valve 1500LB F9).2.Handwheel Operated RTJ Gate Valve provides precise manual control with reliable metal-to-metal sealing, suitable for severe service conditions (3/4 inch RTJ gate valve handwheel).

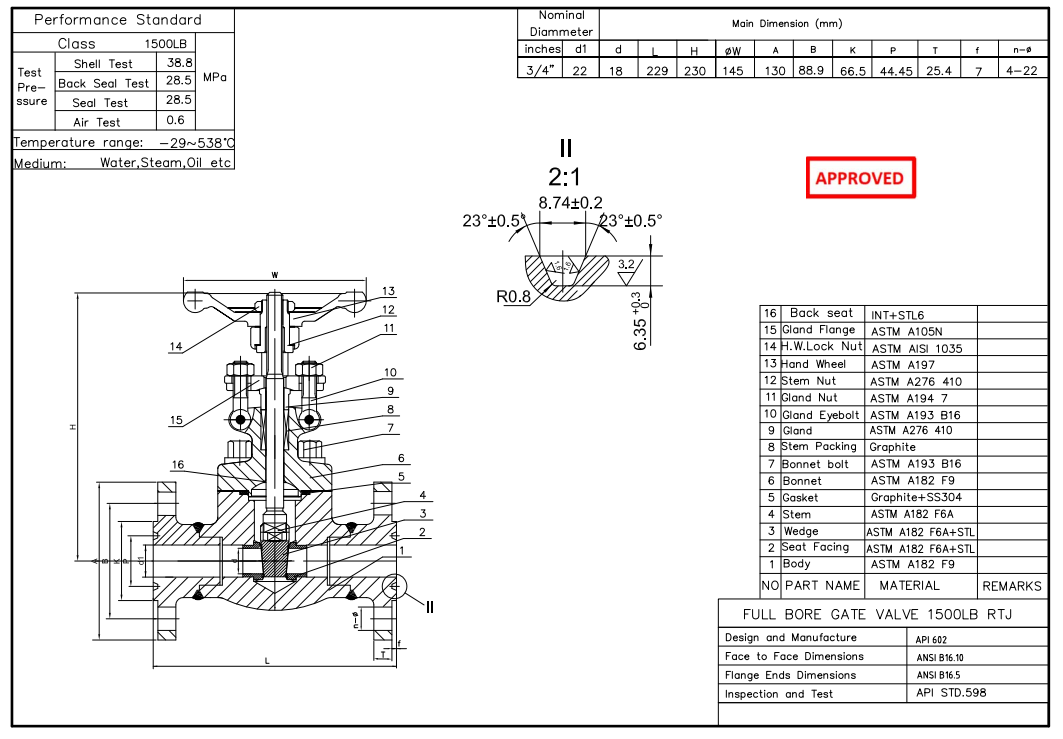

Technical Drawing

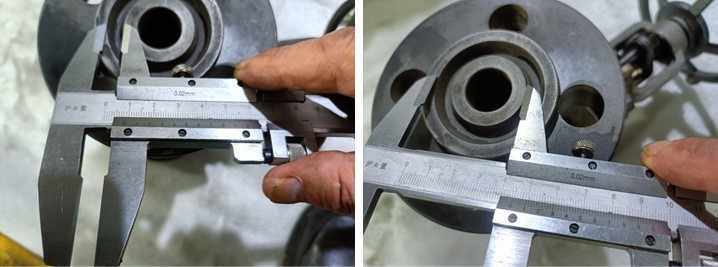

Dimension Checking

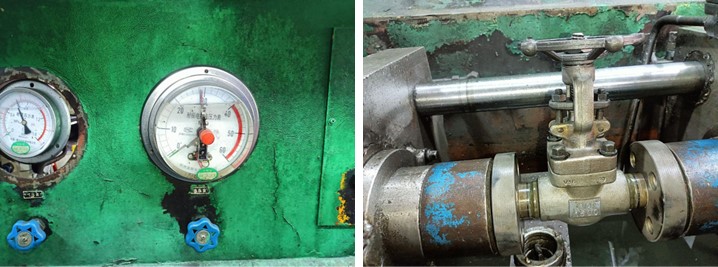

Pressure Testing

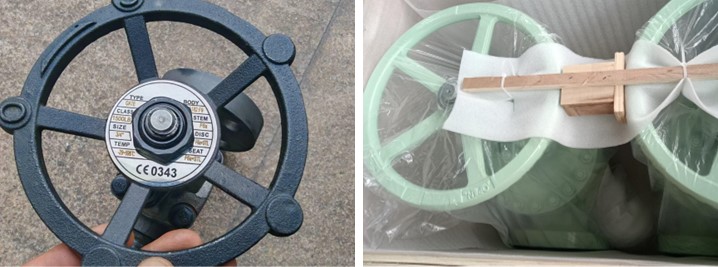

Nameplate & Packing

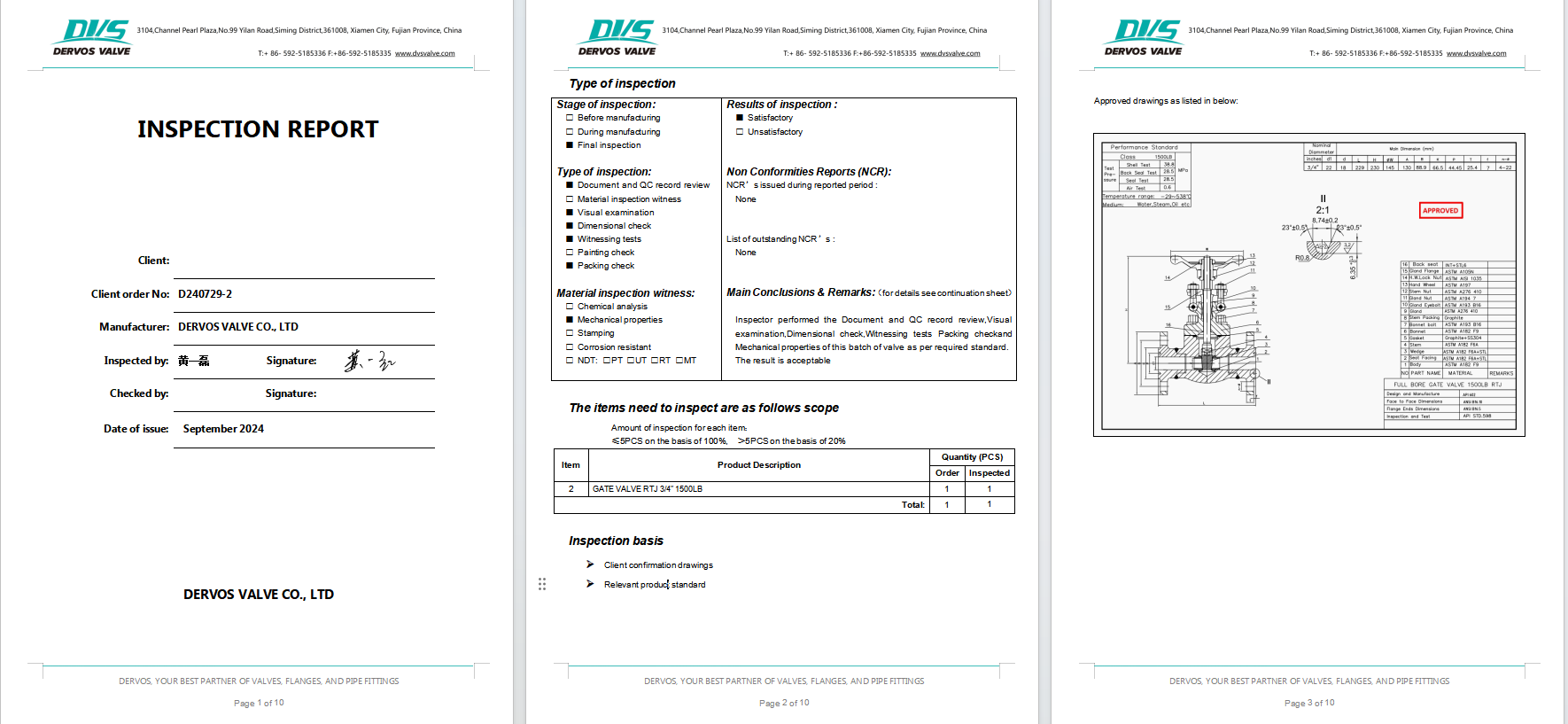

Inspection Report
