Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

Key Specifications / Features

Model No.: Hits: 0

20" 150LB Knife Gate Valve is made according to MSS SP-81 standard. The valve body is made of CF8. It has the structural characteristics of Knife Gate Valve, Unidirectional. Its connection mode is LUG-RF. And it has bevel gear operation mode.
Request a quote

Detail Information

Product Description

Type Knife Gate Valve
Size 20”
Pressure 150LB
Connection LUG-RF
Operation B.G.
Body Material CF8
Design Norm MSS SP-81
Face to Face MFS
Flange ASME/ANSI B16.5(2"-24")
Test & Inspection Code MSS SP-81
Applicable Medium Water, Oil and Gas

Features

1. When constructed from stainless steel or corrosion-resistant alloys, knife gate valves offer excellent durability and resistance to rust, corrosion, and chemical degradation, making them suitable for harsh environments;
2. Knife gate valves are designed for low to medium pressure applications and are especially effective in handling slurry, viscous fluids, or media containing suspended solids. They are widely used in industries such as wastewater treatment, mining, and pulp and paper processing.

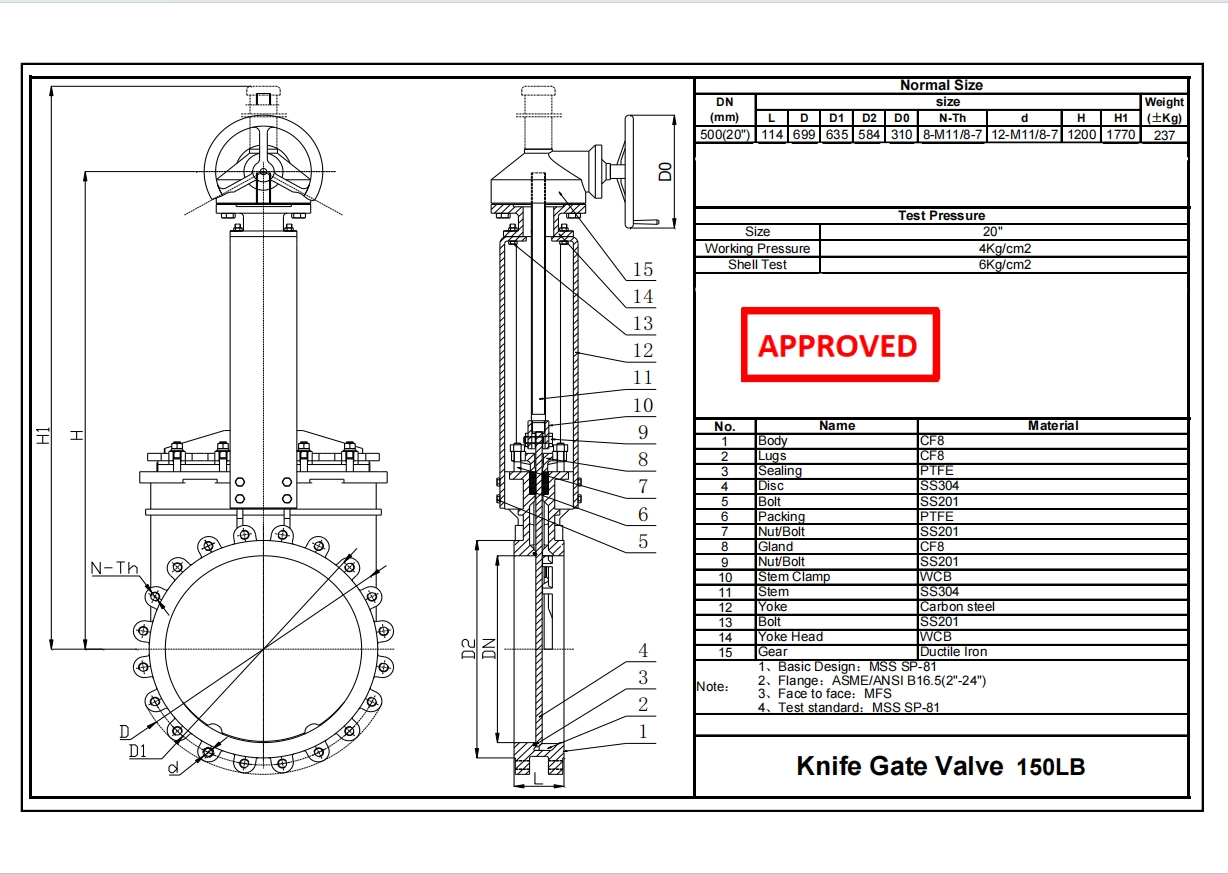

Technical Drawing

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

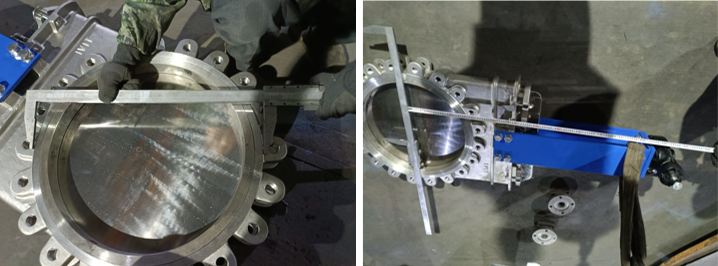

Dimension Checking

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

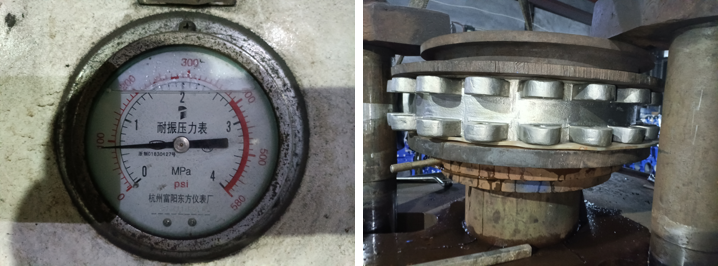

Pressure Testing

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

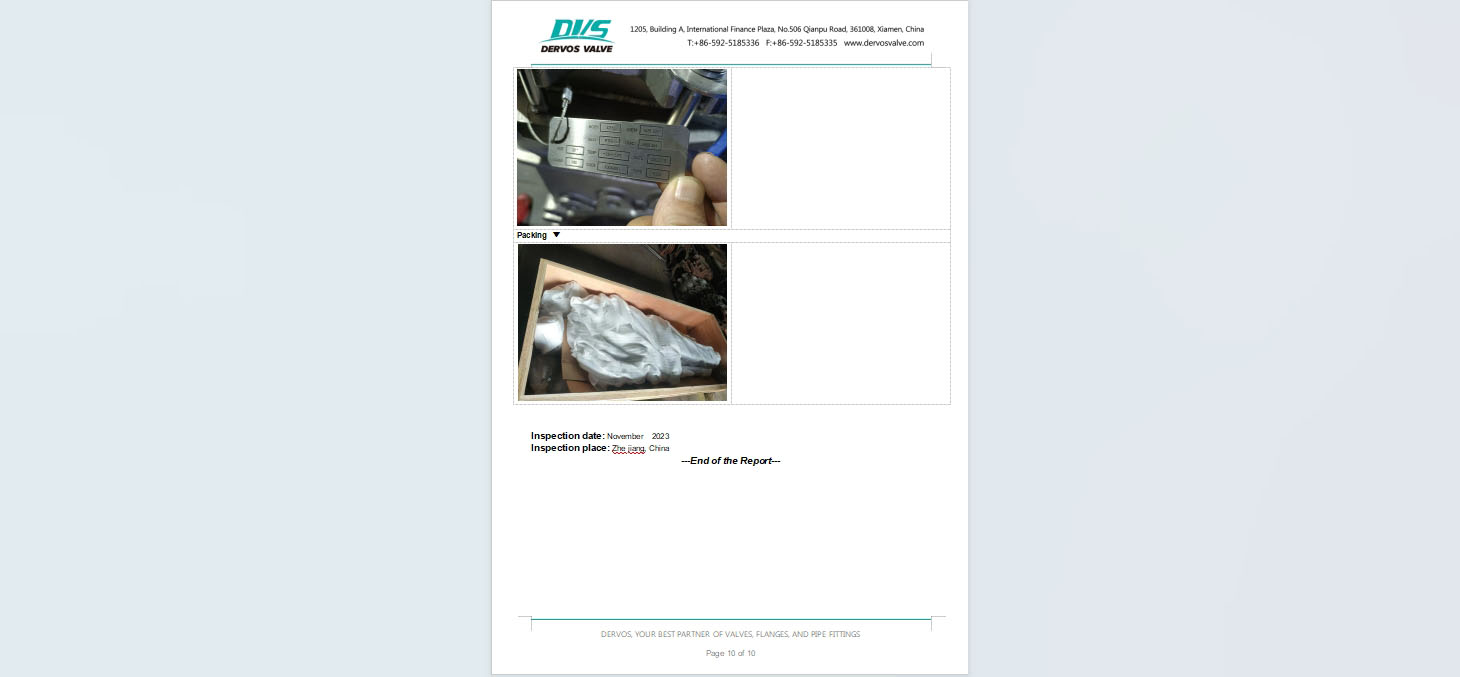

Nameplate & Packing

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF

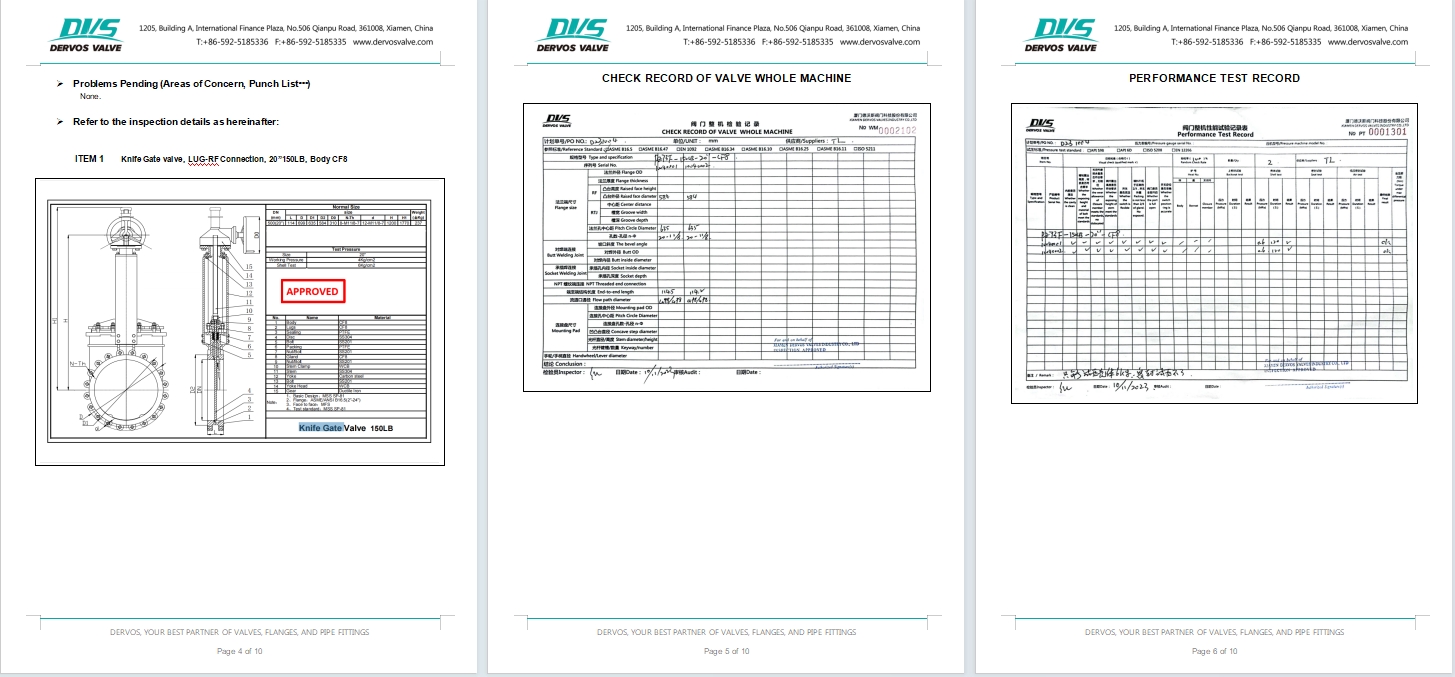

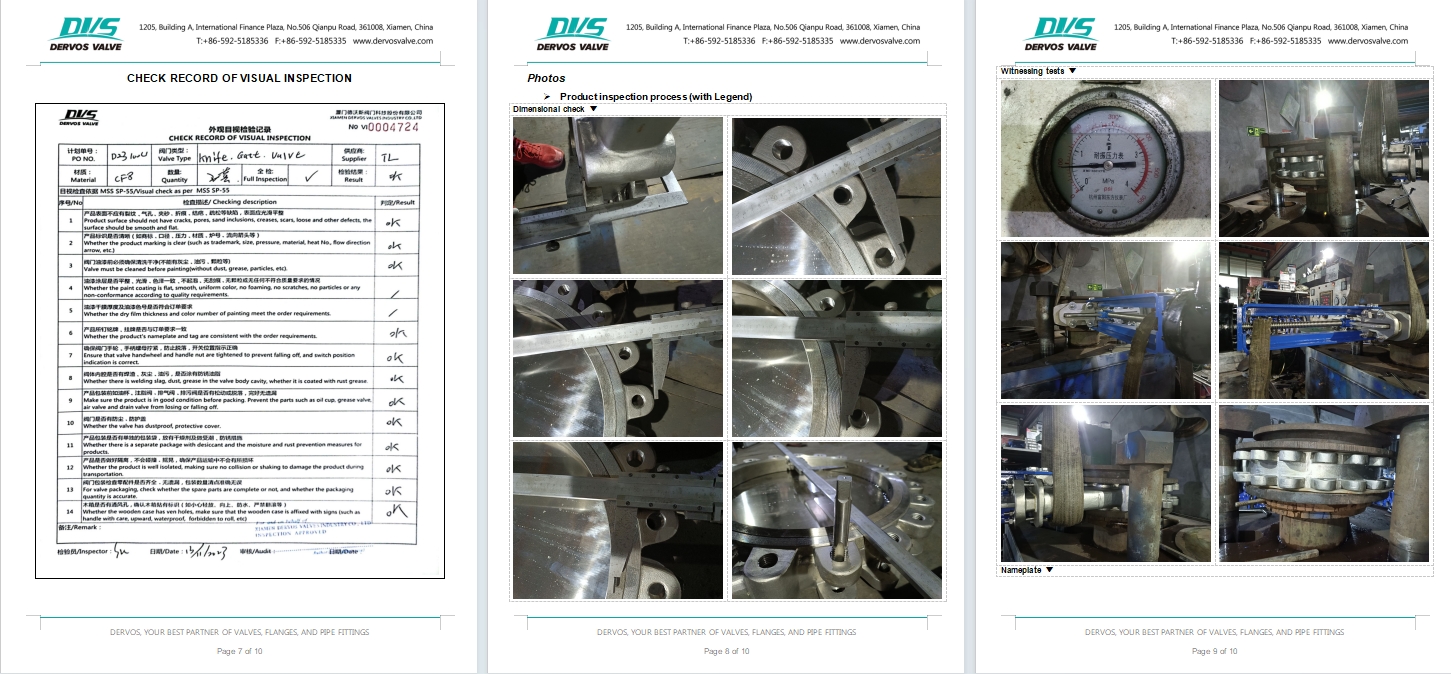

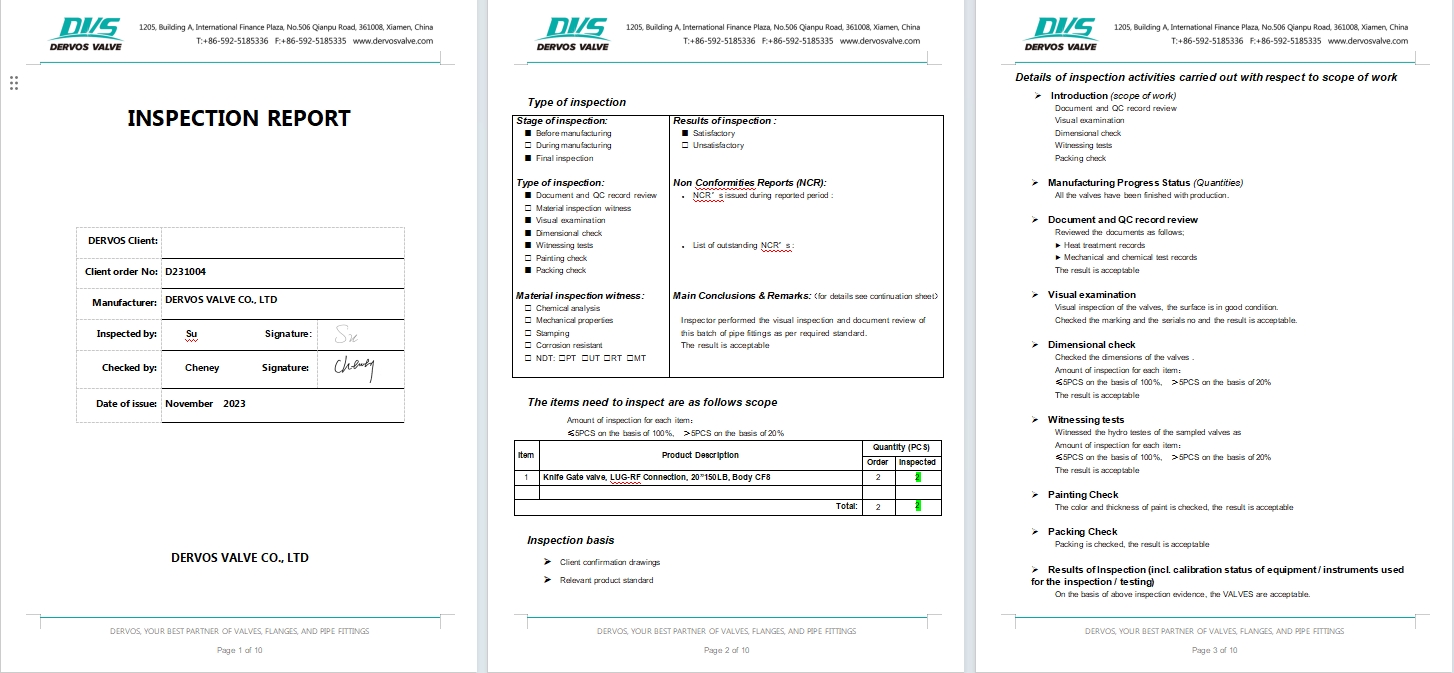

Inspection report

Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF
Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF
Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF
Knife Gate Valve 20" 150LB CF8 Bevel Gear LUG-RF
