Overview of U Strainer

In modern industrial piping systems, filters are essential devices for protecting equipment's normal operation and extending its service life. The U Strainer, as an efficient and uniquely structured filtering device, is widely used across various industries due to its excellent performance.




What is a U Strainer?

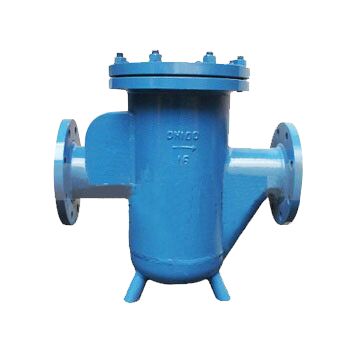

A U Strainer is a commonly used pipeline filter, named for its shell design, which resembles the letter "U." Compared to other types of filters, the U Strainer features a large filtration area and easy maintenance, effectively capturing impurities in liquid or gas media and protecting downstream equipment from damage.

Structure and Working Principle of the U Strainer

A U Strainer typically consists of the following components: the strainer body, filter element, flange connections, and a removable cover. Its working principle is as follows:
(1) Fluid enters the strainer body through the inlet, and as it flows along the U-shaped chamber, solid impurities in the medium are trapped by the filter element.
(2) The clean fluid passes through the filter element and exits through the outlet.
(3) When the accumulated impurities in the filter element reach a certain level, the user can remove the cover on top to take out the filter element for cleaning or replacement, thereby restoring filtration efficiency.

Main Applications of the U Strainer

(1) Water Treatment Industry

In water treatment systems, U strainers are used to remove sand, suspended solids, and other impurities, protecting downstream pumps, valves, and pipeline equipment.

(2) Petrochemical Industry

U strainers are widely used in petroleum and chemical pipelines to filter particles in the medium, preventing equipment from corrosion or blockage caused by impurities.

(3) Power Generation Industry

In thermal power plants and nuclear power stations, U strainers are used to filter cooling water and steam pipelines, ensuring stable system operation.

(4) Gas Transmission Pipelines

U strainers are used to filter solid particles in gases such as natural gas and compressed air, ensuring the normal operation of downstream equipment.

Advantages of the U Strainer

(1) Large Filtration Area

The U-shaped design increases the effective filtration area, reduces fluid resistance, and improves filtration efficiency.

(2) Easy Maintenance

The top cover design allows for easy disassembly, making cleaning and replacing the filter element very convenient.

(3) Adaptability to Various Conditions

It can withstand harsh environments such as high temperatures and high pressures, making it suitable for a wide range of applications.

(4) Space-Saving

The compact U-shaped structure is ideal for installations in space-restricted environments.

Precautions for Use

(1) Regular Maintenance

It is recommended to set a cleaning schedule based on operating conditions and the level of impurities, to prevent the filter element from becoming clogged and affecting fluid flow.

(2) Choose the Right Material

Select the appropriate material (such as carbon steel, stainless steel, etc.) based on the temperature, pressure, and chemical characteristics of the medium to ensure the filter's durability.

(3) Ensure Correct Installation

The filter's installation direction should be consistent with the flow direction of the medium to achieve optimal filtration performance.
