PN40 DN150 Check Valve EN1092-1 B1 1.4571 API 594
Key Specifications / Features
Model No.: Hits: 0
PN40 DN150 Check Valve is made according to API 594 standard. The valve body is made of 1.4571. Its connection mode is EN1092-1 B1.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Check Valve |
| Size | PN40 |
| Pressure | DN150 |
| Connection | EN1092-1 B1 |
| Body Material | 1.4571 |
| Design Norm | API 594 |
| Face to Face | EN558-1 SER.16 |
| Flange ends | EN 1092-1 |
| Test & Inspection Code | API 598 |
| Temperature | -10 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.1.4571 stainless steel body provides excellent corrosion resistance and durability in aggressive media.2.Designed to API 594 with EN1092-1 B1 flanges, ensuring reliable backflow prevention and secure installation.

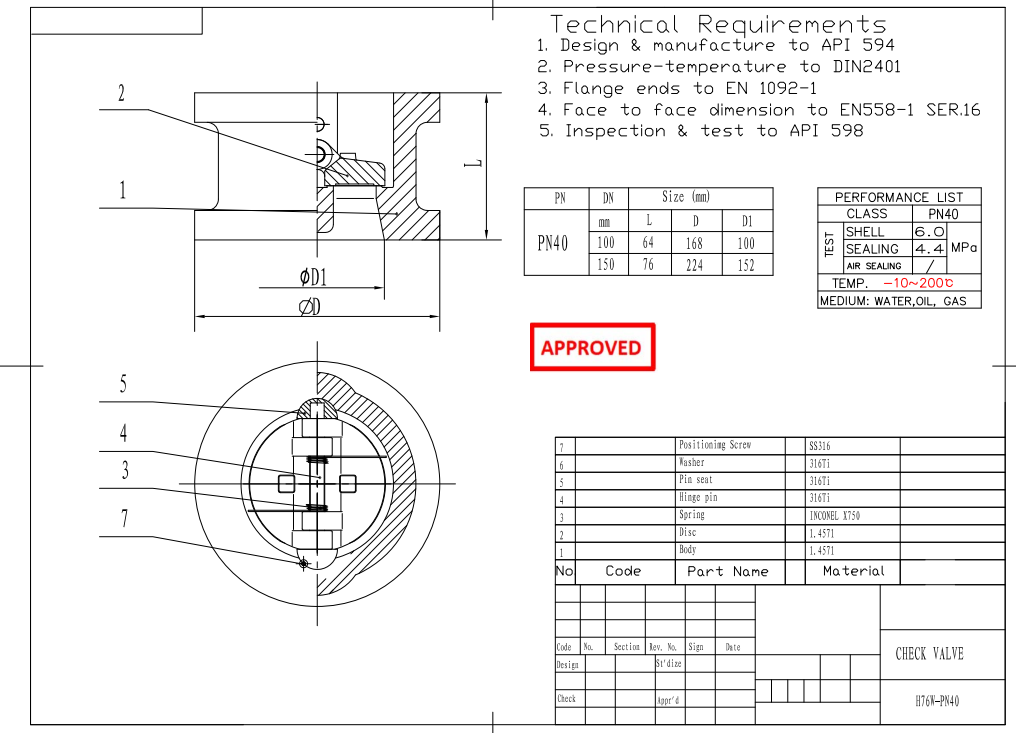

Technical Drawing

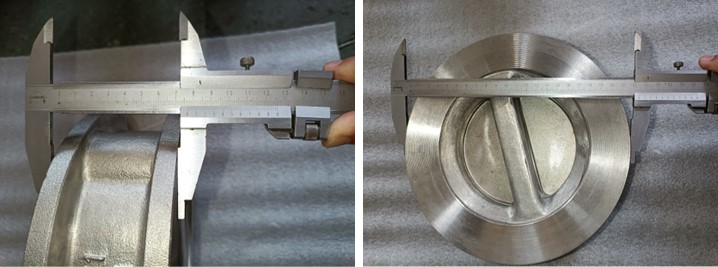

Dimension Checking

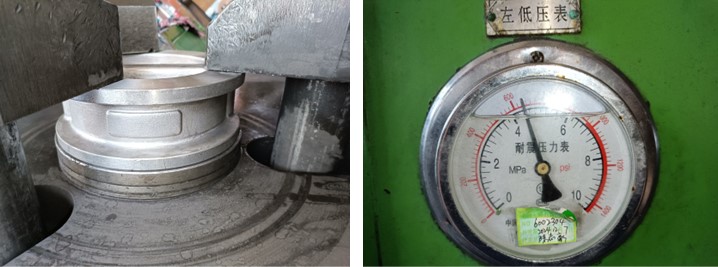

Pressure Testing

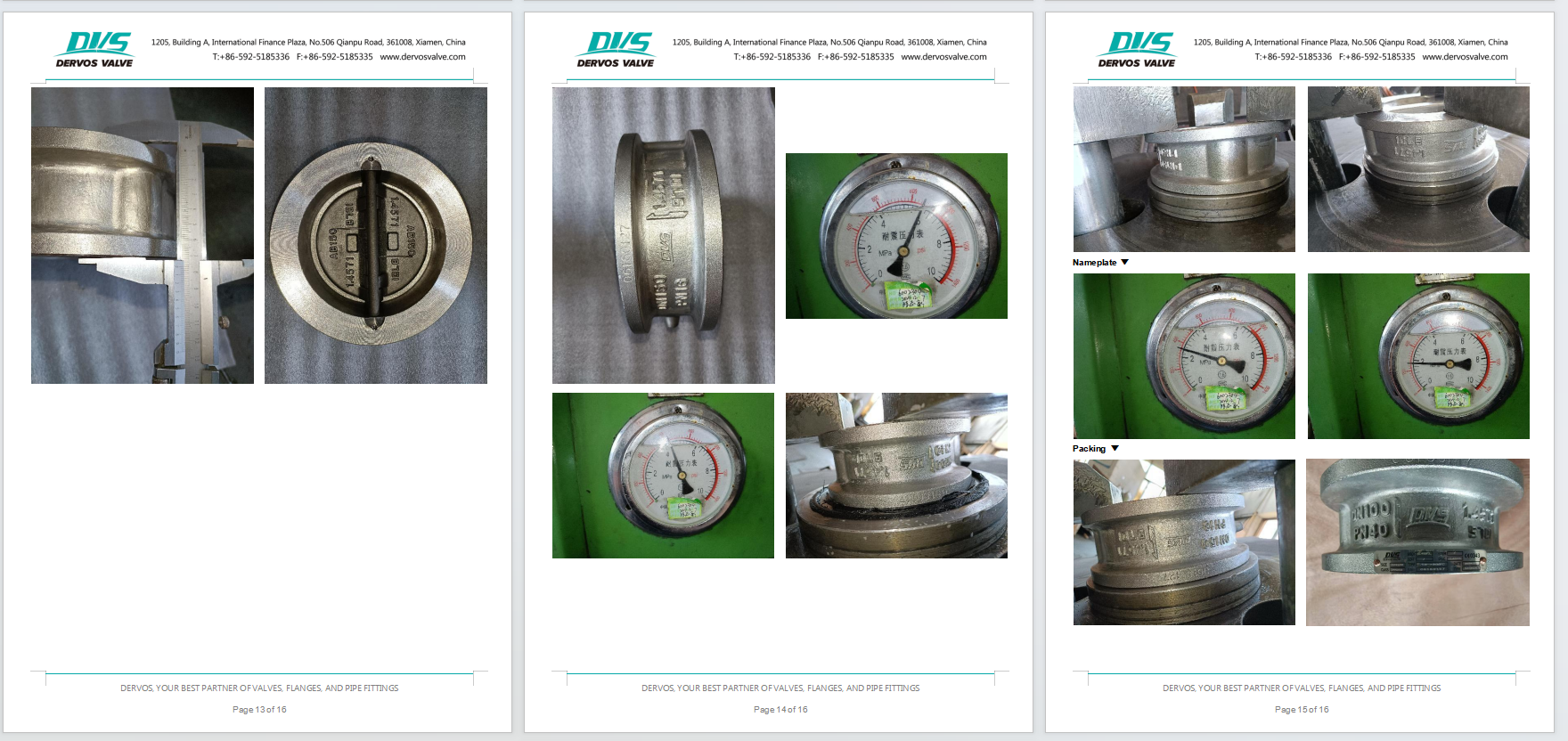

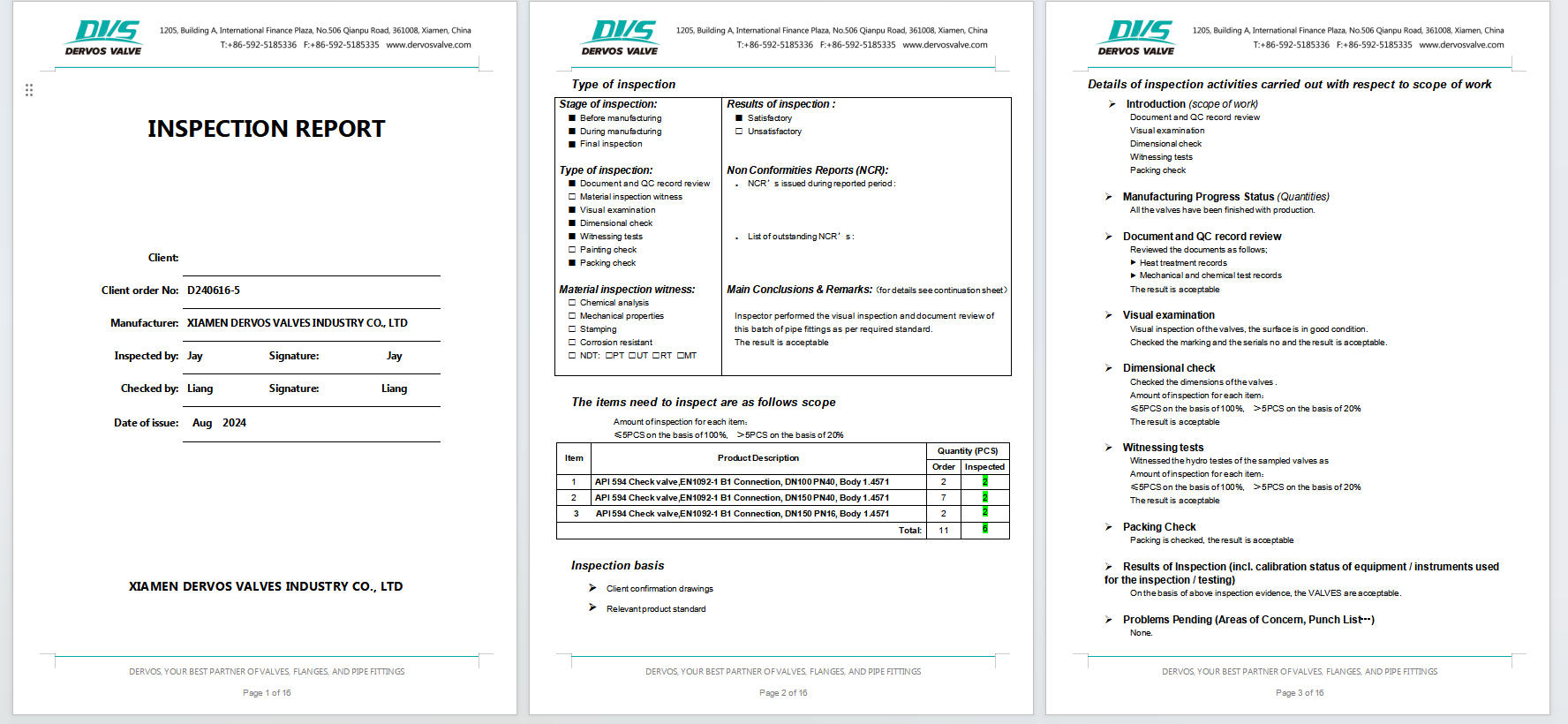

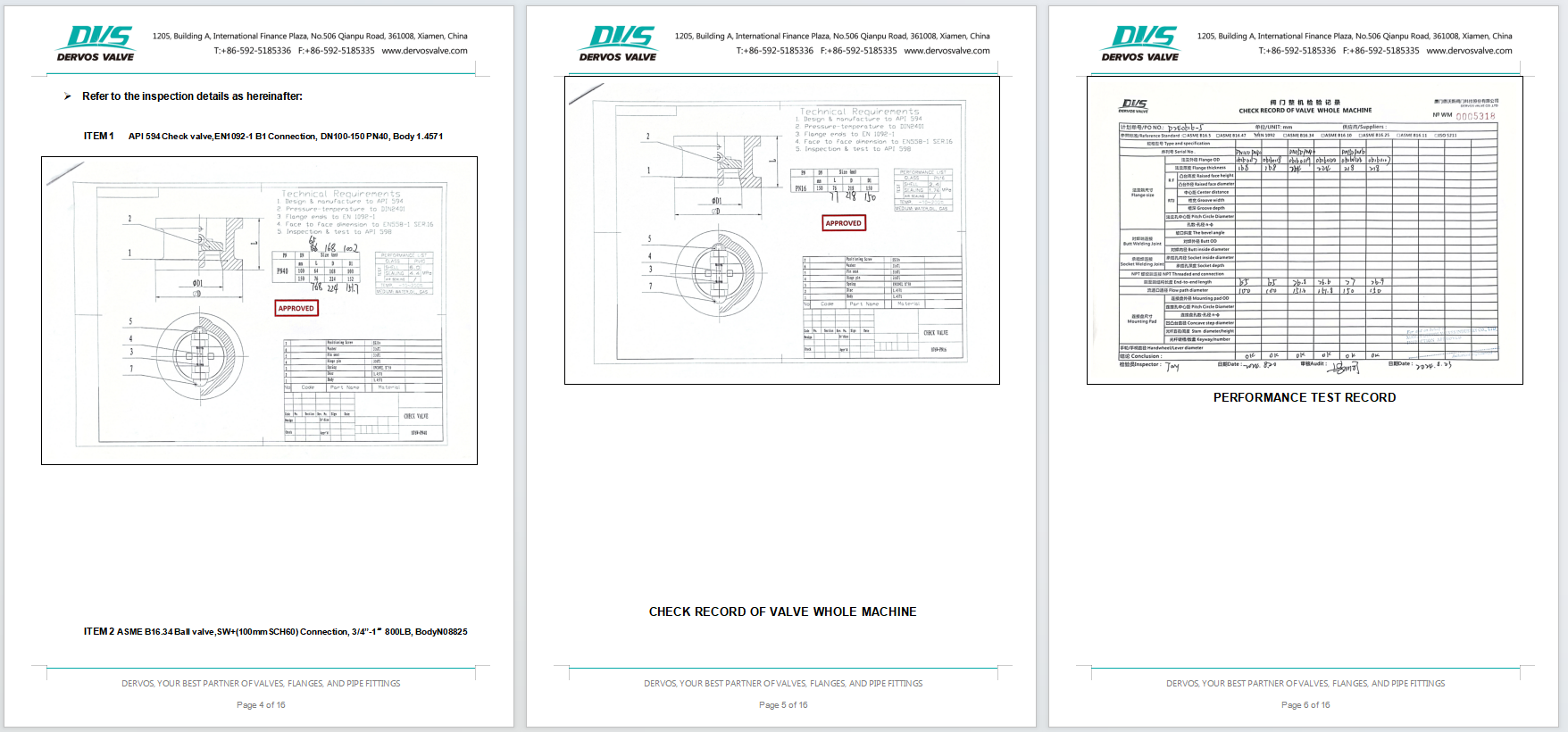

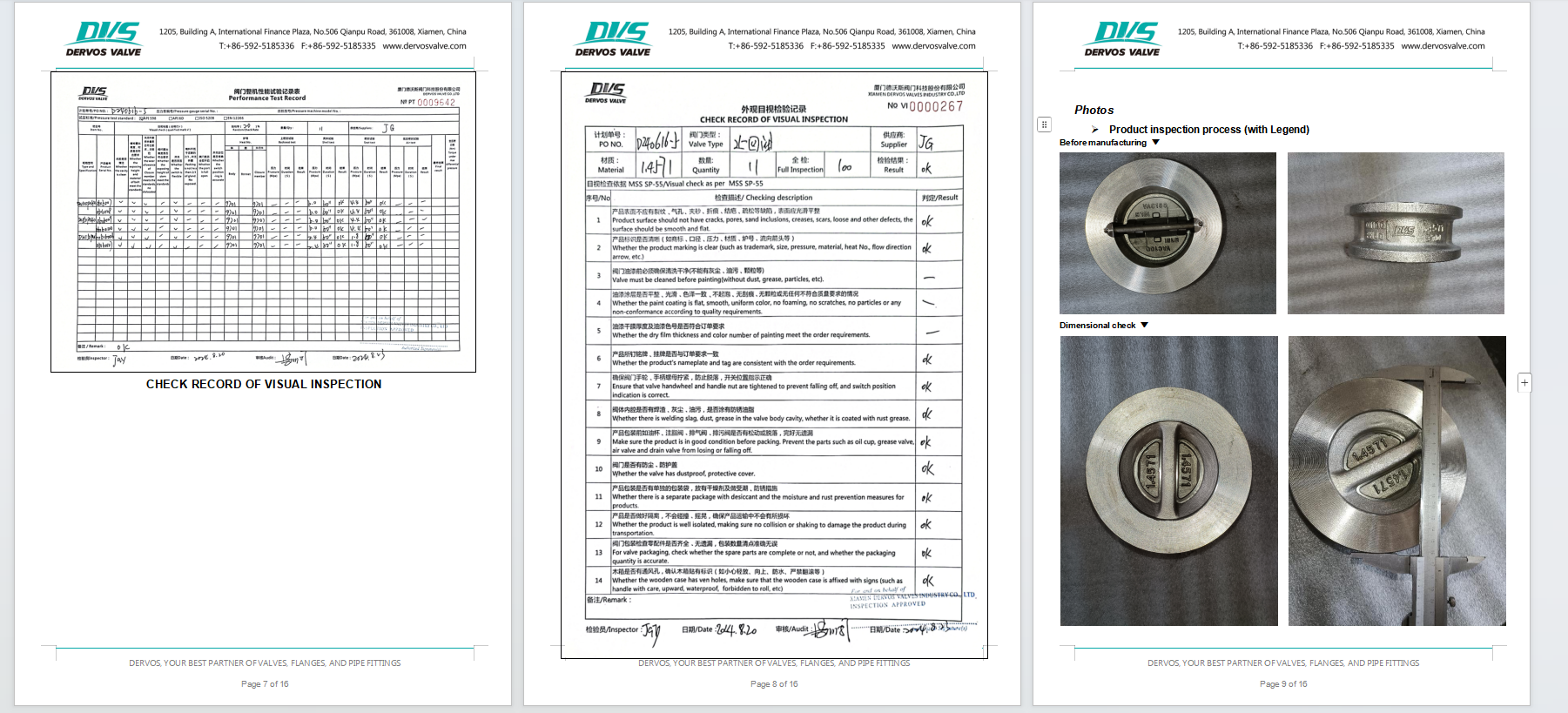

Inspection Report
