Sight Glass 3/4" 300LB LF2 RF
Key Specifications / Features
Model No.: Hits: 0
3/4" 300LB sight glass is made according to MFRSTD standard. The Sight Glass body is made of LF2. It has the structural characteristics of Straight Through. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Previous: 2" 900LB DBB Valve A105N ASME B16.34
Detail Information
Product Parameters
| Type | sight glass |
| Size | 3/4" |
| Pressure | 300LB |
| Connection | RF |
| Body Material | A350-LF2 |
| Design Norm | MFRSTD |
| Flange dimension | ASME B16.5 |
| Temperature | -45 ~ 125°C |
Features
1. Sight Glass 3/4" 300LB LF2 RF provides reliable visual flow indication with excellent low-temperature toughness, ideal for cryogenic and oil & gas pipeline systems (LF2 sight glass 300LB RF).2.RF Flanged LF2 Sight Flow Indicator ensures secure sealing and durable performance under medium to high pressure conditions, suitable for industrial process monitoring (3/4 inch sight glass LF2).

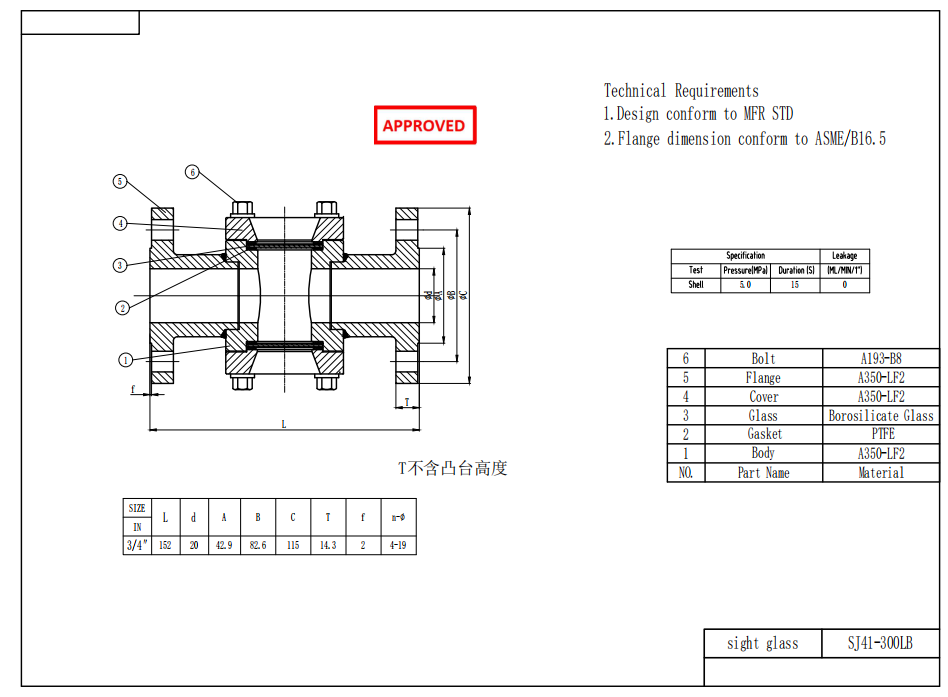

Technical Drawing

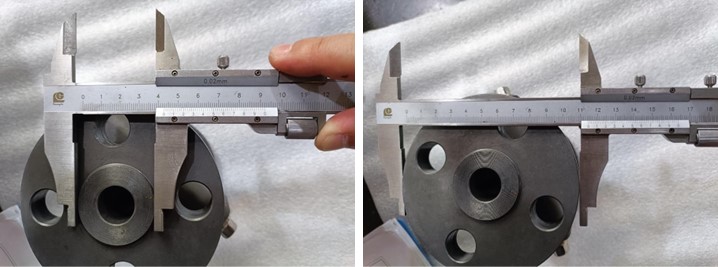

Dimension Checking

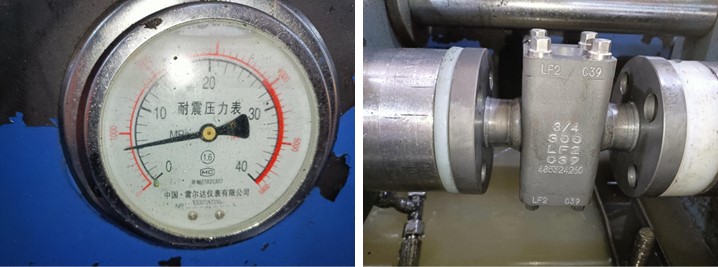

Pressure Testing

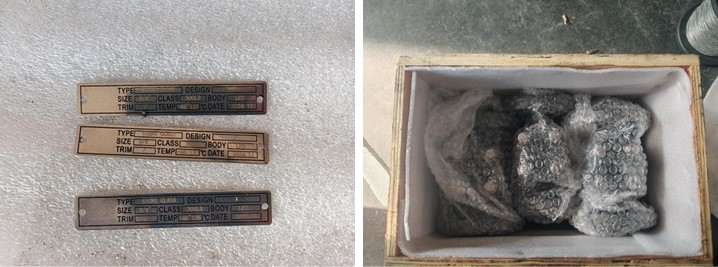

Nameplate & Packing

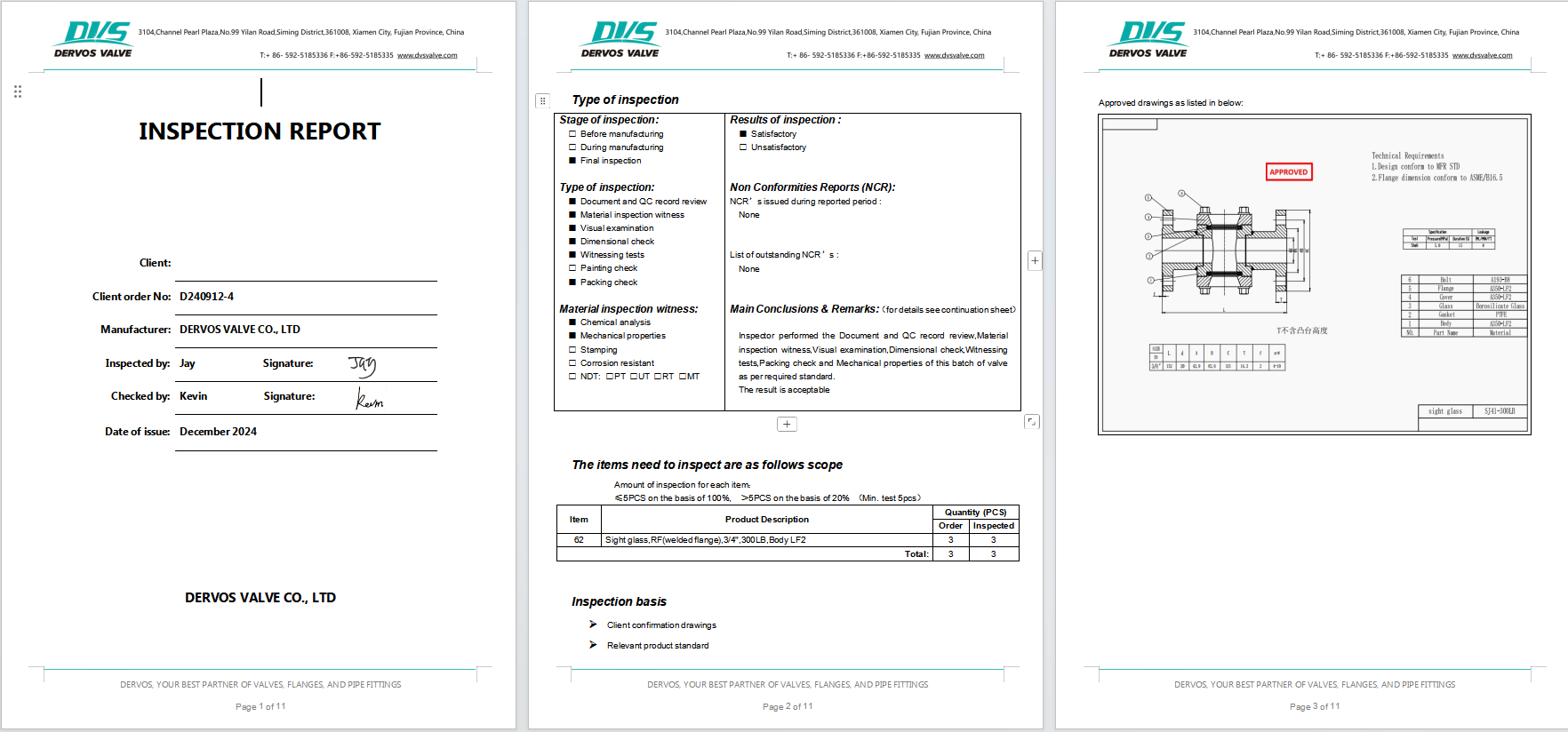

Inspection Report
