Single Plate Wafer Type Check Valve DN32 PN16 A105 EN1092-1 B
Key Specifications / Features
Model No.: Hits: 0
DN32 PN16 Single Plate Wafer Type Check Valve is made according to EN 14341 standard. The valve body is made of A105. It has the structural characteristics of Single-disc wafer type. Its connection mode is EN1092-1 B.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Single Plate Wafer Type Check Valve |
| Size | DN32 |
| Pressure | PN16 |
| Connection | EN1092-1 B |
| Body Material | A105+STL |
| Design Norm | EN14341 |
| Face to face | En 558-1 Ser49 |
| Flange dimension | En 1092-1 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The single-plate design provides rapid closure to prevent reverse flow and minimize water hammer.2. The compact A105 forged steel body and EN 1092-1 Type B wafer connection ensure reliable PN16 pipeline service.

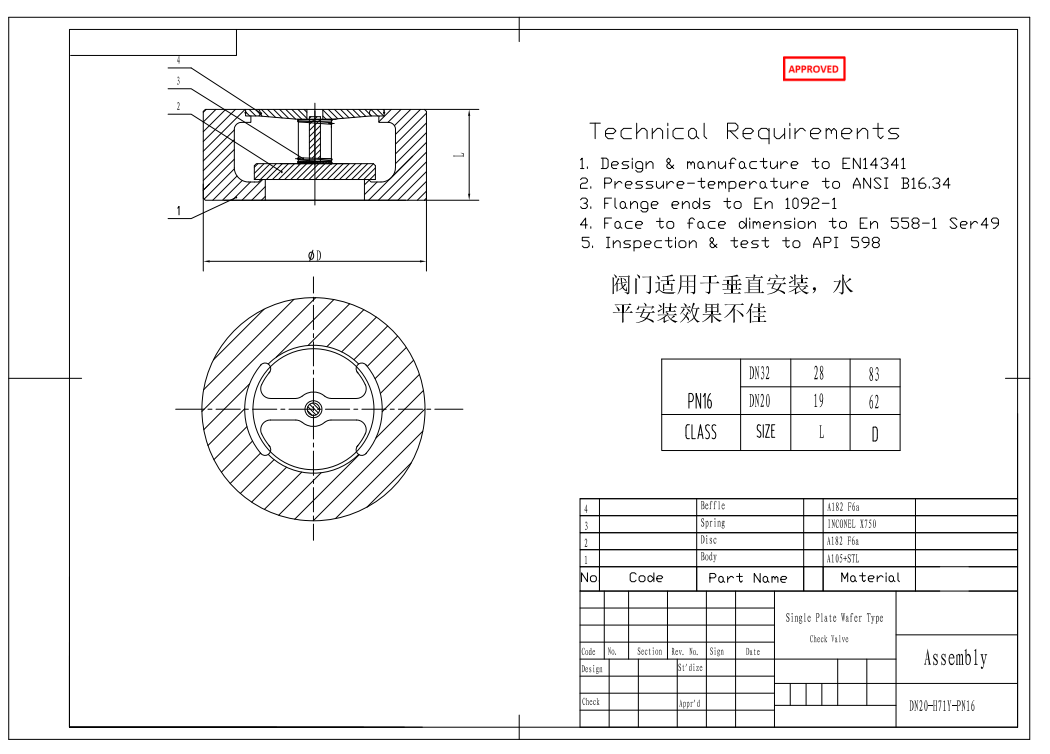

Technical Drawing

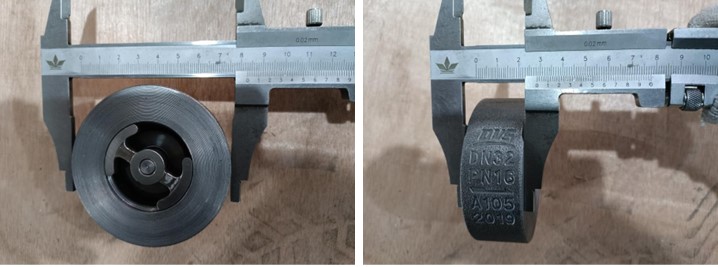

Dimension Checking

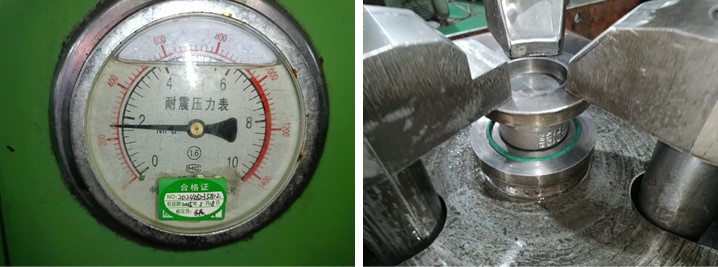

Pressure Testing

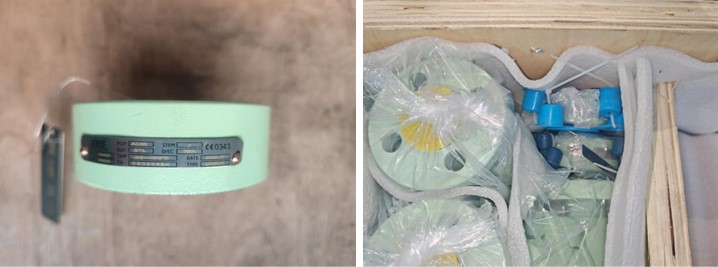

Nameplate & Packing

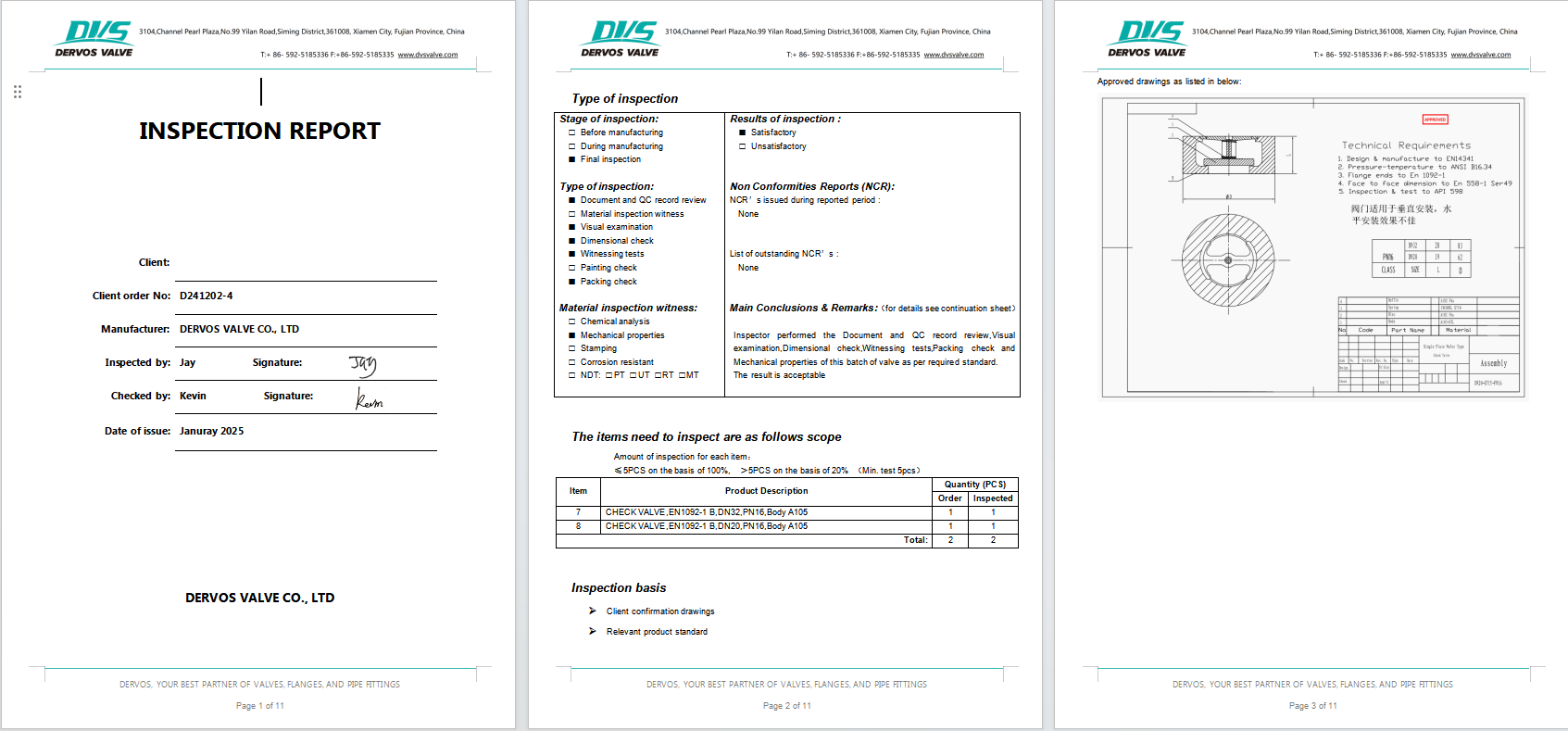

Inspection Report
