Swing Check Valve 3" 600LB LCB RF BC
Key Specifications / Features
Model No.: Hits: 0
3" 600LB Swing Check Valve is made according to ASME B16.34 standard. The valve body is made of LCB. It has the structural characteristics of Swing Check, Bolted Cover (BC).
Request a quote
Tags:
Next: Return to List
Previous: Cast Steel Swing Check Valve DN100 PN160 1.7357 BS1868
Detail Information
Product Parameters
| Type | Swing Check Valve |
| Size | 3” |
| Pressure | 600LB |
| Connection | RF |
| Body Material | A352 LCB |
| Design Norm | BS 1868 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Swing disc design automatically prevents backflow while maintaining low flow resistance.2.LCB carbon steel body with bolted bonnet construction ensures reliable performance in low-temperature services.

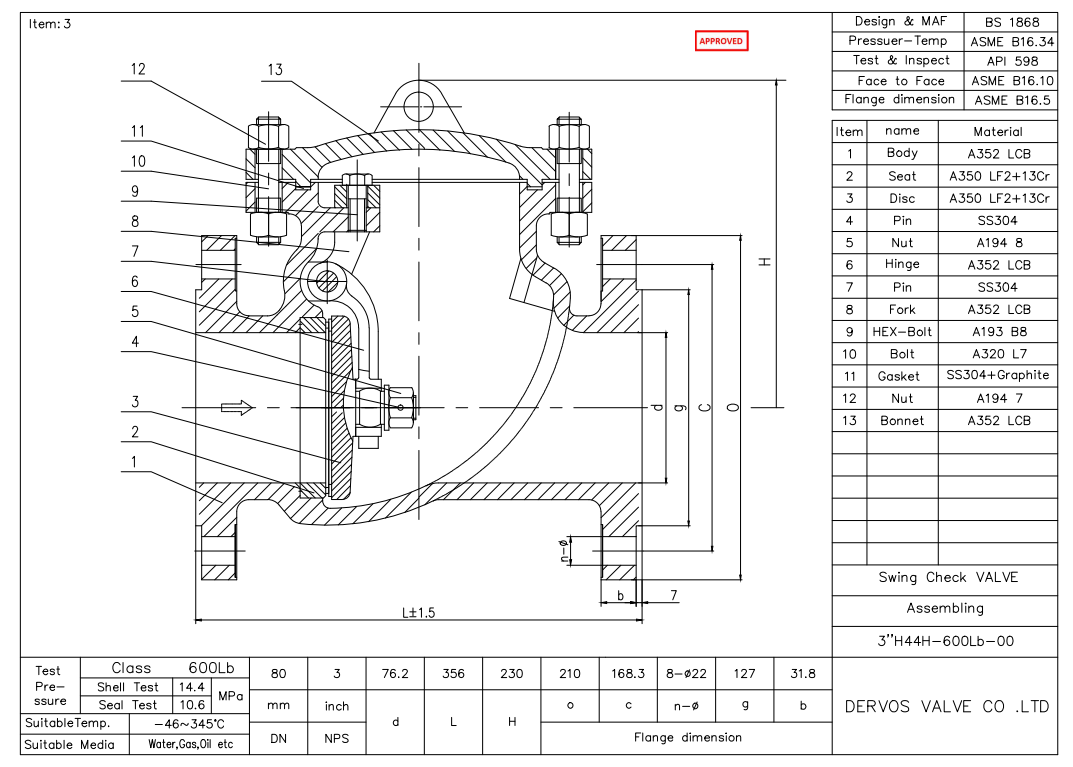

Technical Drawing

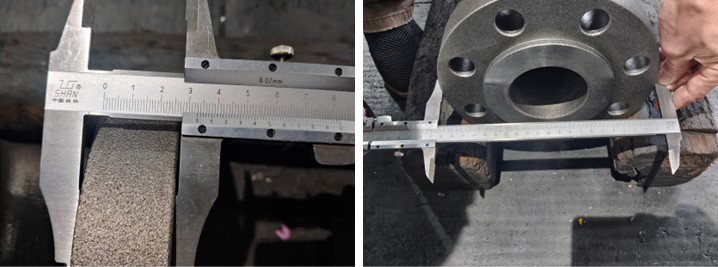

Dimension Checking

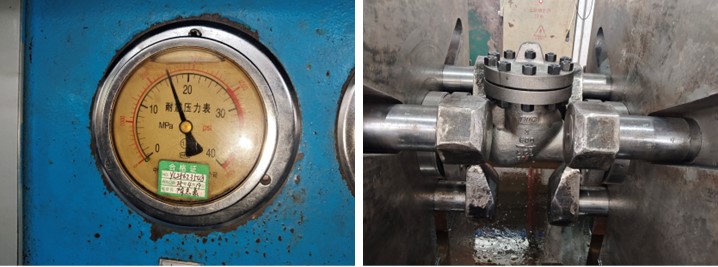

Pressure Testing

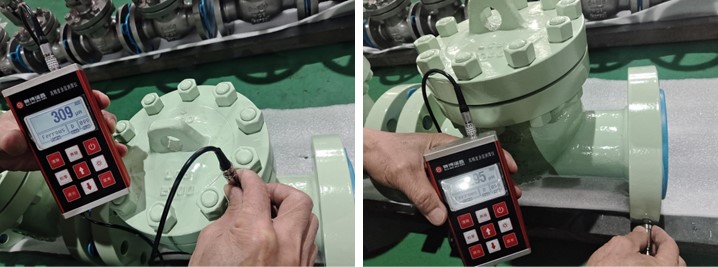

Painting

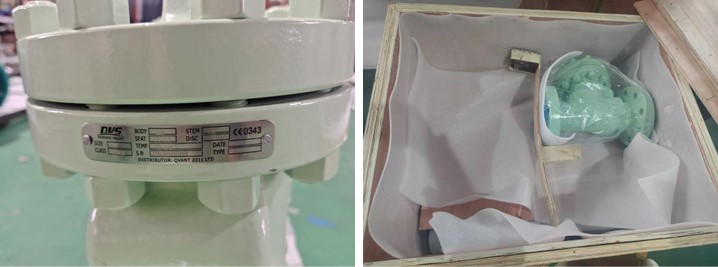

Nameplate & Packing

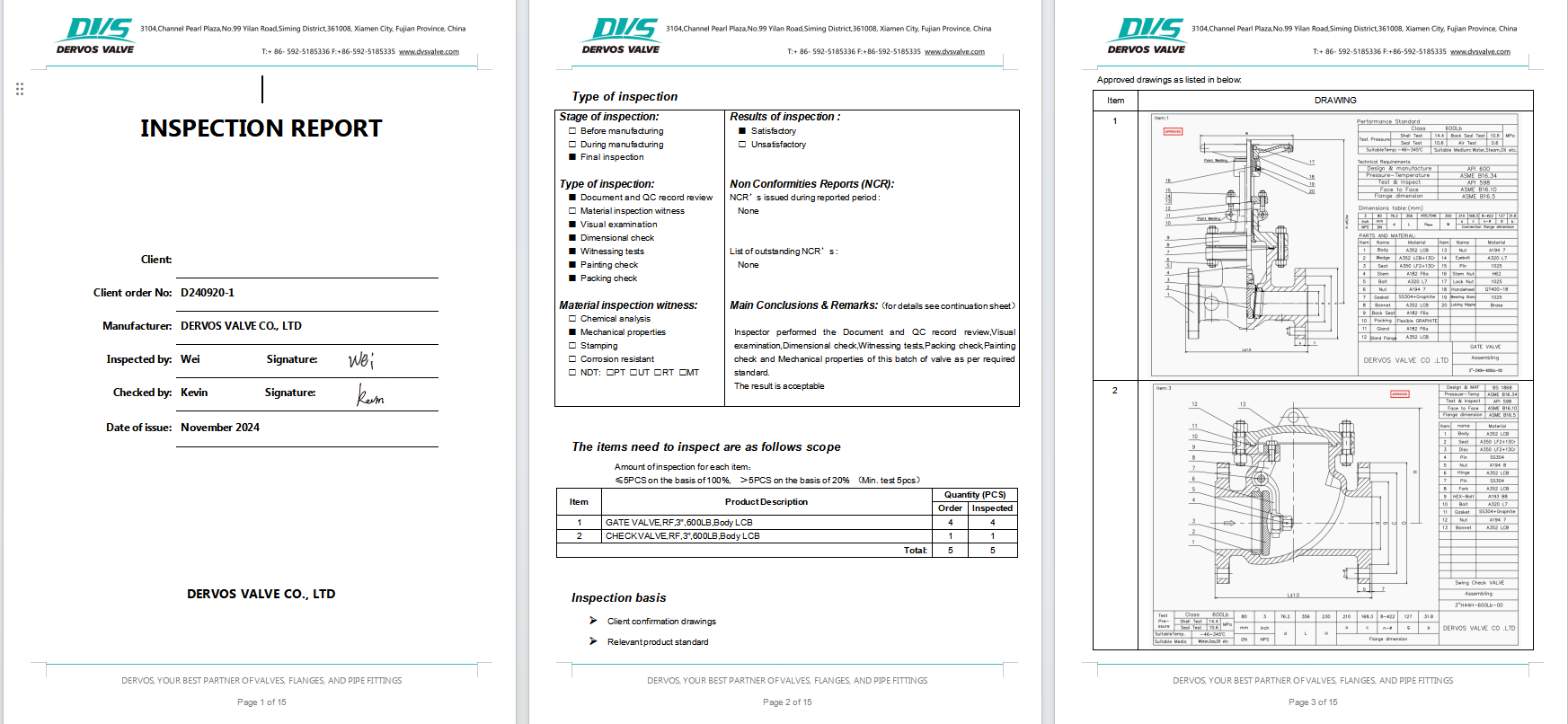

Inspection Report
