Alloy Steel Globe Valve 4" 300LB C5 RF API 623
Key Specifications / Features
Model No.: Hits: 0
4" 300LB Alloy Steel Globe Valve is made according to API 623 standard. The valve body is made of A217 C5. It has the structural characteristics of Bolted Bonnet, OS&Y, Plug-Type Disc, Conventional Pattern (Low Inlet, High Outlet), Graphite Packing, Fire-Safe Design in Accordance with API 6FA. Its connection mode is RF. And it has Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Alloy Steel Globe Valve |
| Size | 4" |
| Pressure | 300LB |
| Connection | RF |
| Operation | Handwheel |
| Body Material | A217 C5 |
| Design Norm | API 623 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 500°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. C5 alloy steel body offers excellent resistance to high temperatures and corrosive service in Class 300 applications.2. Manufactured to API 623 with RF flanged ends, the valve provides reliable shutoff and long-term sealing performance.

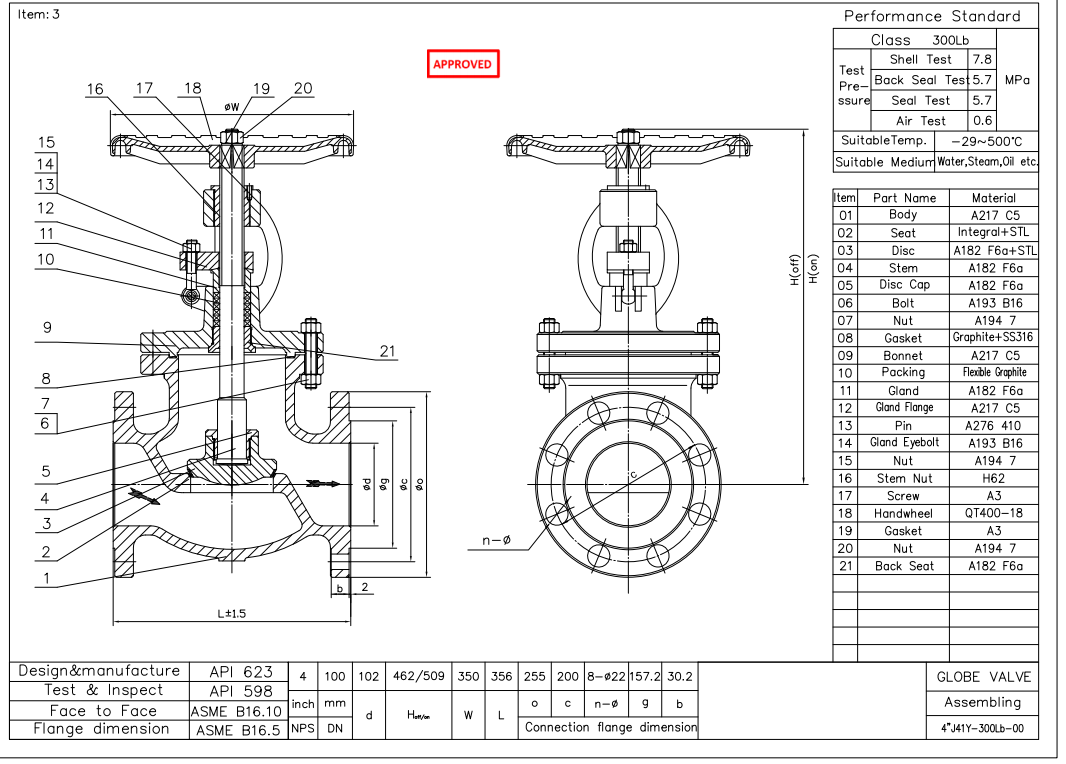

Technical Drawing

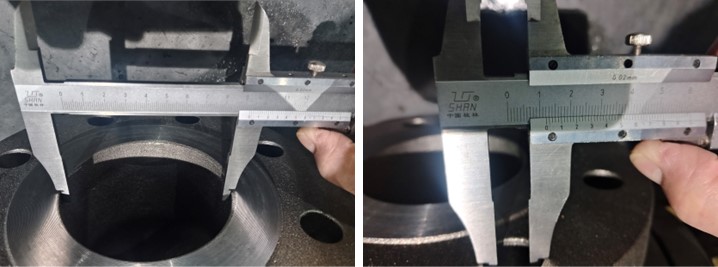

Dimension Checking

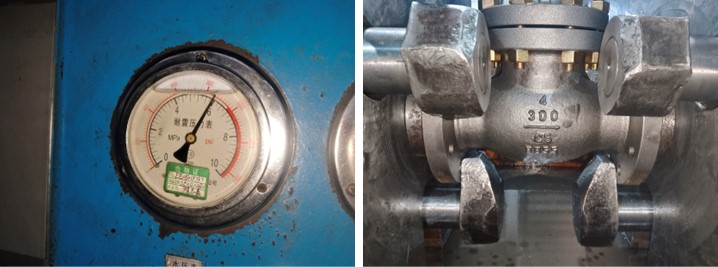

Pressure Testing

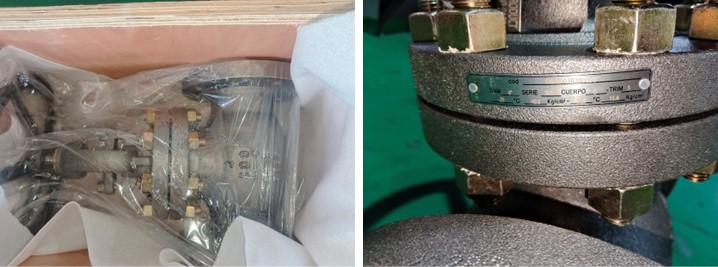

Nameplate & Packing

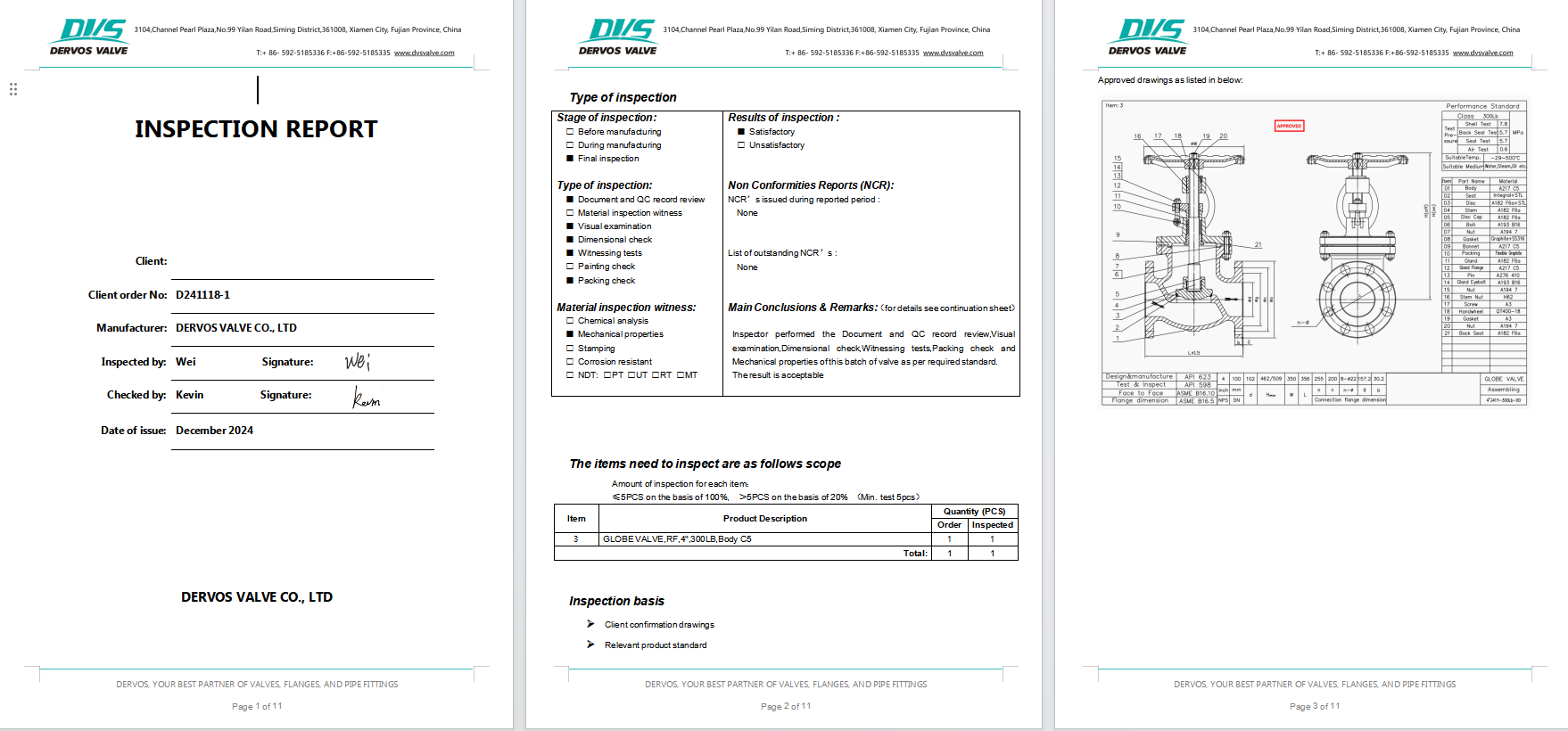

Inspection Report
