Cast Steel Globe Valve DN80 PN25 LCB EN1092-1 D
Key Specifications / Features
Model No.: Hits: 0
DN80 PN25 Globe Valve is made according to BS EN 13709 standard. The valve body is made of LCB. It has the structural characteristics of Bolted Bonnet with Bellows Seal and structural length of 310mm. Its connection mode is EN1092-1 D. And it has HandWheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Globe Valve |
| Size | DN80 |
| Pressure | PN25 |
| Connection | EN1092-1 D |
| Operation | Hand wheel |
| Body Material | ASTM A352 LCB |
| Design Norm | BS EN 13709 |
| Face to face | BS EN 558-1 S.1 |
| Flange dimension | BS EN 1092-1 D |
| Test & Inspection Code | BS EN 12266 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The LCB cast steel body provides excellent toughness and reliability for low-temperature service applications.2. The globe valve design enables precise flow regulation and dependable shutoff performance in process piping systems.

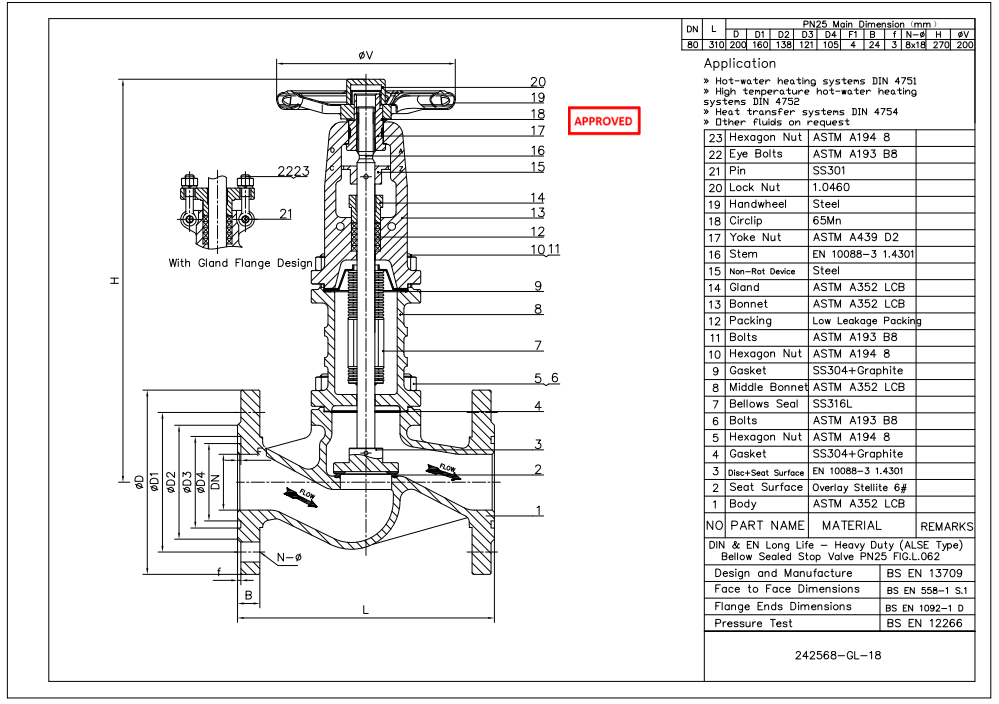

Technical Drawing

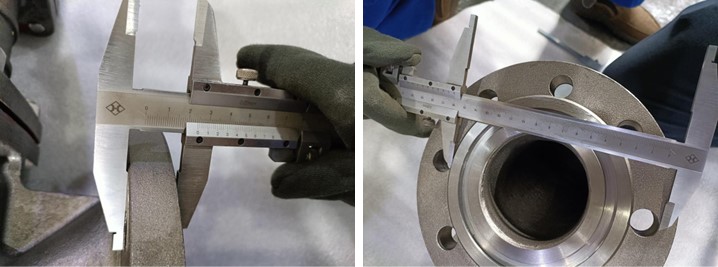

Dimension Checking

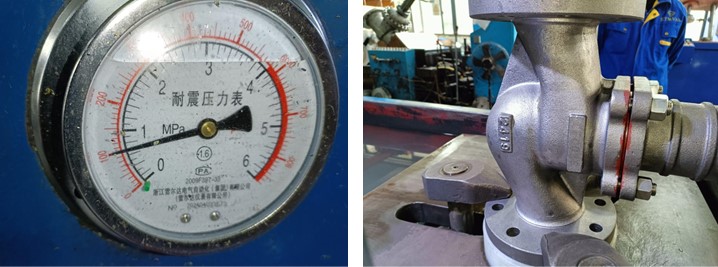

Pressure Testing
Painting

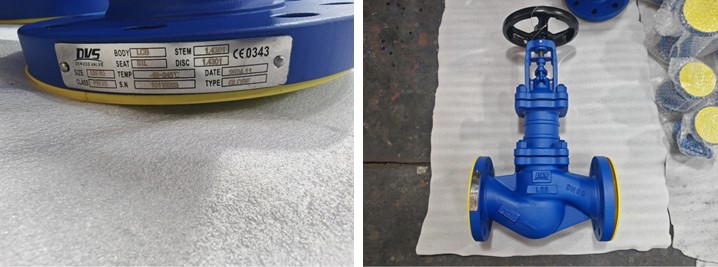

Nameplate & Packing

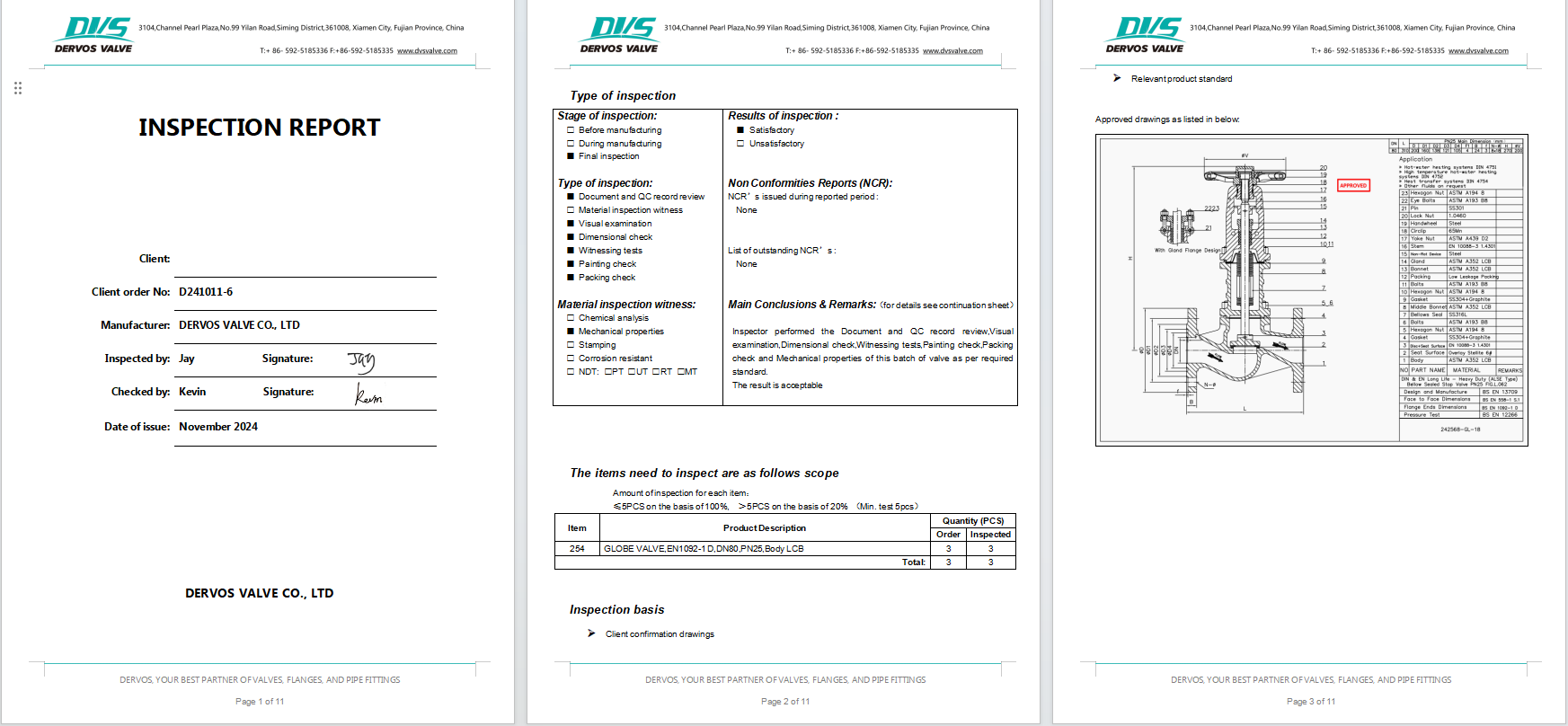

Inspection Report
