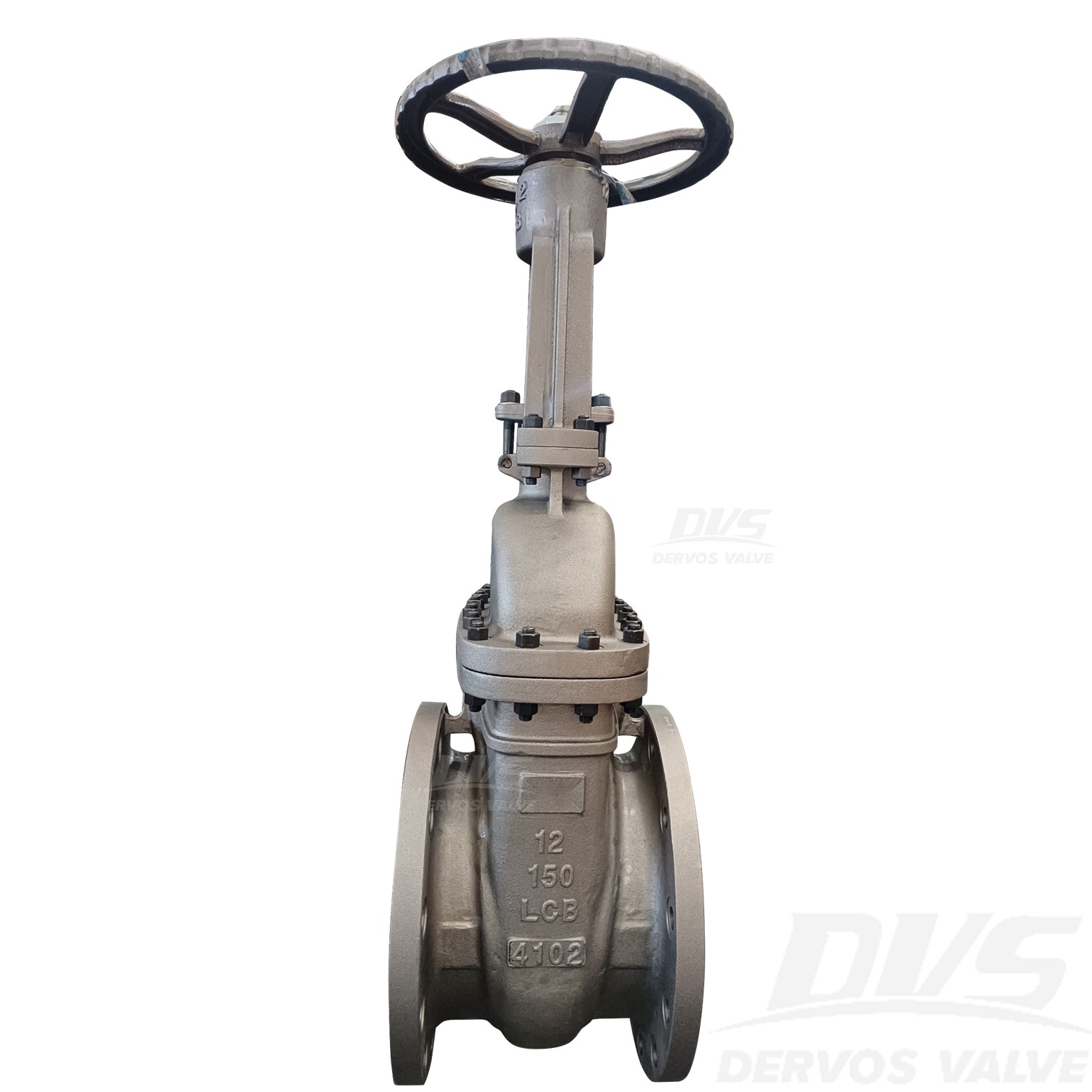

Cast Steel Gate Valve 12" 150LB LCB RF API 600
Key Specifications / Features
Model No.: Hits: 0
12" 150LB Cast Steel Gate Valve is made according to API 600 standard. The valve body is made of LCB. It has the structural characteristics of Flexible wedge, bolted bonnet, full bore, materials in compliance with NACE MR0175 requirements. Its connection mode is RF. And it has Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | 12" |
| Pressure | 150LB |
| Connection | RF |
| Operation | Handwheel |
| Body Material | LCB |
| Design Norm | API 600 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -46 ~ 345°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. LCB cast steel construction provides excellent toughness and reliable performance for low-temperature service.2. API 600 gate valve design provides dependable isolation and tight shutoff for large-diameter pipelines.

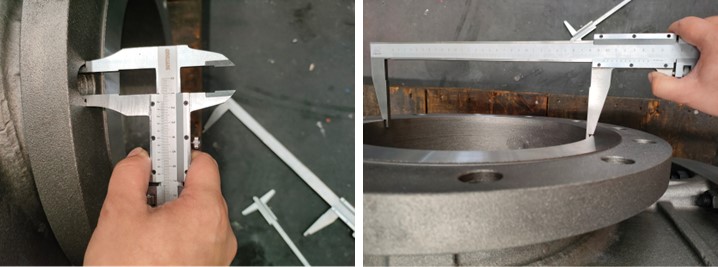

Dimension Checking

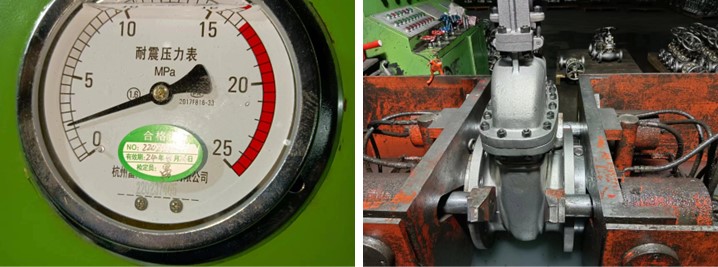

Pressure Testing

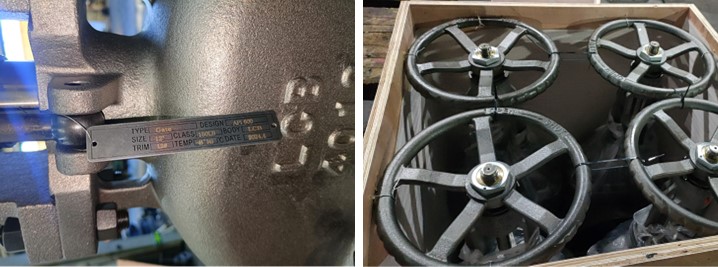

Nameplate & Packing
