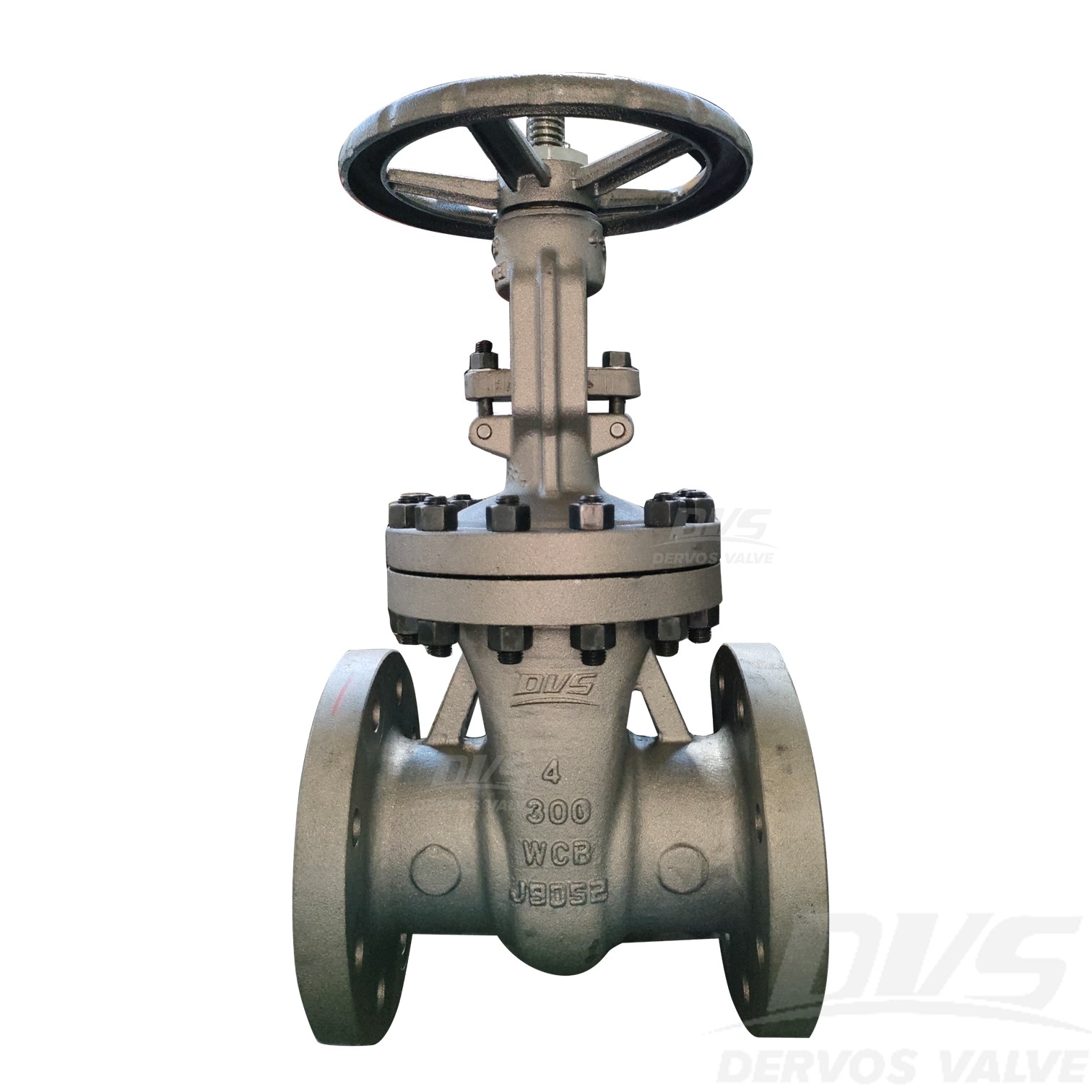

Cast Steel Gate Valve 4" 300LB WCB RF API 600
Key Specifications / Features
Model No.: Hits: 0
4" 300LB Cast Steel Gate Valve is made according to ASME B16.34 standard. The valve body is made of WCB. It has the structural characteristics of Bolted bonnet, flexible wedge. Its connection mode is RF. And it has HandWheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | 4" |
| Pressure | 300LB |
| Connection | RF |
| Operation | HandWheel |
| Body Material | WCB |
| Design Norm | API 600 |
| Face to face | ASME B16.10 |
| Flange dimension | ASME B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. WCB cast steel construction provides high strength and durability for demanding industrial pipeline service.2. Gate valve design complies with API 600 for reliable isolation and tight shutoff.

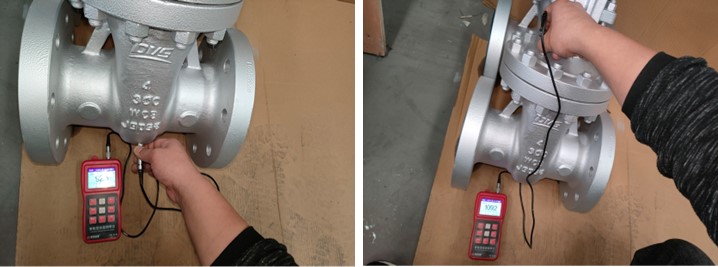

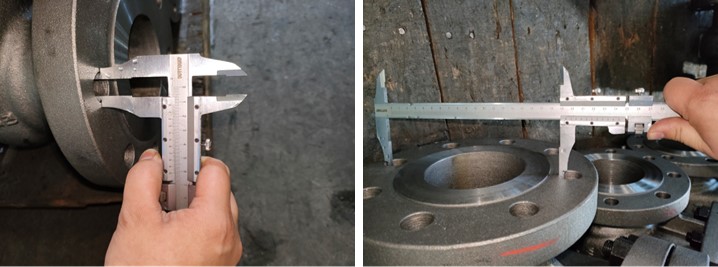

Dimension Checking

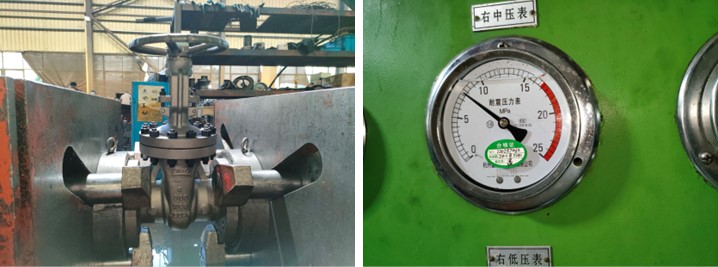

Pressure Testing
Painting
