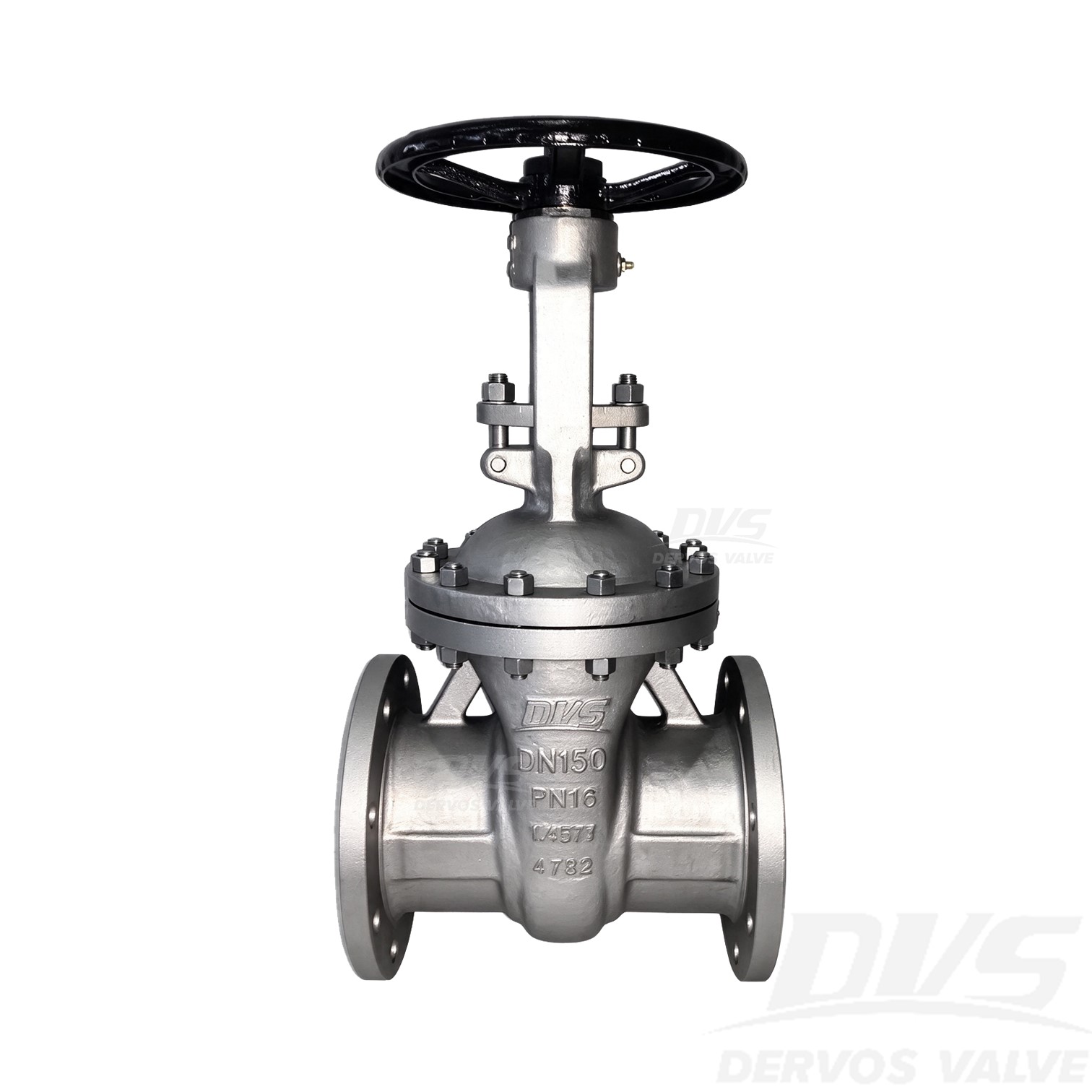

Stainless Steel Gate Valve DN150 PN16 1.4571 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN150 PN16 Stainless Steel Gate Valve is made according to EN 1984 standard. The valve body is made of 1.4571. It has the structural characteristics of Flexible wedge, rising stem, bolted bonnet. Its connection mode is EN1092-1 B1. And it has Handwheel operation mode.
Request a quote
Tags:
Detail Information
Product Parameters
| Type | Stainless Steel Gate Valve |
| Size | DN150 |
| Pressure | PN16 |
| Connection | EN1092-1 B1 |
| Operation | Handwheel |
| Body Material | 1.4571 |
| Design Norm | EN 1984 |
| Face to face | EN 558-1 Series 30 |
| End Connections | EN 1092-1 |
| Test & Inspection Code | EN 12266-1 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Steam |
Features
1. Stainless steel 1.4571 construction provides excellent corrosion resistance and durability for industrial service.2. PN16 flanged ends with EN 1092-1 Type B1 facing ensure reliable pipeline connection and sealing.

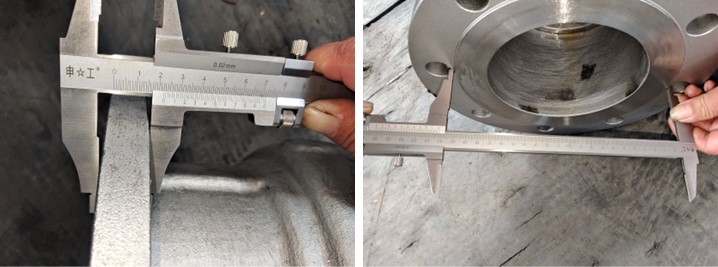

Dimension Checking

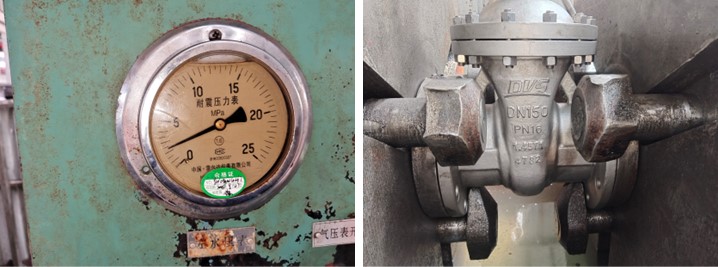

Pressure Testing

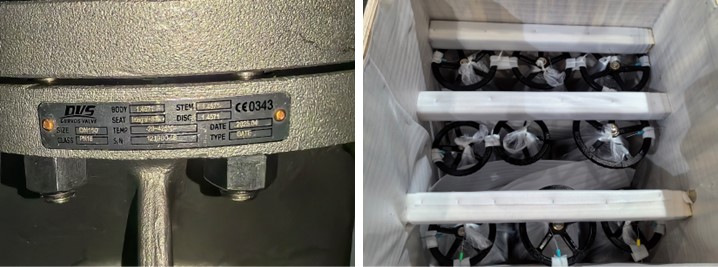

Nameplate & Packing
