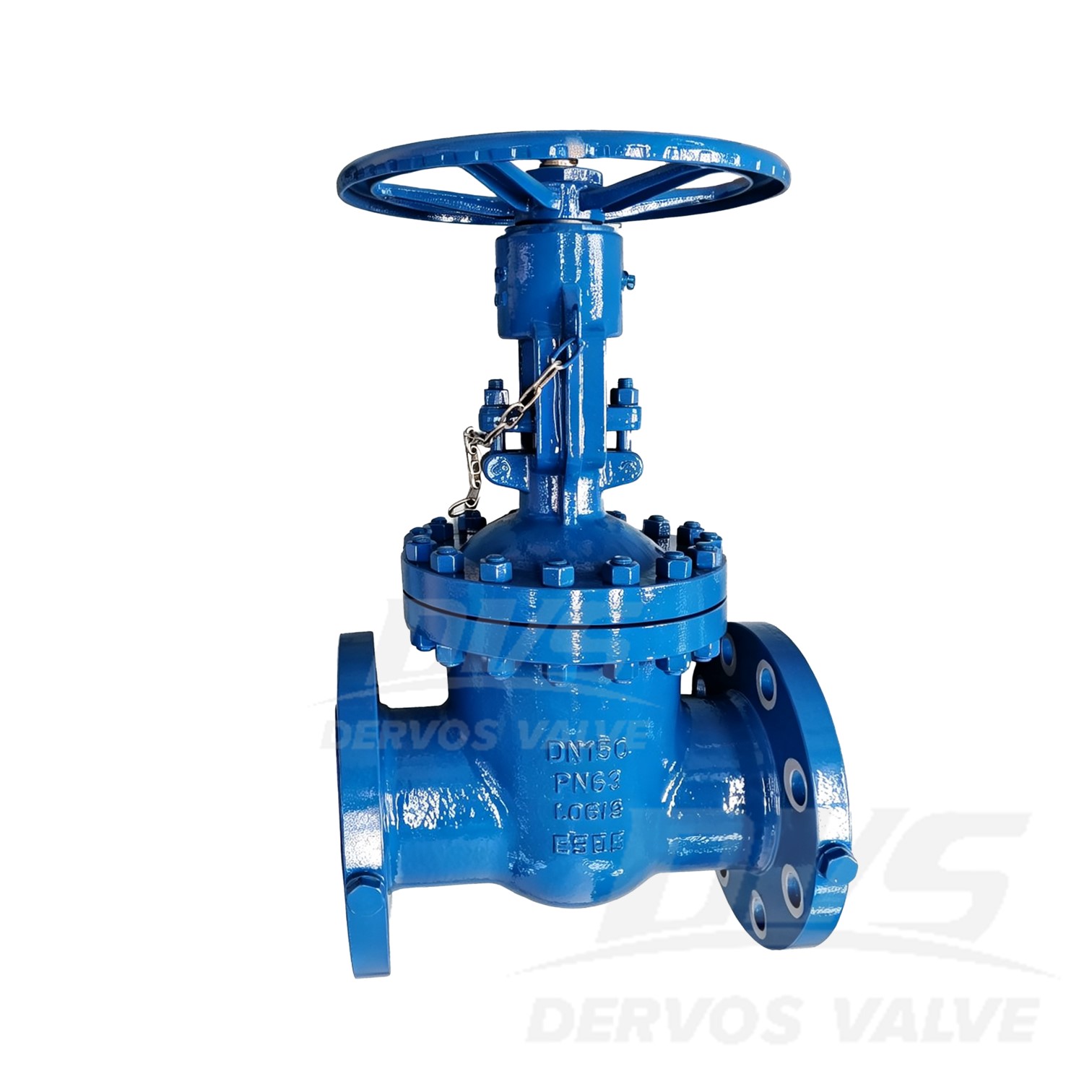

Cast Steel Gate Valve DN100 1500LB 1.0619 RF
Key Specifications / Features
Model No.: Hits: 0
DN100 1500LB Cast Steel Gate Valve is made according to BS EN1984 standard. The valve body is made of 1.0619. It has the structural characteristics of BB OS&Y. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate valve |
| Size | DN100 |
| Pressure | 600LB |
| Connection | RF |
| Operation | Hand Wheel |
| Body Material | 1.A0619+STL6 |
| Design Norm | BS EN1984 |
| Flange dimension | BS EN1092-1/B1 |
| Test & Inspection Code | BS EN12266-1/2 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Cast 1.0619 steel body provides high mechanical strength and reliable performance in Class 1500 high-pressure applications.2. RF flanged gate valve design ensures secure pipeline connections with dependable shutoff and low flow resistance.

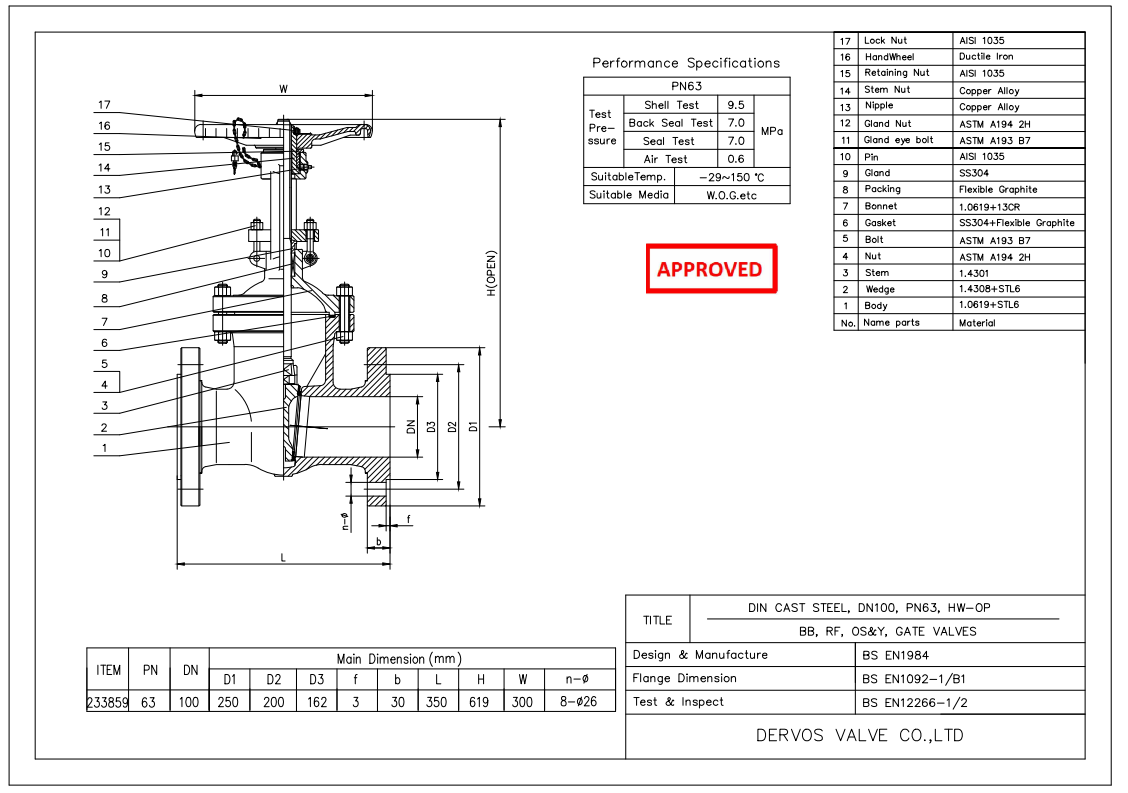

Technical Drawing

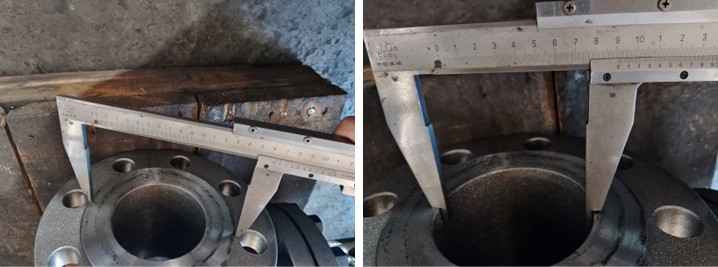

Dimension Checking

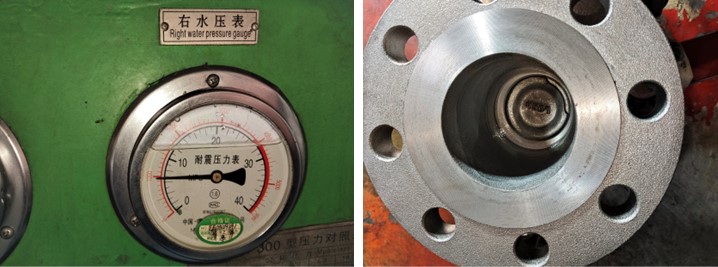

Pressure Testing

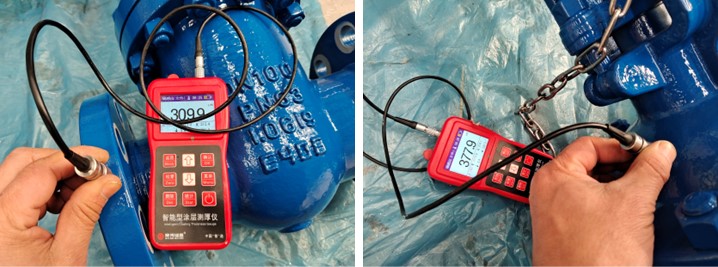

Painting

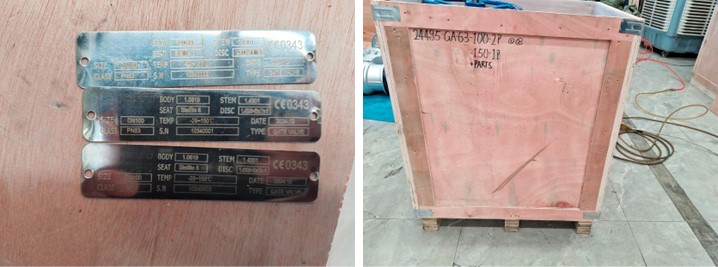

Nameplate & Packing

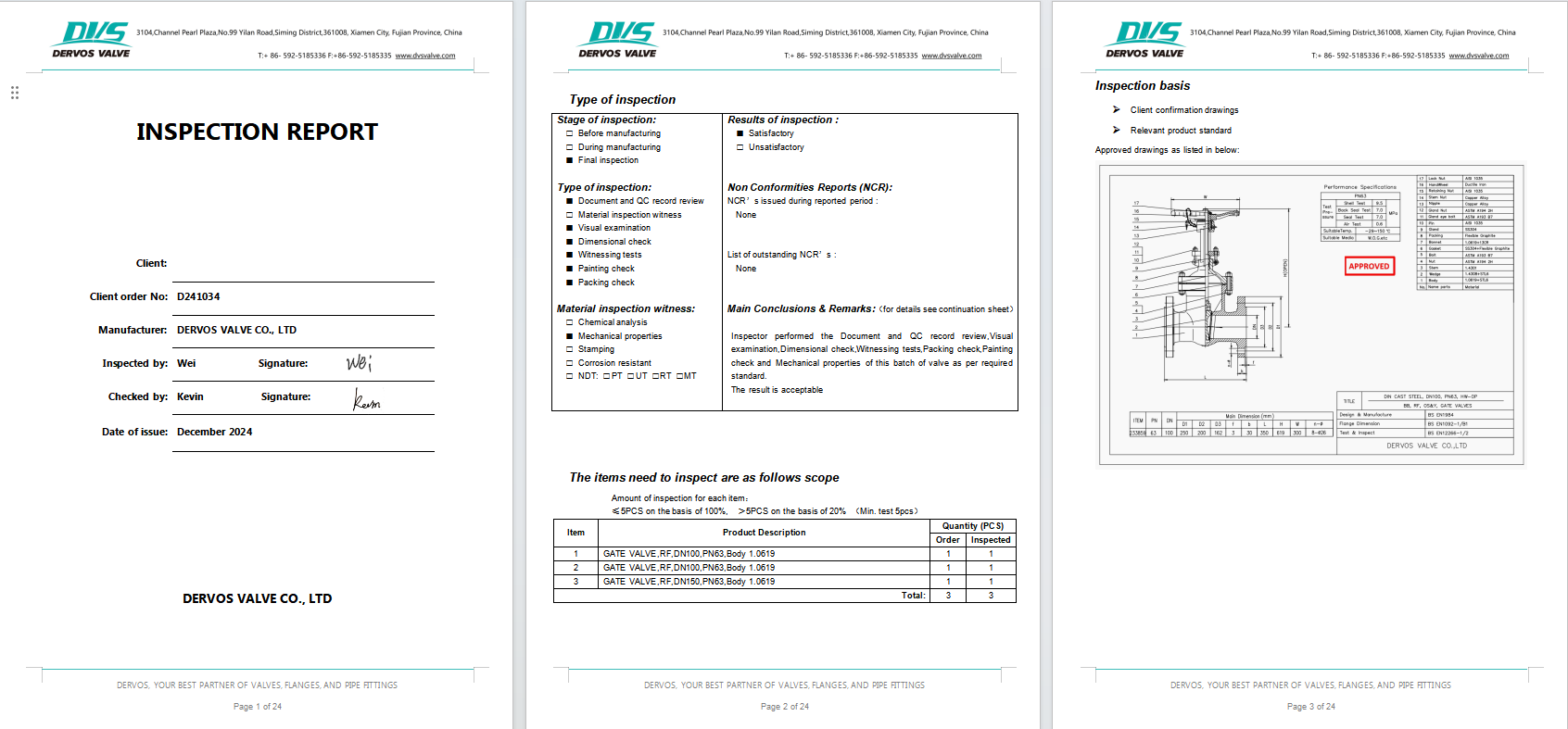

Inspection Report
