Cast Steel Gate Valve DN300 PN25 1.0619 EN 1984
Key Specifications / Features
Model No.: Hits: 0
DN300 PN25 Cast Steel Gate Valve is made according to EN 1984 standard. The valve body is made of 1.0619. It has the structural characteristics of Bolted Bonnet, Flexible Wedge, OS&Y, Yoke. Its connection mode is EN1092-1 B. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Cast Steel Gate Valve |
| Size | DN300 |
| Pressure | PN150 |
| Connection | EN1092-1 B |
| Operation | Hand Wheel |
| Body Material | 1.0619+STL |
| Design Norm | EN 1984 |
| Face to face | DIN 3202-F5 |
| Flange dimension | EN 1092-1 |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 400°C |
| Applicable Medium | Water, Oil and Steam |
Features
1.Cast 1.0619 steel body provides high strength and reliable performance for PN25 industrial pipeline applications.2.Gate valve design manufactured to EN 1984 ensures low pressure drop and dependable isolation service.

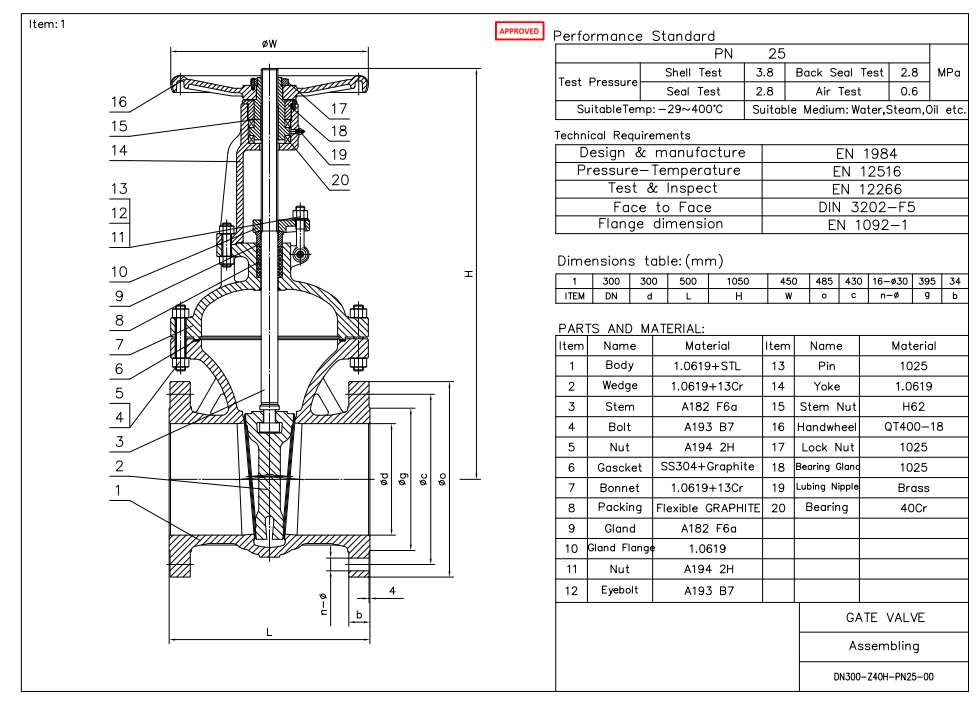

Technical Drawing

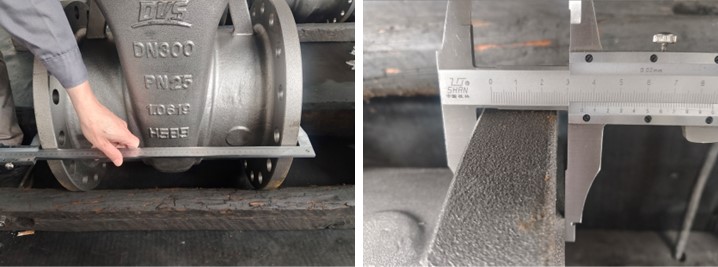

Dimension Checking

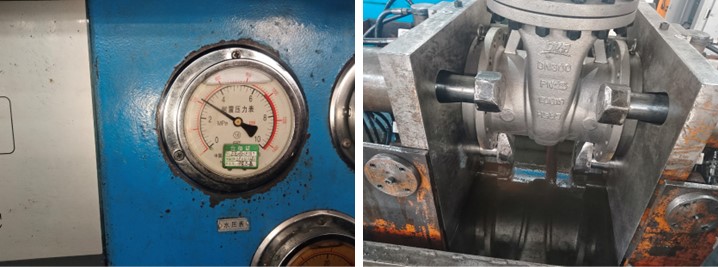

Pressure Testing

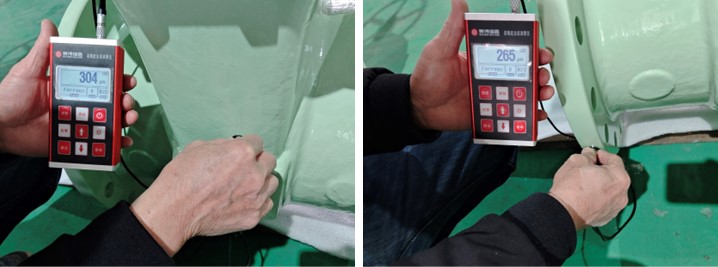

Painting

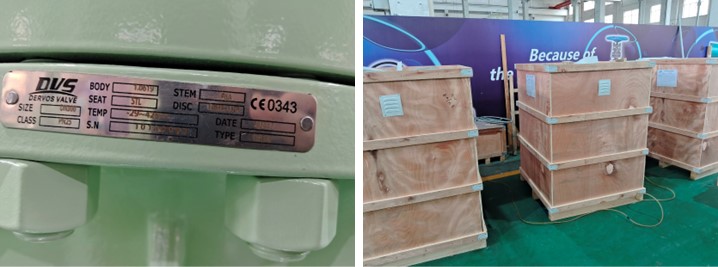

Nameplate & Packing

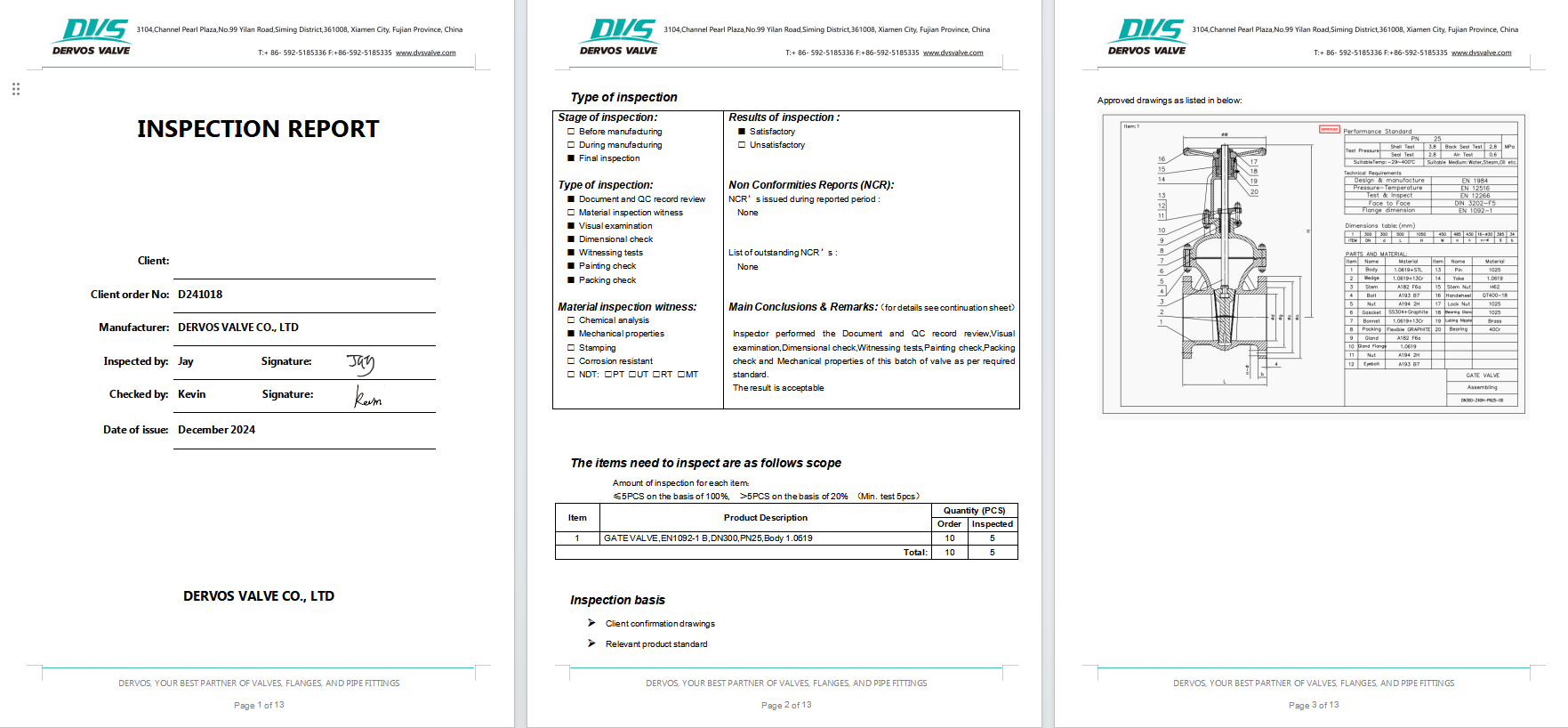

Inspection Report
