Forged Steel Gate Valve 8" 1500LB F316 NPT
Key Specifications / Features
Model No.: Hits: 0
8" 1500LB gate valve is made according to API 602 standard. The valve body is made of F316. It has the structural characteristics of Floating Ball, Reduced Port. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Gate Valve |
| Size | 8” |
| Pressure | 600LB |
| Connection | NPT |
| Operation | Hand Wheel |
| Body Material | A182 F316 |
| Design Norm | API602 |
| End Size | ANSI.20.1 |
| Material conform | AISI/ASTM |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged F316 stainless steel body provides excellent corrosion resistance and high mechanical strength for Class 1500 service.2. NPT threaded connections and robust gate design ensure reliable shutoff performance in demanding industrial applications.

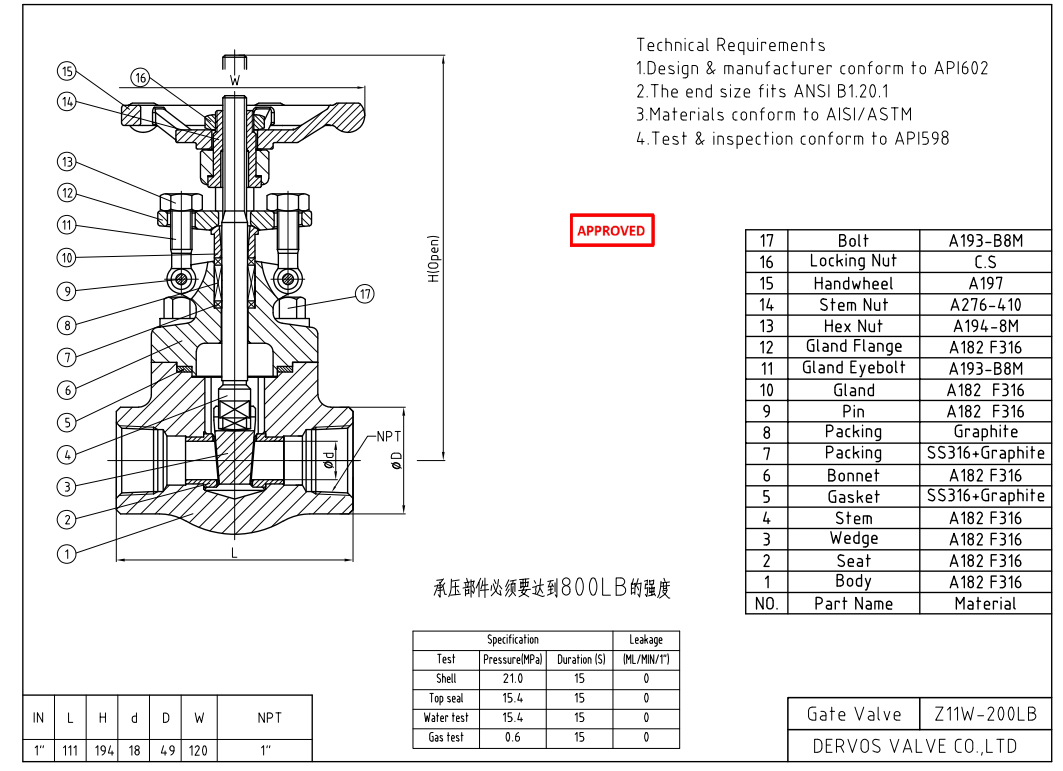

Technical Drawing

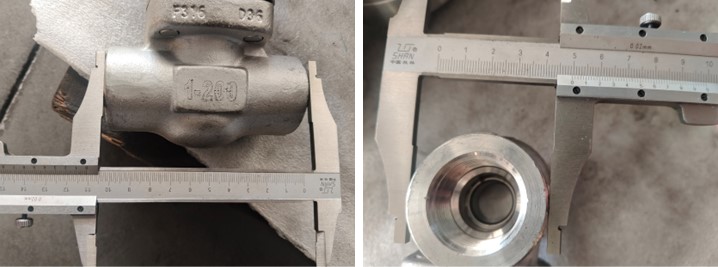

Dimension Checking

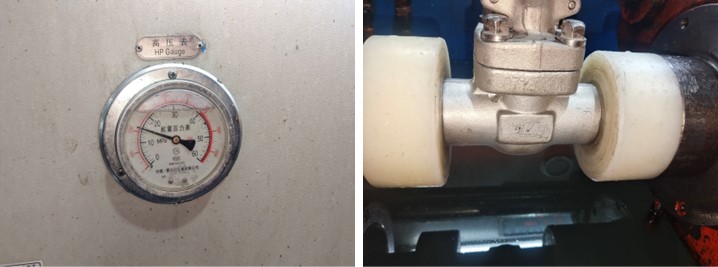

Pressure Testing
Painting
Spectrum

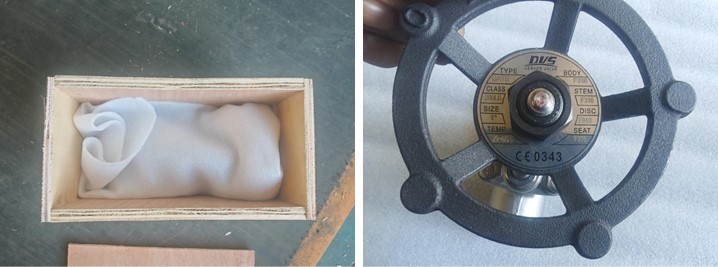

Nameplate & Packing

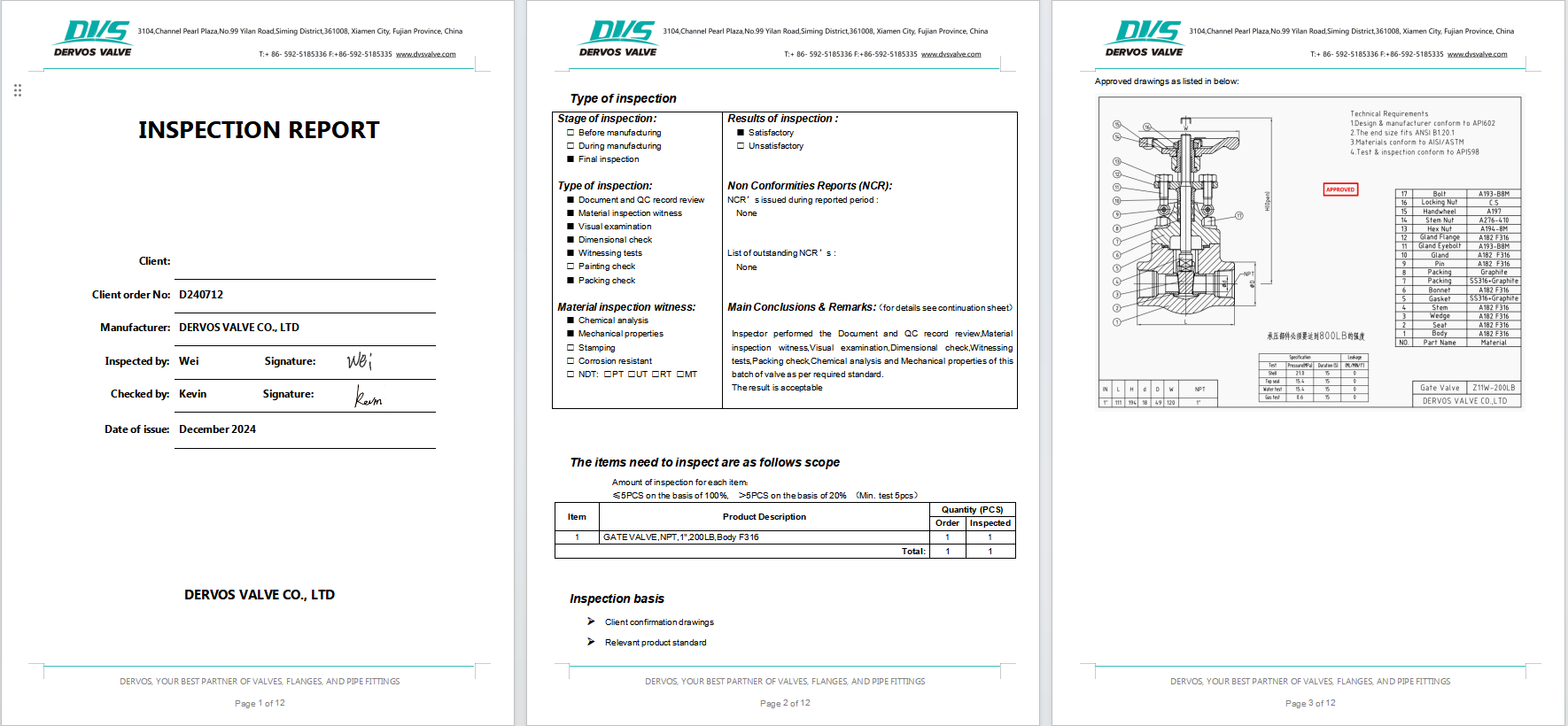

Inspection Report
