Low Alloy Steel Gate Valve 1" 800LB F9 BW
Key Specifications / Features
Model No.: Hits: 0
1" 800LB gate valve is made according to API 602 standard. The valve body is made of A182-F9. It has the structural characteristics of Reduced Port, Solid Wedge, Bolted Bonnet, OS&Y. Its connection mode is SW. And it has Handwheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Low Alloy Steel Gate Valve |
| Size | 1" |
| Pressure | 800LB |
| Connection | SW |
| Operation | Handwheel |
| Body Material | A182-F9 |
| Design Norm | API 602 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 525°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. F9 low alloy steel body provides excellent high-temperature strength and reliable performance in Class 800 pressure service.2. Butt weld end connection ensures a secure, leak-resistant joint for demanding process and power industry applications.

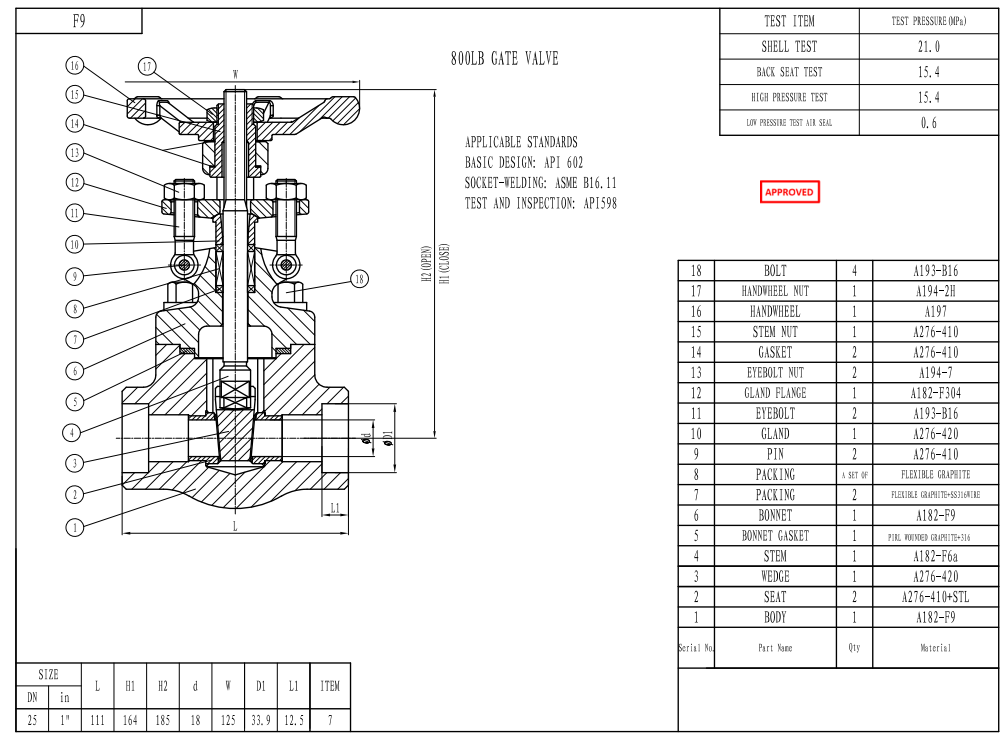

Technical Drawing

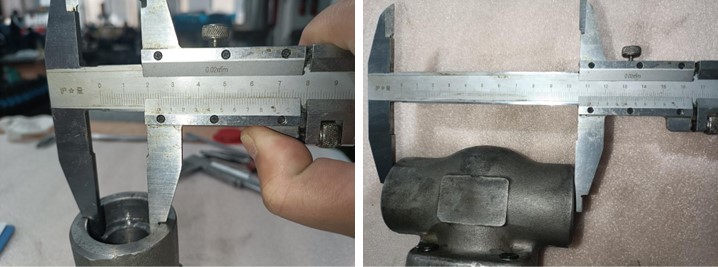

Dimension Checking

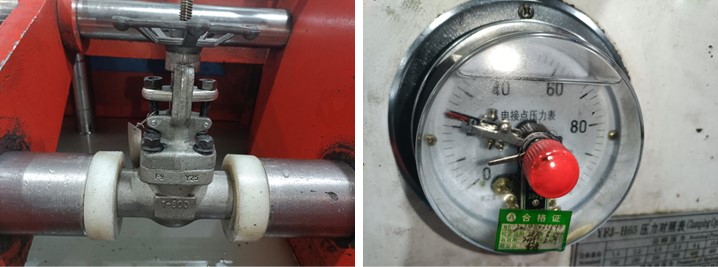

Pressure Testing

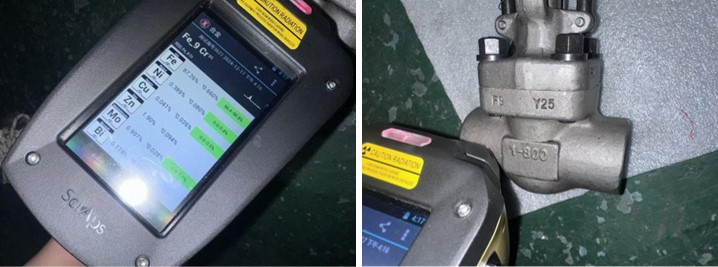

Spectrum

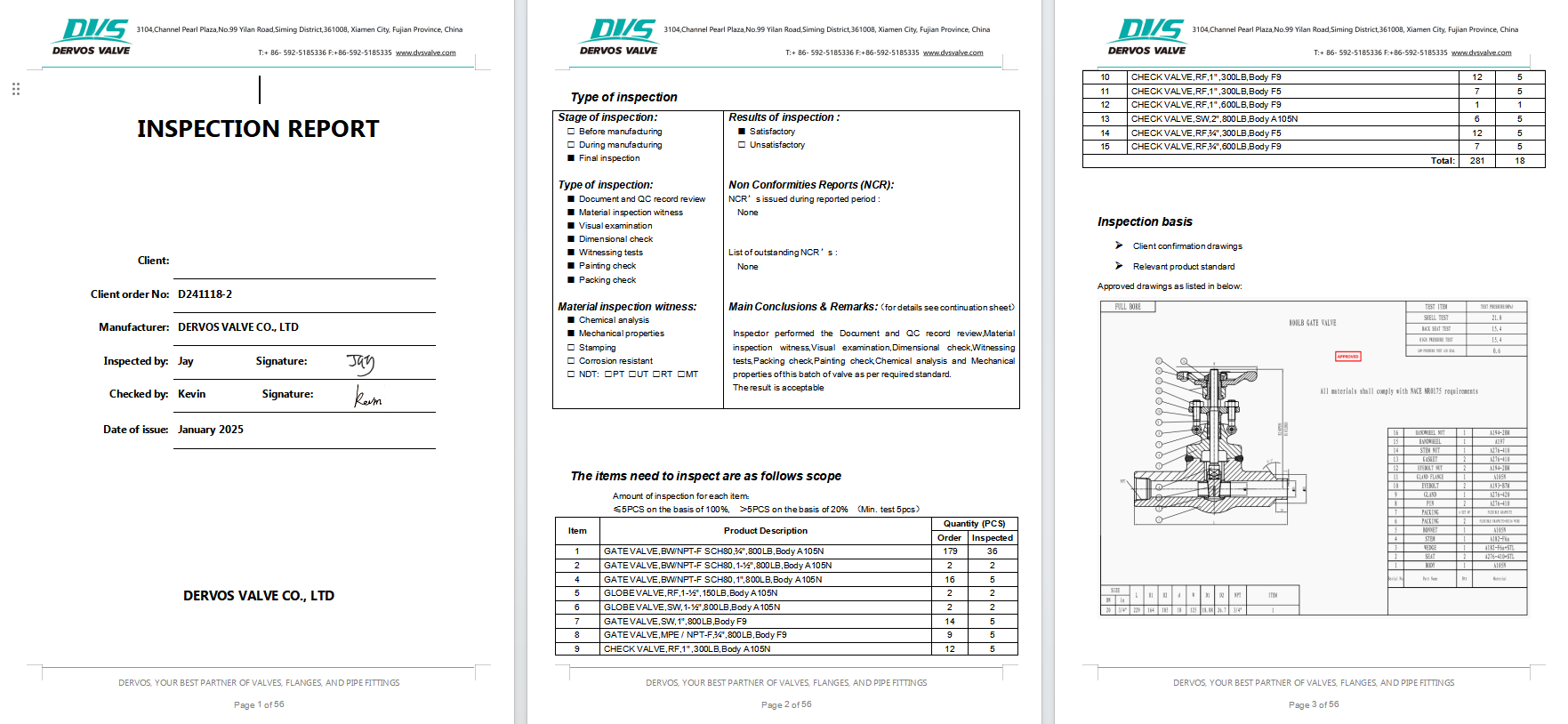

Inspection Report
