Dual Plate Wafer Type Check Valve 2" 600LB LCC RF API594

Dual Plate Wafer Type Check Valve 2" 600LB LCC RF API594
Dual Plate Wafer Type Check Valve 2" 600LB LCC RF API594

Key Specifications / Features

Model No.: Hits: 0

2" 600LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A352 LCC+316. It has the structural characteristics of Dual Disc, Internal Type. Its connection mode is RF.
Request a quote

Next: Dual Plate Wafer Check Valve DN200 PN63 A105 RF

Previous: 2" 1500LB Dual Plate Wafer-Lug Type Check Valve WCB API 594

Detail Information

Product Parameters

Type Dual Plate Wafer Type Check Valve
Size 2”
Pressure 600LB
Connection RF
Body Material A352 LCC+316
Design Norm API 594
Face to face API 594
Flange end ANSI B16.5
Test & Inspection Code API 598
Temperature -20 ~ 300°C
Applicable Medium Water, Oil and Gas

Features

1. Dual Plate Wafer Type Check Valve 2" 600LB LCC RF API 594 provides fast non-slam closure and reliable backflow prevention, ideal for high-pressure low-temperature pipeline systems (dual plate check valve 600LB LCC).
2. Wafer Type LCC Check Valve API 594 ensures compact installation and stable sealing performance, suitable for oil & gas and industrial applications requiring space-saving design (2 inch wafer check valve LCC RF).

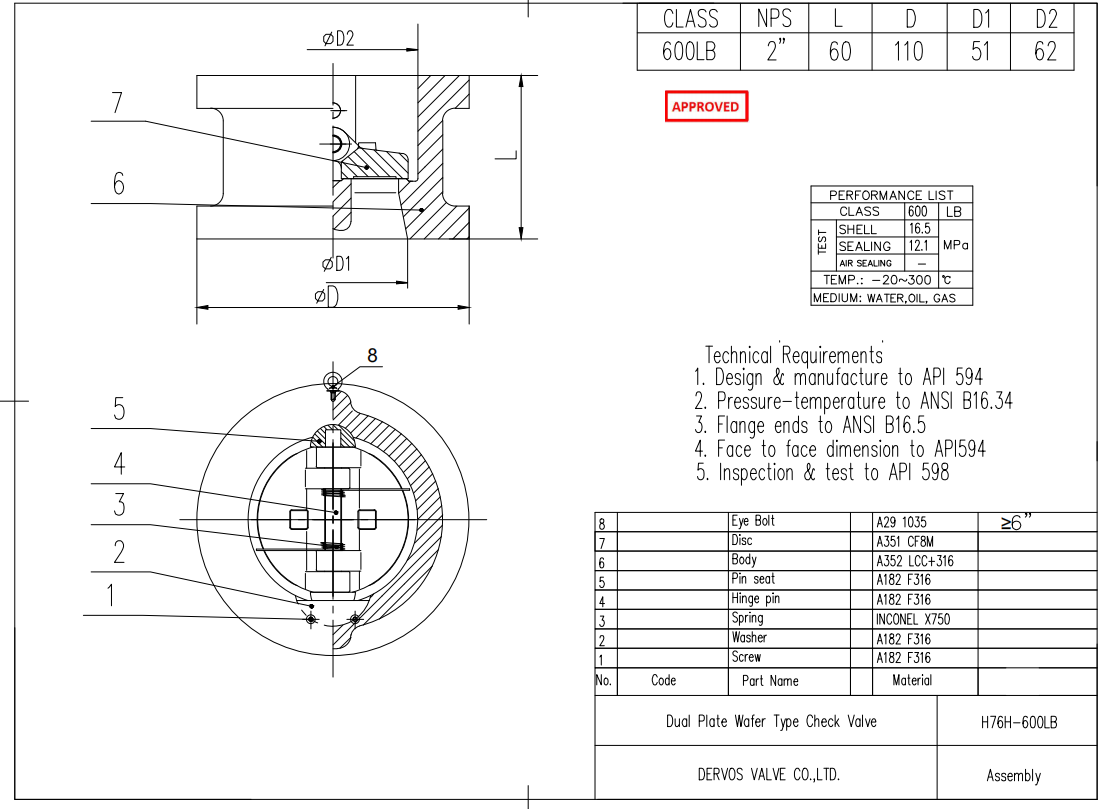

Technical Drawing

Wafer Type Check Valve

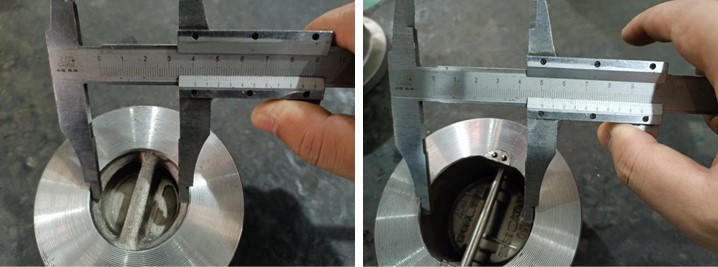

Dimension Checking

Wafer Type Check Valve

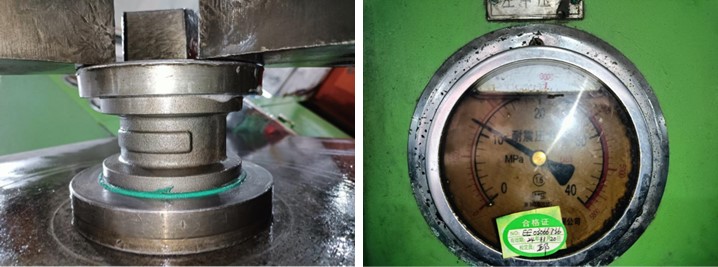

Pressure Testing

Wafer Type Check Valve

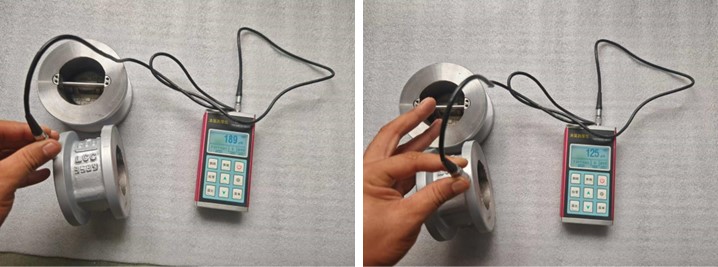

Painting

Wafer Type Check Valve

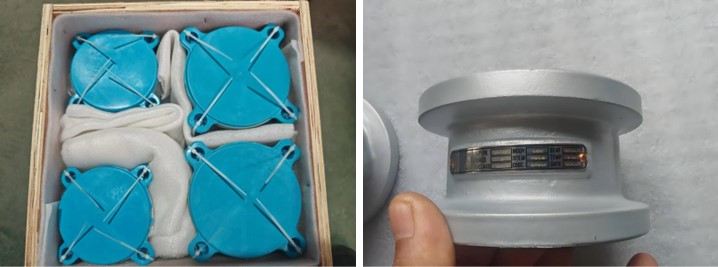

Nameplate & Packing

Wafer Type Check Valve

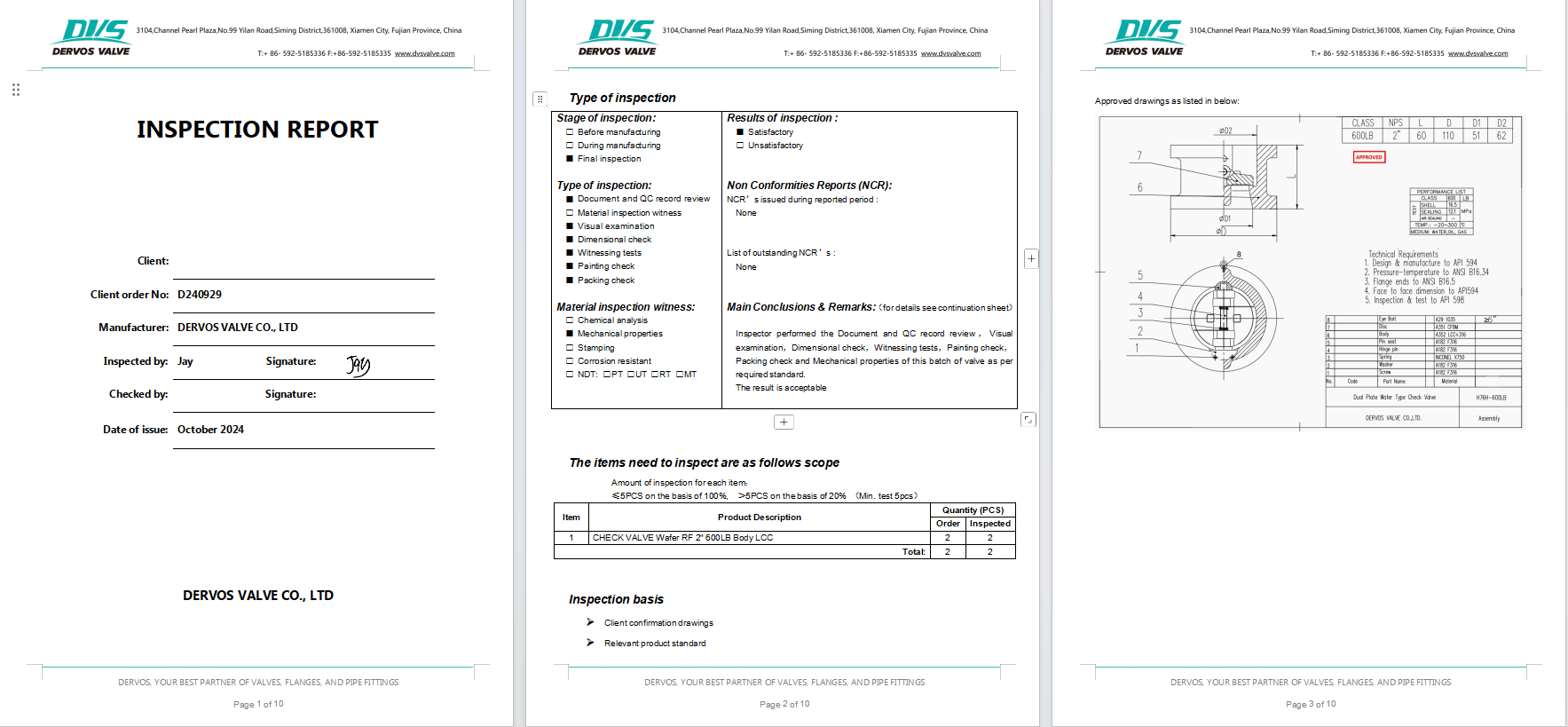

Inspection Report

Wafer Type Check Valve
