Dual Plate Wafer Check Valve DN200 PN63 A105 RF
Key Specifications / Features
Model No.: Hits: 0
DN200 PN63 Dual Plate Wafer Check Valve is made according to API 594 standard. The valve body is made of A105. It has the structural characteristics of Straight Through and structural length of 280mm. Its connection mode is RF.
Request a quote
Tags:
Detail Information
Product Parameters
| Product | Dual Plate Wafer Check Valve |
| Size | DN200 |
| Pressure | PN63 |
| Connection | RF |
| Body Material | A216 WCB+STL |
| Design Norm | API 594 |
| Face to face | API 594 |
| Flange Ends | En 1092-1 |
| Test & Inspection Code | API 598 |
| Temperature | -10 ~ 250°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Dual Plate Wafer Check Valve DN200 PN63 A105 RF provides efficient non-slam closure and reliable backflow prevention, ideal for medium to high-pressure industrial pipeline systems (dual plate wafer check valve PN63 A105).2. RF Flanged A105 Wafer Check Valve ensures compact installation and stable sealing performance, suitable for oil & gas, water, and general industrial applications (DN200 PN63 check valve RF).

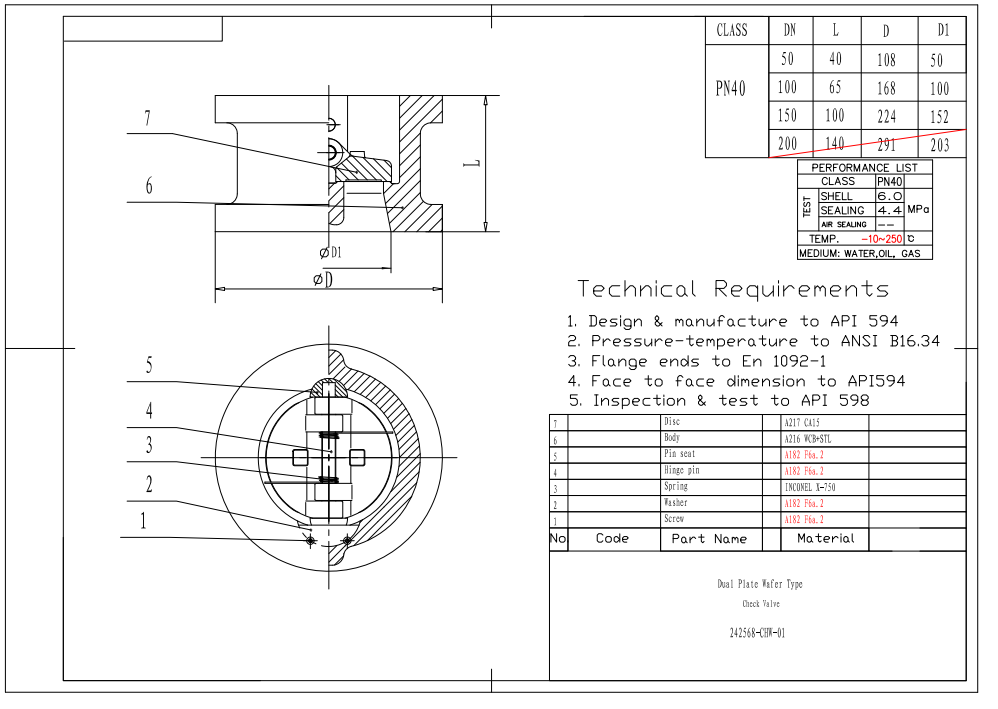

Technical Drawing

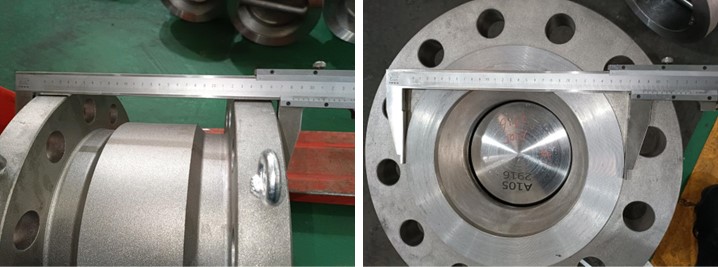

Dimension Checking

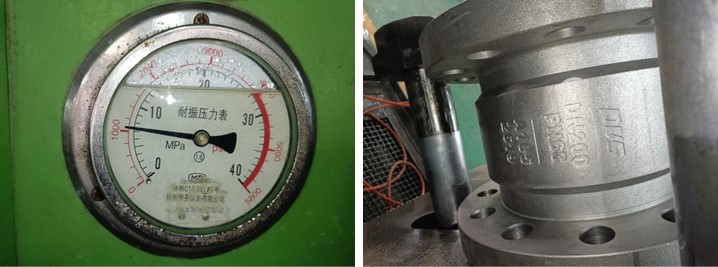

Pressure Testing

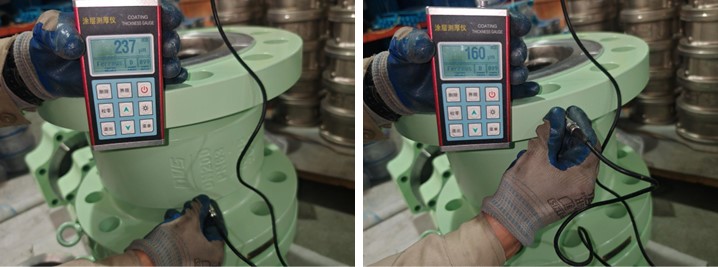

Painting

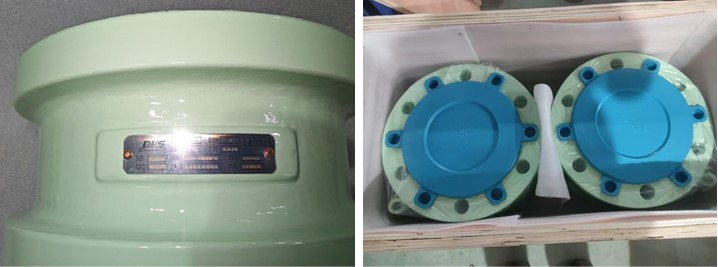

Nameplate & Packing

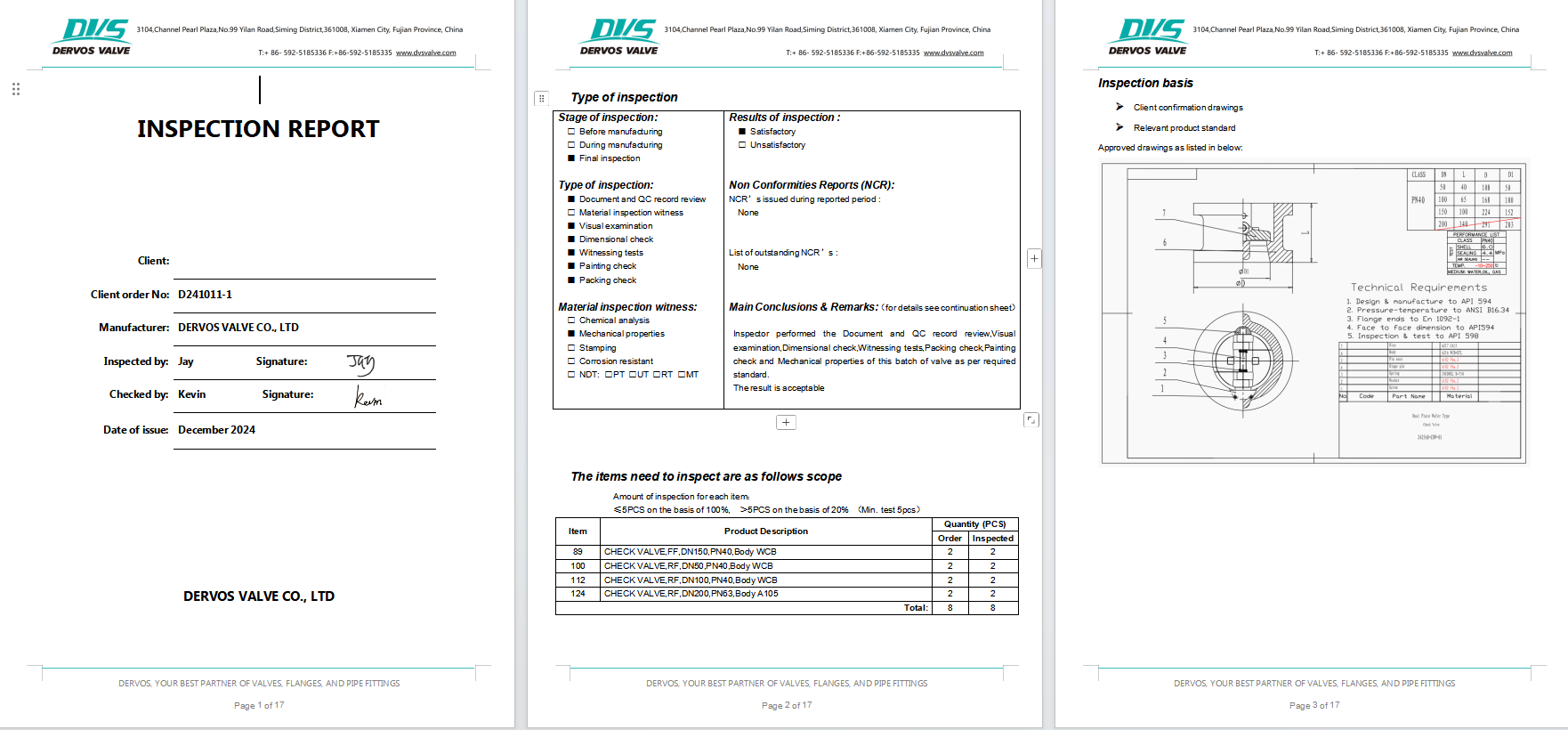

Inspection Report
