Dual Plate Wafer Type Check Valve 8" 150LB WCB RF
Key Specifications / Features
Model No.: Hits: 0
8" 150LB Dual Plate Wafer Type Check Valve is made according to API594 standard. The valve body is made of WCB. It has the structural characteristics of Dual Plate, Internal Type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Dual Plate Wafer Type Check Valve |
| Size | 8” |
| Pressure | 600LB |
| Connection | RF |
| Body Material | A216 WCB+STL |
| Design Norm | API 594 |
| Face to face | API 594 |
| Flange dimension | ANSI B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 350°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Dual plate wafer design provides fast closing response, low pressure drop, and efficient backflow prevention in Class 150 systems.2. WCB body with RF wafer ends offers compact installation and reliable sealing performance for industrial piping applications.

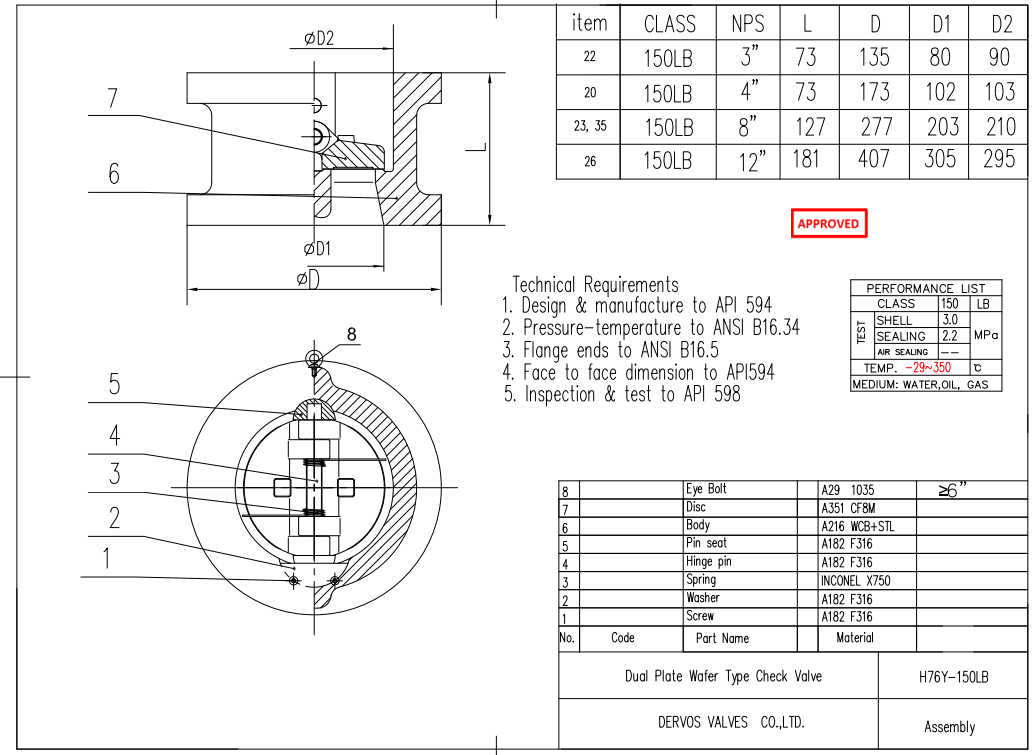

Technical Drawing

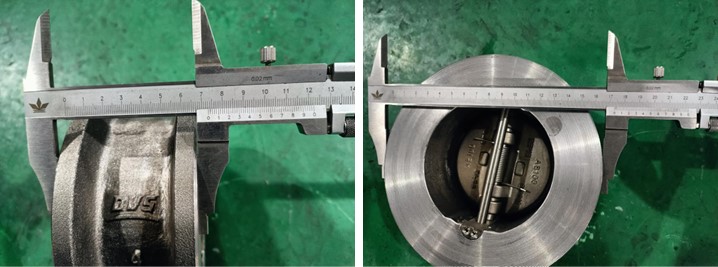

Dimension Checking

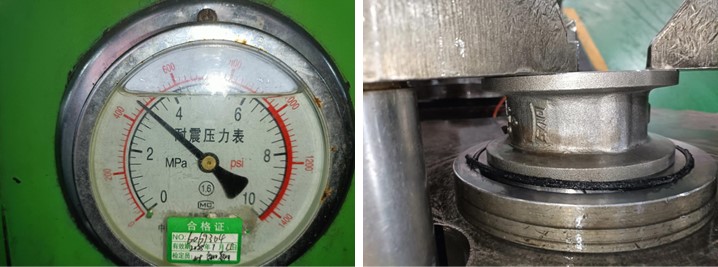

Pressure Testing

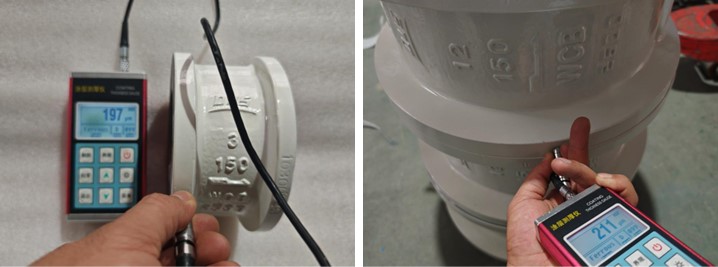

Painting

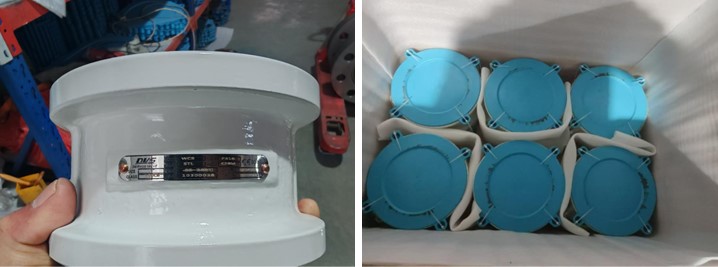

Nameplate & Packing

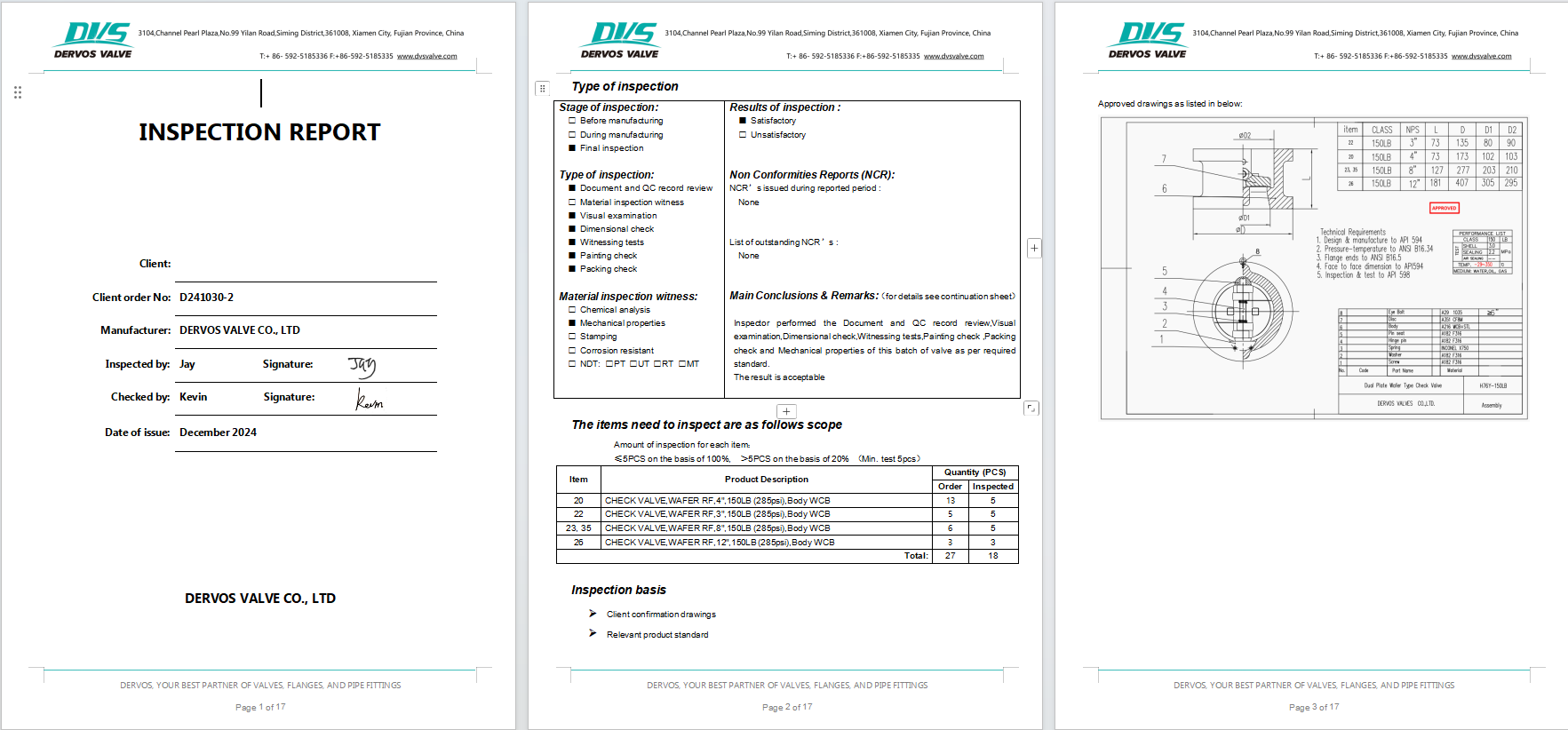

Inspection Report
