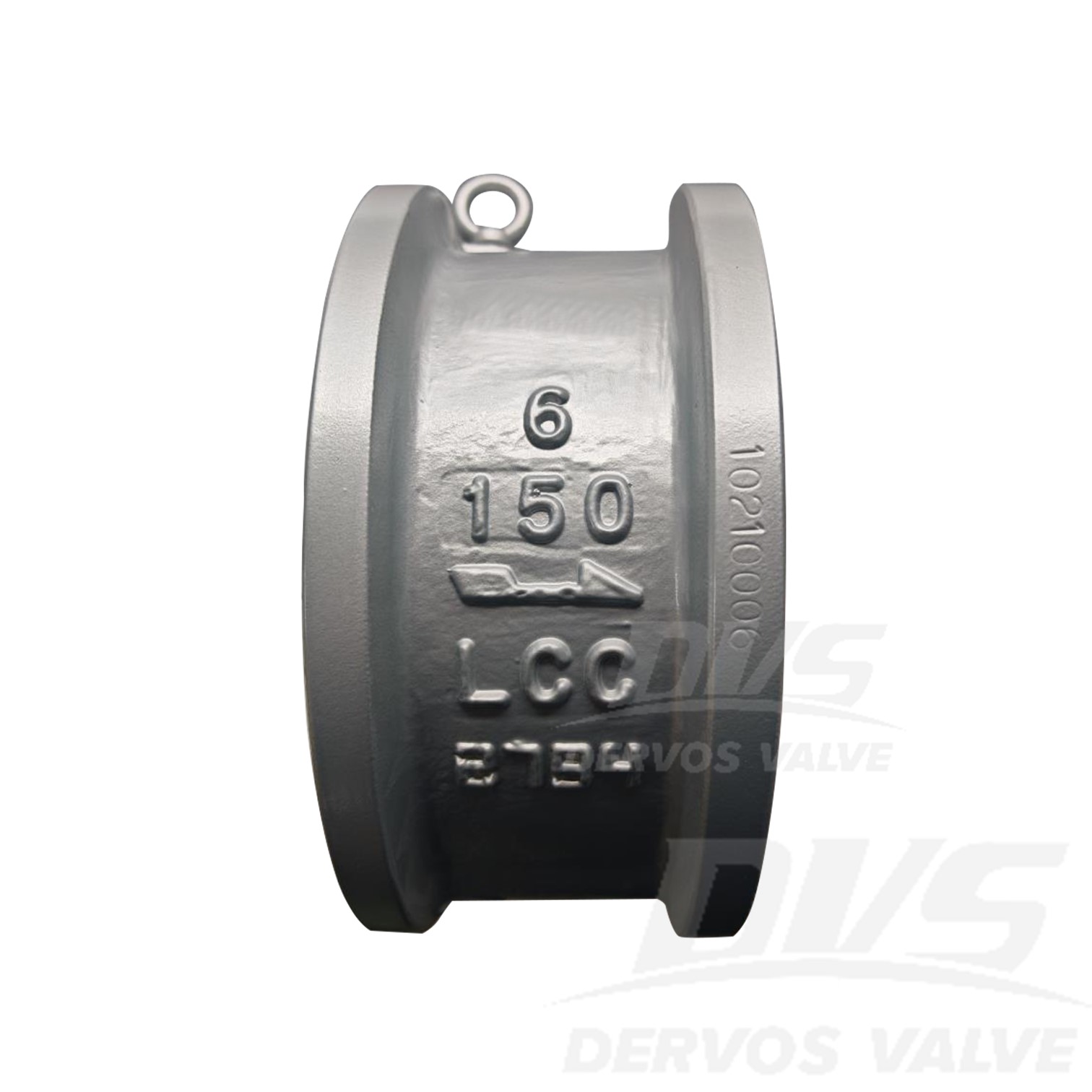

Dual Plate Wafer Type Check Valve 6" 150LB LCC RF
Key Specifications / Features
Model No.: Hits: 0
6" 150LB Dual Plate Wafer Type Check Valve is made according to API 594 standard. The valve body is made of A352 LCC+316. It has the structural characteristics of Dual Plate, Internal Type. Its connection mode is RF.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Dual Plate Wafer Type Check Valve |
| Size | 6" |
| Pressure | 150LB |
| Connection | RF |
| Body Material | A352 LCC+316 |
| Design Norm | API 594 |
| Face to face | API 594 |
| Flange end | ANSI B16.5 |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 300°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Dual plate wafer design provides rapid closure and reliable backflow prevention with low pressure loss in Class 150 service.2.LCC cast steel body offers excellent toughness at low temperatures, making it suitable for demanding low-temperature pipeline applications.

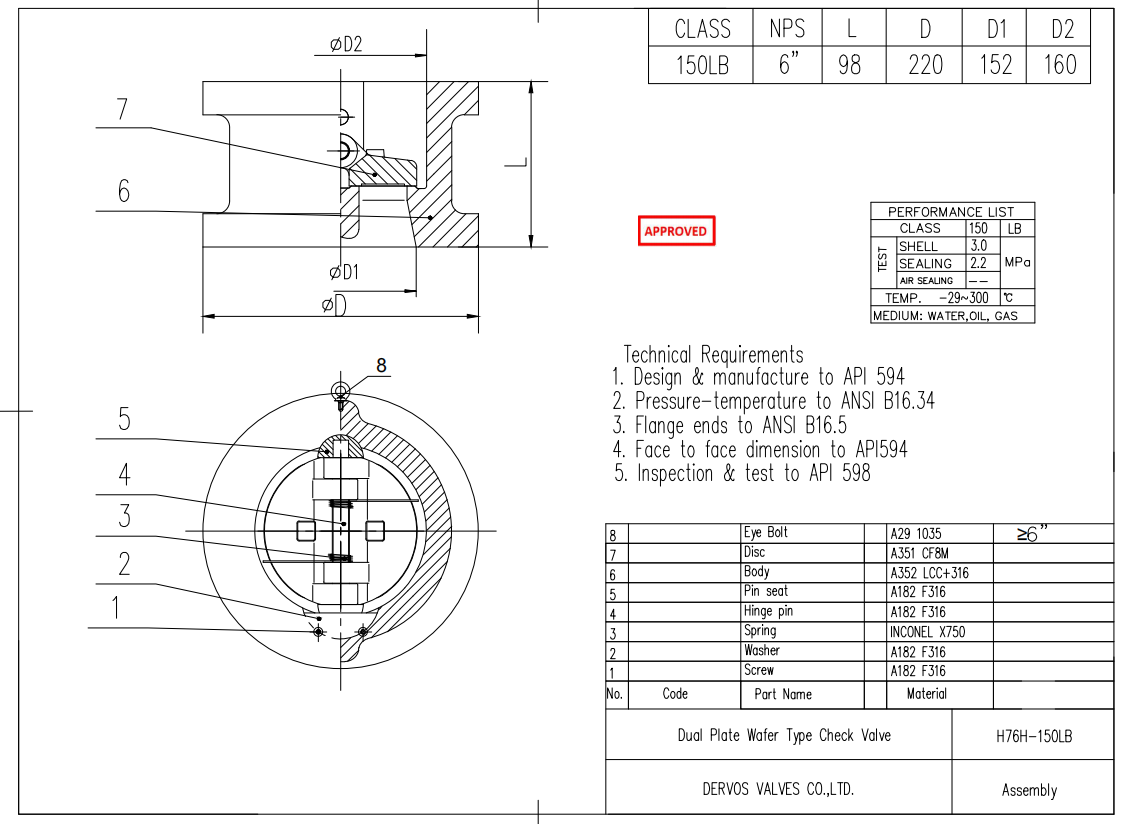

Technical Drawing

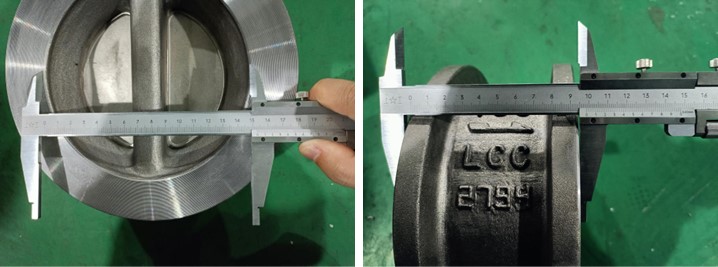

Dimension Checking

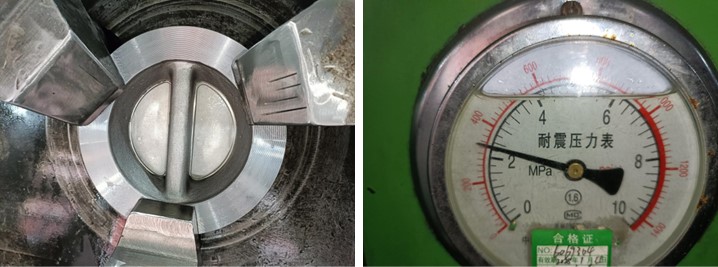

Pressure Testing

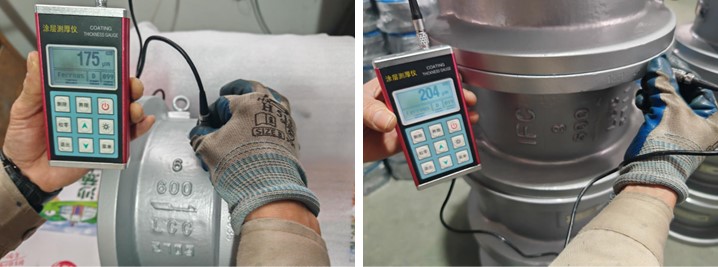

Painting

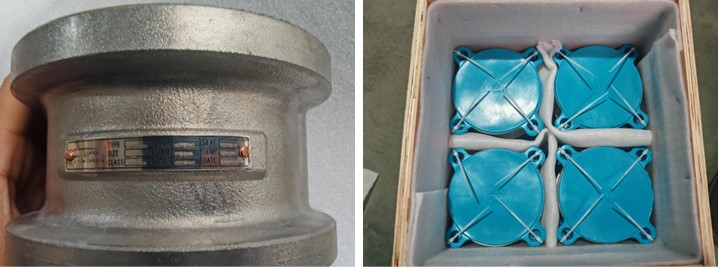

Nameplate & Packing

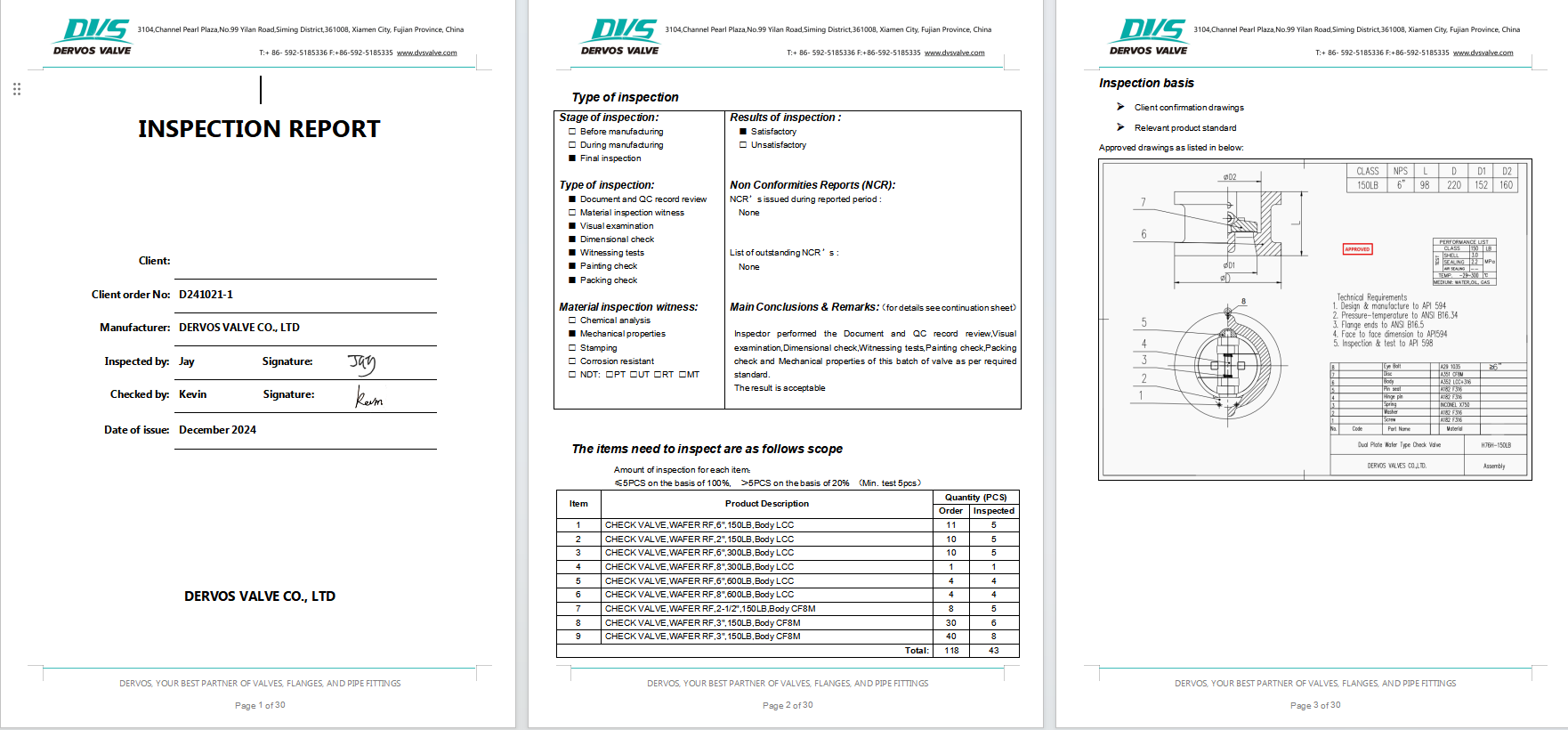

Inspection Report
