Floating Ball Valve 1/2" 1000PSI A182 F316 LEVER OP.
Key Specifications / Features
Model No.: Hits: 0
1/2" 1000PSI Floating Ball Valve is made according to ASME B16.34 standard. The valve body is made of A182 F316. It has the structural characteristics of Split Body Side Entry Floating Ball Valve, Full Port. Its connection mode is FNPT. And it has Lever operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Forged Steel Floating Ball Valve 1-1/2" 600LB F316L RF
Detail Information
Product Parameters
| Type | Floating Ball Valve |
| Size | 1/2" |
| Pressure | 1000PSI |
| Connection | FNPT |
| Operation | Lever |
| Body Material | A182 F316 |
| Design Norm | ASME B16.34 |
| End to End Dimension | MANUFACTURER STANDARD |
| End Connection | NPT |
| Test & Inspection Code | API 598 |
| Temperature | -29 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The A182 F316 stainless steel body provides outstanding corrosion resistance for aggressive chemical and marine environments.2. The floating ball structure ensures reliable tight shutoff performance, while the lever-operated quarter-turn design allows fast and easy operation.

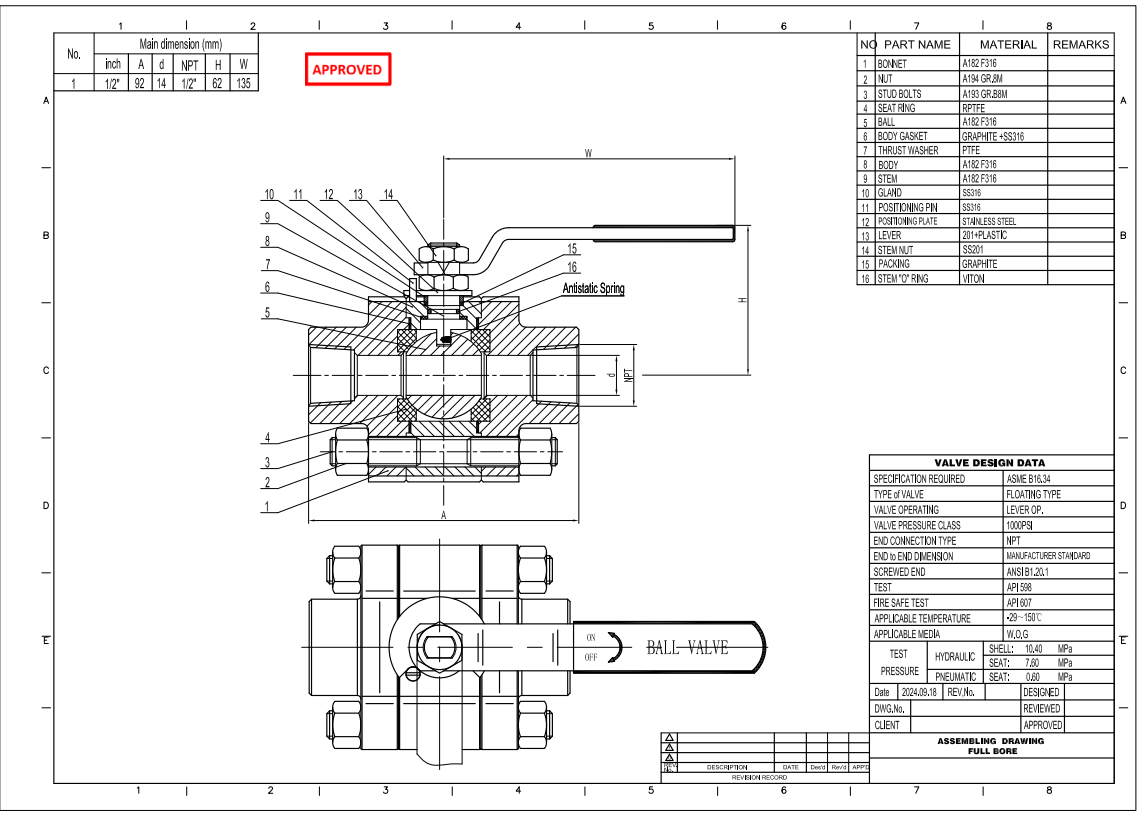

Technical Drawing

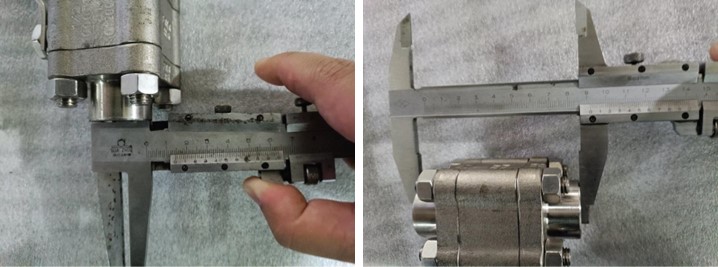

Dimension Checking

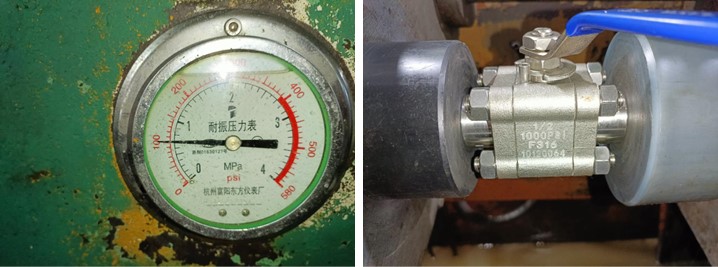

Pressure Testing

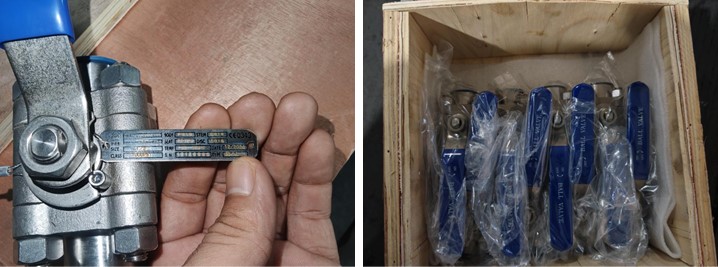

Nameplate & Packing

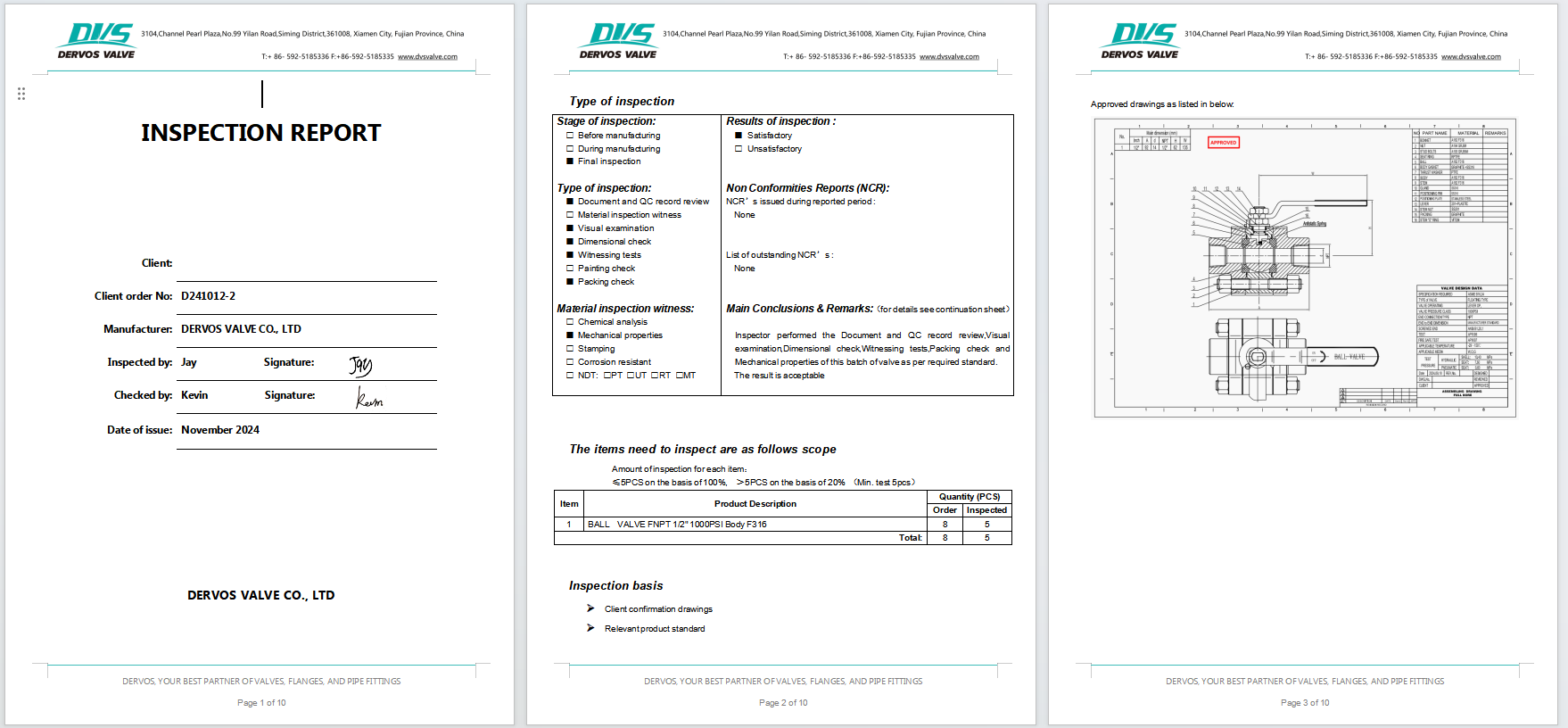

Inspection Report
