Grooved End Ball Valve 2" 1000WOG Ductile Iron ASME B16.34
Key Specifications / Features
Model No.: Hits: 0
2" 1000WOG Grooved End Ball Valve is made according to ASME B16.34 standard. The valve body is made of Ductile Iron. It has the structural characteristics of Floating Ball, Reduced Port. Its connection mode is Grooved End. And it has Lever Operated operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Floating Ball Valve 1/2" 1000PSI A182 F316 LEVER OP.
Detail Information
Product Parameters
| Type | Grooved End Ball Valve |
| Size | 2" |
| Pressure | 1000WOG |
| Connection | Grooved End |
| Operation | Lever Operated |
| Body Material | ASTM A536 Ductile Iron |
| Design Norm | API 6D |
| Test & Inspection Code | API 598 |
| Temperature | -20 ~ 95°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Grooved end ball valve design enables quick installation and reliable connection in fire protection and industrial piping systems.2. Ductile iron body manufactured to ASME B16.34 provides excellent strength and durability for 1000 WOG service.

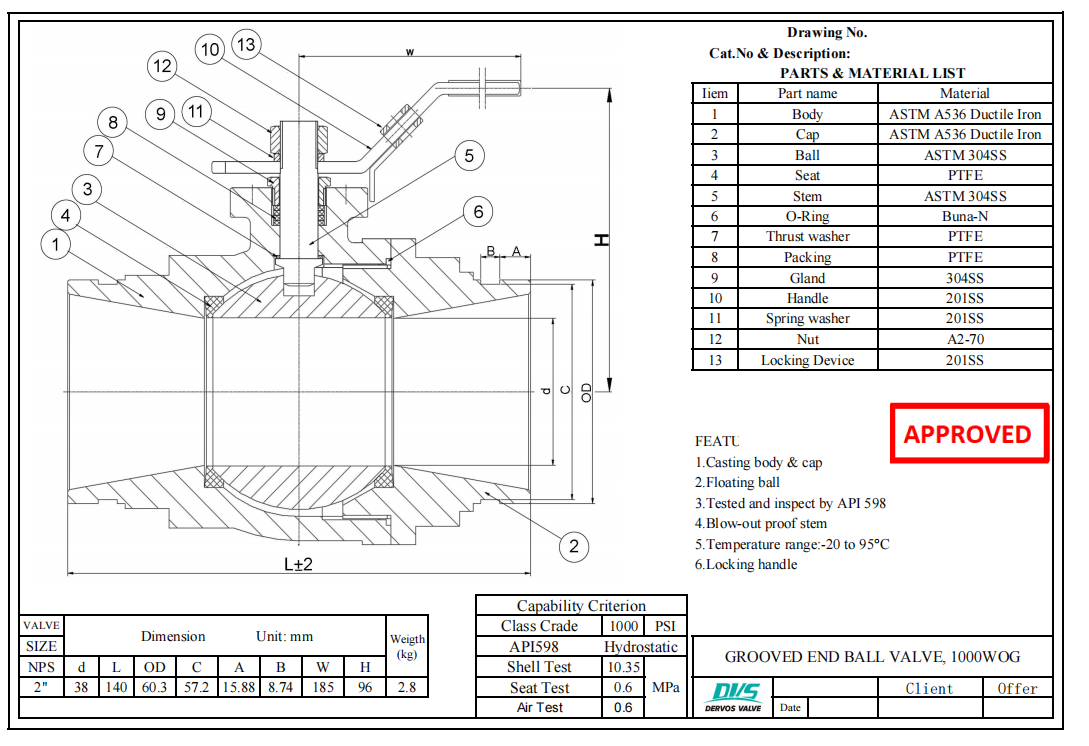

Technical Drawing

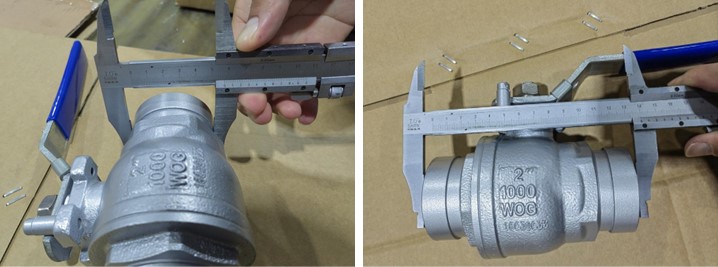

Dimension Checking

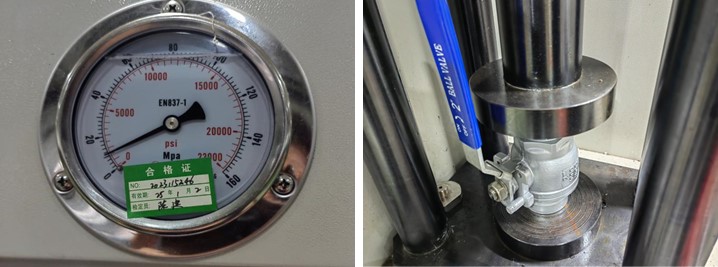

Pressure Testing

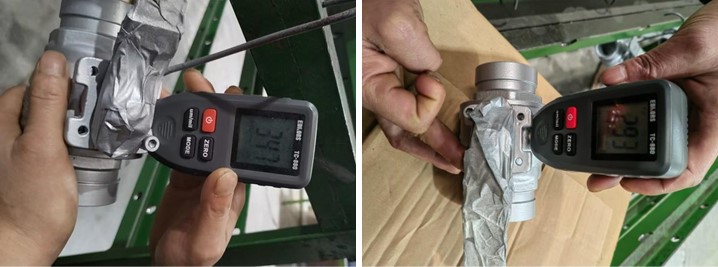

Spectrum

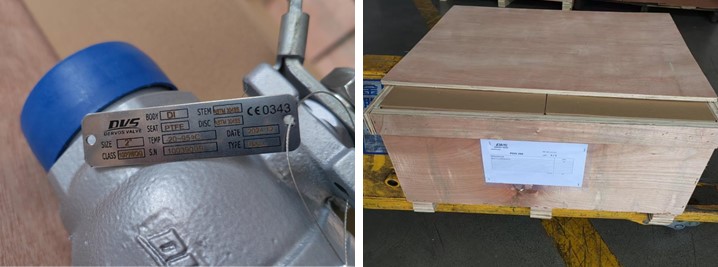

Nameplate & Packing

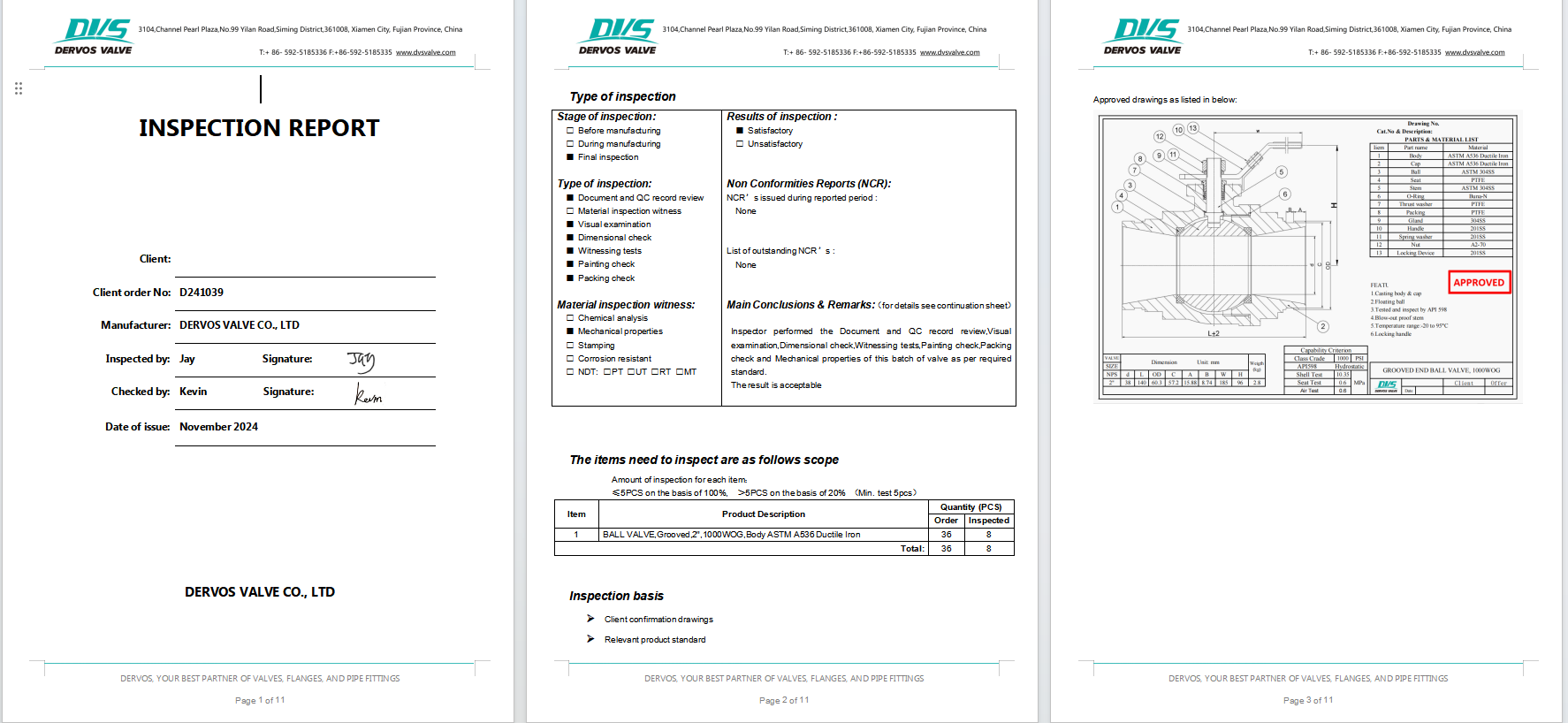

Inspection Report
