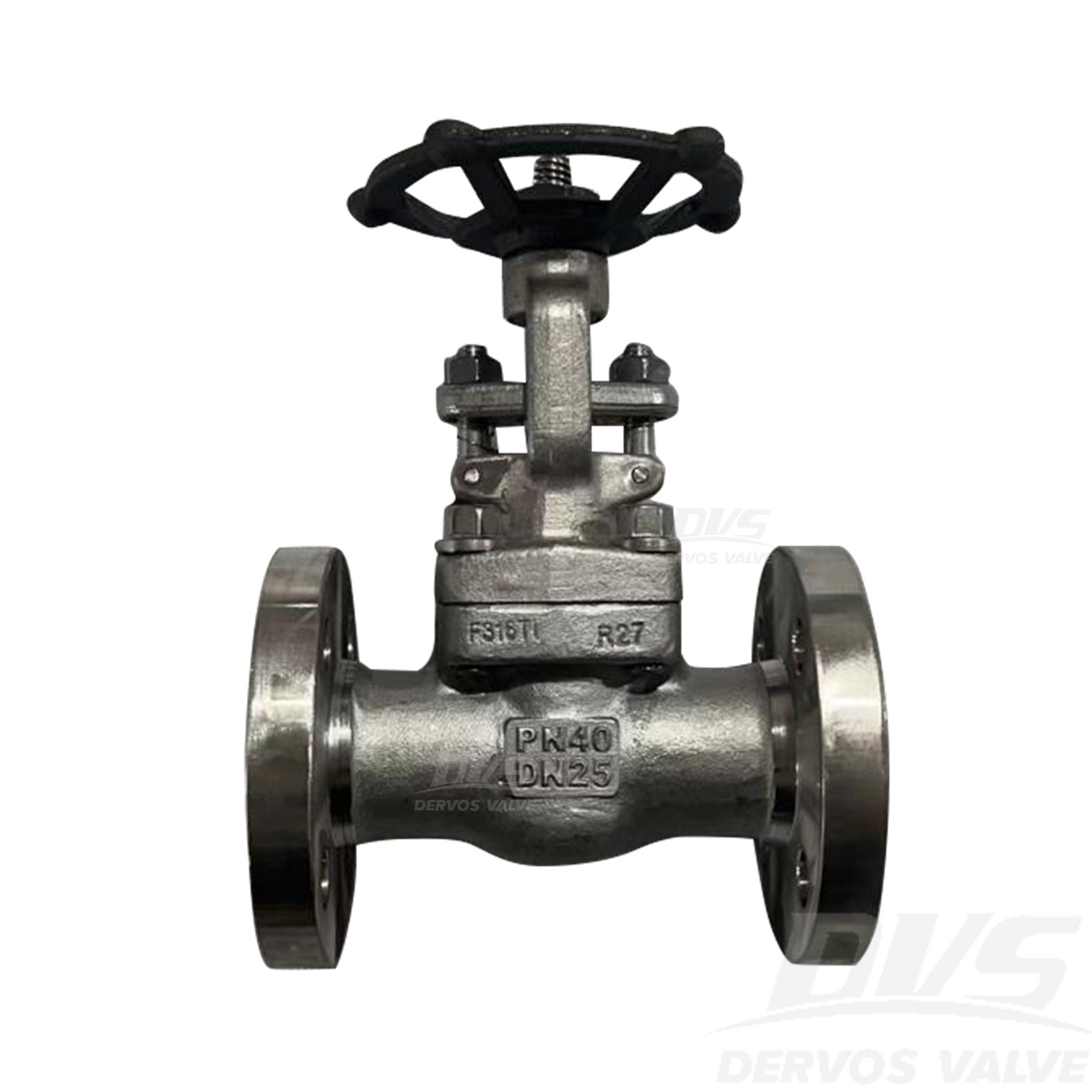

Forged Stainless Steel Gate Valve DN25 PN40 F316Ti EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN25 PN40 Forged Stainless Steel Gate Valve is made according to BS 5352 standard. The valve body is made of F316Ti. It has the structural characteristics of Flexible Wedge, Rising Stem, Yoke Type and structural length of 160mm. Its connection mode is RF. And it has Hand Wheel operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Stainless Steel Gate Valve |
| Size | DN25 |
| Pressure | PN40 |
| Connection | EN1092-1 B1 |
| Operation | Hand Wheel |
| Body Material | F316Ti |
| Design Norm | BS 5352 |
| Face to face | EN 558 |
| Flange dimension | EN 1092 |
| Test & Inspection Code | EN12266 |
| Temperature | -29 ~ 425°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. F316Ti Forged Stainless Steel Body: Titanium-stabilized stainless steel provides strong corrosion resistance and improved performance at elevated temperatures.2. EN 1092-1 B1 Flanged Ends: Provides standardized PN40 flange compatibility for secure installation in industrial process piping systems.

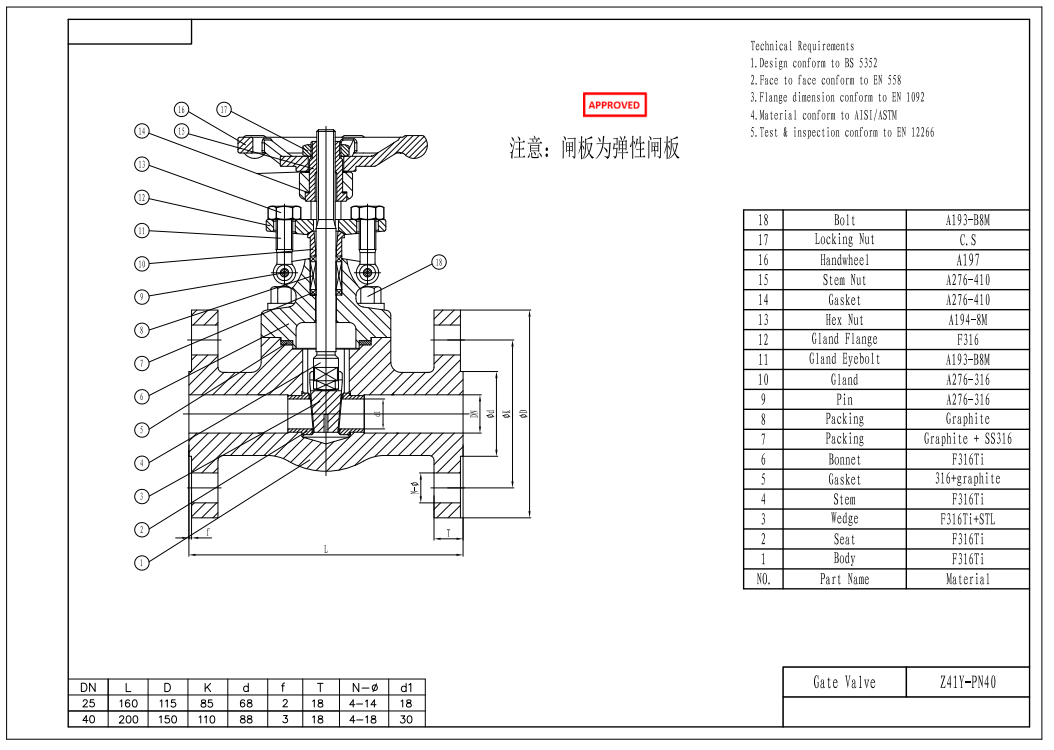

Technical Drawing

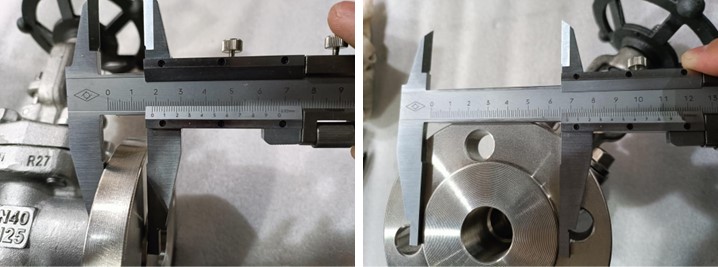

Dimension Checking

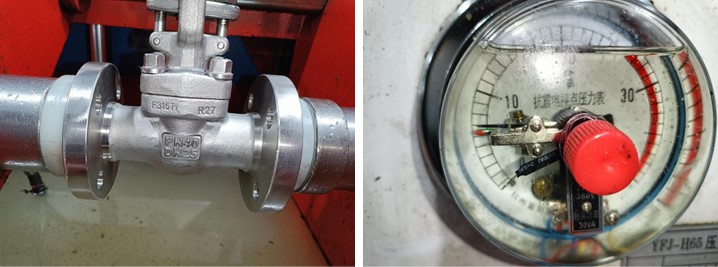

Pressure Testing

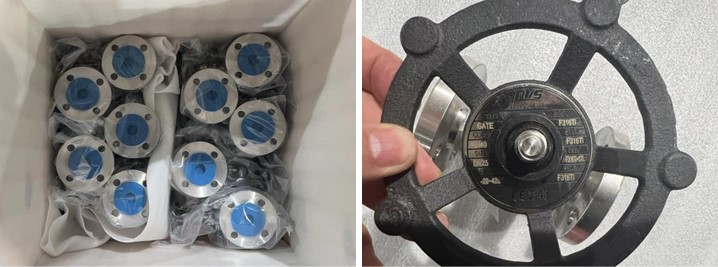

Nameplate & Packing

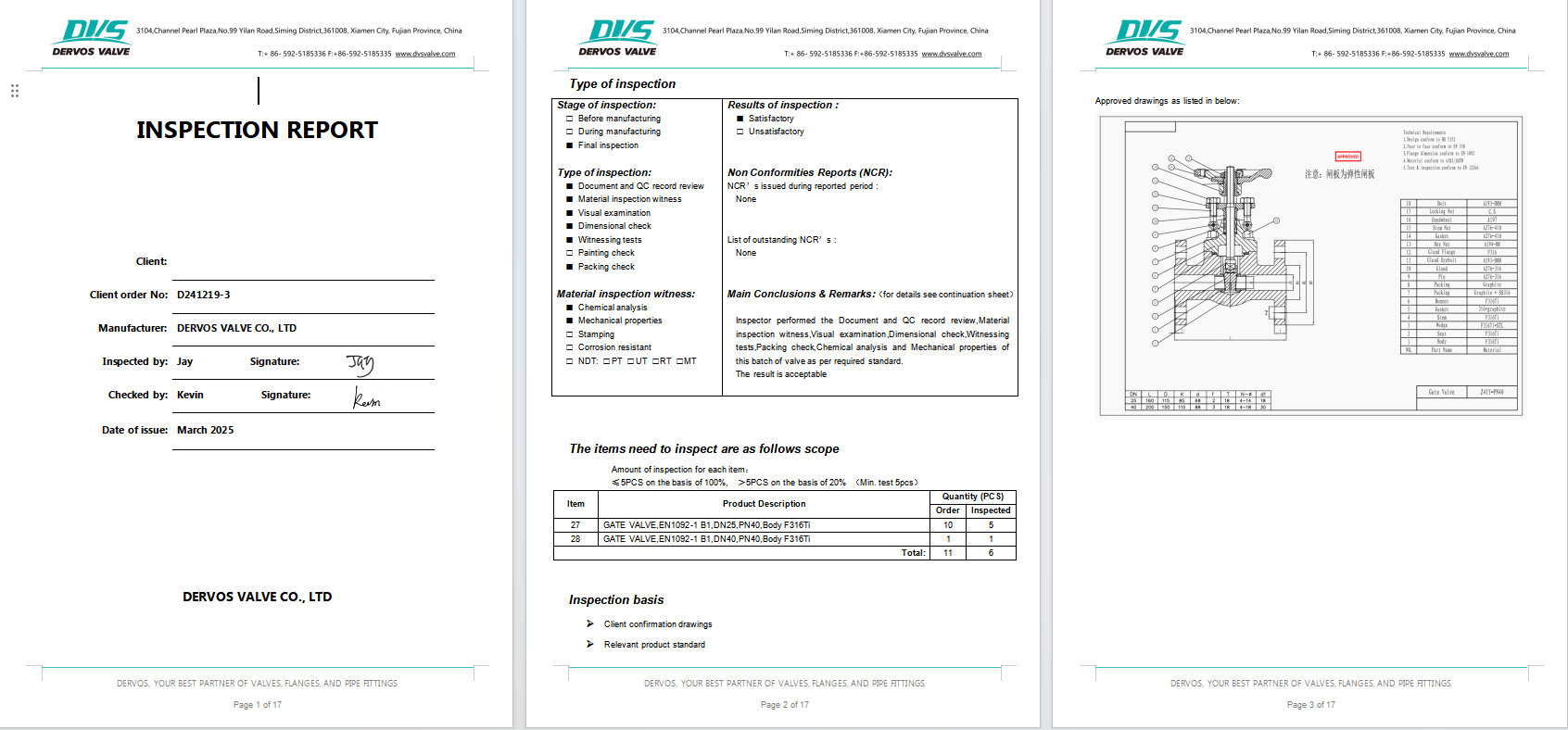

Inspection Report
