Forged Steel Trunnion Ball Valve 8" 1500LB A105 RTJ
Key Specifications / Features
Model No.: Hits: 0
8" 1500LB Forged Trunnion Ball Valve is made according to API 6D standard. The valve body is made of A105. It has the structural characteristics of Three-Piece Body, Trunnion Mounted Ball, Full Port, Blowout-Proof Stem, Support Plate Design. Its connection mode is RTJ. And it has Worm Gear Operated operation mode.
Request a quote
Tags:
Next: Return to List
Detail Information
Product Parameters
| Type | Forged Trunnion Ball Valve |
| Size | 8” |
| Pressure | 1500LB |
| Connection | RTJ |
| Operation | Worm Gear Operated |
| Body Material | ASTM A182 F51+ENP |
| Design Norm | API 6D |
| Face to face | ASME B16.10 |
| Connection Ends | ASME B16.5 |
| Test & Inspection Code | API 6D/API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Forged A105 trunnion-mounted design provides superior strength and stable torque performance in Class 1500 high-pressure applications.2. RTJ end connections ensure a secure, leak-tight seal for demanding oil, gas, and process industry services.

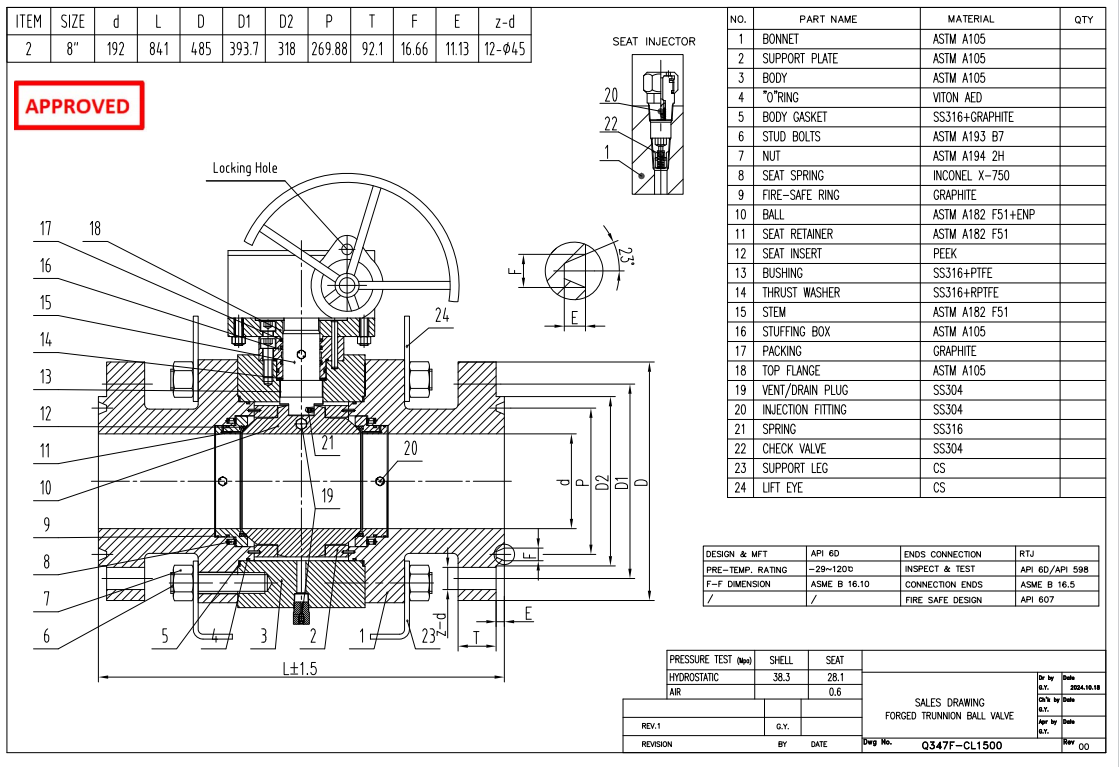

Technical Drawing

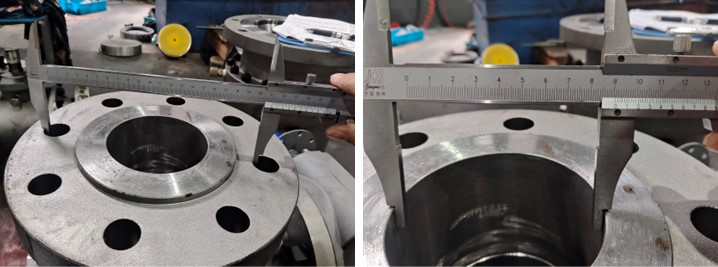

Dimension Checking

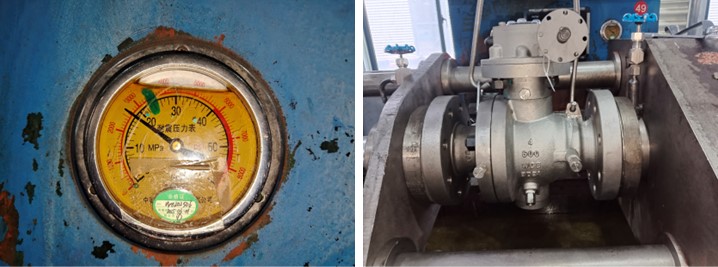

Pressure Testing

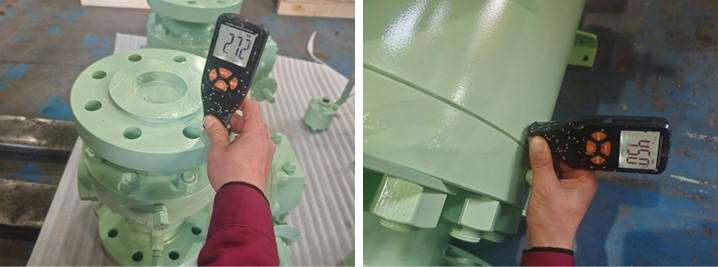

Painting

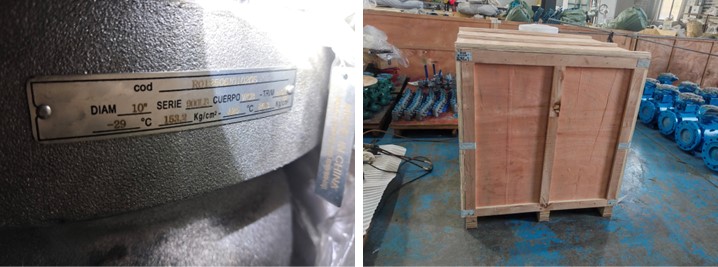

Nameplate & Packing

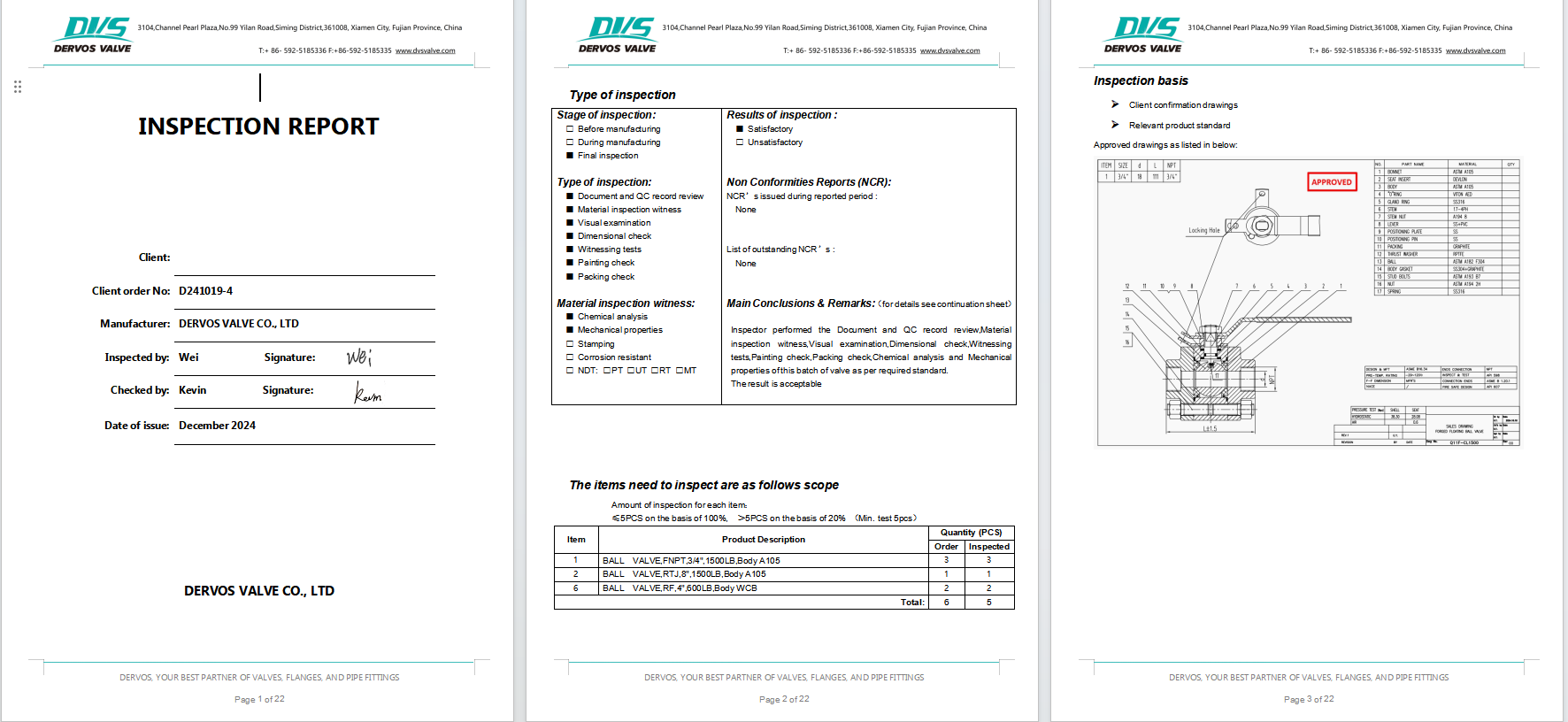

Inspection Report
