Trunnion Mounted Ball Valve DN150 PN16 A105 EN1092-1 B1
Key Specifications / Features
Model No.: Hits: 0
DN150 PN16 Trunnion Mounted Ball Valve is made according to ISO 17292 standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Port, Trunnion Mounted Ball, With Welded Drain and Vent Ball Valves, Fire-Safe, Anti-Static, Blowout-Proof Stem. Its connection mode is EN1092-1 B1. And it has Gear Operated operation mode.
Request a quote
Tags:
Next: Return to List
Previous: Forged Steel Trunnion Ball Valve 8" 1500LB A105 RTJ
Detail Information
Product Parameters
| Type | Trunnion Mounted Ball Valve |
| Size | DN150 |
| Pressure | PN16 |
| Connection | EN1092-1 B1 |
| Operation | Gear Operated |
| Body Material | ASTM A105 |
| Design Norm | ISO 17292 |
| Face to face | MFR’S |
| End Connetion | RF |
| Test & Inspection Code | EN 12266 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Trunnion-mounted ball design minimizes operating torque and provides reliable bubble-tight sealing in Class 1500 service.2.Forged A105 body with EN 1092-1 Type B1 flanged ends ensures high mechanical strength and secure pipeline connections.

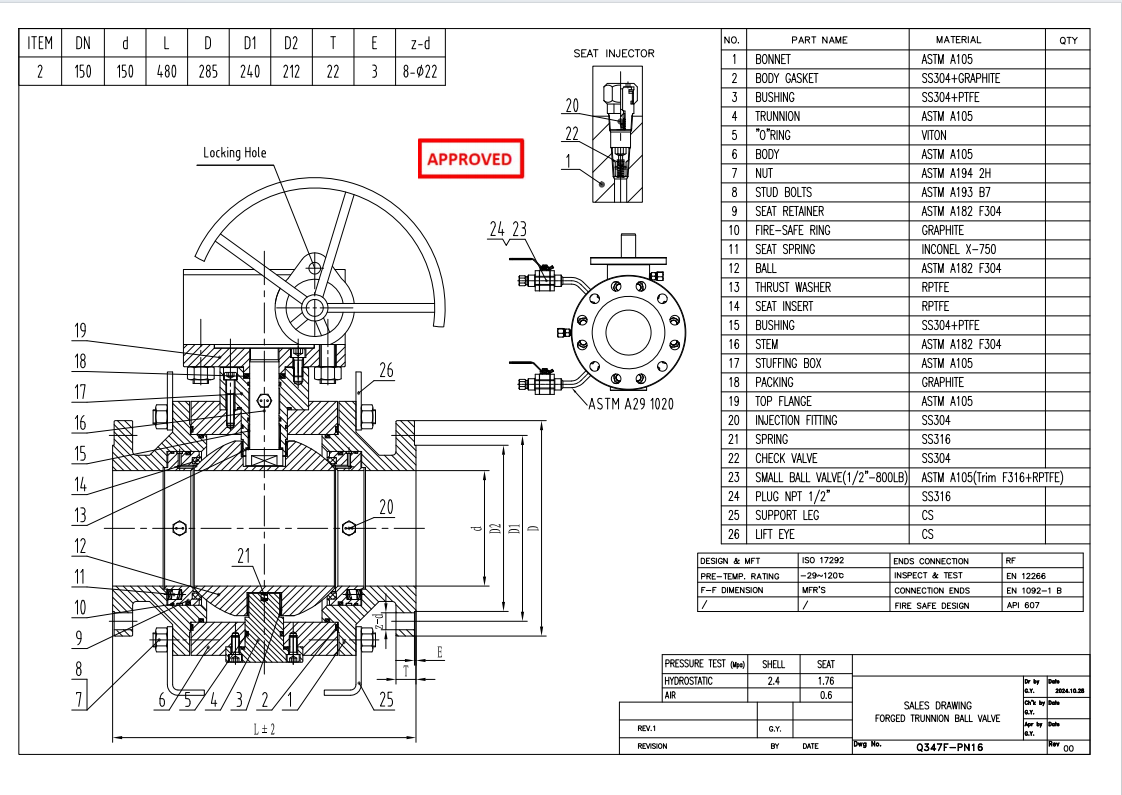

Technical Drawing

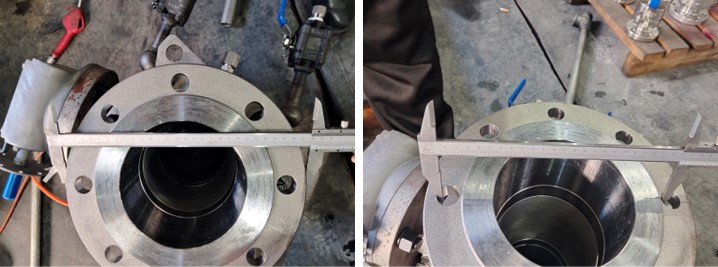

Dimension Checking

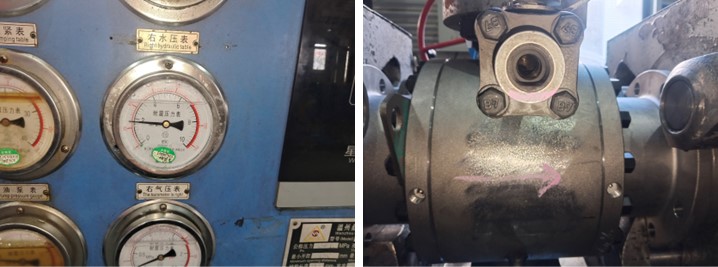

Pressure Testing

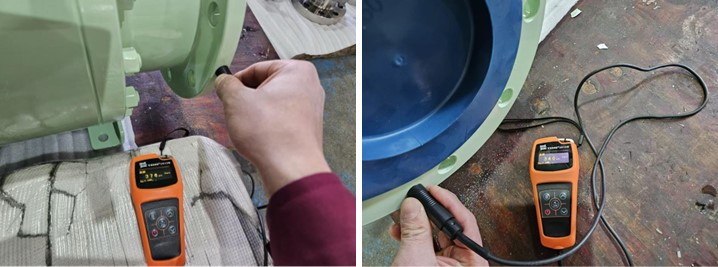

Painting

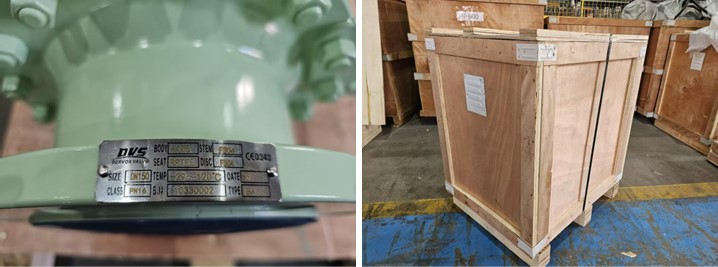

Nameplate & Packing

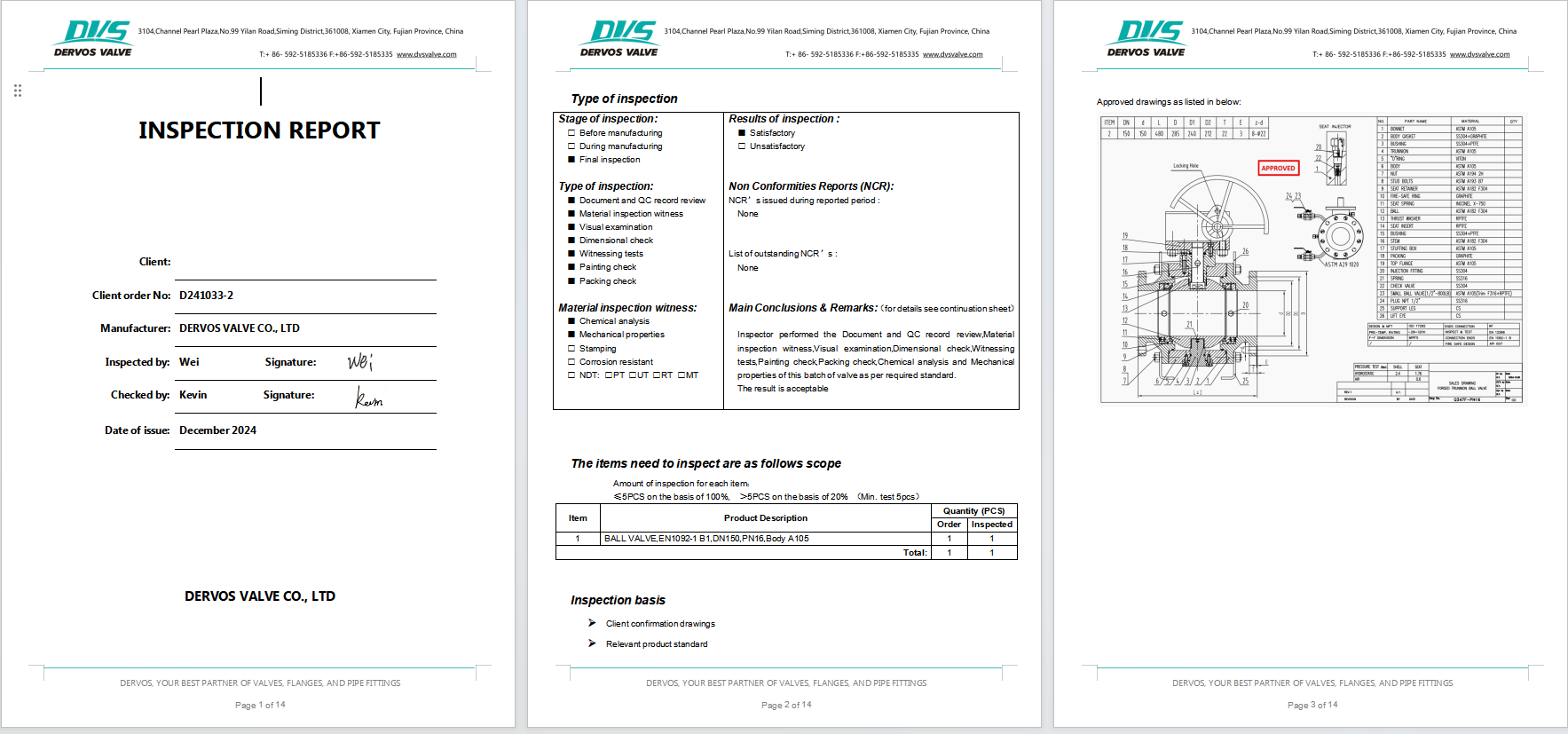

Inspection Report
