1” 150LB Forged Steel Floating Ball Valve Body A350 LF2 RF H.W.
Key Specifications / Features
Model No.: Hits: 0

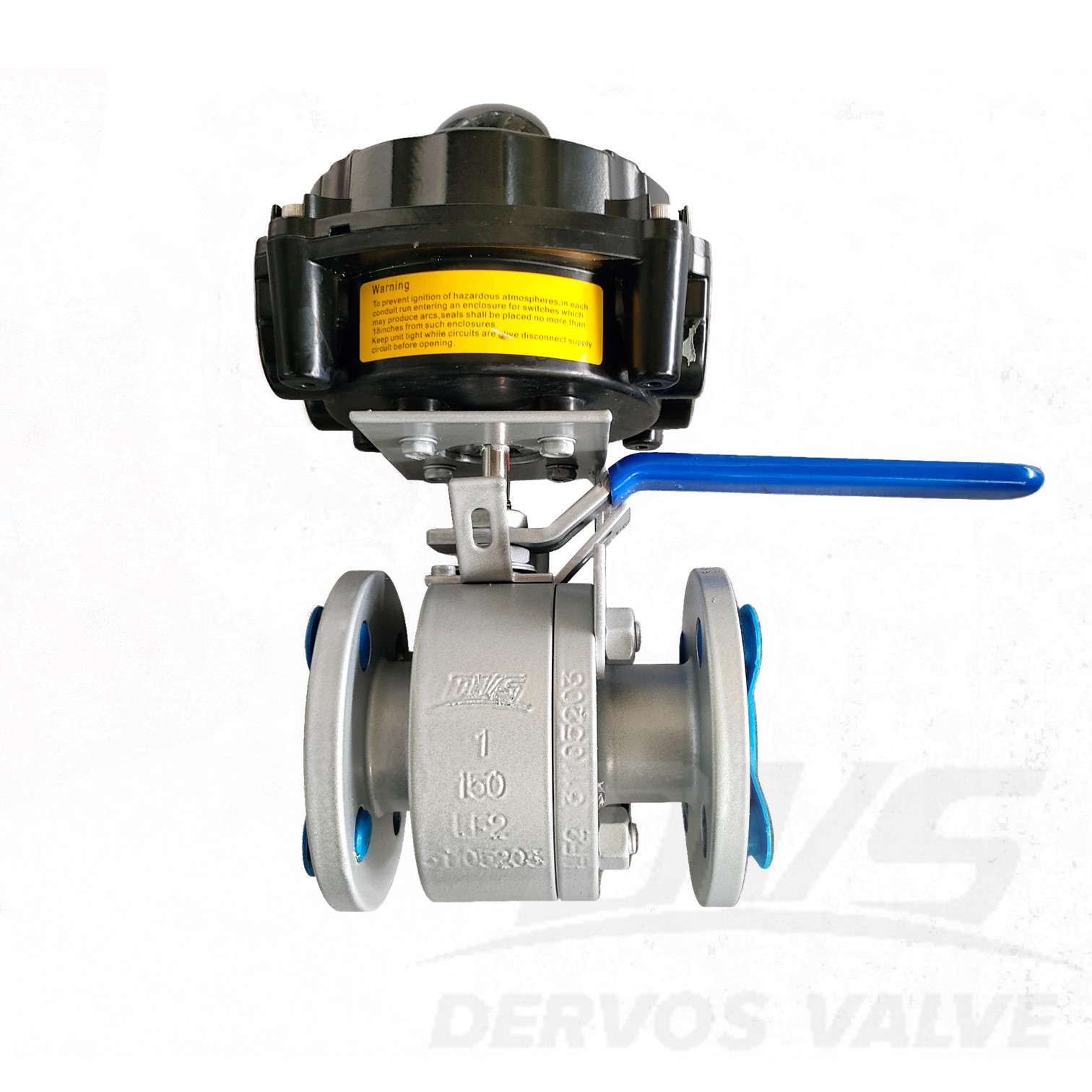

1” 150LB Forged Steel Floating Ball Valve is made according to API 6D standard. The valve body is made of A350 LF2. It has the structural characteristics of The full bore floating ball valve with limit switch and short pattern design features fire-safe and anti-static properties, along with a blowout-proof stem and structural length of 127mm. Its connection mode is RF. And it has Lever Handle operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Forged Steel Floating Ball Valve |
| Size | 1” |
| Pressure | 150LB |
| Connection | RF |
| Operation | Lever Handle |
| Body Material | A350 LF2 |
| Design Norm | API 6D |
| Face to Face dimension | API 6D |
| Flange dimension | ASME B16.5 |
| Pressure-temperature | ASME B16.34 |
| Test & Inspection Code | API 6D |
| Temperature | -20 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1.Forged from A350 LF2 carbon steel, offering excellent toughness and impact resistance at low temperatures.2.Floating ball design with RF end ensures tight sealing performance for reliable fluid control.

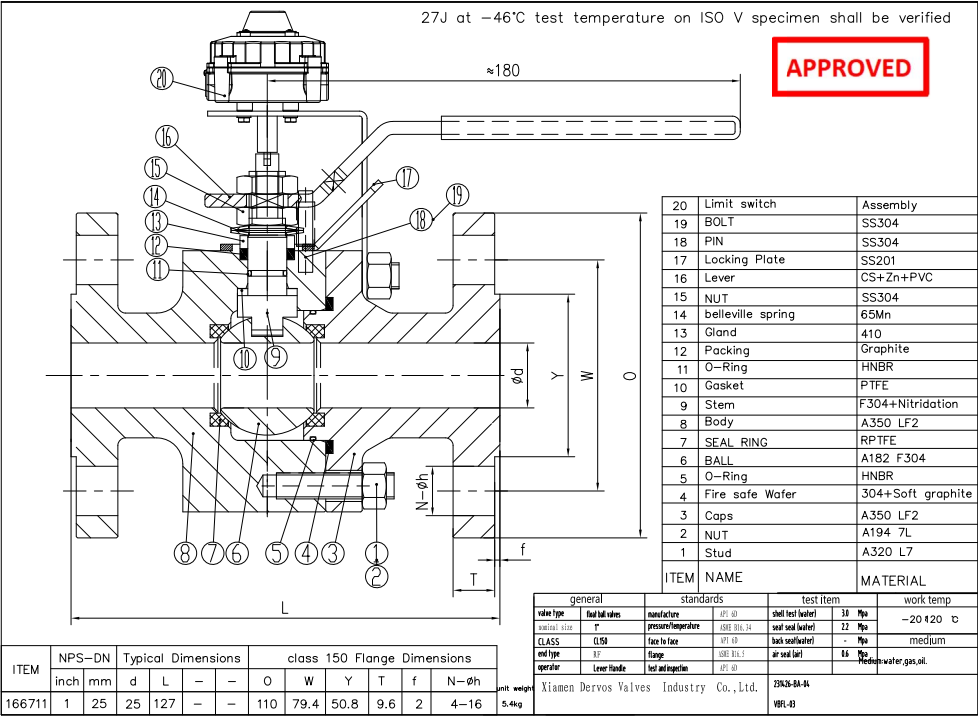

Technical Drawing

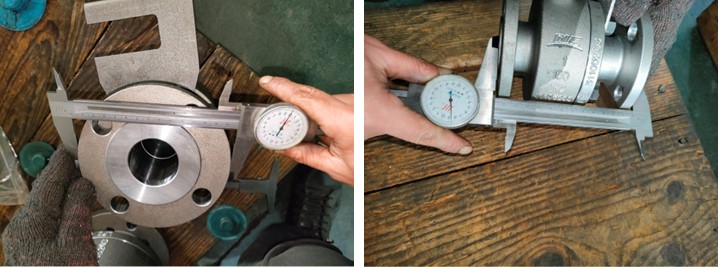

Dimension Checking

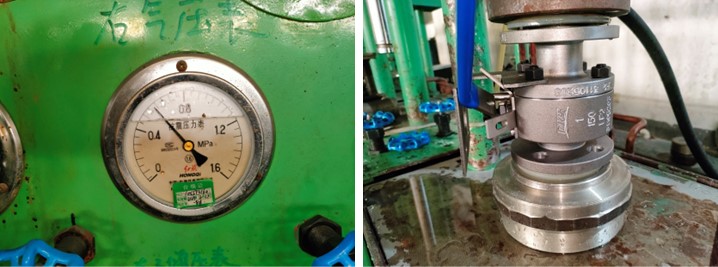

Pressure Testing

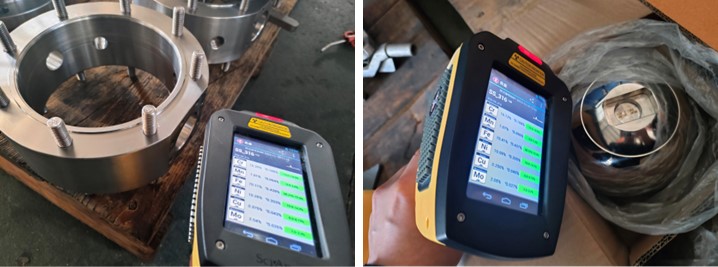

Spectrum

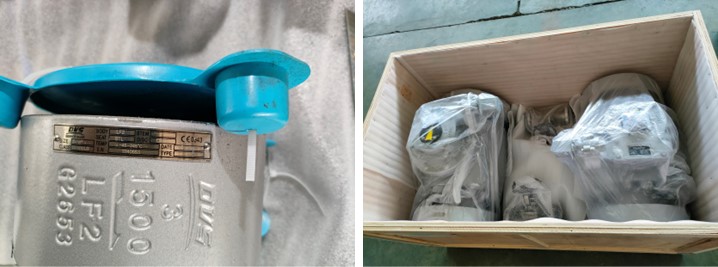

Nameplate & Packing

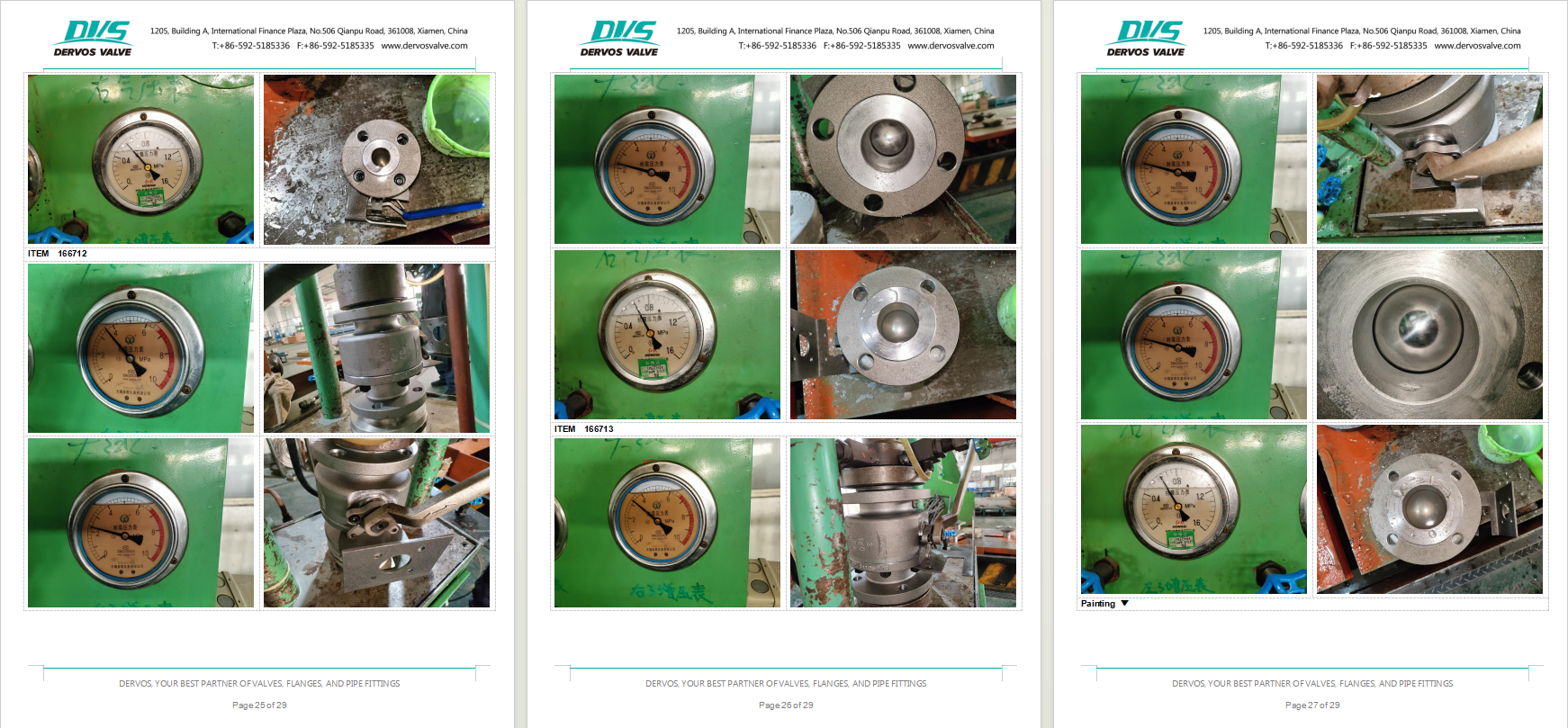

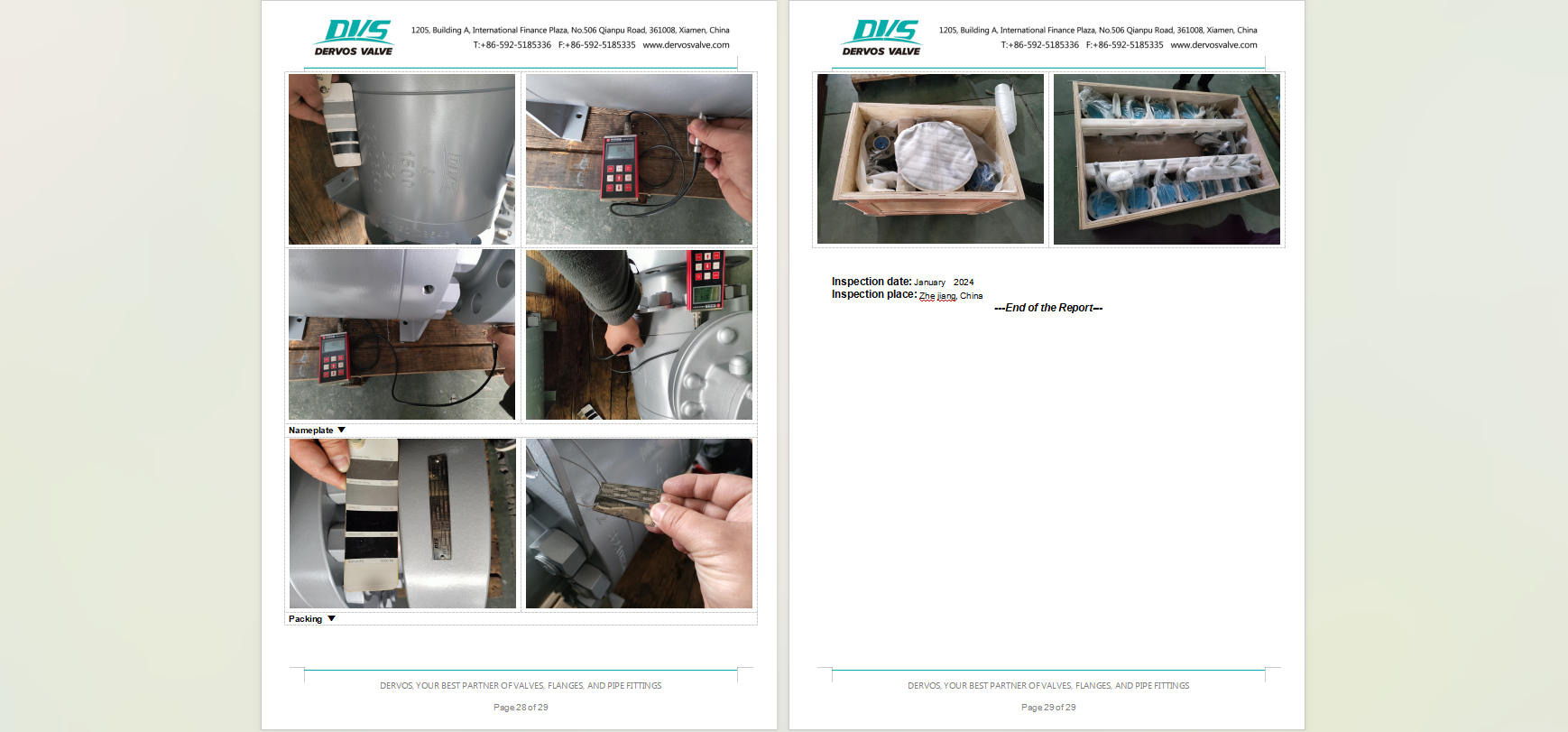

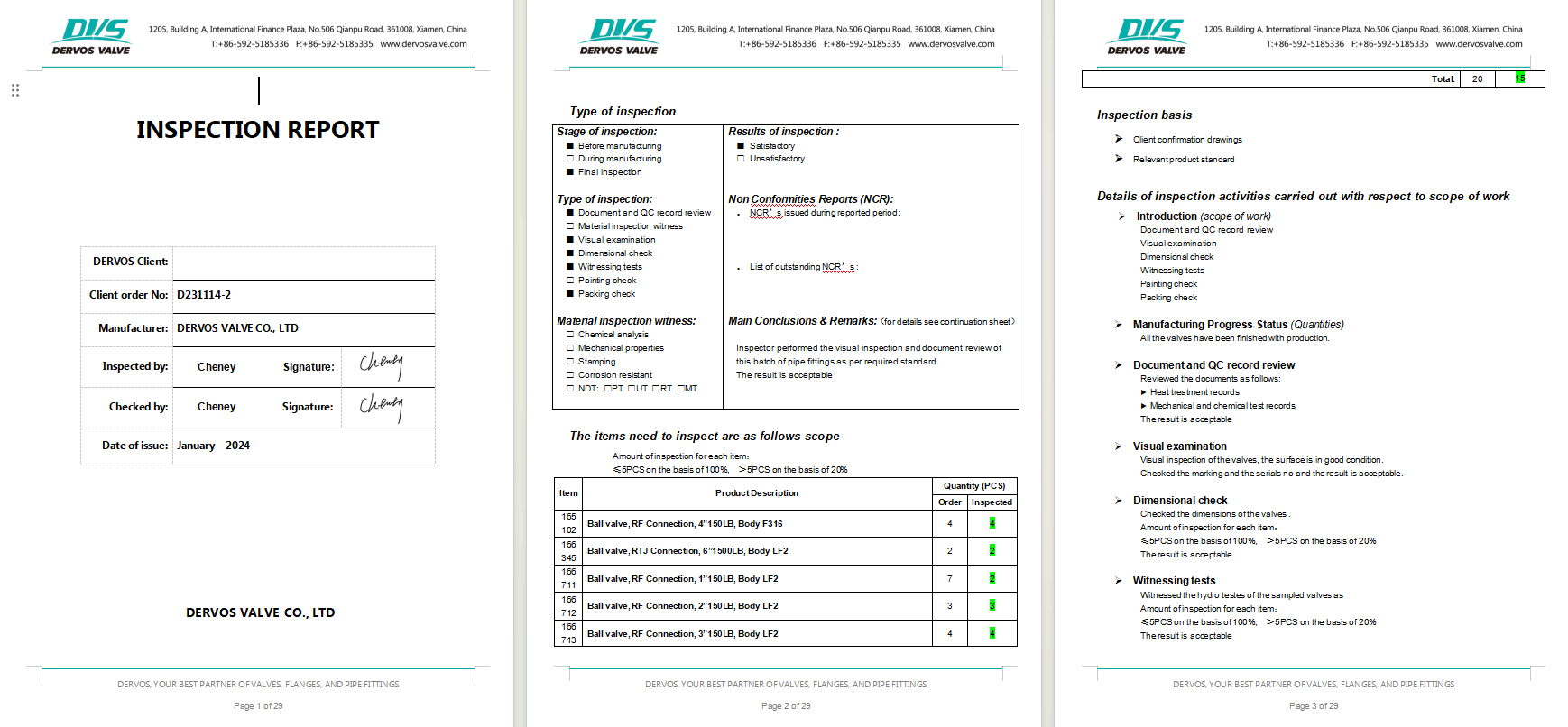

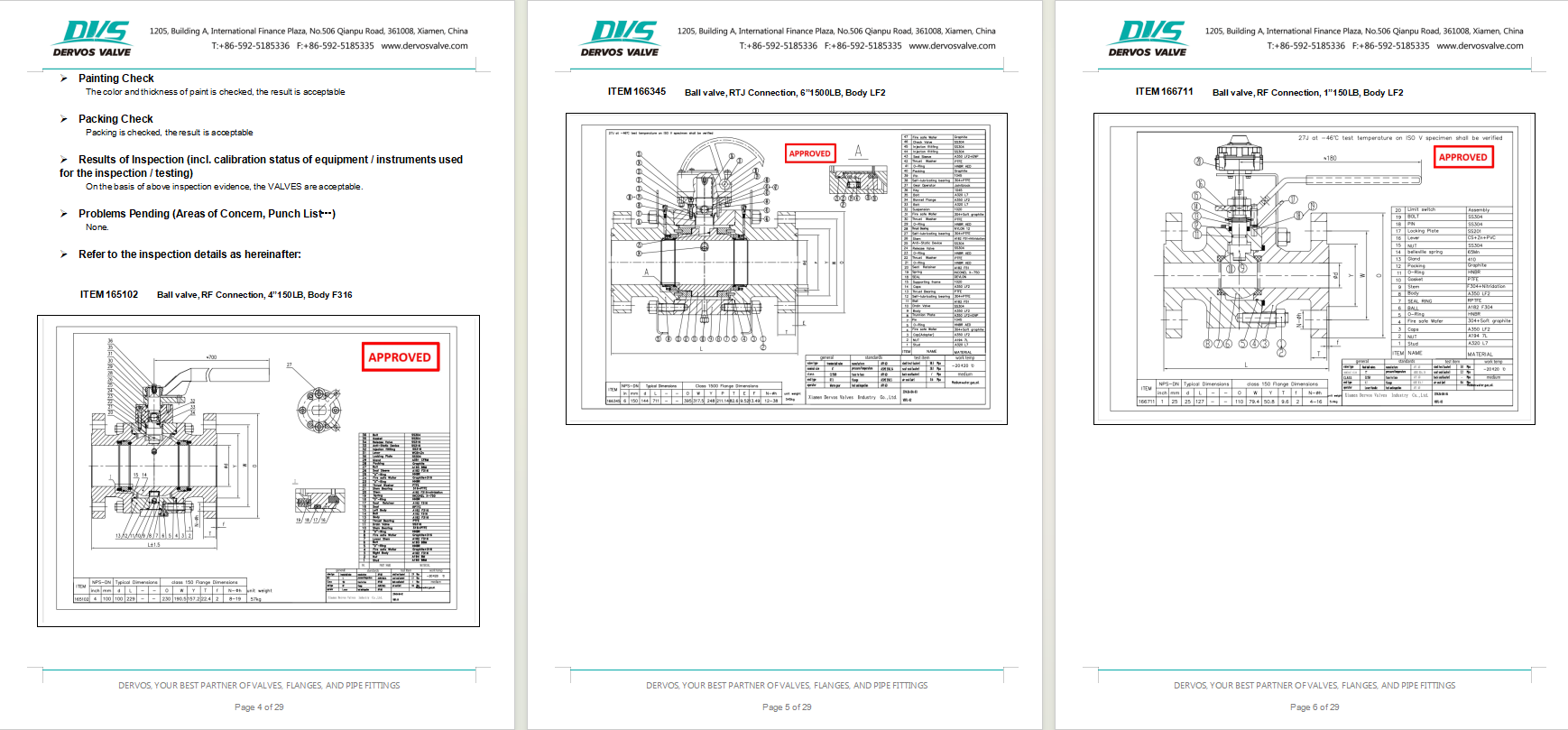

Inspection Report
