2”800LB Forged Steel Floating Ball Valve A105 SW LEVER OP.
Key Specifications / Features
Model No.: Hits: 0
2”800LB Forged Steel Floating Ball Valve is made according to API 598 standard. The valve body is made of ASTM A105. It has the structural characteristics of Full Bore, Floating Ball, Middle Welded Body, Fire-safe and Anti-static, Blow-out Proof Stem. Its connection mode is SW. Its operation mode is LEVER OP.
Request a quote
Tags:
Detail Information
Product Description
| Type | Floating Ball Valve |
| Size | 2” |
| Pressure | 800LB |
| Connection | SW |
| Body Material | ASTM A105 |
| Design Norm | API 598 |
| END to END | MANUFACTURER STANDARD |
| END CONNECTION TYPE | SW |
| Test & Inspection Code | API 598 |
| Temperature | -20 ~ 150°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. A105 forged steel body delivers excellent strength and resistance to pressure.2. Lever-operated floating ball design ensures easy manual operation with tight shutoff.

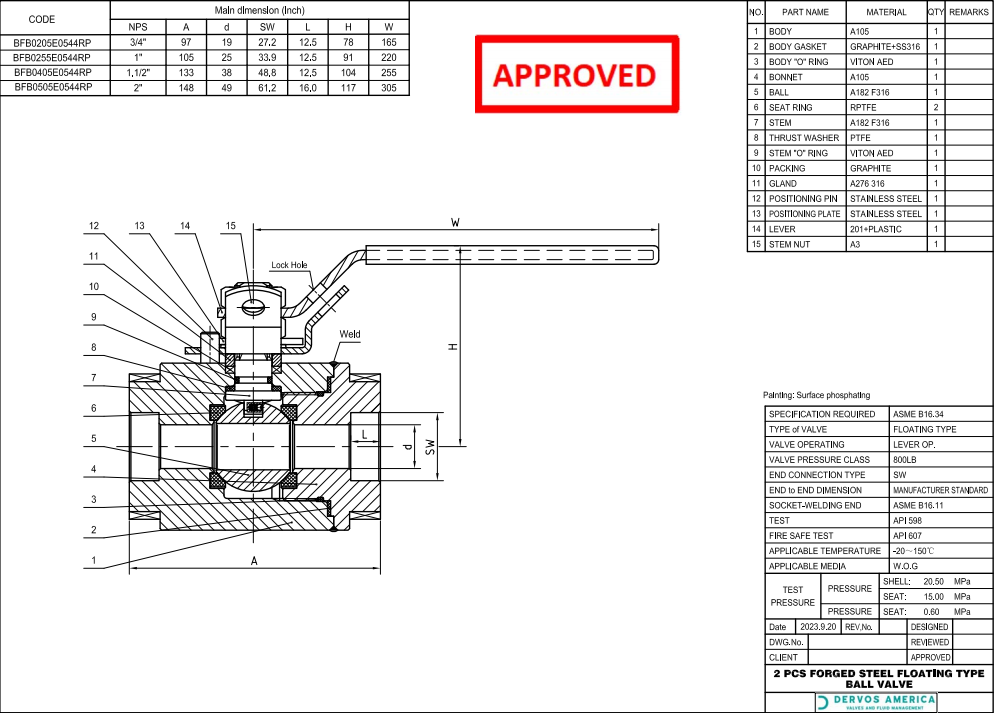

Technical Drawing

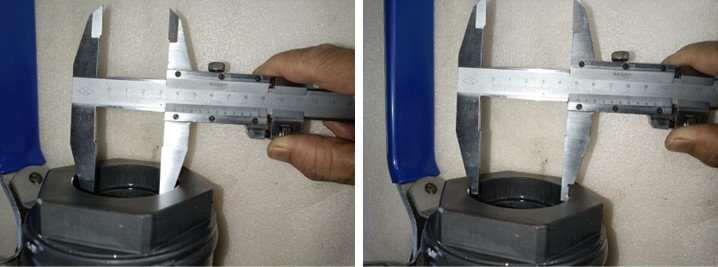

Dimension Checking

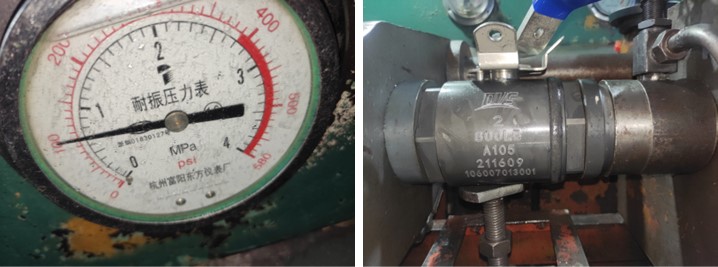

Pressure Testing

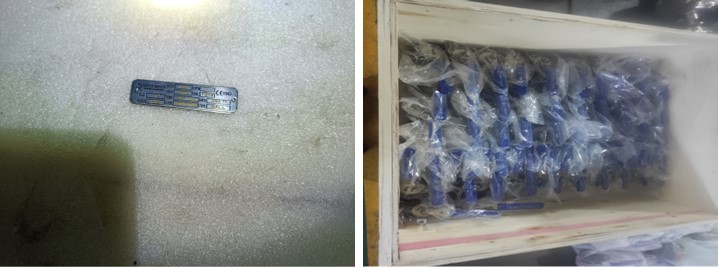

Nameplate & Packing
