1/2" 600PSI Stainless Steel Needle Valve F316 H.W.
Key Specifications / Features
Model No.: Hits: 0
1/2" 600PSI Needle Valve is made according to international standards. The valve body is made of A182 F316. It has the structural characteristics of DBB Needle Valve, Two-Valve Manifold. Its connection mode is 1/2" MNPT X 1/2" FNPT. And it has hand wheel operation mode.
Request a quote
Tags:
Detail Information
Product Description
| Type | Needle Valve |
| Size | 1/2" |
| Pressure | 600PSI |
| Connection | 1/2" MNPT X 1/2" FNPT |
| Operation | H.W. |
| Body Material | A182 F316 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The 1/2" 600PSI Stainless Steel Needle Valve features precise flow control, ideal for high-pressure systems.2. Made from F316 stainless steel, it offers superior corrosion resistance and long-lasting performance in harsh environments.

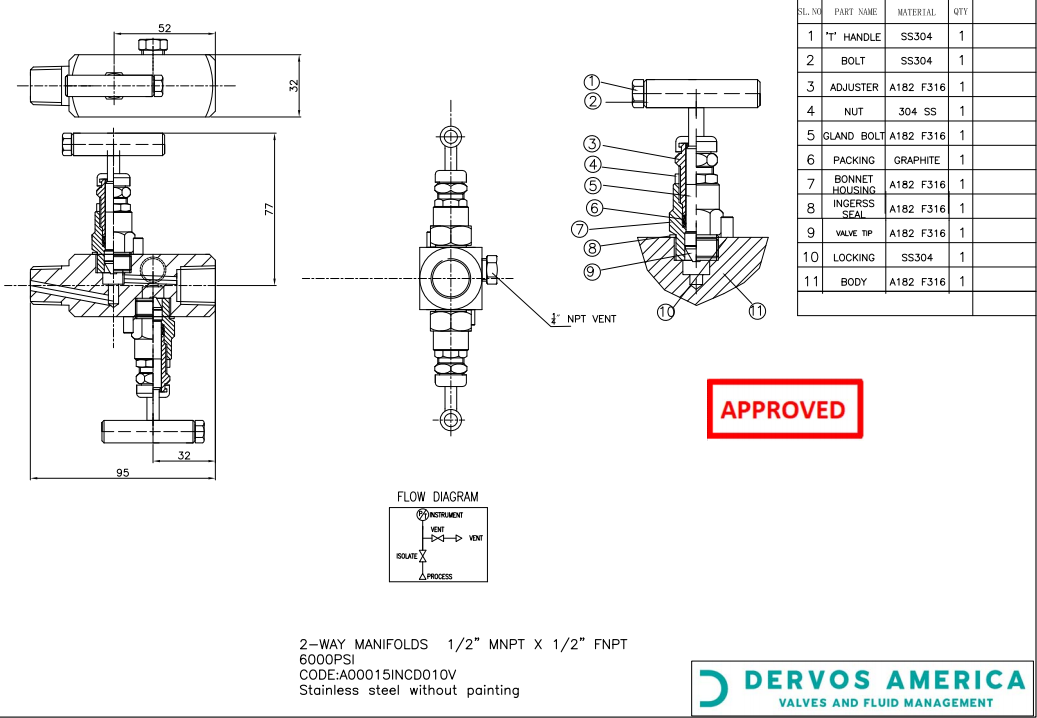

Technical Drawing

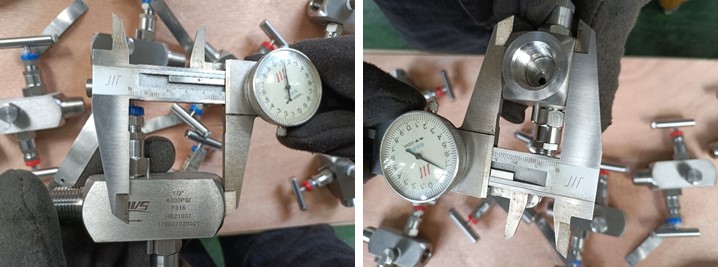

Dimension Checking
Pressure Testing

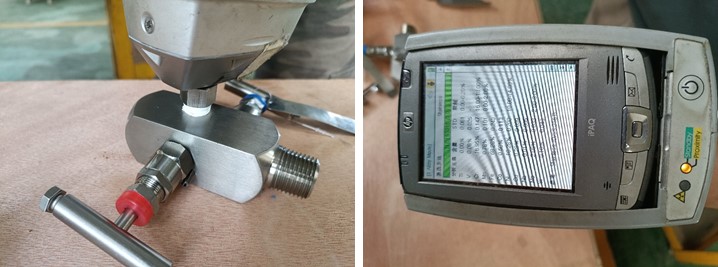

Spectrum

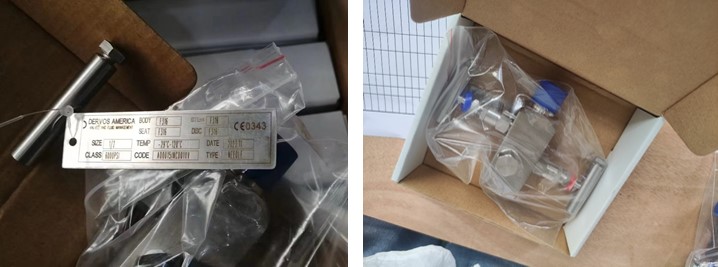

Nameplate & Packing

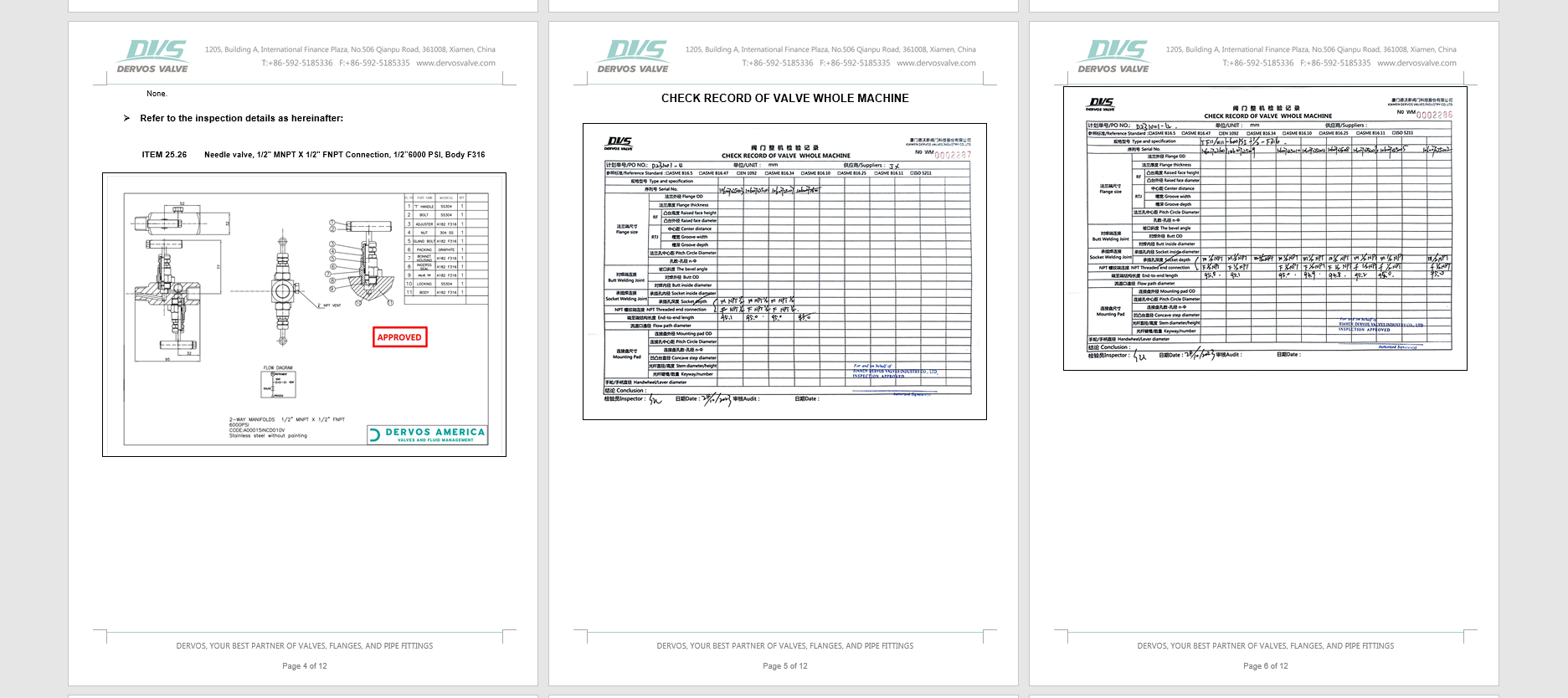

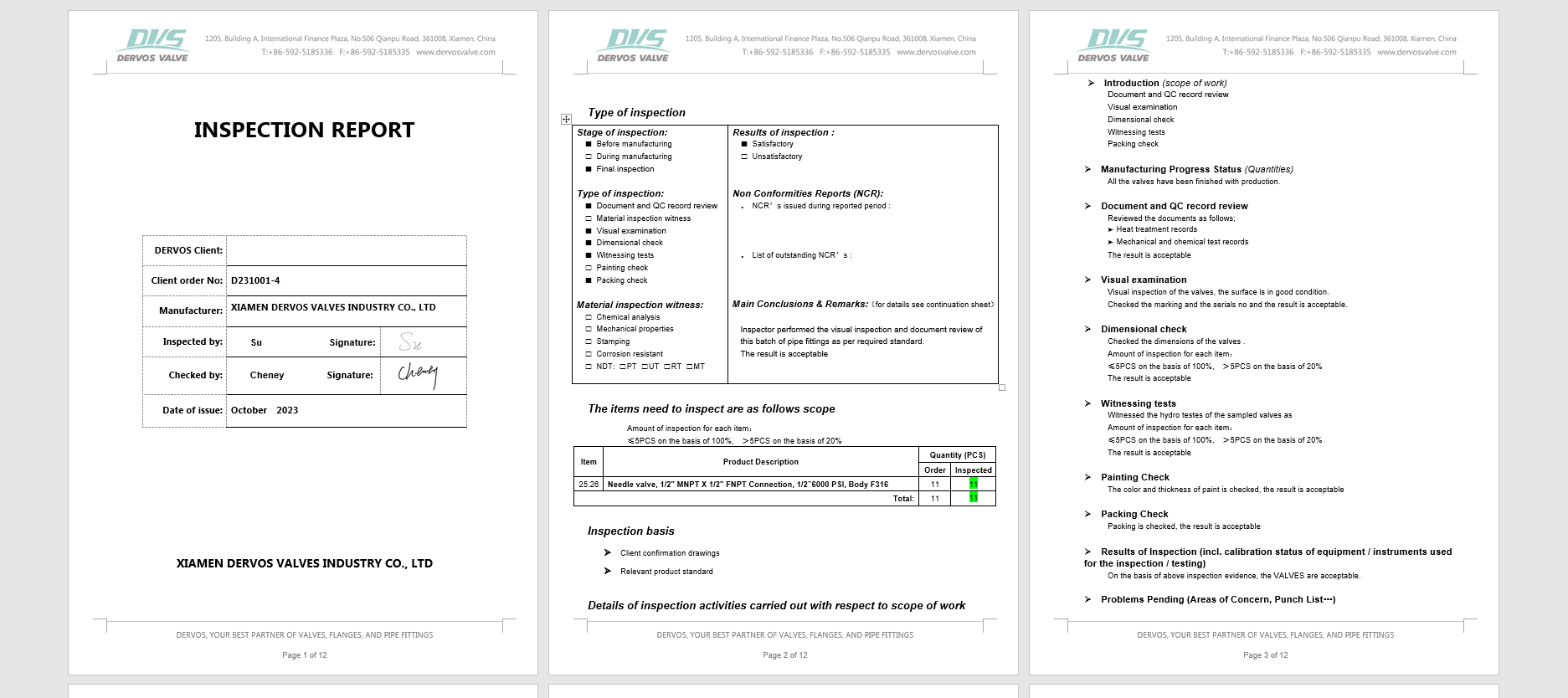

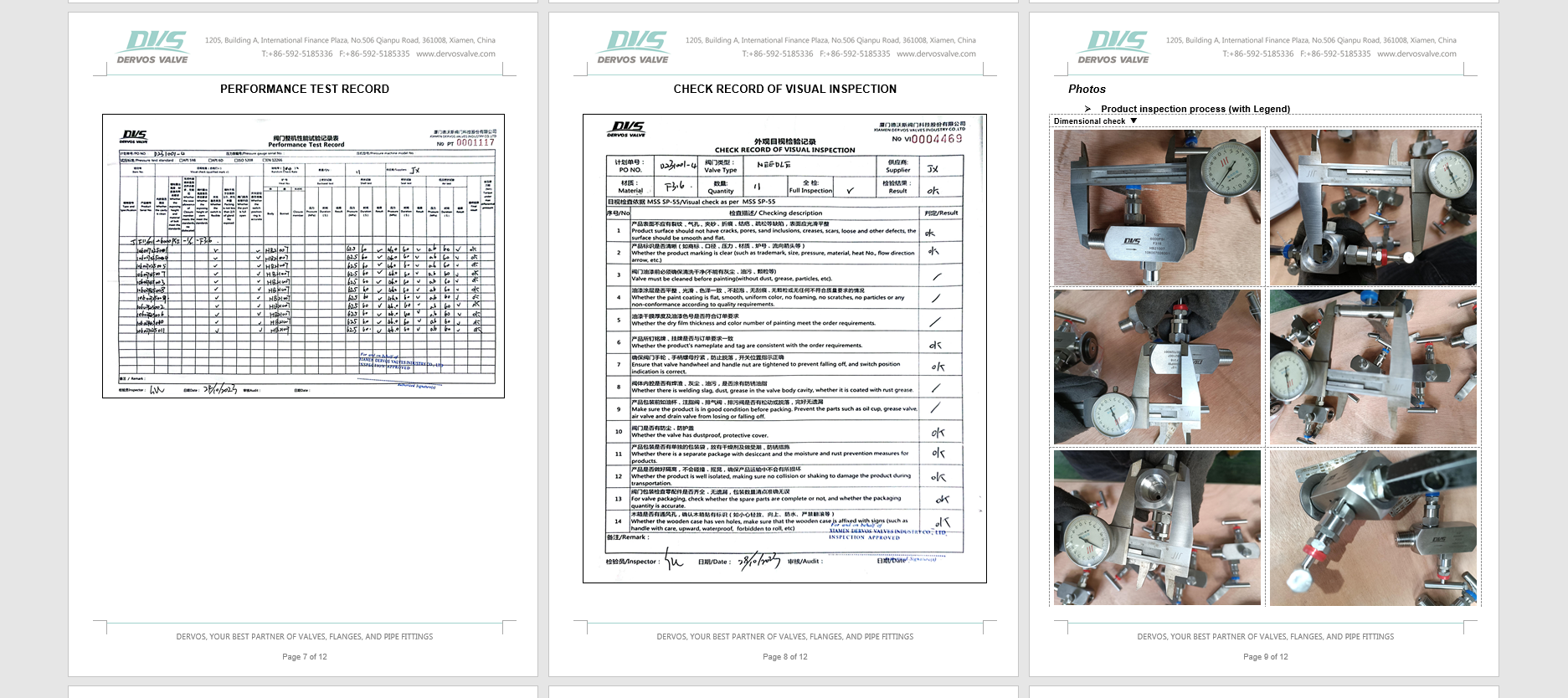

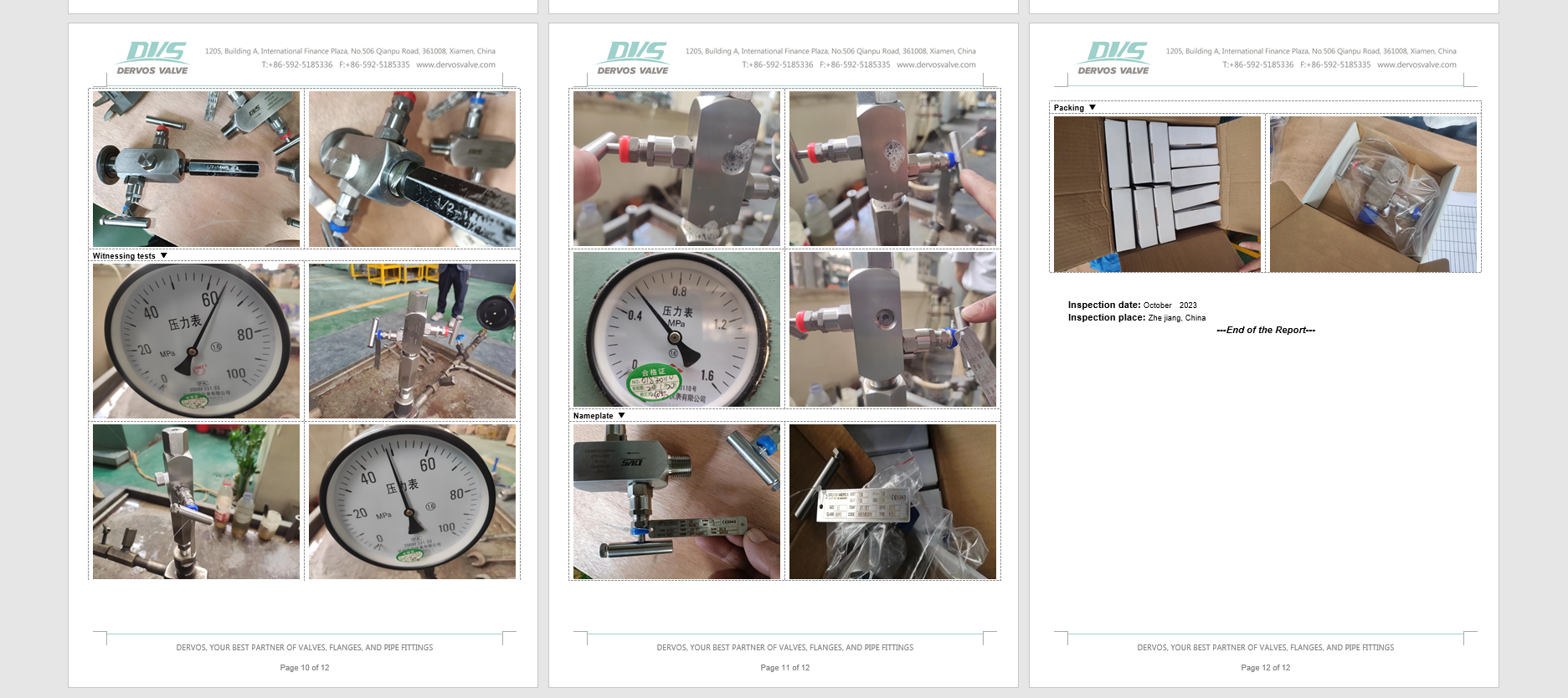

Inspection report
